Hydrology 2

Source Code

    1 REM This program has "bug           problems"--doesn't run          completely
  350 REM "hydrology2"
  360 PRINT AT 1,7;"Hydology #2"
  365 PRINT

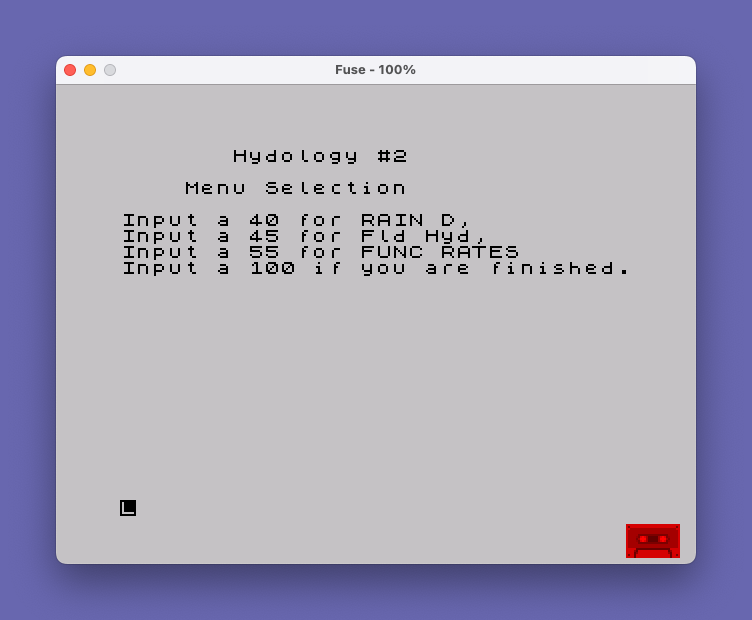

  370 PRINT AT 3,4;"Menu Selection"
  371 PRINT
  372 PRINT "Input a 40 for RAIN D,          Input a 45 for Fld Hyd,         Input a 55 for FUNC RATES       Input a 100 if you are finished."
  373 PRINT
  385 INPUT Number
  390 CLS
  395 GO TO Number*10
  400 REM "RAIN D"
  401 PRINT "PROGRAM DISTRIBUTES TOTAL        RAINFALL OR RAINFALL EXCESS (R) FOR N PERIODS "
  402 DIM F(24): DIM E(24)
  403 READ N,R,T$,Y$
  404 FOR I=1 TO N
  405 READ F(I)
  406 NEXT I
  407 PRINT TAB 10;T$
  408 PRINT
  409 PRINT TAB 5;Y$;TAB 10;R;"  IN. EXCESS"
  410 PRINT
  411 PRINT TAB 2;"TIME";TAB 12;"%";TAB 18;"RAIN"
  412 PRINT
  413 FOR I=1 TO N
  414 LET E(I)=R*F(I)
  415 PRINT TAB 2;I;TAB 10;F(I);TAB 18;E(I)
  416 NEXT I
  417 DATA 6,6.00,"LUTHER LAKE","100 YR"
  418 DATA .046,.078,.199,.490,.125,.063
  419 PRINT
  421 PRINT
  422 PRINT
  423 PRINT
  424 PRINT
  425 PRINT
  426 PRINT
  427 PRINT
  428 PRINT
  429 CLS
  430 GO TO 370
  450 REM "Fld Hyd"
  451 PRINT "LINE 1 OF DATA FILE IS TITLE OF STUDY"
  452 PRINT "LINE 2 IS NUMBER OF UNIT GRAPH ORDINATES,TIME INTERVAL,NUMBER OF RAINFALL EXCESSES"
  453 PRINT "LINES 3 & 4 - UNIT GRAPH"
  454 PRINT "LINE 5 & 6 - RAINFALL DATA"
  455 PRINT "DATA STARTS WITH LINE 600"
  456 DIM Q(30): DIM P(15): DIM U(15)
  457 READ T$
  458 READ NUHGQ,TR,NP
  459 FOR I=1 TO NUHGQ
  460 READ U(I)
  461 NEXT I
  462 FOR J=1 TO NP
  463 READ P(J)
  464 NEXT J
  465 PAUSE 80
  466 CLS
  467 PRINT TAB 10;"FLOOD HYDROGRAPH"
  468 PRINT TAB 16;"FOR"
  469 PRINT
  470 PRINT TAB 10;T$
  471 PRINT
  472 LET IHR=0
  473 LET NQ=NP+NUHGQ-1
  474 PRINT TAB 10;"IHR";TAB 16;"FLOW"
  475 PRINT
  476 FOR J=1 TO NQ
  477 LET SUMF=0
  478 IF (J-NUHGQ)>0 THEN GO TO 485
  479 FOR I=1 TO J
  480 LET K=J+1-I
  481 LET Q(J)=P(K)*U(I)
  482 LET SUMF=SUMF+Q(J)
  483 NEXT I
  484 GO TO 506
  485 LET J1=J-NUHGQ+1
  486 FOR I=J1 TO NP
  487 LET K=J+1-I
  488 LET Q(J)=P(I)*U(K)
  489 LET SUMF=SUMF+Q(J)
  490 NEXT I
  491 GO TO 506
  492 IF (J-NUHGQ)>0 THEN GO TO 506
  493 FOR I=1 TO NP
  494 LET K=J+1-I
  495 LET Q(J)=P(I)*U(K)
  496 LET SUMF=SUMF+Q(J)
  497 NEXT I
  498 GO TO 506
  499 LET J1=J-NUHGQ+1
  500 IF (J1-NP)>0 THEN GO TO 506
  501 FOR I=J1 TO NP
  502 LET K=J+1-I
  503 LET Q(J)=P(I)*U(K)
  504 LET SUMF=SUMF+Q(J)
  505 NEXT I
  506 LET IHR=IHR+1*TR
  507 PRINT
  508 PRINT TAB 10;IHR;TAB 16;SUMF
  509 NEXT J
  510 DATA "Willow lake  50 yr "
  511 DATA 12,.5,12
  512 DATA 93,632,489,220,83,30,11,4
  513 DATA 1,0,0,0
  514 DATA .11,.15,.20,.24,.36,.70,1.83
  515 DATA .84,.41,.27,.20,.15
  520 PRINT : PRINT : PRINT : PRINT : PRINT : PRINT : PRINT : PRINT
  525 GO TO 372
  550 REM "FUNC RATES"
  551 PRINT "S+Q/2 AND S-Q/2 DATA"
  552 PRINT TAB 7;"FOR"
  553 DIM H(10): DIM A(10): DIM Q(10): DIM S(10): DIM B(10): DIM C(10): DIM D(10)
  554 READ N,ELEVD,TR
  555 FOR I=1 TO N
  556 READ H(I),A(I),Q(I)
  557 NEXT I
  558 LET SUM=0
  559 LET T$="Willow Lake"
  560 FOR I=2 TO N
  561 LET S(I)=((A(I)+A(I-1))/2+SUM)*ELEVD
  562 LET SUM=S(I)
  563 LET B(I)=S(I)*43560/10800
  564 LET NUM=B(I)*10
  565 LET B(I)=INT NUM/10
  566 LET C(I)=B(I)-(Q(I))/2
  567 LET D(I)=B(I)+(Q(I))/2
  568 NEXT I: PRINT
  569 PRINT TAB 8;T$
  570 PRINT
  571 PRINT "HEAD";TAB 6;"AREA";TAB 12;"DISCH";TAB 18;"STORAGE"
  572 PRINT
  573 FOR I=1 TO N
  574 PRINT H(I);TAB 6;A(I);TAB 12;Q(I);TAB 18;S(I)
  575 NEXT I
  576 PRINT
  577 PRINT "HEAD";TAB 6;"S/TR";TAB 12;"S/TR-Q/2";TAB 21;"S/TR+Q/2"
  578 PRINT
  579 FOR I=1 TO N
  580 PRINT H(I);TAB 5;B(I);TAB 13;C(I);TAB 21;D(I)
  581 NEXT I
  582 PRINT "PLOT THIS DATA ON LOG-LOG PAPER"
  583 DATA 6,1,1
  584 DATA 0,670,0,1,700,950
  585 DATA 2,730,2680,3,760,4940
  586 DATA 4,790,7600,5,820,10620
  587 PRINT
  595 GO TO 372
 1000 STOP
