An adjustable-accuracy on-screen clock, useful for ham radio.
Content
Image Gallery
Source Code
10 REM "DIGICLOK 2"
20 REM Precision Digital Clock
30 REM © By Frank Bouldin, 10/23/85; ALL RIGHTS RESERVED
40 REM To adjust clock speed,change value of BEEP duration (clock "ticks") in line 2010 (Default value is .05105). De- crease in value makes clock run faster. PAUSE values in lines 2020-2070 are fine trim inser- tions (see documentation).
50 REM Follow INPUT prompts to set clock time
90 GO SUB 4000
100 REM NESTED TIMING LOOPS
110 FOR A=L TO H STEP 20: LET Y=0: LET W=K: IF A=H THEN LET L=G
120 IF A=1050 THEN LET W=1070
130 GO SUB A
140 FOR B=M TO W STEP 20: LET Y=4: IF B=W THEN LET M=G
150 GO SUB B
160 FOR C=N TO J STEP 20: IF C=J THEN LET N=G
170 LET Y=12: GO SUB C
180 FOR D=T TO K STEP 20: IF D=K THEN LET T=G
190 LET Y=16: GO SUB D
200 FOR E=G TO J STEP 20: LET Y=24: GO SUB E
210 IF U=0 THEN PRINT FLASH 1; INK 1;AT 20,0;" -Press any key to start clock- "
220 IF U=0 THEN PAUSE 0: LET U=1
230 IF U=1 THEN PRINT AT 20,0;" ": LET U=2
240 LET Y=28: FOR F=G TO K STEP 20: GO SUB F: GO SUB 2000: NEXT F: NEXT E: NEXT D: NEXT C: NEXT B: NEXT A: GO TO 110
1000 REM "0"
1010 PRINT AT X,Y;"███";AT X+1,y;"█ █";AT X+2,Y;"█ █";AT X+3,Y;"█ █";AT X+4,Y;"█ █";AT X+5,Y;"█ █";AT X+6,Y;"███": RETURN
1020 REM "1"
1030 PRINT AT X,Y;"▐█ ";AT X+1,Y;" █ ";AT X+2,Y;" █ ";AT X+3,Y;" █ ";AT X+4,Y;" █ ";AT X+5,Y;" █ ";AT X+6,Y;"▐█▌ ": RETURN
1040 REM "2"
1050 PRINT AT X,Y;"███";AT X+1,Y;"▀ █";AT X+2,Y;" █";AT X+3,Y;"███";AT X+4,Y;"█ ";AT X+5,Y;"█ ▄";AT X+6,Y;"███": RETURN
1060 REM "3"
1070 PRINT AT X,Y;"███";AT X+1,Y;"▀ █";AT X+2,Y;" █";AT X+3,Y;"▐██";AT X+4,Y;" █";AT X+5,Y;"▄ █";AT X+6,Y;"███": RETURN
1080 REM "4"
1090 PRINT AT X,Y;"█ █";AT X+1,Y;"█ █";AT X+2,Y;"█ █";AT X+3,Y;"███";AT X+4,Y;" █";AT X+5,Y;" █";AT X+6,Y;" █": RETURN
1100 REM "5"
1110 PRINT AT X,Y;"███";AT X+1,Y;"█ ";AT X+2,Y;"█ ";AT X+3,Y;"███";AT X+4,Y;" █";AT X+5,Y;"▄ █";AT X+6,Y;"███": RETURN
1120 REM "6"
1130 PRINT AT X,Y;"███";AT X+1,Y;"█ ▀";AT X+2,Y;"█ ";AT X+3,Y;"███";AT X+4,Y;"█ █";AT X+5,Y;"█ █";AT X+6,Y;"███": RETURN
1140 REM "7"
1150 PRINT AT X,Y;"███";AT X+1,Y;"▀ █";AT X+2,Y;" █";AT X+3,Y;" █";AT X+4,Y;" █";AT X+5,Y;" █";AT X+6,Y;" █": RETURN
1160 REM "8"
1170 PRINT AT X,Y;"███";AT X+1,Y;"█ █";AT X+2,Y;"█ █";AT X+3,Y;"███";AT X+4,Y;"█ █";AT X+5,Y;"█ █";AT X+6,Y;"███": RETURN
1180 REM "9"
1190 PRINT AT X,Y;"███";AT X+1,Y;"█ █";AT X+2,Y;"█ █";AT X+3,Y;"███";AT X+4,Y;" █";AT X+5,Y;"▄ █";AT X+6,Y;"███": RETURN
2000 REM Clock speed adjust
2010 BEEP .05105,34
2015 REM 1 PAUSE every 24 hours (AT 00:00:00)
2020 IF A=G AND B=G AND C=G AND D=G AND E=G AND F=G THEN PAUSE 26: RETURN
2025 REM 2 PAUSEs every 24 hours (at 10:00:00 and 20:00:00)
2030 IF B=G AND C=G AND D=G AND E=G AND F=G THEN PAUSE 28: RETURN
2035 REM 1 PAUSE each hour on the hour, (except at 00:00:00, 10:00:00 and 20:00:00)
2040 IF C=G AND D=G AND E=G AND F=G THEN PAUSE 30: RETURN
2045 REM 1 PAUSE every 10 min. (except at the above times)
2050 IF D=G AND E=G AND F=G THEN PAUSE 32: RETURN
2055 REM 1 PAUSE each minute (except for the above times)
2060 IF E=J AND F=W THEN PAUSE 34: RETURN
2065 REM 1 Pause every 10 sec. (except for the above times)
2070 IF F=W THEN PAUSE 39: RETURN
2075 REM 1 PAUSE every second (except for the above times)
2080 PAUSE 44: RETURN
2999 REM Clock digit settings
3000 LET Y=0: FLASH 1: GO SUB G
3005 INPUT " ENTER first digit ";V: FLASH 0
3010 IF V=0 THEN LET L=G: GO SUB G
3020 IF V=1 THEN LET L=O: GO SUB O
3030 IF V=2 THEN LET l=H: GO SUB h
3040 IF V>2 THEN GO TO 3000
3050 LET Y=4: FLASH 1: GO SUB G
3055 INPUT " ENTER second digit ";Z: FLASH 0
3060 IF Z=0 THEN LET M=G: GO SUB G
3070 IF Z=1 THEN LET M=O: GO SUB O
3080 IF Z=2 THEN LET M=H: GO SUB H
3090 IF Z=3 THEN LET M=I: GO SUB I
3100 IF Z=4 THEN LET M=P: GO SUB P
3101 IF Z=5 THEN LET M=J: GO SUB J
3102 IF Z=6 THEN LET M=Q: GO SUB Q
3103 IF Z=7 THEN LET M=R: GO SUB R
3104 IF Z=8 THEN LET M=S: GO SUB S
3105 IF Z=9 THEN LET M=K: GO SUB K
3106 IF Z>9 THEN GO TO 3050
3108 IF V>1 AND Z>3 THEN LET Y=4: GO SUB G: GO TO 3000
3110 LET Y=12: FLASH 1: GO SUB G
3115 INPUT " ENTER third digit ";Z: FLASH 0
3120 IF Z=0 THEN LET N=G: GO SUB G
3130 IF Z=1 THEN LET N=O: GO SUB O
3140 IF Z=2 THEN LET N=H: GO SUB H
3150 IF Z=3 THEN LET N=I: GO SUB I
3160 IF Z=4 THEN LET N=P: GO SUB P
3170 IF Z=5 THEN LET N=J: GO SUB J
3180 IF Z>5 THEN GO TO 3110
3190 LET Y=16: FLASH 1: GO SUB G
3195 INPUT " ENTER fourth digit ";Z: FLASH 0
3200 IF Z=0 THEN LET T=G: GO SUB G
3210 IF Z=1 THEN LET T=O: GO SUB O
3220 IF Z=2 THEN LET T=H: GO SUB H
3230 IF Z=3 THEN LET T=I: GO SUB I
3240 IF Z=4 THEN LET T=P: GO SUB P
3250 IF Z=5 THEN LET T=J: GO SUB J
3260 IF Z=6 THEN LET T=Q: GO SUB Q
3270 IF Z=7 THEN LET T=R: GO SUB R
3280 IF Z=8 THEN LET T=S: GO SUB S
3290 IF Z=9 THEN LET T=K: GO SUB K
3300 IF Z>9 THEN GO TO 3190
3310 RETURN
4000 REM Initialization
4010 CLS : POKE 23609,100
4020 BORDER 7: PAPER 7: INK 0

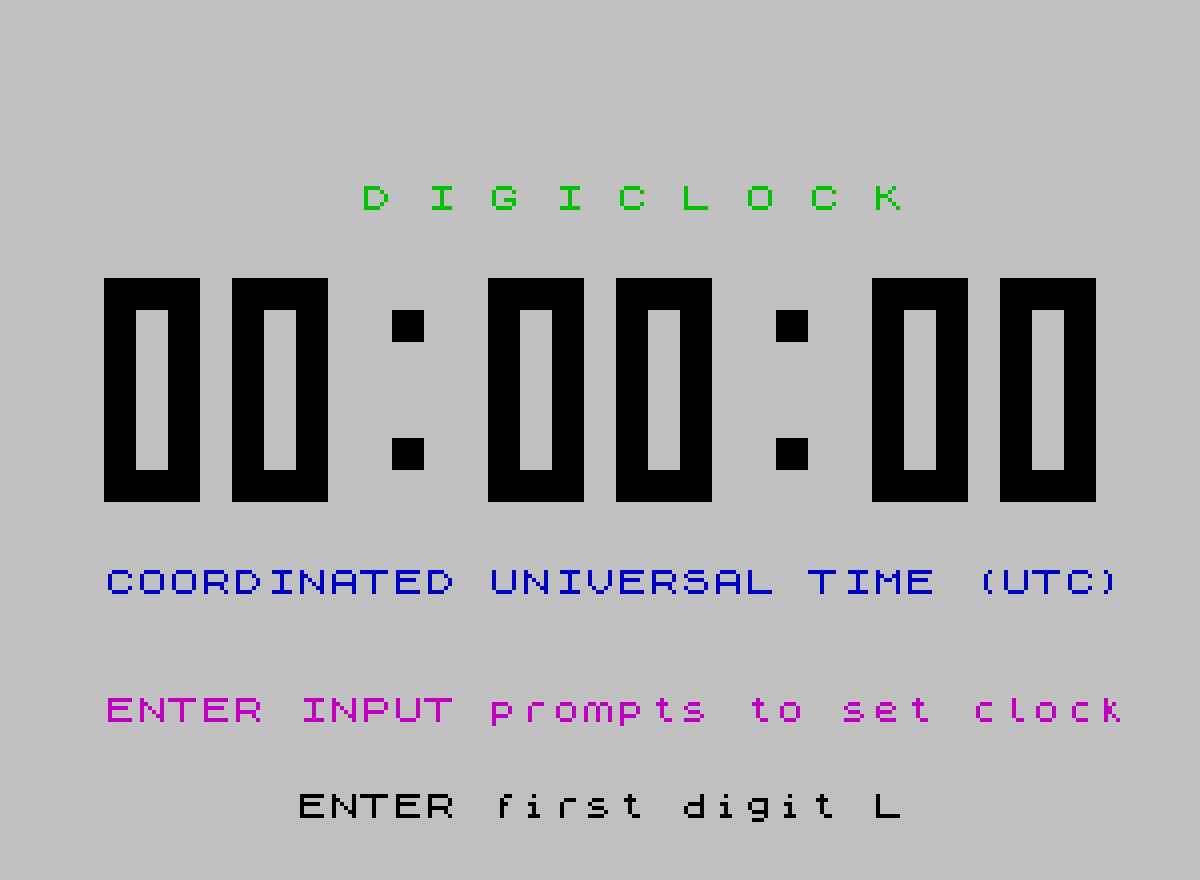

4030 PRINT INK 4;AT 4,8;"D I G I C L O C K"; INK 3;AT 20,0;"ENTER INPUT prompts to set clock"; INK 1;AT 16,0;"COORDINATED UNIVERSAL TIME (UTC)"
4040 PRINT AT 8,9;"█";AT 8,21;"█";AT 12,9;"█";AT 12,21;"█"
4050 LET B=0: LET X=7: LET Y=0: GO SUB 1010: LET Y=4: GO SUB 1010: LET Y=12: GO SUB 1010: LET Y=16: GO SUB 1010: LET Y=24: GO SUB 1010: LET Y=28: GO SUB 1010.
4060 LET G=1010: LET H=1050: LET I=1070: LET J=1110: LET K=1190: LET L=1010: LET M=1010: LET N=1010
4070 LET O=1030: LET P=1090: LET Q=1130: LET R=1150: LET S=1170: LET T=1010: LET U=0: LET W=1190
4080 GO SUB 3000: RETURN
9999 CLEAR : SAVE "DIGICLOK 2" LINE 1
