Machine Code Monitor

Source Code

    1 REM MONITOR PROGRAM
    2 REM
   10 GO TO 9000
   11 REM
   12 REM Format 1 byte
   13 REM
   20 IF NOT h THEN LET a$="  "+STR$ a: LET a$=a$(LEN a$-2 TO ): RETURN
   30 LET a$="  "
   40 FOR x=LEN a$ TO 1 STEP -1: LET b=a-INT (a/16)*16: LET a$(x)=CHR$ (b+48+7*(b>9)): LET a=INT (a/16): NEXT x: RETURN
   50 REM
   51 REM Format 2 bytes
   52 REM
   60 IF NOT h THEN LET a$="    "+STR$ a: LET a$=a$(LEN a$-4 TO ): RETURN
   70 LET a$="    ": GO TO 40
  100 REM
  101 REM Input n
  102 REM
  110 LET a$="Invalid number; try again"
  120 REM
  121 REM Start here
  122 REM
  130 LET n=0: INPUT (a$+" "); LINE b$
  140 FOR x=1 TO LEN b$: LET b=CODE b$(x)-48: IF h THEN GO TO 170
  150 IF b<0 OR b>9 THEN GO TO 110
  160 LET n=INT n+b*10^(LEN b$-x): NEXT x: RETURN
  170 IF b<0 OR b>9 AND b<17 OR b>22 THEN GO TO 110
  180 LET b=b-7*(b>9): LET n=INT n+b*16^(LEN b$-x): NEXT x: RETURN
  200 REM
  201 REM Get 1
  202 REM
  210 GO SUB 120: IF n<0 OR n>65535 THEN LET a$=y$: GO TO 210
  220 RETURN
 1000 REM
 1001 REM EXAMINE
 1002 REM
 1010 CLS : PRINT INVERSE 1;"M"; INVERSE 0;"enu,"; INVERSE 1;"N"; INVERSE 0;"ewaddress,"; INVERSE 1;"A"; INVERSE 0;"lter,"; INVERSE 1;"6&7"; INVERSE 0;" scroll": LET a$=z$
 1020 GO SUB 200: IF n>65516 THEN LET a$="Too high; re-enter": GO TO 1020
 1030 LET c=0: LET l=n: PRINT AT 2,0;: FOR y=0 TO 19: LET p=y: GO SUB 1210: NEXT y: GO SUB 1190
 1040 LET a$=INKEY$: IF a$="A" OR a$="a" THEN GO TO 1100
 1050 IF a$="6" THEN GO TO 1130
 1060 IF a$="7" THEN GO TO 1160
 1070 IF a$="M" THEN CLS : RETURN
 1080 IF a$="N" THEN GO SUB 1200: LET a$=z$: GO TO 1020
 1090 GO TO 1040
 1100 LET a$="New value"
 1110 GO SUB 120: IF n>255 THEN LET a$=y$: GO TO 1110
 1120 POKE l+c,n: LET p=c: GO SUB 1210
 1130 IF c<>19 THEN GO SUB 1200: LET c=c+1: GO SUB 1190: GO TO 1040
 1140 IF l>65515 THEN GO TO 1040
 1150 LET l=l+1: RANDOMIZE USR 23335: GO SUB 1190: LET p=c: GO SUB 1210: GO TO 1040
 1160 IF c<>0 THEN GO SUB 1200: LET c=c-1: GO SUB 1190: GO TO 1040
 1170 IF NOT l THEN GO TO 1040
 1180 LET l=l-1: RANDOMIZE USR 23350: LET p=c: GO SUB 1210: GO TO 1040
 1190 PRINT AT c+2,0;"Address>>";AT c+2,22;"<<Contents": RETURN
 1200 PRINT AT c+2,0;TAB 9;AT c+2,22,: RETURN
 1210 LET a=l+p: GO SUB 50: PRINT AT p+2,9;a$;"     ";: LET a=PEEK (l+p): GO SUB 20: PRINT a$: RETURN
 2000 REM
 2001 REM ENTER CODE
 2002 REM
 2010 CLS : PRINT "Mode 2 allows you to enter code";AT 4,2;"ENTER A VALUE OUT OF RANGE TO"'TAB 7;"RETURN TO THE MENU";AT 10,2;"Current address = "
 2020 LET a$=z$: GO SUB 200: LET l=n
 2030 LET a=l: GO SUB 50: PRINT AT 10,20;a$: LET a$="Code": GO SUB 120: IF n<0 OR n>255 THEN RETURN
 2040 POKE l,n: LET l=l+1*(l<65535): GO TO 2030
 3000 REM
 3001 REM SAVE CODE
 3002 REM
 3010 CLS : PRINT "Mode 3 will save code on tape"
 3020 LET a$=z$: GO SUB 200: LET l=n: LET a=n: GO SUB 50: PRINT AT 6,4;z$;" = ";a$
 3030 LET a$="Number of bytes": GO SUB 200: LET s=n: LET a=n: GO SUB 50: PRINT AT 8,2;"Length of block = ";a$
 3040 INPUT "Name of file ";a$: SAVE a$CODE l,s
 3050 PRINT AT 12,3;"REWIND TAPE AND CHECK "'TAB 6;a$;'': VERIFY a$CODE l,s
 3060 INPUT "O.K. --- Press enter for menu";a$: RETURN
 4000 REM
 4001 REM RUN CODE
 4002 REM
 4010 CLS : PRINT "Mode 4 will run machine code"
 4020 LET a$=z$: GO SUB 200: LET a=n: GO SUB 50: PRINT AT 6,3;"The code will be run from";8,12;a$;AT 12,3;"Press :- R to run code";AT 14,13;"N to change address";AT 16,13;"M for the menu"
 4030 LET a$=INKEY$: IF a$="M" THEN RETURN
 4040 IF a$="N" THEN GO TO 4010
 4050 IF a$<>"R" THEN GO TO 4030
 4060 CLS : PRINT USR n: INPUT "Code has run; press ENTER";a$: RETURN
 5000 REM
 5001 REM CHANGE BASE
 5002 REM
 5010 CLS : PRINT AT 3,2;"The Monitor program now works";AT 5,4;"with numbers to the base": IF h THEN GO TO 5030
 5020 LET h=1: PRINT AT 8,12;"SIXTEEN": GO TO 5040
 5030 LET h=0: PRINT AT 8,14;"TEN":
 5040 INPUT "Press ENTER for the menu";a$: RETURN
 6000 REM
 6001 REM CONVERT NUMBER
 6002 REM
 6010 LET t=h: CLS : PRINT AT 4,6;"TO CONVERT:-";AT 8,5;"Hex to decimal press H";AT 10,5;"Decimal to hex press D";AT 15,7;"For the menu press M"
 6020 LET a$=INKEY$: IF a$="" THEN GO TO 6020
 6030 IF a$="M" THEN LET h=t: RETURN
 6040 IF a$="D" THEN GO TO 6070
 6050 IF a$="H" THEN GO TO 6100
 6060 GO TO 6020
 6070 LET a$="Decimal": LET h=0
 6080 GO SUB 200
 6090 LET a=n: LET h=1: GO SUB 60: PRINT #1;"Hex = ";a$: GO TO 6020
 6100 LET a$="Hex": LET h=1
 6110 GO SUB 200
 6120 PRINT #1;"Decimal = ";n: GO TO 6020
 8000 REM

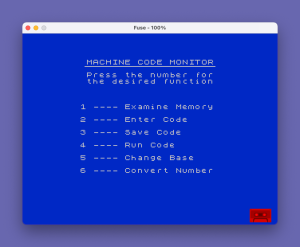

 8001 REM MENU
 8002 REM
 8010 CLS : PRINT AT 1,6;"MACHINE CODE MONITOR": PLOT 46,158: DRAW 163,0
 8020 PRINT AT 3,6;"Press the number for";AT 4,6;"the desired function"
 8030 RESTORE : FOR x=1 TO 6: READ a$: PRINT AT x*2+6,5;x;" ---- ";a$: NEXT x
 8040 LET a=CODE INKEY$-48: IF a<1 OR a>6 THEN GO TO 8040
 8050 GO SUB A*1000: GO TO 8000
 8060 DATA "Examine Memory","Enter Code","Save Code","Run Code","Change Base","Convert Number"
 9000 REM
 9001 REM Set up
 9002 REM
 9010 INK 7: PAPER 1: BORDER 1: POKE 23658,8
 9020 LET h=0: LET z$="Start Address": LET y$="Out of range; try again"
 9030 RESTORE 9200: FOR x=23296 TO 23364: READ a: POKE x,a: NEXT x
 9100 GO TO 8000
 9200 DATA 245,230,24,246,64,103,241,245,230,7,15,15,15,198,9,11,241,201
 9210 DATA 205,0,91,6,8,197,1,13,0,213,229,237,176,225,209,36,20,193,16,241,201
 9220 DATA 62,2,205,0,91,235,60,205,18,91,254,21,32,244,201
 9230 DATA 62,21,205,0,91,235,61,205,18,91,254,2,32,244,201
