Bank Switching Controller Chip (Functional Specification)

Author(s): David Ornstein
Pages: 6
Date: 1983

A chip is designed to support bank switching in an expansion bank. This document describes the functions supported by the chip. It is assumed that the reader is familiar with bank switching as implemented on the TS 2000.

ADDRESSING

The bank switching controller chip (BSCC) contains 4 memory-mapped I/O ports. These I/O ports, and their functions are shown in figure one below:

RegisterAddressReadWrite
04000hHS-LSNHS
1A000hHS-MSNBNA
2C000hSTATUS-LABN/HS’
3E000hSTATUG-GCMD
Figure one

The functions listed in the READ and WRITE columns access internal registers within the BSCC. These registers are described, in detail, below in the section titled Register Functions.

The BSCC operates in an environment controlled by a 4-bit data bus. The notations LSN (least-significant-nybble), and MSN (most-significant-nybble) are used freely throughout this document.

REGISTER FUNCTIONS

BNA – Bank Number Accessed

Each bank has associated with it a unique Bank Number. This number (stored in the ABN register – see below) is assigned to the bank by the operating system during the system initialization phase, and is 8-bits wide.

The functional domain, under which bank switching on the TS 2000 occurs, may be divided into two sections. The first type of operation is called GLOBAL. A Global operation is an operation that is performed on all banks. The second type of operation is called LOCAL. A Local operation is performed only on a single, specified bank.

To facilitate specification of this single bank, an 8-bit register is implemented in each bank. This is the BNA register. Writing to the BNA register is a Global operation.

The bank in which a requested Local operation is to occur is determined by comparing the BNA register with the bank number assigned to each bank during initialization. The bank in which this comparison yields true is the bank in which the operation will occur.

Because the BSCC operates in a 4-bit wide environment, steering logic is utilized to control the writing of a byte to an 8-bit internal register.

An example of the scheme used is shown below:

; Write number in D register to BNA register
LD A,2
LD (E000h),A     ; Reset steering logic
LD A,D           ; Get data
LD (A000h),A     ; Write LSN
LD A,D           ; Get data
SRA A            ; Shift right
SRA A 3          ; 4 bits
SRA A
SRA A
LD (A000h),A     ; Write MSN

The two (2) written to E000h (register 3) is used to reset the steering logic so that the first nybble written will be placed in the LSN of the destination register. After writing the LSN, the next received nybble, at the same address, will be placed in the MSN of the destination register. The following registers utilize this nybble-steering scheme:

ABN – Assigned Bank Number
BNA – Bank number Accessed
HS – Horizontal Select
HS’ – Horizontal Select (Protect Mode)

ABN – Assigned Bank Number

As described above, each bank has associated with it a unique bank number. That number is stored within the ABN register.

HS – Horizontal Select

The horizontal select register is used to specify which chunks are enabled within the given bank. Bit 9% corresponds to PPPP-1FFFh. Bit 1 corresponds to 2000-3FFFh, and so forth.

Writing to the HS register will cause the data being written to be latched into the current bank (i.e., ABN=BNA).

HS’ – Horizontal Select (Protect Mode)

If, within two different banks, the same chunk is enabled and then an address within that chunk is accessed, both banks will respond to the access. This may have unpredictable effects.

Conceptually the method that should be utilized to avoid this “Horizontal Conflict” is effected by performing the following actions:

  1. Want to write data in D register to HS of bank E.
  2. For index = 1 to Maxbank.
  3. Read back current Horizontal Select value for bank number index.
    If any bit in D is set in the read-back HS data, then reset the corresponding bit in the read-back HS data byte.
    Write back the new “protected” HS data to bank index.
  4. Next index.
  5. Write out D to HS in bank E.

If performed in software, this function will take quite a substantial period of time. Thus, a decision was made to support this “protect-mode” function in the BSCC.

Writing to the HS’ register operates in the same way that writing to HS does, with one exception: any expansion bank that is not the one currently active (i.e., BNA=ABN), will take the data being written to HS’, and turn off the appropriate bits in their Horizontal Select registers.

With this scheme in place, it is suggested that only the HS’ register should be written to, and that, excepting unforeseeable circumstances, the HS register should not be written to.

HS-LSN Horizontal Select LSN Read-back

By reading this register, fhe programmer may determine the LSN of the currently active bank’s HS register.

HS-MSN Horizontal Select MSN Read~back

By reading this register, the programmer may determine the MSN of the currently active bank’s HS register.

CMD – Command Register

Through this register, various commands may be issued to the BSCCs in the system. Table One, below, shows the command implement in the BSCC.

CommandNameFunction
0RESETReset daisy chain and enter initialization mode.
1STEPStep to next unit in the daisy chain.
2LOWNYBReset nybble – steering logic.
3-4Reserved
5RINTReset interrupt-caused flag
6-15Unused

The RESET and STEP commands are described in the section entitled The Daisy Chain. The LOWNYB command, as described under BNA, is used to reset the nybble-steering logic. The RINT command is described in the section entitled Interrupts.

STATUS-L – Local Status

of this register is clearly a Local operation. The function of each bit is described below. An overview of the available functions is given below in Table Two.

BitFunction
0Interrupt caused (active low)
1Not used
2Bank responding (active low)
3INIT mode (active high)

The Interrupt Caused bit is described in the section entitled Interrupts. The Bank Responding, and INIT mode bits are described in the section entitled The Daisy Chain.

STATUS-G – Global Status

The function of the Global Status register is to allow the TS 2000’s system software to determine, quickly, whether for any received interrupt, that interrupt was caused by an expansion bank.

If any expansion bank did cause the interrupt, then that bank (or those banks) will pull bit 2 of the STATUS-G register low.

INTERRUPTS

This section will describe the facility of the BSCC to support a bank-oriented interrupt structure. On the BSCC, there are two pins which support bank-oriented interrupts: /INTRQ and /LOCALIAK.

When an expansion bank wishes to interrupt the CPU, it pulses the /INTRQ line. This sets bit 0 in the STATUS-L register, and causes an interrupt to received by the CPU.

The CPU will then, if interrupts were enabled (and EI instruction), respond with the standard Z80 interrupt-acknowledge reply. The receipt reception of this acknowledge in any bank where the “interrupt caused” bit is set in STATUS-L causes the LOCALIAK line to pulse.

The CPU then checks to see if the interrupt was caused by an expansion bank by reading STATUS-G. If the interrupt was not caused by an expansion bank, the system assumes that the interrupt received was an internal one, and proceeds appropriately by scanning the keyboard and returning from the interrupt handler.

If the CPU determines, by reading STATUS-G that the interrupt was caused by an expansion bank, then it goes out and asks each bank if it caused the interrupt. This polling is achieved by checking each bank’s STATUS-L register. If bit 0 (“Interrupt Caused”) is low, then that bank caused an interrupt. Any bank which responds in the affirmative to this query is added to the “Interrupt-Process Pending” queue.

After adding a given bank X to the queue, the system sends command 5 to bank X so that bank X can reset its “interrupt-caused” bit. This also causes the /LOCALIAK line to be pulsed. When done with this polling operation, the system then processes the queue.

The Daisy Chain

In order to initialize the system’s expansion banks, a serial daisy chain is implemented. The daisy chain is reset, and the BSCCs in the system enter initialization mode when a RESET command (CMD 0) is received. This is a Global command. When the system is in initialization mode, writing to register 2 operates on the ABN register. When the system is in normal mode, register 2 switches over to access the HS’ register, leaving ABN inaccessible.

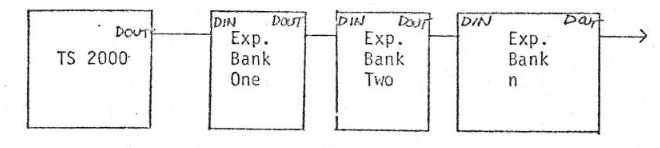

The daisy chain is illustrated in Figure two (2), below:

Figure Two

When initialization mode is entered the ABN register is set to [garbled] The Horizontal Select register is reset to “all-Chunks off”.

When in initialization mode, only one bank is active at a time. Upon RESET, Expansion Bank One (the first in the Daisy Chain) is active, and all other expansion banks are not. With each successive STEP command issued, the next bank in the chain becomes active and the one before it becomes inactive.

After each STEP command, the system shall read STATUS-L, and look at bit 2. If bit 2 is high, then there are no more banks in the daisy chain, and the BSCCs have automatically reset themselves to “Normal” mode.

The system’s mode of operation may be determined by looking at bit 3 of STATUS-L. If this bit is high, then the system is in Initialization mode. If this bit is low, then the system is in Normal mode.
