A Cursor Pad

A neat way of selecting from a menu or a collection of items on the screen is to move the cursor to the desired item. There is nothing new about this idea:- many games and commercial programs use this tequnique. On our keyboard, moving the cursor is somewhat awkward: hold the cap shift down while pressing 5 6 7 or 8. Some of our more expensive cousins have special keys for moving the cursor.

The cursor pad described here simulates these special keys. It plugs into a joystick port and, with appropriate software, moves the cursor around the screen.

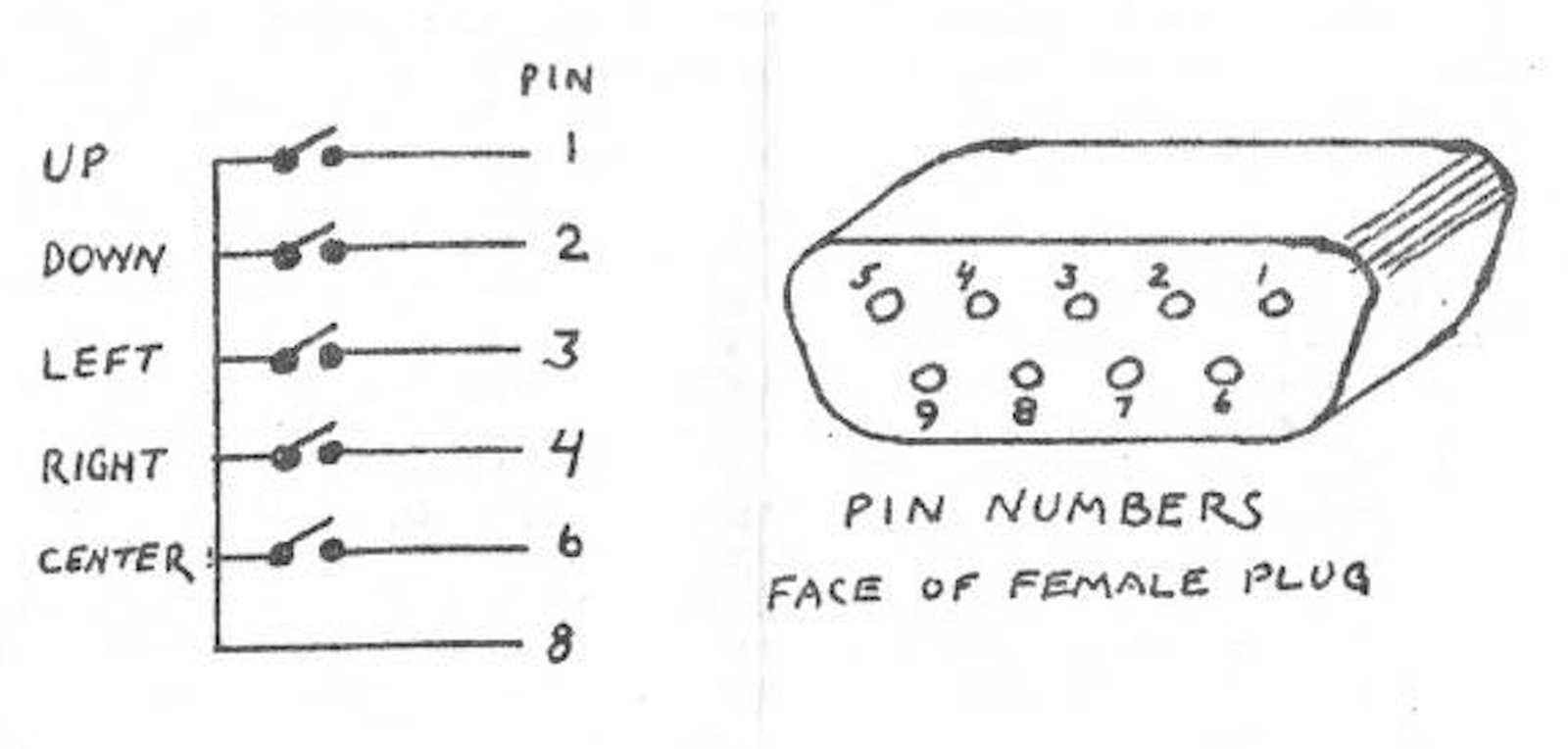

The gadget consists of a small plastic box (mine is 2″ by 3″ by 1″). Mounted in the top are 5 normally-open push button switches. Four are in a diamond pattern: up, down, left, right. The fifth is in the center and acts as the ENTER key. All these are available at Radio Shack.

For the plug that attaches this to the joystick port, I found an elegant solution at Toys’R’Us:- an extension cord for Atari joysticks. I cut this in half, and used the female end for the cursor pad. Wes Brzozowski described an alternative plug in his Light Pen article in Sep/Oct ’86 SINCUS NEWS.

In this example of the software I use, the cursor moves vertically only. Statements 400-500 simply create and display a list of items; your own program would obviously have a different list. The subprogram that controls the cursor is in statements 200-280. This routine requires values for K and L, which set bounds to the movement of the cursor, and which are supplied by statements 110 and 120. When the center key is pressed,the cursor pad subprogram returns in I the number of the selected item.

Try it, with your joystick in the right-hand port!

  1>REM ** CURSOR PAD DEMO **
  2
 50 GO SUB 400
 60
100    REM  SET CURSOR BOUNDS
110 LET K=2: REM ROW # OF FIRST ITEM
120 LET L=11: REM ROW # OF LAST ITEM
130 GO SUB 200
140
180    REM  USE SELECTION
190 CLS : PRINT A$(I): STOP
199
200    REM  CURSOR PAD
210 LET I=L: OVER 1
220 GO SUB 280
230 IF STICK(1,2)<>0 THEN GO SUB 280: GO TO 260
240 IF STICK(2,2)=0 THEN GO TO 230
250 GO SUB 280: OVER : LET I=I-K+1: RETURN
260 LET I=I-(STICK(1,2)=1 AND I>K)+(STICK(1,2)=2 AND I<L)
270 PAUSE 10: GO TO 220
280 PRINT AT I,0; INVERSE 1;" ": RETURN
299
400    REM  CREATE LIST
405 DIM A$(10,7)
410 FOR I=1 TO 10
420 LET A$(I)="ITEM "+STR$ I
430 NEXT I
440
500    REM DISPLAY LIST
510 PRINT "SELECT ITEM": PRINT
520 FOR I=1 TO 10
530 PRINT A$(I)
540 NEXT I
550 RETURN
