Depreciation Schedule

This program calculates and displays depreciation schedules using three standard accounting methods: Straight-Line, Sum-of-Years Digits, and Double-Declining Balance. It presents a menu-driven interface with color attributes (PAPER, BORDER, FLASH) and allows the user to view any single method or a side-by-side comparison of all three. Numeric formatting is handled by two DEF FN functions — one rounds to two decimal places and the other appends “.00” or a trailing “0” to ensure consistent currency display. The Double-Declining Balance method includes a switch-over calculation at line 35–38, where it transitions to straight-line when that becomes more favorable, controlled by the crossover year variable `t`.

Program Analysis

Program Structure

The program is organized into clearly separated functional blocks:

1. Lines 2–4: REM header with copyright notice.
2. Lines 10–14: Two DEF FN definitions for numeric rounding and currency string formatting.
3. Line 16: Initialization — sets screen colors, rounding constant k=100, and jumps to the menu.
4. Lines 20–38: Subroutine library: formatting helper (line 20), Straight-Line (line 25), Sum-of-Years (line 30), and Double-Declining Balance (lines 35–38).
5. Lines 50–56: Main menu display and input validation.
6. Lines 60–100: Single-method report loop.
7. Lines 120–160: Comparison report (all three methods side by side).
8. Line 200: SAVE with auto-start.

Depreciation Algorithms

Each of the three depreciation methods is implemented as a short subroutine reached via computed GO SUB:

The Double-Declining Balance method spans two lines. Line 35 handles the declining phase for years before the crossover year t, and line 38 handles the remaining years with a straight-line distribution of the residual value. The crossover year is computed as t = INT((l+1)/2) + 1 at lines 90 and 130.

Computed GO SUB Dispatch

A particularly elegant idiom appears at line 90: GO SUB 20+5*x. Since the menu option x is 1, 2, or 3, this resolves to GO SUB 25, GO SUB 30, or GO SUB 35 respectively, selecting the correct depreciation subroutine without any IF/THEN branching. This is a compact and efficient dispatch table technique well-suited to BASIC’s numeric expression evaluation in GO SUB.

Currency Formatting with DEF FN

Two DEF FN functions cooperate to produce consistently formatted monetary output:

• FN a(x) at line 10 rounds a value to two decimal places using INT(k*x+0.5)/k where k=100.
• FN a$(x,c$) at line 14 takes a number and its string representation and appends ".00" if the value is an integer, or a trailing "0" if there is only one decimal digit. This is achieved by checking whether the last character before the string’s end is a "." using string slicing: ("0"+c$)(LEN c$)=".". The AND operator is used in its string-conditional form to conditionally concatenate suffix strings.

The combined effect is that values like 500 become "500.00" and values like 12.5 become "12.50", giving uniform two-decimal-place currency appearance throughout the output.

Input Validation

Input validation uses the arithmetic OR idiom common in Sinclair BASIC. At line 54, IF (x<1)+(x>4) treats the boolean results as integers (0 or 1) and sums them — if either condition is true the sum is non-zero and the input is rejected with a warning beep. Similarly, line 72 checks (s>=c)+(s<0) to reject illogical salvage values. The salvage check includes re-displaying the method header by jumping back to line 60 rather than just re-prompting, which ensures a clean screen.

Output Layout

The single-method report (lines 80–100) right-aligns monetary values by computing TAB 15-LEN d$ and TAB 29-LEN b$, producing a column of numbers neatly flush-right regardless of their length. The comparison report (lines 120–150) uses the same technique across three columns. Horizontal separator lines are drawn using a row of block graphic ▀ characters (zmakebas \'' sequences).

Notable Techniques and Idioms

• The FLASH 1 attribute on the input prompt at line 52 draws attention to the entry field.
• PAUSE 100 at line 56 briefly highlights the selected menu option with >> markers before clearing the screen.
• The subroutine at line 20 uses the shared variable y as both input and output, updating both y (rounded) and c$ (formatted string) for the caller to use.
• LET l=ABS l at line 74 silently corrects a negative lifetime entry rather than rejecting it.
• The double STOP at line 160 is redundant but harmless.

Content

Appears On

TS-2068 Computer Programs

Predict eclipses across four millennia, track planetary positions through five centuries, calculate loan amortization schedules, or encode secret messages with modular arithmetic — Imre Auersbacher's collection brings scientific precision and practical utility to the TS 2068.

Related Products

Related Articles

Depreciation Program for the 2068

Depreciation Program for the 2068

Related Content

Image Gallery

Source Code

    2 REM  Depreciation Schedule
    4 REM  \* 1985 I. Auersbacher
   10 DEF FN a(x)=INT (k*x+0.5)/k
   14 DEF FN a$(x,c$)=c$+(".00" AND x=INT x)+("0" AND ("0"+c$)(LEN c$)=".")
   16 BORDER 5: PAPER 3: LET k=100: CLS : BEEP 0.07,22: GO TO 50
   20 LET y=FN a(y): LET c$=FN a$(y,STR$ y): RETURN
   25 LET d=(c-s)/l: RETURN
   30 LET d=2*(c-s)*(l+1-z)/(l*(l+1)): RETURN
   35 IF z<t THEN LET d=2*(c-s)/l*(1-2/l)^(z-1): RETURN
   38 LET d=((c-s)*(1-2/l)^(t-1))/(l-t+1): RETURN

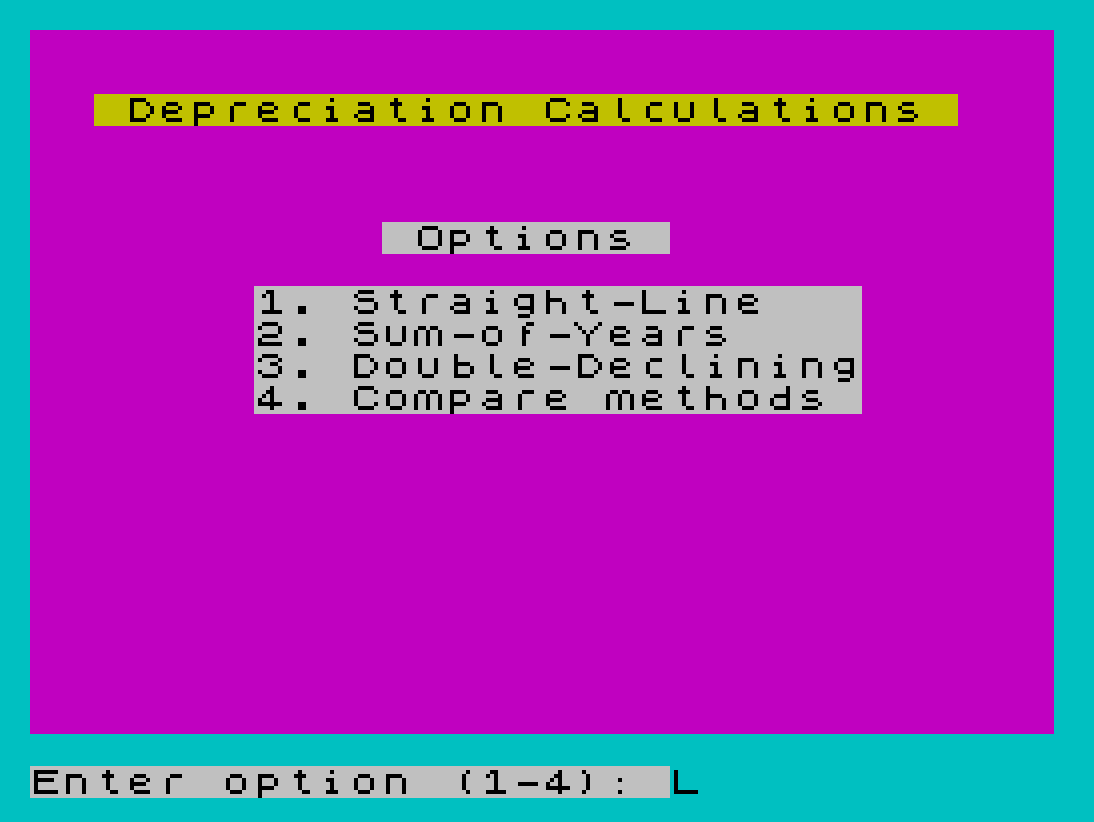

   50 PRINT PAPER 6;AT 2,2;" Depreciation Calculations "; PAPER 7;AT 6,11;" Options ";AT 8,7;"1. Straight-Line   ";AT 9,7;"2. Sum-of-Years    ";AT 10,7;"3. Double-Declining";AT 11,7;"4. Compare methods "
   52 INPUT ; PAPER 7; FLASH 1;"Enter option (1-4): ";x
   54 LET x=INT x: IF (x<1)+(x>4) THEN BEEP 1,-20: GO TO 52
   56 PAPER 7: PRINT PAPER 6;AT 7+x,4;">>": PAUSE 100: CLS
   60 IF x=1 THEN PRINT PAPER 6;" 1. Straight-Line Depreciation "
   62 IF x=2 THEN PRINT PAPER 6;" 2. Sum-of-Years Digits Method "
   64 IF x=3 THEN PRINT PAPER 6;" 3. Double-Declining-Balance   "
   66 IF x=4 THEN PRINT PAPER 6;" 4. Comparison of all methods  "
   70 PRINT : PRINT "Original Cost: ";: INPUT c: PRINT c
   72 PRINT "Salvage Value: ";: INPUT s: PRINT s: IF (s>=c)+(s<0) THEN BEEP 1,-20: CLS : GO TO 60
   74 PRINT "Lifetime (yr): ";: INPUT l: LET l=ABS l: PRINT l
   76 IF x=4 THEN GO TO 120
   80 PRINT : PRINT "Year  Depreciation   Book Value ": PRINT "\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''"
   90 LET t=INT ((l+1)/2)+1: LET b=c: FOR z=1 TO l: GO SUB 20+5*x
   95 LET b=b-d: LET y=d: GO SUB 20: LET d$=c$: LET y=b: GO SUB 20: LET b$=c$: PRINT TAB 2;z;
  100 PRINT TAB 15-LEN d$;d$;TAB 29-LEN b$;b$: NEXT z: STOP :
  120 PRINT : PRINT "Yr";TAB 4;"Straight";TAB 14;"Sum-of";TAB 23;"Double-": PRINT "#";TAB 5;"-Line";TAB 14;"-Years";TAB 23;"Declining": PRINT "\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''"
  130 LET t=INT ((l+1)/2)+1
  140 FOR z=1 TO l: GO SUB 25: LET y=d: GO SUB 20: LET s$=c$: GO SUB 30: LET y=d: GO SUB 20: LET b$=c$: GO SUB 35: LET y=d: GO SUB 20: LET d$=c$: PRINT z;
  150 PRINT TAB 11-LEN s$;s$;TAB 21-LEN b$;b$;TAB 31-LEN d$;d$
  160 NEXT z: STOP : STOP
  200 SAVE "deprec" LINE 10

Note: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
