DRAGMASTER 2000 is a drag racing simulation that challenges the player to launch from a standing start, shift through four gears, and complete a quarter-mile run as quickly as possible. The program loads an external machine code file (“dragmc”) at address 50000 and calls several USR routines at addresses such as 50008, 51060, 51075, 51150, 51230, and 51250 for engine sound, tachometer animation, and display updates. Joystick input is handled via the STICK command, with keys 1–4 for gear selection and “g” for throttle. Six user-defined graphics (UDGs “a” through “f”) are defined at startup to render car silhouettes and track scenery on the title and race screens. A timer built from system variables at addresses 23672–23674 measures elapsed time to hundredths of a second, and a best-time leaderboard with player initials is maintained across runs.
Program Analysis
Program Structure
The program is organized into well-separated functional blocks. Execution begins at line 5, which immediately jumps to line 25 (skipping the CLEAR and LOAD setup on lines 10–20 during a warm restart). The main game loop runs from line 220, with a subroutine dispatcher at line 228. Key subsystems are:
- Initialization (lines 10–178): memory clear, machine code load, UDG setup, variable initialization
- Main game loop (lines 220–270): input polling, physics update, display refresh
- Input handler (lines 600–699, 1800–1899): joystick via STICK and keyboard via INKEY$
- Engine/physics (lines 1000–1599): tachometer, speed variable
x, engine stress variablej - Instrument drawing (lines 2000–3999): PLOT/DRAW needle animation for two gauges
- Gear/resistance logic (lines 4000–4099): gear-dependent resistance multiplier
r - Race start sequence (lines 5500–5599): countdown lights, foul detection
- Results/leaderboard (lines 5200–5399): elapsed time calculation, best time comparison, initials INPUT

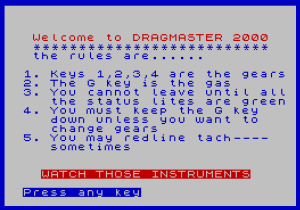

- Title/rules screens (lines 7000–8099, 9620–9699)
- UDG definition (lines 9100–9199)
- Machine code data/save (lines 9600–9610, 9800–9970)
- SOUND mute utility (lines 9980–9992)
- Error recovery (lines 9994–9997)
Machine Code Usage
The program relies heavily on external machine code loaded from the file “dragmc” at address 50000 (14950 bytes). Several USR entry points are called throughout:
| Address | Purpose |
|---|---|
50008 | Engine sound / acceleration effect |
51060 | General display or engine state update (called from redline loop) |
51075 | Gas-on display routine |
51150 | Deceleration/coast display routine |
51230 | Small block copy routine (POKEd inline at lines 9810–9840) |
51250 | Delay/timing loop (POKEd inline at lines 9910–9960) |
Additionally, lines 40–90 POKE a short Z80 routine at address 51060 from DATA at line 100. The bytes 237,75,80,195 etc. correspond to Z80 instructions including LD BC,(nn) and LDIR, suggesting a block memory copy bootstrap. A second inline machine code stub is built at address 50000–50005 (lines 150–160), which appears to be a short jump/call launcher: POKE 50000,0 (NOP), followed by bytes forming a CALL instruction to address 16384 (64*256+0).
Physics Model
Two floating-point variables simulate the drivetrain: x represents engine/wheel speed (capped at 0.080) and j represents engine stress or RPM. The gas subroutine (line 1700) increments x by pp (0.0070) per cycle and j by ll (0.0015). The coast subroutine (line 1600) decrements x by pp. Gear selection (lines 4005–4016) sets resistance multiplier r as a fraction of j, with gear 1 giving the highest resistance (0.65) and gear 4 the lowest (0.025), modeling transmission ratio effects. Line 243 subtracts 1.5*r from j each cycle, providing back-pressure. Redline is triggered at j>.070 (line 1442) unless in 4th gear.

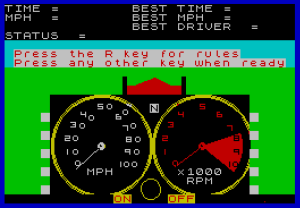

Instrument Display
Two analog needle gauges are drawn using PLOT/DRAW with OVER 1 (XOR mode) to erase the previous needle before drawing the new one. The tachometer (lines 3000–3999) is centered at pixel (85,50) and the speedometer (lines 2000–2999) at (174,50). Needle angle is computed via COS and SIN applied to (35.3 - x*180/PI) and (35.2 - j*180/PI) respectively, scaling by 15 pixels. The previous values oc,os,ow,oe are stored and only redrawn when changed, saving processing time.
Timer Implementation
Line 172 defines FN t() using a DEF FN to read the system frame counter from three consecutive memory locations at 23672–23674, computing (65536*PEEK 23674 + 256*PEEK 23673 + PEEK 23672)/60 to yield elapsed seconds. The race start time t1 is captured at line 5560 and the finish time t2 at line 5215. Elapsed time t3 = t2 - t1 - 4 (line 5218) subtracts a 4-second offset, presumably to account for the countdown sequence. Speed in MPH is then computed as 1320/t3 (line 5222), treating the track as a quarter-mile (1320 feet).
Input Handling
Input is dual-mode. Keyboard input via INKEY$ is read in subroutine 1800, accepting keys “1”–”4″ for gears and “g” for gas. Joystick input is handled in subroutine 600 using STICK(1,1) for directional movement (gear up) and STICK(2,1) for the fire button (gas). A shift-counter variable sh increments on each joystick movement, capping at 4, and is converted to a string for the gear variable k$. Lines 615–617 distinguish between a stick movement while already in gear (increments) versus from neutral (sets to “1”). An older alternative using OUT 245,14 / IN (246+1*256) is preserved in commented-out REM lines at 605–614 and 800–899.
SOUND Usage
Line 510 uses SOUND with multiple channel parameters (6,0;7,7;8,16;9,16;10,16;12,5;13,0) to generate engine idle noise during the attract loop. Line 1150 uses SOUND with randomized parameters (1,RND*13;0,RND*377) to create engine running noise. The subroutine at line 9980 silences all channels by iterating SOUND n,0 for n=0 to 13.
Error Handling
Lines 9994–9997 implement a three-stage ON ERR chain. Line 9994 calls ON ERR RESET to clear error state, followed by a PAUSE, then ON ERR GO TO 9994 to redirect any subsequent error back to the reset handler, and finally ON ERR CONTINUE to allow resumption. This pattern guards against runtime errors in the main loop (line 220 sets ON ERR GO TO 9994) without crashing the program.

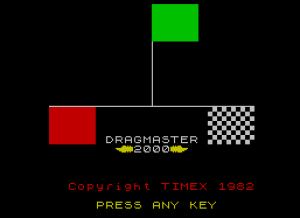

Title Screen and UDGs
Six UDGs are defined at lines 9100–9198 using BIN literals POKEd into USR "a" through USR "f". UDGs \a and \d form left and right tire/wheel shapes, \b and \c form car body halves, \e is a circular “smoke puff” or crowd figure used extensively in the staging area scenery (lines 9700–9748), and \f is a checkered flag tile used in the start-line crowd decoration. The title screen (lines 9620–9699) draws a track silhouette using PLOT/DRAW and block graphics, displaying colored rectangles for timing lights and staging beams.
Notable Techniques and Anomalies
- Line 5 jumps to 25, bypassing the LOAD at line 20 on warm restarts, allowing re-entry without reloading machine code.
INT (RND*1)at lines 245, 4010–4016 always evaluates to 0, making those terms effectively zero — this appears to be a vestigial expression intended to add randomness but is nonfunctional.- Line 239 filters unrecognized key presses back to the last valid gear
f$, preventing invalid states. - The
d1damage accumulator (lines 1228–1247) increases during hard acceleration and triggers engine shutdown atd1>15(line 1247), but gearing down (lines 4020–4024) subtracts from it, rewarding smooth shifting. - Lines 9600–9610 contain the SAVE statements to write the BASIC program and machine code back to tape, tucked safely after the main game logic.
- The
b$="999"sentinel (line 165, checked at line 5400) prevents display of an uninitialized best time on the first run.
Content
Image Gallery
Source Code
5 GO TO 25
10 CLEAR 49999
15 CLS : PRINT AT 10,5;"Leave everything alone";AT 11,5;"more to come"
20 LOAD "dragmc"CODE 50000,14950
25 GO SUB 9100: GO SUB 9620
26 BORDER 1
27 REM GO SUB 9300
28 LET sh=0: LET s$="N": LET g$="x": LET k$="N": RANDOMIZE 0
30 RESTORE 100
35 GO TO 150
40 LET a=51060
50 READ r: IF r=999 THEN GO TO 150
60 POKE a,r
70 REM PRINT a;r
80 LET a=a+1
90 GO TO 50
100 DATA 237,75,80,195,42,82,195,237,91,84,195,237,176,201,999
150 POKE 50000,0
152 POKE 50001,27
154 POKE 50002,220
156 POKE 50003,205
158 POKE 50004,0
160 POKE 50005,64
165 LET b$="999"
170 LET c1=USR 51060
172 DEF FN t()=((65536*PEEK 23674+256*PEEK 23673+PEEK 23672)/60)
173 LET gear=0: LET h=0
174 LET d1=0
175 LET s$="N": LET f$="N"
176 LET ex=0: LET sh=0: LET st=1
177 LET r=1
178 LET ss=0
179 REM GO SUB 5500
211 LET c=1: LET s=1: LET w=1: LET e=1
212 LET oc=0: LET os=0: LET ow=0: LET oe=0
214 GO SUB 5400
216 LET x=0: LET t1=9999999
217 LET j=0
218 LET pp=.0070
219 LET ll=.0015
220 ON ERR GO TO 9994: LET gas=0: GO SUB 1800
221 IF k$="g" OR g$="g" THEN LET gas=1
222 IF gas=1 THEN GO SUB 1000: GO TO 220
225 GO SUB 228
227 GO TO 220
228 LET s$=k$
230 IF s$="n" THEN LET s$="N"
239 IF s$<>"N" AND s$<>"" AND s$<>"1" AND s$<>"2" AND s$<>"3" AND s$<>"4" THEN LET s$=f$
240 IF CODE s$=0 AND gear=0 THEN LET s$=f$
241 PRINT ; INK 0; PAPER 7;AT 11,16;s$
242 IF x>.080 THEN LET x=.080
243 LET j=j-1.5*r
244 POKE 51058,INT (255-254): IF x>0 THEN LET c1=USR 50008
245 LET x=x-(INT (RND*1)*pp)
247 IF x<.0001 THEN LET x=.0000
248 IF j<.0001 THEN LET j=.0000
250 GO SUB 1000
260 GO SUB 2000
262 GO SUB 3000
263 GO SUB 2000
264 GO SUB 3000
270 RETURN
500 REM
501 FOR n=-10 TO 0
503 IF INKEY$<>"" THEN RETURN
505 BEEP .01,n
510 SOUND 6,0;7,7;8,16;9,16;10,16;12,5;13,0
525 NEXT n
530 FOR n=0 TO -10 STEP -1
535 BEEP .01,n
538 IF INKEY$<>"" THEN RETURN
540 NEXT n
599 RETURN
600 REM
601 LET g$="x"
603 LET k$=s$
605 REM OUT 245,14
610 REM LET a=IN (246+1*256)
611 LET a= STICK (1,1)
612 REM LET a=255-a
613 REM IF a=0 THEN RETURN
615 IF a<>0 AND k$<>"N" THEN LET sh=sh+1: LET k$=STR$ sh: IF sh>4 THEN LET sh=4
617 IF a<>0 AND k$="N" THEN LET k$="1"
618 LET a= STICK (2,1)
622 IF a=1 THEN LET g$="g": RETURN
623 IF k$>"4" AND k$<>"N" THEN LET k$="4"
625 LET f$=k$: LET s$=k$
630 PRINT ; INK 0; PAPER 7;AT 11,16;s$
635 LET a=0
699 RETURN
800 REM
805 OUT 245,14: LET a=IN (246+1*256): LET a=255-a: IF a=0 THEN RETURN
810 IF a>127 THEN LET ex=1
899 RETURN
999 GO TO 220
1000 REM
1002 IF x>.080 THEN LET x=.080
1003 POKE 51058,20
1110 REM PRINT ; INK 0; PAPER 7;AT 11,16;s$
1150 SOUND 3,15;7,60;8,15;9,15;1,RND*13;0,RND*377
1200 REM
1201 LET c1=USR 51250
1220 IF gas=0 THEN GO SUB 1600
1222 IF gas=1 THEN GO SUB 1700
1223 REM GO SUB 1800
1225 IF s$ ="N" AND gas=0 THEN GO TO 1400
1226 IF s$="N" THEN GO TO 1400
1227 LET fg=(RND*VAL s$)
1228 LET d1=d1+x*(INT (RND*20)+30)+fg*.5
1230 LET c1=USR 51250
1232 IF d1<9 THEN GO TO 1250
1234 IF d1>9 THEN PRINT INK 7; PAPER 0;AT 6,15;"\.'\.'\.'"
1235 LET c1=USR 51250
1236 IF d1>13 THEN PRINT INK 7; PAPER 0;AT 6,14;"\.'\.'\.'\.'\.'"
1238 REM IF d1>14 THEN PRINT INK 7; PAPER 0;AT 6,13;"\.'\.'\.'\.'\.'\.'\.'\.'\.'"
1240 IF d1>15 THEN PRINT INK 7; PAPER 0;AT 6,11;"\.'\.'\.'\.'\.'\.'\.'\.'\.'\.'\.'"
1247 IF d1>15 THEN GO TO 5200
1250 LET c1=USR 51250
1254 IF x<.0001 THEN LET x=.0000
1300 IF x>.080 THEN LET x=.080
1350 LET c1=USR 51250
1400 LET c=COS (35.3-x*180/PI)*15
1401 LET t9=FN t()
1402 LET s=SIN (35.3-x*180/PI)*15
1403 IF t9-30>t1 THEN GO TO 170
1404 LET c1=USR 51250
1410 GO SUB 3000
1421 IF s$="N" AND gas=0 THEN GO TO 1435
1427 GO SUB 4000
1430 IF gas=0 THEN GO TO 1433
1431 LET j=j+r: IF s$="N" THEN GO TO 1433
1432 LET x=1.8*r+x
1433 IF j>.080 THEN LET j=.080
1434 IF j<.0001 THEN LET j=.0000
1435 LET w=COS (35.2-j*180/PI)*15
1437 LET e=SIN (35.2-j*180/PI)*15
1440 GO SUB 2000
1441 IF st=1 THEN GO SUB 5500
1442 IF j>.070 AND s$<>"4" THEN GO TO 5000
1443 REM IF j>.070 THEN LET d1=d1-1
1445 IF j>.080 THEN LET j=.080
1446 IF j<.0001 THEN LET j=.015
1500 GO SUB 3000
1555 GO SUB 2000
1599 RETURN
1600 REM
1610 LET c1=USR 51150
1612 LET x=x-pp
1650 IF x<.0001 THEN LET x=.0000
1699 RETURN
1700 REM
1710 LET c1=USR 51075
1712 IF s$="1" OR s$="2" OR s$="3" OR s$="4" THEN LET c1=USR 50008
1714 LET x=x+pp
1716 IF s$="N" THEN LET x=x-pp
1718 LET j=j+ll
1799 RETURN
1800 REM
1805 GO SUB 600
1807 LET k$=s$
1810 REM LET k$=CHR$ (PEEK 23560)
1811 LET k$=INKEY$
1813 IF k$=" " THEN RETURN
1815 IF k$="" THEN RETURN
1816 IF k$<>"1" AND k$<>"2" AND k$<>"3" AND k$<>"4" AND k$<>"g" THEN RETURN
1817 IF CODE k$=0 THEN RETURN
1820 IF k$="g" THEN RETURN
1825 LET s$=k$
1826 LET f$=s$
1830 PRINT ; INK 0; PAPER 7;AT 11,16;s$
1899 RETURN
2000 IF st=1 THEN GO TO 2045
2001 IF w=ow AND e=oe THEN GO TO 2999
2002 LET c1=USR 51250
2030 GO SUB 1800
2045 PLOT 174,50
2050 DRAW OVER 1; INK 0; PAPER 2; INVERSE 0;ow+ow,oe+oe
2060 LET ow=w: LET oe=e
2065 PLOT 174,50
2070 DRAW OVER 1; INK 0; PAPER 2; INVERSE 0;w+w,e+e
2999 RETURN
3000 IF st=1 THEN GO TO 3045
3001 IF c=oc AND s=os THEN GO TO 3999
3005 LET c1=USR 51250
3030 GO SUB 1800
3045 PLOT 85,50
3050 DRAW OVER 1; INK 0; PAPER 7; INVERSE 0;oc+oc,os+os
3060 LET oc=c: LET os=s
3065 PLOT 85,50
3070 DRAW OVER 1; INK 0; PAPER 7; INVERSE 0;c+c,s+s
3999 RETURN
4000 REM
4001 LET f$=s$
4002 GO SUB 1800
4005 IF s$="N" THEN LET r=j*.8
4010 IF s$="1" THEN LET r=j*.65*(INT (RND*1)+.5)
4012 IF s$="2" THEN LET r=j*.50*(INT (RND*1)+.5)
4014 IF s$="3" THEN LET r=j*.35*(INT (RND*1)+.5)
4016 IF s$="4" THEN LET r=j*.025*(INT (RND*1)+.5)
4020 IF s$="2" AND h<1 THEN LET d1=d1-10
4022 IF s$="3" AND h<2 THEN LET d1=d1-10
4024 IF s$="4" AND h<3 THEN LET d1=d1-10
4025 IF CODE s$=0 THEN LET s$="N": GO TO 4027
4026 LET h=VAL s$
4030 LET c1=USR 51250
4035 REM GO SUB 1800
4036 REM
4099 RETURN
5000 REM redline
5003 FOR n=1 TO 10
5005 LET c1=USR 51230
5006 BEEP .1,20
5007 LET c1=USR 51060
5008 NEXT n
5010 PRINT ; PAPER 0; INK 7;AT 3,10;"blown engine"
5020 BEEP .2,2
5030 FOR n=1 TO 50
5032 NEXT n
5040 GO TO 170
5200 REM
5210 PRINT ; PAPER 0; INK 7;AT 3,10;"shutdown"
5215 LET t2=FN t()
5217 REM IF t2<t1 THEN GO TO 5215
5218 LET t3=(t2-t1)-4: LET t$=STR$ t3: LET x$=t$(1 TO LEN t$): IF LEN x$>6 THEN LET x$=x$(1 TO 6)
5219 PRINT ; PAPER 0; INK 7;AT 0,6;x$
5220 REM BEEP 2,4
5222 LET mph=1320/ VAL x$
5223 LET m$=STR$ mph: LET p$=m$(1 TO LEN m$): IF LEN p$>7 THEN LET p$=p$(1 TO 7)
5225 PRINT ; PAPER 0; INK 7;AT 1,6;p$
5227 REM BEEP .1,2: BEEP .1,6: BEEP .2,8: BEEP .1,4: BEEP .5,20
5228 GO SUB 9980
5230 IF VAL x$<VAL b$ THEN GO SUB 5300
5231 IF ss=1 THEN GO TO 5250
5232 GO SUB 9980 : PRINT INK 7; PAPER 0;AT 0,25;b$
5233 FOR n=1 TO 80: NEXT n
5235 REM PRINT INK 2;AT 6,10;"Press the x key "
5236 REM IF INKEY$<>"x" THEN GO TO 5236
5240 REM
5250 LET ss=0
5252 GO TO 170
5300 PRINT INK 2;AT 6,7;"Enter your initials"
5305 LET ss=1
5310 INPUT i$
5330 LET b$=x$
5332 LET u$=p$
5340 REM PRINT INK 7; PAPER 0;AT 0,25;b$
5342 REM PRINT INK 7; PAPER 0;AT 1,25;u$
5399 RETURN
5400 IF b$="999" THEN RETURN
5420 PRINT INK 7; PAPER 0;AT 2,28;i$(1 TO 3)
5440 PRINT INK 7; PAPER 0;AT 0,25;b$
5441 PRINT INK 7; PAPER 0;AT 1,25;u$
5499 RETURN
5500 GO SUB 9980 : LET st=2
5501 PRINT INK 2;AT 5,1;"Press the R key for rules"
5502 PRINT INK 2;AT 6,1;"Press any other key when ready": GO SUB 800: IF ex=1 THEN GO TO 5504
5503 IF INKEY$="" THEN GO TO 5502
5504 PRINT INK 5;AT 6,1;"\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::"
5505 PRINT INK 5;AT 5,1;"\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::"
5506 IF INKEY$="r" THEN GO TO 7000
5507 GO SUB 9700
5509 FOR n=9 TO 19 STEP 2
5510 PRINT INK 2; PAPER 0;AT 3,n;"\::"
5515 NEXT n
5517 PAUSE 100
5520 FOR n=9 TO 19 STEP 2
5522 IF INKEY$="g" OR g$="g" AND s$<>"N" THEN GO SUB 5600
5523 BEEP .01,5
5525 PRINT INK 4; PAPER 0;AT 3,n;"\::"
5530 PAUSE 20
5535 REM LET s$="N"
5540 GO SUB 1800
5541 REM IF INKEY$="1" OR s$="1" THEN LET s$="1"
5542 REM IF INKEY$="2" THEN LET s$="2"
5543 REM IF INKEY$="3" THEN LET s$="3"
5544 REM IF INKEY$="4" THEN LET s$="4"
5545 PRINT ; INK 0; PAPER 7;AT 11,16;s$
5550 NEXT n
5560 LET t1=FN t()
5570 PRINT INK 0; PAPER 0;AT 3,9;" "
5599 RETURN
5600 REM foul
5605 BORDER 2: PAPER 2: CLS
5610 PRINT INK 0; PAPER 0;AT 3,9;" "
5612 PRINT INK 7; PAPER 0;AT 3,9;" red light"
5614 BEEP .1,2: BEEP .2,2: BEEP .1,2
5620 PAUSE 100
5625 PAPER 7
5696 GO TO 170
5699 RETURN
7000 REM
7005 PAPER 7
7010 CLS
7020 PRINT INK 2;AT 3,3;"Welcome to DRAGMASTER 2000"
7021 PRINT INK 1;AT 4,3;"**************************"
7022 PRINT INK 1;AT 5,3;"the rules are......"
7024 PRINT INK 1;AT 7,2;"1. Keys 1,2,3,4 are the gears"
7026 PRINT INK 1;AT 8,2;"2. The G key is the gas"
7028 PRINT INK 1;AT 9,2;"3. You cannot leave until all the status lites are green"
7030 PRINT INK 1;AT 11,2;"4. You must keep the G key down unless you want to change gears"
7032 PRINT INK 1;AT 14,2;"5. You may redline tach---- sometimes"
7034 PRINT INK 2; FLASH 1;AT 18,4;"WATCH THOSE INSTRUMENTS"
7088 PAUSE 100
7095 PRINT INK 1; FLASH 1;AT 20,2;"Press any key"
7096 IF INKEY$="" THEN GO TO 7096
7098 GO SUB 8000
7099 GO TO 170
8000 REM
8020 CLS
8040 PRINT INK 2;AT 3,0;"JOYSTICK USAGE (optional)"
8042 PRINT INK 2;AT 6,0;"The joystick is inserted into player one(1) slot"
8044 PRINT INK 0;AT 10,0;"The fire button replaces the G key"
8046 PRINT INK 0;AT 13,0;"To shift up 1 gear simply move the stick in any direction-- Insure a complete shift is made"
8050 PRINT INK 1; FLASH 1;AT 20,2;"Press any key"
8053 IF INKEY$="" THEN GO TO 8053
8099 GO TO 170
9000 REM
9005 FOR n=12 TO 20 STEP 2
9010 PRINT INK 7;AT n,4;"\::"
9011 PRINT INK 7;AT n,27;"\::"
9020 NEXT n
9025 FOR n=220 TO 225
9030 REM PLOT INK 0; PAPER 7; OVER 0;n,8: DRAW INK 0; PAPER 7; OVER 0; INVERSE 0;0,70
9035 NEXT n
9040 FOR n=38 TO 40
9042 REM PLOT INK 0; PAPER 7; OVER 0;n,8: DRAW INK 0; PAPER 7; OVER 0; INVERSE 0;0,70
9044 NEXT n
9052 PRINT INK 4;AT 7,0;"\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::"
9053 PRINT INK 4;AT 8,0;"\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::"
9054 PLOT INK 4; PAPER 2; INVERSE 1;132,110
9055 FOR n=106 TO 152
9060 PLOT INK 4; OVER 0; PAPER 2; INVERSE 1;n,100
9070 DRAW INK 4; PAPER 2; OVER 0; INVERSE 1;132-n,110-100
9072 NEXT n
9073 FOR n=0 TO 3
9074 PRINT INK 0;AT n,0;"\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::\::"
9080 NEXT n
9082 PRINT INK 0; PAPER 2;AT 9,13;"\: "
9084 PRINT INK 0; PAPER 4;AT 8,13;"\: "
9086 PRINT INK 0; PAPER 2; INVERSE 1;AT 9,19;"\: "
9088 PRINT INK 0; PAPER 4; INVERSE 1;AT 8,19;"\: "
9090 PRINT INK 7; PAPER 0;AT 0,0;"TIME = ";AT 0,14;"BEST TIME = "
9092 PRINT INK 7; PAPER 0;AT 1,0;"MPH = ";AT 1,14;"BEST MPH = "
9094 PRINT INK 7; PAPER 0;AT 3,0;"STATUS = ";AT 2,14;"BEST DRIVER = "
9096 RETURN
9100 REM
9105 RESTORE 9120
9107 FOR n=0 TO 7
9109 READ r: POKE USR "a"+n,r
9111 NEXT n
9120 DATA BIN 00000000,BIN 00000001,BIN 00000011,BIN 01111111,BIN 00111111,BIN 00001111,BIN 00000011,BIN 00000000
9125 RESTORE 9140
9128 FOR n=0 TO 7
9130 READ r: POKE USR "b"+n,r
9135 NEXT n
9140 DATA BIN 00000000,BIN 11010100,BIN 11111111,BIN 11111111,BIN 11111111,BIN 11111111,BIN 11010100,BIN 00000000
9142 RESTORE 9150
9144 FOR n=0 TO 7
9146 READ r: POKE USR "c"+n,r
9148 NEXT n
9150 DATA BIN 00000000,BIN 00101011,BIN 11111111,BIN 11111111,BIN 11111111,BIN 11111111,BIN 00101011,BIN 00000000
9152 RESTORE 9160
9154 FOR n=0 TO 7
9156 READ r: POKE USR "d"+n,r
9158 NEXT n
9160 DATA BIN 00000000,BIN 10000000,BIN 11000000,BIN 11111110,BIN 11111100,BIN 11110000,BIN 11000000,BIN 00000000
9162 RESTORE 9170
9164 FOR n=0 TO 7
9166 READ r: POKE USR "e"+n,r
9168 NEXT n
9170 DATA BIN 00000000,BIN 01111110,BIN 01111110,BIN 01111110,BIN 01111110,BIN 01111110,BIN 01111110,BIN 00000000
9172 RESTORE 9180
9174 FOR n=0 TO 7
9176 READ r: POKE USR "f"+n,r
9178 NEXT n
9180 DATA BIN 00000000,BIN 00111100,BIN 01111110,BIN 01011010,BIN 01111110,BIN 00100100,BIN 00011000,BIN 00111100
9197 REM GO SUB 9200
9198 REM GO SUB 9800
9199 RETURN
9600 SAVE "dragp" LINE 10
9608 SAVE "dragmc"CODE 50000,14950
9610 STOP
9620 REM
9624 BORDER 0
9626 PAPER 0
9628 CLS
9630 PLOT INK 7;40,88
9632 DRAW INK 7;175,0
9634 PLOT INK 7;128,88
9636 DRAW INK 7;0,86
9638 PRINT INK 2;AT 11,5;"\::\::\::\::\::"
9640 PRINT INK 2;AT 12,5;"\::\::\::\::\::"
9642 PRINT INK 2;AT 13,5;"\::\::\::\::\::"
9644 PRINT INK 2;AT 14,5;"\::\::\::\::\::"
9646 PRINT INK 7;AT 11,22;"\.'\.'\.'\.'\.'"
9648 PRINT INK 7;AT 12,22;"\.'\.'\.'\.'\.'"
9650 PRINT INK 7;AT 13,22;"\.'\.'\.'\.'\.'"
9652 PRINT INK 7;AT 14,22;"\.'\.'\.'\.'\.'"
9654 PRINT INK 4;AT 0,16;"\::\::\::\::\::"
9656 PRINT INK 4;AT 1,16;"\::\::\::\::\::"
9658 PRINT INK 4;AT 2,16;"\::\::\::\::\::"
9660 PRINT INK 4;AT 3,16;"\::\::\::\::\::"
9662 PRINT INK 6;AT 15,12;"\a\b"
9664 PRINT INK 6;AT 15,18;"\c\d"
9682 PRINT INK 7;AT 14,11;"DRAGMASTER"
9684 PRINT INK 7;AT 15,14;"2000"
9685 PRINT INK 2;AT 19,7;"Copyright TIMEX 1982"
9686 PRINT INK 6;AT 21,10;"PRESS ANY KEY"
9690 IF INKEY$="" THEN GO SUB 500
9691 IF INKEY$="" THEN GO TO 9690
9692 PAPER 7
9699 RETURN
9700 REM
9706 REM
9708 PAPER 0
9710 PRINT INK 3;AT 7,6;"\e"
9712 PRINT INK 3;AT 6,6;"\e"
9713 PRINT INK 3;AT 6,7;"\e\e\e"
9715 PRINT INK 7; PAPER 1;AT 5,0;"\f\f\f\f\f\f\f\f\f"
9717 PRINT INK 7; PAPER 1;AT 4,0;"\f\f\f\f\f\f\f\f"
9719 PRINT INK 3;AT 6,0;"\e\e\e\e\e\e\e"
9720 PRINT INK 3;AT 7,0;"\e\e\e\e\e\e\e"
9722 PRINT INK 3;AT 8,0;"\e\e\e\e\e"
9724 PRINT INK 3;AT 9,0;"\e\e\e"
9726 PRINT INK 3;AT 10,0;"\e\e\e"
9728 PRINT INK 3;AT 11,0;"\e\e"
9730 PRINT INK 3;AT 7,26;"\e"
9734 PRINT INK 3;AT 6,23;"\e\e\e"
9735 PRINT INK 7; PAPER 1;AT 5,24;"\f\f\f\f\f\f\f\f"
9737 PRINT INK 7; PAPER 1;AT 4,25;"\f\f\f\f\f\f\f"
9739 PRINT INK 3;AT 6,26;"\e\e\e\e\e\e"
9740 PRINT INK 3;AT 7,26;"\e\e\e\e\e\e"
9742 PRINT INK 3;AT 8,28;"\e\e\e\e"
9744 PRINT INK 3;AT 9,30;"\e\e"
9746 PRINT INK 3;AT 10,30;"\e\e"
9748 PRINT INK 3;AT 11,31;"\e"
9796 PAPER 7
9799 RETURN
9800 REM
9810 LET a=51230
9820 RESTORE 9860
9825 READ r: IF r=999 THEN GO TO 9870
9827 REM PRINT a,r
9830 POKE a,r: LET a=a+1
9840 GO TO 9825
9860 DATA 1,0,24,33,0,64,17,0,91,126,18,35,27,11,120,177,32,247,201,999
9870 RETURN
9900 REM
9910 LET a=51250
9920 RESTORE 9960
9925 READ r: IF r=999 THEN GO TO 9970
9930 POKE a,r: LET a=a+1
9940 GO TO 9925
9960 DATA 62,5,17,1,0,33,200,26,245,0,0,0,241,61,32,248,201,999
9970 STOP
9980 REM
9990 FOR n=0 TO 13: SOUND n,0: NEXT n
9992 RETURN
9994 ON ERR RESET
9995 PAUSE 100
9996 ON ERR GO TO 9994
9997 ON ERR CONTINUE
Note: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
