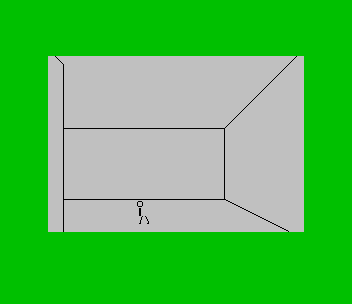

A first-person maze game. Each section of the maze is drawn in perspective with PLOT and DRAW: straight corridors, openings to the left or right, junctions, and dead ends that send you back to the start. Press 5 to turn left, 7 to go forward and 8 to turn right. A small walking figure shows each move, and turning too early walks you into the wall. You have only a moment to choose at each prompt; wait too long and the Green Goblin appears and sends you back to the start. The difficulty level from 1 to 10 sets how long the maze is. At the centre the gold is shown with “CURSES! You’ve found the GOLD”.

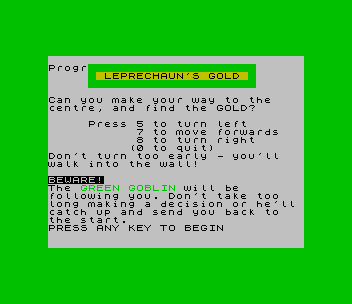

REMs give the title as “Leprachaun’s Gold”, the source as ZX Computing, June/July 1983, and the author as Clyde Bish. The title screen spells it Leprechaun’s Gold.
Program Analysis
Structure
- Lines 190–280: the main loop over the maze string. Each section’s code picks a drawing routine with
GO SUB VAL x$(i)*100+1000. - Lines 1001–1710: one routine per kind of section, each drawing the view and asking for a move. Line 1700 is the dead end.
- Lines 2000–5000: walking and turning animations, the timed key prompt (3000) and the goblin.
- Lines 6000–6015: title, constants and difficulty. Line 8000 builds the maze string
x$from random section codes. - Lines 9910–9950: the UDGs.
UDGs stored in a REM
The walking figure, the goblin and the gold are UDGs whose bytes are typed into the REM in line 9950. Line 9940 points the UDG system variable at that REM by reading NXTLIN (23637) while line 9940 runs, so no POKE loop or DATA is needed.
Notable Techniques
- Line 6010 builds every constant from
NOTandSGNarithmetic (a=0,s=1,b=2,k=4,l=8,m=16and so on), and the drawing lines use those variables instead of numbers. - The routine addresses are held in variables too (
d=2000,e=3000,f=4000,g=4600,h=4800), so calls readGO SUB e. - The time limit is a
FORloop pollingINKEY$(line 3000), not aPAUSE.
Potential Issues
- Line 6005 calls
GO SUB 9000, which does not exist. Execution falls through to the REM at 9910 and the UDG set-up at 9940, so it works. - The goblin’s time limit is short, so you have to answer each prompt quickly.
This program came from an Oliger (JLO SAFE) disk, a copy of the SNUG library disk 13/14, and was converted to load from tape. Lines 200, 205 and 260 had to be repaired. The disk copy computed the routine address as VAL x$(i)*VAL "100+1000", which multiplies by 1100 (apparently from a faulty attempt to save memory with VAL), and the game stopped at once with “4 Out of memory”. They now use *100+1000. It was tested in ZEsarUX, walking and turning through the maze.
Image Gallery
Source Code
5 REM >> LEPRACHAUN'S GOLD << * ZX COMPUTING, June/July 1983
9 REM by Clyde Bish
10
190 LET y$=" "
200 FOR i=s TO y: GO SUB VAL x$(i)*100+1000: IF n>b*v THEN GO TO 200
205 LET i=i+s: GO SUB VAL x$(i)*100+1000: IF x$(i)="7" OR n>b*v THEN GO TO 200
210 IF y$(i)=" " AND x$(i+b)="7" THEN LET y$(i)=b$: LET r=RND: LET x$(i+b)=("8" AND r<.3)+("7" AND r>=.3): GO TO 280
220 IF y$(i)=" " AND x$(i+b)<>"7" THEN LET y$(i)=b$: GO TO 280
230 IF y$(i)<>" " AND x$(i+b)="8" AND y$(i)=b$ THEN LET i=i+b: GO TO 280
260 IF y$(i)<>" " AND y$(i)<>b$ AND x$(i+b)<>"7" THEN GO SUB INT (RND*INT PI)*100+1000: GO SUB 1700: GO TO 200
270 IF y$(i)<>" " AND y$(i)<>b$ AND x$(i+b)="7" THEN LET y$(i)=b$: LET i=i+b: LET x$(i)="8"
280 NEXT i: GO TO 7000
1001 CLS : PLOT 47,m+m: DRAW 128,a: PLOT 47,103: DRAW 128,a: PLOT x,a: DRAW m+m,m: DRAW a,119: DRAW -u,u: PLOT 240,a: DRAW -o,m+m: DRAW a,71: DRAW q,q
1010 LET p=w-s: GO SUB f: GO SUB e: IF n>b*v THEN RETURN
1015 IF b$<>"7" THEN LET p=w: GO SUB d: GO TO 1000
1020 LET c=s: LET p=m+b: GO SUB h
1051 CLS : PLOT m,m+m: DRAW 159,a: PLOT m,103: DRAW 159,a: PLOT x,a: DRAW a,167: DRAW -l,l: PLOT 240,a: DRAW -o,m+m: DRAW a,71: DRAW q,q
1060 LET p=m+b: GO SUB f: GO SUB e: IF n>b*v THEN RETURN
1065 IF b$<>"5" THEN LET p=w-s: GO SUB d: GO TO 1050
1070 GO SUB g: PAUSE j: RETURN
1101 CLS : PLOT v-s,m+m: DRAW 128,a: PLOT v-s,103: DRAW 128,a: PLOT x,a: DRAW o,m+m: DRAW a,q-s: DRAW -q,q: PLOT 240,a: DRAW -32,m: DRAW a,119: DRAW u,u
1110 LET p=w-s: GO SUB f: GO SUB e: IF n>b*v THEN RETURN
1115 IF b$<>"7" THEN LET p=w: GO SUB d: GO TO 1100
1120 LET c=s: LET p=m+b: GO SUB h
1151 CLS : PLOT v,m+m: DRAW 159,a: PLOT v,103: DRAW 159,a: PLOT x,a: DRAW o,32: DRAW a,q-s: DRAW -q,q: PLOT 240,a: DRAW a,167: DRAW l,l
1160 GO SUB f: GO SUB e: IF n>b*v THEN RETURN
1165 IF b$<>"8" THEN LET p=w-s: GO SUB d: GO TO 1150
1170 GO SUB g: PAUSE j: CLS : RETURN
1201 CLS : PLOT 15,0: DRAW 64,32: FOR n=2 TO 8 STEP 2: PLOT 2*n+80,n+32: NEXT n: PLOT 239,0: DRAW -64,32: FOR n=2 TO 8 STEP 2: PLOT -2*n+175,n+32: NEXT n: PLOT 8,175: DRAW 72,-72: FOR n=4 TO 16 STEP 4: PLOT 80+n,103-n: NEXT n: PLOT 248,175: DRAW -72,-72: FOR n=4 TO 16 STEP 4: PLOT 175-n,103-n: NEXT n
1205 PRINT AT l+k,l+k;"CONTINUE";AT x-s,l+k;"FORWARDS"
1210 LET p=w-s: GO SUB f: GO SUB e: IF n>b*v THEN RETURN
1215 IF b$<>"7" THEN GO SUB d: GO TO 1201
1230 LET p=m+b: LET c=a: GO SUB h: RETURN
1301 CLS : PLOT 240,0: DRAW -32,16: DRAW 0,119: DRAW 40,40: PLOT 207,32: DRAW -32,0: DRAW 0,71: DRAW 32,0: PLOT 175,32: DRAW -16,8: FOR n=2 TO 8 STEP 2: PLOT -2*n+159,n+39: NEXT n: PLOT 175,103: DRAW -16,-16: FOR n=4 TO 16 STEP 4: PLOT 159-n,87-n: NEXT n: IF x$(i)="6" THEN GO TO 1402
1310 PLOT 15,0: DRAW 80,40: FOR n=2 TO 8 STEP 2: PLOT 2*n+96,n+40: NEXT n: PLOT 8,175: DRAW 88,-88: FOR n=4 TO 16 STEP 4: PLOT n+96,87-n: NEXT n
1320 LET p=w-s: GO SUB f: GO SUB e: IF n>b*v THEN RETURN
1325 IF b$<>"7" THEN LET p=w: GO SUB d: GO TO 1300
1330 LET c=s: LET p=m+b: GO SUB h
1350 CLS : PLOT 240,0: DRAW 0,167: DRAW 8,8: PLOT 239,32: DRAW -64,0: DRAW 0,71: DRAW 64,0: PLOT 175,32: DRAW -16,8: FOR n=2 TO 6 STEP 2: PLOT -2*n+159,n+40: NEXT n: PLOT 175,103: DRAW -16,-16: FOR n=4 TO 16 STEP 4: PLOT 159-n,87-n: NEXT n: IF x$(i)="6" THEN GO TO 1451
1360 PLOT 15,0: DRAW 80,40: FOR n=2 TO 8 STEP 2: PLOT 2*n+96,n+40: NEXT n: PLOT 8,175: DRAW 88,-88: FOR n=4 TO 16 STEP 4: PLOT 96+n,87-n: NEXT n
1370 LET p=w-b: GO SUB f: GO SUB e: IF n>b*v THEN RETURN
1372 IF b$<>"8" AND b$<>"7" THEN GO SUB d: GO TO 1350
1375 IF b$<>"7" THEN GO SUB g: PAUSE j
1378 IF b$<>"8" THEN LET p=m+s: LET c=a: GO SUB h
1380 RETURN
1401 CLS
1402 PLOT 15,0: DRAW 32,16: DRAW 0,119: DRAW -40,40: PLOT 48,32: DRAW 32,0: DRAW 0,71: DRAW -32,0: PLOT 80,32: DRAW 16,6: FOR n=2 TO 8 STEP 2: PLOT 2*n+96,n+40: NEXT n: PLOT 80,103: DRAW 16,-16: FOR n=4 TO 16 STEP 4: PLOT n+96,87-n: NEXT n: IF x$(i)="6" THEN GO TO 1610
1410 PLOT 240,0: DRAW -80,40: FOR n=2 TO 8 STEP 2: PLOT -2*n+159,n+40: NEXT n: PLOT 248,175: DRAW -88,-88: FOR n=4 TO 16 STEP 4: PLOT 159-n,87-n: NEXT n
1420 LET p=w-s: GO SUB f: GO SUB e: IF n>b*v THEN RETURN
1425 IF b$<>"7" THEN LET p=w: GO SUB d: GO TO 1400
1430 LET c=s: LET p=w-b: GO SUB h
1450 CLS
1451 PLOT 15,0: DRAW 0,167: DRAW -8,8: PLOT 16,32: DRAW 64,0: DRAW 0,71: DRAW -64,0: PLOT 80,32: DRAW 16,8: FOR n=2 TO 8 STEP 2: PLOT 2*n+96,n+40: NEXT n: PLOT 80,103: DRAW 16,-16: FOR n=4 TO 16 STEP 4: PLOT 96+n,87-n: NEXT n: IF x$(i)="6" THEN GO TO 1660
1460 PLOT 239,0: DRAW -80,40: FOR n=2 TO 8 STEP 2: PLOT -2*n+159,n+40: NEXT n: PLOT 247,175: DRAW -88,-88: FOR n=4 TO 16 STEP 4: PLOT 159-n,87-n: NEXT n
1470 GO SUB f: GO SUB e: IF n>b*v THEN RETURN
1472 IF b$<>"5" AND b$<>"7" THEN LET p=w-s: GO SUB d: GO TO 1450
1475 IF b$<>"7" THEN GO SUB g: PAUSE j
1478 IF b$<>"5" THEN LET c=a: LET p=m+s: GO SUB h
1480 RETURN
1501 CLS : PLOT u+l,m+m: DRAW k*u,a: PLOT u+l,103: DRAW k*u,a: PLOT x,a: DRAW m+m,m: DRAW a,119: DRAW -u,u: PLOT 240,a: DRAW -32,m: DRAW a,119: DRAW u,u
1510 LET p=w-s: GO SUB f: GO SUB e: IF n>b*v THEN RETURN
1515 IF b$<>"7" THEN LET p=w: GO SUB d: GO TO 1500
1520 LET c=s: LET p=w-b: GO SUB h
1551 CLS : PLOT m,m+m: DRAW 224,a: PLOT m,135: DRAW 224,a: PLOT x,a: DRAW a,167: DRAW -l,l: PLOT 240,a: DRAW a,167: DRAW l,l
1560 GO SUB f: GO SUB e: IF b>n*v THEN RETURN
1565 IF b$<>"8" AND b$<>"5" THEN LET p=w-s: GO SUB d: GO TO 1550
1570 GO SUB g: PAUSE j: RETURN
1601 GO TO 1300
1610 LET p=w-s: GO SUB f: GO SUB e: IF n>b*v THEN RETURN
1615 IF b$<>"7" THEN LET p=w: GO SUB d: GO TO 1600
1620 LET c=s: LET p=w-b: GO SUB h
1650 GO TO 1350
1660 GO SUB f: GO SUB e: IF n>b*v THEN RETURN
1665 IF b$<>"7" AND b$<>"8" AND b$<>"5" THEN GO TO 1650
1670 IF b$="7" THEN LET p=m+s: GO SUB h: RETURN
1680 IF b$="8" OR b$="5" THEN GO SUB g: PAUSE j: RETURN
1701 CLS : PLOT o,w+k: DRAW 127,a: PLOT o,119: DRAW 127,a: PLOT x,a: DRAW u+l,w+k: DRAW a,v+x: DRAW -48,u+l: PLOT 240,a: DRAW -48,w+k: DRAW a,95: DRAW u+l,u+l: IF i>y THEN RETURN
1710 GO SUB f: PRINT AT l+b,l+t;"DEAD END";AT m-b,x-k;"Back to the";AT m+s,x-s;"START": PAUSE b*v: RETURN
2000 IF b$<>"7" THEN GO SUB 5000
2001 CLS : PLOT a,m+m: DRAW 255,a: PLOT a,135: DRAW 255,a: PRINT AT l+b,l+t;"PASSAGE";AT m-k,m-b;"WALL"
2005 LET p=w-b: GO SUB f
2008 IF b$="7" THEN GO TO 2020
2010 PRINT AT w,x-k;"TURN";AT w,w-b;"BACK";AT w+s,l+t;"Press ";("8" AND b$="5")+("5" AND b$="8"): PAUSE a: IF INKEY$<>"5" AND b$="8" OR INKEY$<>"8" AND b$="5" THEN CLS : GO TO 2001
2015 PRINT AT w,x-k;" ";AT w,w-b;" ";AT w+s,l+t;" ": PAUSE b*x: PRINT AT w-s,m;"d";AT w,m;("f" AND b$="8")+("e" AND b$="5"): PAUSE b*x: CLS : RETURN
2020 PRINT AT w+s,l+t;"TRY AGAIN": PAUSE b*x: CLS : RETURN

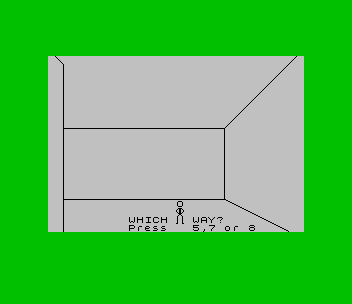

3000 PRINT AT w,b*t;"WHICH";AT w,w-b;"WAY?";AT w+s,b*t;"Press";AT w+s,w-b;"5,7 or 8": FOR n=s TO b*v: IF INKEY$<>"" THEN GO TO 3050
3010 NEXT n
3020 PRINT AT x,l+k; INK k;"o";AT m,l+k;"O";AT m+s,l+k;"b": PAUSE b*x: PRINT AT k+t,x-k;"TOO SLOW!";AT l+b,m-b;"The";AT x-k,l+b; INK k;"GREEN GOBLIN";AT m-k,m-t; INK a;"sends you";AT x-b,l+b;"BACK TO THE";AT m-b,l+k;" START ": PAUSE v+w: RETURN
3050 LET b$=INKEY$: IF b$="0" THEN STOP
3055 IF b$<>"7" AND b$<>"8" AND b$<>"5" THEN GO TO 3000
3060 PRINT AT w,l+b;" ";AT w,w-b;" ";AT w+s,l+b;" ";AT w+s,w-b;" ": PAUSE w: RETURN
4001 PRINT AT p,m;"O";AT p+s,m;"c";AT p+b,m;"b": RETURN
4600 LET p=w-s: GO SUB 5000: FOR n=(m AND b$="8")+(x AND b$="5") TO (w+l AND b$="8")+(INT PI AND b$="5") STEP (b$="8")-(b$="5"): PRINT AT w-b,n;"gh";AT w-s,n;"ij";AT w,n;("kl" AND b$="8")+("mn" AND b$="5"): PAUSE l: PRINT AT w-b,n;(" O" AND b$="8")+("O " AND b$="5");AT w-s,n;(" d" AND b$="8")+("d " AND b$="5");AT w,n;(" e" AND b$="8")+("f " AND b$="5"): PAUSE t: NEXT n: PRINT AT w-b,n;("g" AND b$="8")+("h " AND b$="5");AT w-s,n;("i" AND b$="8")+("j " AND b$="5");AT w,n;("k" AND b$="8")+("n " AND b$="5"): PAUSE l: PRINT AT w-b,n;" ";AT w-s,n;" ";AT w,n;" ": RETURN
4800 PRINT AT p,m;"o";AT p+s,m;"O";AT p+b,m;"p";AT p+INT PI,m;" ": PAUSE w: PRINT AT p-s,m;"q";AT p,m;"r";AT p+s,m;"s";AT p+b,m;" ": PAUSE w
4810 IF c=s THEN LET c=a: RETURN
4820 PRINT AT p-s,m;"t";AT p,m;" ";AT p+s,m;" ": PAUSE w: LET c=a: RETURN
5000 PRINT AT p,m;"d";AT p+s,m;("e" AND b$="8")+("f" AND b$="5"): PAUSE b*x: RETURN
6000 BORDER 4: PRINT AT 1,5; INK 4;"::::::::::::::::::::::::::::::::::::::::::";AT 2,5;":: ::";AT 3,5;"::::::::::::::::::::::::::::::::::::::::::";AT 2,6; INK 0; PAPER 6;" LEPRECHAUN'S GOLD ";AT 5,0; PAPER 7;"Can you make your way to the centre, and find the GOLD?"''TAB 5;"Press 5 to turn left";TAB 11;"7 to move forwards";TAB 11;"8 to turn right";TAB 10;"(0 to quit)"'"Don't turn too early - you'll walk into the wall!"''"BEWARE!"'"The "; INK 4;"GREEN GOBLIN"; INK 0;" will be following you. Don't take too long making a decision or he'll catch up and send you back to the start."
6005 DEF FN h(x)=INT (x/256): DEF FN l(x)=x-256*FN h(x): GO SUB 9000
6010 LET d=2000: LET e=3000: LET f=d+d: LET g=4600: LET h=4800: LET j=50: LET a=NOT d: LET s=SGN d: LET b=s+s: LET k=b+b: LET l=k+k: LET m=l+l: LET o=m*k: LET q=o+l: LET t=k+s: LET u=t*l: LET v=u+u: LET w=k*t: LET x=t*INT PI
6015 PRINT "PRESS ANY KEY TO BEGIN": PAUSE 0: CLS : INPUT "ENTER difficulty level (1 to 10)";z: PRINT "PREPARING MAZE": LET y=z*b+l: GO SUB 8000: GO TO 190
7000 GO SUB 1700: PRINT AT m,x; INK 6;"::::";AT m+s,x-b; INK k;"::::::::::::";AT m+b,x-b;"::::::::::::";AT w-s,m-t; INK a;"O";AT w,m-t;"c";AT w+s,m-t;"b";AT 16,21; INK 4;"o";AT 17,21;"O";AT 18,21;"b"
7010 PRINT AT 9,17; INK 4;"CURSES!";AT 11,18; INK 0;"You've";AT 12,19;"Found";AT 13,21;"the";AT 14,20; INK 6;"GOLD"
7020 PAUSE 100: PRINT AT 1,5;"PRESS 1 TO PLAY AGAIN": PAUSE 0: IF INKEY$="1" THEN CLS : GO TO 6015
7999 STOP
8000 LET x$=" ": FOR i=s TO y STEP b: LET x$(i)=STR$ INT (RND*INT PI+.5): LET x$(i+s)=STR$ INT (RND*k+INT PI+.5): IF i<INT PI THEN GO TO 8010
8005 IF x$(i-s)<>"7" AND RND<.4 THEN LET x$(i+s)="7"
8010 NEXT i: RETURN
9910 REM UDG's
9940 LET x=VAL "(PEEK 23637+PEEK 23638*256)+6": POKE 23675,FN l(x): POKE 23676,FN h(x): RETURN
9950 REM <BB~BBBBBBBBBNOT <ZjjZ<$USR USR AUSR qa. .' @@ @ |||||8DDDDDD AND $$<<<$$$$88((Note: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
