Math Helper

This program implements a simple two-operand calculator called “MATH HELPER” that supports addition, subtraction, multiplication, division, and exponentiation. The user builds numeric operands character by character using keyboard input, switching between them by pressing operator keys (K=+, J=−, B=×, V=÷, H=**), then pressing L to compute and display the result. The program uses a two-element string array B$(2,9) to hold the two operands, each up to 9 characters wide. A backspace-style delete function is implemented via the Z key, which trims the last character from the current entry using a string slice.

---

Program Analysis

Program Structure

The program is organized into a main input loop and a set of subroutine-like blocks reached via GOTO. The blocks are:

• Lines 10–210: Initialization, main keyboard polling loop, character accumulation, and display refresh.
• Lines 1000–5010: Operator selection handlers, one per operator key.
• Lines 6000–6040: Result calculation and display, branching on the stored operator string.
• Lines 6997–6999: Post-result pause, then CLEAR and RUN to restart.
• Lines 9998–9999: SAVE and RUN — a save/autorun footer.

Data Representation

DIM B$(2,9) allocates a two-row string array, each element 9 characters long, to hold the two numeric operands. The variable B tracks which operand (1 or 2) is being entered, and D$ accumulates the current keystroke string before being assigned into B$(B). The operator is stored as a display string in C$, which also doubles as the branch condition in lines 6000–6040.

Key Input and Character Filtering

The main loop polls INKEY$ continuously at line 100. Accepted numeric characters are filtered at line 180:

• CODE A$ > 27 AND CODE A$ < 38 — this accepts characters with codes 28–37, which correspond to the ZX81/TS1000 digit characters 0–9 (codes 28–37). The dot (".") is also accepted explicitly for decimal input.
• Operator keys K, J, B, V, H redirect to their respective handler blocks.
• L triggers the calculation display at line 6000.
• Z acts as a backspace.

Backspace Implementation

Line 205 implements deletion: if A$="Z", the current display string D$ is truncated by one character using the slice D$(TO LEN D$-1). Note that line 200 has already appended A$ to D$ when a “Z” arrives via line 110’s GOTO 205, which skips line 200 — so the Z character itself is never added. The slice correctly removes the last real character entered.

Live Expression Display

Line 500 prints the current state of the expression on screen at every keypress cycle:

PRINT AT 10,0;B$(1);" ";C$;" ";B$(2)

This gives the user continuous feedback of the form 12.5 + 7 as they type. Since B$(1) and B$(2) are fixed-width (9 chars) string array elements, trailing spaces are inherent and act as natural padding/clearing.

Calculation and Result Display

Lines 6000–6040 perform one IF check per operator. Each prints the full expression and result using VAL B$(1) and VAL B$(2) to convert the stored strings to numbers. The double-comma in each PRINT statement (e.g. ,,,) produces blank lines between the expression and the equals line. Exponentiation uses the ** operator.

Operator Key Mapping

Key	Operator	C$ value
K	Addition	+
J	Subtraction	-
B	Multiplication	X
V	Division	/
H	Exponentiation	**
L	Calculate / show result	(reads C$)
Z	Backspace / delete	—

Notable Techniques and Anomalies

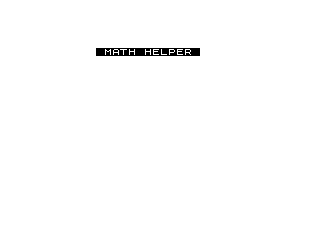

• The title line 70 uses inverse-video characters (% escapes) to render “MATH HELPER” in a highlighted block, a common ZX81/TS1000 display technique.
• PAUSE 40000 at line 6997 provides an effectively indefinite pause (about 10 minutes at 50Hz) before auto-restarting — a common “press any key” substitute without explicit key detection.
• After displaying the result, CLEAR followed by RUN resets all variables and restarts the program cleanly.
• There is no guard against pressing L before entering both operands or an operator — VAL of a blank or space-padded string would produce 0 or a BASIC error.
• The multiplication operator is stored and displayed as X in C$ but the actual BASIC operation uses *, keeping display friendly without special characters.
• All operator handlers (lines 1000–5010) converge at a shared continuation block via GOTO 1010 / GOTO 500, reducing code duplication.
