This program provides a comprehensive measurement conversion reference across three categories: length (inches through kilometers), volume (teaspoons through liters, using US customary units), and weight (ounces through kilograms). The menu screen displays all 21 unit types alongside a decorative right-hand border built from block graphics printed character by character using AT positioning. Navigation uses a computed GOTO at line 90 — `GOTO A*100` — which jumps directly to the handler routine for the selected unit, with each handler residing at a line number that is a multiple of 100. After displaying results, the program accepts any input via `INPUT A$` as a keypress-to-continue mechanism before restarting with `RUN`.
Program Analysis
Program Structure
The program is organized into a menu section followed by 21 self-contained conversion blocks, each anchored at a line number that is a multiple of 100 (100 through 2100). After displaying the menu and accepting a choice at line 70–90, the computed GOTO A*100 dispatches execution directly to the appropriate block. Each block follows a uniform four-step pattern:
- Prompt for the input quantity (
PRINT) - Accept the value (
INPUT A) - Echo the value and print all conversions in a single
PRINTstatement - Wait for any key via
INPUT A$, then restart withRUN
Menu Rendering

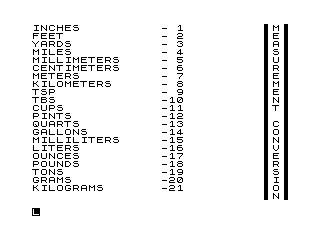

Lines 30–60 construct the menu display. The FOR N=1 TO 22 loop at line 30 prints a decorative right-hand border column using block graphics (\: and \ :, rendering as ▌ and ▐), one character from the string A$="MEASUREMENT CONVERSION" per row, positioned at column 29 with AT N-1,29. Line 60 then prints all unit names and their associated numbers in a single large PRINT statement using the comma column-tab separator, filling in the left portion of the screen from AT 0,0.
Computed GOTO Dispatch
Line 90 uses GOTO A*100 to jump to the selected handler. This is a clean O(1) dispatch mechanism that avoids a chain of IF statements. The valid input range is enforced at line 80 with IF A<1 OR A>21 THEN GOTO 70, though the computed target for A=21 is line 2100, which exists, so all values in range are handled correctly.
Conversion Data
The three conversion categories and their units are:
| Category | Units covered | Menu numbers |
|---|---|---|
| Length | Inches, Feet, Yards, Miles, Millimeters, Centimeters, Meters, Kilometers | 1–8 |
| Volume (US customary) | Teaspoons, Tablespoons, Cups, Pints, Quarts, Gallons, Milliliters, Liters | 9–16 |
| Weight | Ounces, Pounds, Tons (short), Grams, Kilograms | 17–21 |
Volume conversions use US customary measures (e.g., 1 teaspoon = 4.9288665 mL, 1 gallon = 3785.3692 mL). The “ton” in the weight section is the US short ton (2000 pounds / 32000 ounces), not the metric tonne.
Notable Techniques
- Computed GOTO:
GOTO A*100at line 90 replaces what would otherwise be 21 conditional branches, exploiting the regular line-number spacing. - Single-statement output: Each conversion block outputs all results in one
PRINTstatement using comma column separators to align values and labels in pairs across the screen. - INPUT as keypress wait:
INPUT A$(lines 140, 240, etc.) is used as a “press any key” pause beforeRUNrestarts the program; the user must type something and press Enter. - RUN as restart: Using
RUNinstead ofGOTO 20clears all variables and restores a clean state, avoiding accumulation of any residual data across sessions. - Block graphic border: The right-hand column border uses the character-by-character loop (lines 30–50) to display individual letters of “MEASUREMENT CONVERSION” framed by block graphic characters, creating a decorative sidebar.
Content
Image Gallery
Source Code
10 LET A$="MEASUREMENT CONVERSION"
20 CLS
30 FOR N=1 TO 22
40 PRINT AT N-1,29;": ";A$(N);" :"
50 NEXT N
60 PRINT AT 0,0;"INCHES","- 1","FEET","- 2","YARDS","- 3","MILES","- 4","MILLIMETERS","- 5","CENTIMETERS","- 6","METERS","- 7","KILOMETERS","- 8","TSP","- 9","TBS","-10","CUPS","-11","PINTS","-12","QUARTS","-13","GALLONS","-14","MILLILITERS","-15","LITERS","-16","OUNCES","-17","POUNDS","-18","TONS","-19","GRAMS","-20","KILOGRAMS","-21"
70 INPUT A
80 IF A<1 OR A>21 THEN GOTO 70
85 CLS
90 GOTO A*100
100 PRINT ,,"HOW MANY INCHES? ";
110 INPUT A
120 PRINT A
130 PRINT ,,"= ",,,,A/12," FT",A/36," YDS",A/63360," MILES",A*25.4," MM",A*2.54," CM",A*.0254," MTRS",A*.0000254," KM"
140 INPUT A$
150 RUN
200 PRINT ,,"HOW MANY FEET? ";
210 INPUT A
220 PRINT A
230 PRINT ,,"=",,,,A*12,"IN",A/3,"YDS",A/5280,"MILES",A*304.8,"MM",A*30.48,"CM",A*.3048,"MTRS",A*.0003048,"KM"
240 INPUT A$
250 RUN
300 PRINT ,,"HOW MANY YARDS? ";
310 INPUT A
320 PRINT A
330 PRINT ,,"=",,,,A*36,"IN",A*3,"FT",A/1760,"MILES",A*914.4,"MM",A*91.44,"CM",A*.9144,"MTRS",A*.0009144,"KM"
340 INPUT A$
350 RUN
400 PRINT ,,"HOW MANY MILES? ";
410 INPUT A
420 PRINT A
430 PRINT ,,"=",,,,A*63360,"IN",A*5280,"FT",A*1760,"YARDS",A*1609344,"MM",A*160934.4,"CM",A*1609.344,"MTRS",A*1.609344,"KM"
440 INPUT A$
450 RUN
500 PRINT ,,"HOW MANY MILLIMETERS? ";
510 INPUT A
520 PRINT A
530 PRINT ,,"=",,,,A/25.4,"IN",A/304.8,"FT",A/914.4,"YARDS",A/1609344,"MILES",A*.1,"CM",A*.001,"MTRS",A*.000001,"KM"
540 INPUT A$
550 RUN
600 PRINT ,,"HOW MANY CENTIMETERS? ";
610 INPUT A
620 PRINT A
630 PRINT ,,"=",,,,A/2.54,"IN",A/30.48,"FT",A/91.44,"YARDS",A/160934.4,"MILES",A*10,"MM",A*.01,"MTRS",A*.00001,"KM"
640 INPUT A$
650 RUN
700 PRINT ,,"HOW MANY METERS? ";
710 INPUT A
720 PRINT A
730 PRINT ,,"=",,,,A/.0254,"IN",A/.3048,"FT",A/.9144,"YARDS",A/1609.344,"MILES",A*1000,"MM",A*100,"CM",A*.001,"KM"
740 INPUT A$
750 RUN
800 PRINT ,,"HOW MANY KILOMETERS? "
810 INPUT A
820 PRINT A
830 PRINT ,,"=",,,,A/.0000254,"IN",A/.0003048,"FT",A/.0009144,"YARDS",A/1.609344,"MILES",A*1000000,"MM",A*100000,"CM",A*1000,"METERS"
840 INPUT A$
850 RUN
900 PRINT ,,"HOW MANY TEASPOONS? ";
910 INPUT A
920 PRINT A
930 PRINT ,,"=",,,,A/3,"TABLESPOONS",A/48,"CUPS",A/96,"PINTS",A/192,"QUARTS",A/768,"GALLONS",4.9288665*A,"MILLILITERS",.0049288665*A,"LITERS"
940 INPUT A$
950 RUN
1000 PRINT ,,"HOW MANY TABLESPOONS? ";
1010 INPUT A
1020 PRINT A
1030 PRINT ,,"=",,,,A*3,"TEASPOONS",A/16,"CUPS",A/32,"PINTS",A/64,"QUARTS",A/256,"GALLONS",14.786598*A,"MILLILITERS",.014786598*A,"LITERS"
1040 INPUT A$
1050 RUN
1100 PRINT ,,"HOW MANY CUPS? ";
1110 INPUT A
1120 PRINT A
1130 PRINT ,,"=",,,,A*48,"TEASPOONS",A*16,"TABLESPOONS",A/2,"PINTS",A/4,"QUARTS",A/16,"GALLONS",236.58557*A,"MILLILITERS",.23658557*A,"LITERS"
1140 INPUT A$
1150 RUN
1200 PRINT ,,"HOW MANY PINTS? ";
1210 INPUT A
1220 PRINT A
1230 PRINT ,,"=",,,,A*96,"TEASPOONS",A*32,"TABLESPOONS",A*2,"CUPS",A/2,"QUARTS",A/8,"GALLONS",473.17115*A,"MILLILITERS",.47317115*A,"LITERS"
1240 INPUT A$
1250 RUN
1300 PRINT ,,"HOW MANY QUARTS? ";
1310 INPUT A
1320 PRINT A
1330 PRINT ,,"=",,,,A*192,"TEASPOONS",A*64,"TABLESPOONS",A*4,"CUPS",A*2,"PINTS",A/4,"GALLONS",946.3423*A,"MILLILITERS",.9463423*A,"LITERS"
1340 INPUT A$
1350 RUN
1400 PRINT ,,"HOW MANY GALLONS? ";
1410 INPUT A
1420 PRINT A
1430 PRINT ,,"=",,,,A*768,"TEASPOONS",A*256,"TABLESPOONS",A*16,"CUPS",A*8,"PINTS",A*4,"QUARTS",3785.3692*A,"MILLILITERS",3.7853692*A,"LITERS"
1440 INPUT A$
1450 RUN
1500 PRINT ,,"HOW MANY MILLILITERS? ";
1510 INPUT A
1520 PRINT A
1530 PRINT ,,"=",,,,A/4.9288665,"TEASPOONS",A/14.786599,"TABLESPOONS",A/236.58558,"CUPS",A/473.17116,"PINTS",A/946.3423,"QUARTS",A/3785.369,"GALLONS",A/1000,"LITERS"
1540 INPUT A$
1550 RUN
1600 PRINT ,,"HOW MANY LITERS? ";
1610 INPUT A
1620 PRINT A
1630 PRINT ,,"=",,,,A/.0049288665,"TEASPOONS",A/.014786599,"TABLESPOONS",A/.23658558,"CUPS",A/.47317116,"PINTS",A/.9463423,"QUARTS",A/3.785369,"GALLONS",A*1000,"MILLILITERS"
1640 INPUT A$
1650 RUN
1700 PRINT ,,"HOW MANY OUNCES? ";
1710 INPUT A
1720 PRINT A
1730 PRINT ,,"=",,,,A/16,"POUNDS",A/32000,"TONS",A*28.35,"GRAMS",A*.02835,"KILOGRAMS"
1740 INPUT A$
1750 RUN
1800 PRINT ,,"HOW MANY POUNDS? ";
1810 INPUT A
1820 PRINT A
1830 PRINT ,,"=",,,,A*16,"OUNCES",A/2000,"TONS",A*453.6,"GRAMS",A*.4536,"KILOGRAMS"
1840 INPUT A$
1850 RUN
1900 PRINT ,,"HOW MANY TONS? ";
1910 INPUT A
1920 PRINT A
1930 PRINT ,,"=",,,,A*32000,"OUNCES",A*2000,"POUNDS",A*907200,"GRAMS",A*907.2,"KILOGRAMS"
1940 INPUT A$
1950 RUN
2000 PRINT ,,"HOW MANY GRAMS? ";
2010 INPUT A
2020 PRINT A
2030 PRINT ,,"=",,,,A/28.35,"OUNCES",A/453.6,"POUNDS",A/907200,"TONS",A/1000,"KILOGRAMS"
2040 INPUT A$
2050 RUN
2100 PRINT ,,"HOW MANY KILOGRAMS? ";
2110 INPUT A
2120 PRINT A
2130 PRINT ,,"=",,,,A/.02835,"OUNCES",A/.453597,"POUNDS",A/907.200,"TONS",A*1000,"GRAMS"
2140 INPUT A$
2150 RUN
9998 SAVE "MEASUREMENT CONVERSIO%N"
9999 RUN
Note: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
