Super-Cipher 2068 V2.2

This file is part of and TS-2068 Computer Programs. Download the collection to get this file.

Date: 1985

Type: Program

Platform(s): TS 2068

Super-Cipher 2068 V2.2 is a text encryption and decryption program that uses a user-supplied password to generate a numeric key array, then applies a modular arithmetic cipher to encode or decode messages stored in a 2500-character string array. The password processing at line 140 builds a key array by combining character codes from the first, last, and current positions of the password with its length, reducing each value modulo 59 to produce key values. Encryption (subroutine at line 20) and decryption (subroutine at line 60) each walk through the message string, XOR-like combining character codes with cycling key values and wrapping the result into the printable ASCII range using modulo 59 arithmetic. The program supports printing encoded messages to a printer, saving and loading message files to tape, and a multi-level re-encoding option; it also uses two custom UDG characters (“a” and “b”) defined via POKEs from DATA at line 9900 for menu selection markers. Termination (option 4) triggers an elaborate SOUND and color-cycling sequence before issuing DELETE and NEW to wipe the program from memory.

Program Analysis

Program Structure

The program is organized into distinct functional blocks, with a startup routine at line 9500 that initializes UDGs and jumps to the main menu at line 200. Menu dispatch uses the idiom GO TO 1000*l at line 270 to jump directly to one of four top-level sections (lines 1000, 2000, 3000, 4000). A secondary sub-menu at line 1055 uses GO SUB 1000+100*INT x at line 1085 to reach subsidiary routines at lines 1100, 1200, 1300, and 1400.

Line Range	Purpose
2–9	Keyboard input subroutine (builds message in `m$`)
20–50	Encryption subroutine
60–100	Decryption subroutine
110–160	Password entry and key array generation

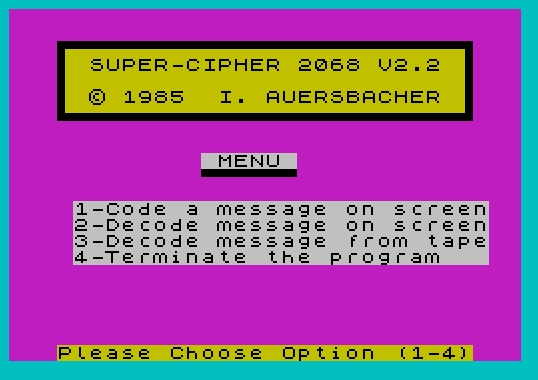

200–270	Main menu display and dispatch
1000–1090	Option 1: Code message on screen + sub-menu
1100	Sub-option: Print message
1200–1240	Sub-option: Save message to tape
1300–1310	Sub-option: Re-encode to higher level
1400–1410	Sub-option: Decode to lower level
2000–2040	Option 2: Decode message on screen
3000–3060	Option 3: Decode message from tape
4000–4090	Option 4: Terminate with self-destruct sequence
9500–9600	Startup: BEEP, POKE, UDG setup, jump to menu
9900	DATA for UDG characters “a” and “b”

Cipher Algorithm

The password subroutine (lines 110–160) prompts for a password of at least two characters, then constructs a numeric array z() of the same length. Each element is computed as:

x = CODE y$(1) + CODE y$(z) + CODE y$(t) + t - 32, then reduced modulo 59: z(z) = x - 59*INT(x/59). This means every key element blends the first character code, the last character code, the current character code, and the password length.

Encryption (lines 20–50) cycles through the message string and for each character computes x = z(y) + t + 9 (where t is the character’s code), then maps it into a printable range with CHR$(x - 59*INT(x/59) + 32). Decryption (lines 60–100) reverses this: x = t - z(y) - 42, then adds 59 repeatedly while x < 31 to keep the value in a valid range, yielding CHR$(x+1). Both routines terminate on encountering a carriage-return character (code 13) stored as an end-of-message sentinel.

Key Input Subroutine

Lines 2–9 implement a custom keyboard input routine that bypasses the standard INPUT statement. It uses the PAUSE 0/INKEY$ wait idiom across lines 4–5 to detect a keypress. Characters are stored one by one into the pre-dimensioned string array m$(2500). The Delete key (code 12) is handled at line 7: it prints CHR$ 8 (cursor left), overwrites with a PAPER 6 space to visually erase, and decrements the position counter l. Enter (code 13) stores the sentinel and exits via RETURN. ON ERR RESET at line 6 guards against array bounds overrun when the message fills m$.

ON ERR Usage

Line 2 sets up ON ERR GO TO 4 before dimensioning m$; if m$ already exists from a prior run, the DIM at line 3 would cause an error, and execution jumps directly to the input wait at line 4, effectively skipping the re-dimension. Line 6 uses ON ERR RESET to silently handle any array overflow at the end of the message buffer.

UDG Characters

Lines 9500–9600 define two UDGs. Eight bytes each are read from the DATA at line 9900 and POKEd into the UDG table for characters “a” (CHR$ 144) and “b” (CHR$ 145). These are used at lines 250 and 1075 to display a selection arrow/indicator next to the currently chosen menu option, printed with contrasting INK colors (0 and 6).

SOUND Usage

The termination sequence (lines 4000–4060) makes extensive use of SOUND to produce an elaborate audio effect. Line 4000 calls SOUND 7,62;8,15, line 4020 cycles SOUND within a FOR loop using the loop variable, and line 4040 chains multiple SOUND channels. This provides dramatic audio feedback during the program’s self-destruction sequence.

Self-Destruct Termination

Option 4 (line 4000) performs a theatrical shutdown. After a color-cycling loop (lines 4020–4030) that rapidly changes PAPER and BORDER colors, a series of BORDER/PAPER/CLS flashes creates a strobe effect. Finally, DELETE 0,4000 at line 4080 attempts to remove lines 0–4000 from memory, followed by NEW at line 4090 to wipe all remaining BASIC, making the program irretrievable without a fresh load from tape.

Notable Techniques and Idioms

Computed GO TO with GO TO 1000*l and GO SUB 1000+100*INT x for clean menu dispatch without IF chains.
POKE 23658,8 and POKE 23658,0 toggle caps lock on and off to control input case during INPUT prompts.
POKE 23692,0 resets the scroll counter to prevent the “scroll?” prompt from interrupting output.
POKE 23609,10 sets the keyboard repeat delay.
The decryption loop at lines 85–90 uses a GO TO-based while loop to add 59 until the value is in range, rather than a direct modulo formula — functionally equivalent but typical of space-constrained BASIC.
Message end is detected by a CR sentinel (code 13) stored in m$ rather than tracking a separate length variable, though l is also maintained as a length counter for printing and saving.
The tape load option at line 3060 previews only the first 672 characters of the loaded message (m$(TO 672)) before proceeding to decode, to avoid screen overflow.

Potential Bugs and Anomalies

At line 40, z(y) references a numeric array named z, while z is also used as a FOR loop variable (lines 25, 65). This works because BASIC evaluates z(y) as an array element subscript, but it is an unusual and potentially confusing overloading of the variable name.
Similarly at line 150, z(z)=x-... assigns to array element z(z) where z is also the loop counter — functional, but relies on the BASIC interpreter correctly distinguishing array from scalar usage of the same name.
The decryption formula produces CHR$(x+1) while encryption uses CHR$(x+32) as a base offset. The asymmetry (offsets 9 vs. 42, and base adjustments +32 vs. +1) is intentional to the modular arithmetic but makes the relationship between encode and decode non-obvious at first glance.
Line 3060 re-uses GO TO 2020 to jump mid-subroutine into the decode flow rather than calling it as a subroutine, meaning the stack is not cleaned up; this is not a problem in practice since this path never returns.

Content

Appears On

TS-2068 Computer Programs

Predict eclipses across four millennia, track planetary positions through five centuries, calculate loan amortization schedules, or encode secret messages with modular arithmetic — Imre Auersbacher's collection brings scientific precision and practical utility to the TS 2068.

Image Gallery

Source Code
GO TO 9500
LET l=1: ON ERR GO TO 4
DIM m$(2500): POKE 23692,0
IF INKEY$<>"" THEN GO TO 4
IF INKEY$="" THEN GO TO 5
LET q$=INKEY$: IF CODE q$=13 THEN LET m$(l)=q$: ON ERR RESET : RETURN
IF CODE q$=12 THEN PRINT CHR$ 8;: LET l=l-1: PRINT PAPER 6;" ";CHR$ 8;: GO TO 4
IF CODE q$=0 THEN GO TO 4
LET m$(l)=q$: LET l=l+1: PRINT PAPER 3; INK 7;q$;: GO TO 4
CLS : PRINT PAPER 6;"Coded message --> ": PRINT :
LET y=1: POKE 23692,0
FOR z=1 TO LEN m$
IF y>LEN y$ THEN LET y=1
LET t=CODE m$(z): IF t=13 THEN LET l=z-1: RETURN
LET x=z(y)+t+9
LET q$=CHR$ (x-59*INT (x/59)+32): LET m$(z)=q$: PRINT q$;
LET y=y+1: NEXT z: RETURN
CLS : PRINT PAPER 6;"Decoded Message --> ": PRINT :
LET y=1: POKE 23692,0
FOR z=1 TO LEN m$
IF y>LEN y$ THEN LET y=1
LET t=CODE m$(z): IF t=13 THEN LET l=z-1: RETURN
LET X=t-z(y)-42
IF x>=31 THEN GO TO 95
LET x=x+59: GO TO 85
LET q$=CHR$ (x+1): LET m$(z)=q$: PRINT q$;: LET y=y+1
NEXT z: RETURN
PRINT : PRINT "Password? ";
INPUT y$: IF LEN y$<=1 THEN BEEP 0.6,-22: GO TO 120
PRINT FLASH 1;" Secret "
LET t=LEN y$: DIM z(t)
FOR z=1 TO t: LET x=CODE y$(1)+CODE y$(z)+CODE y$(t)+t-32
LET z(z)=x-59*INT (x/59)
NEXT z: PRINT : RETURN
BORDER 5: POKE 23658,8: PAPER 3: CLS : POKE 23609,10
PRINT PAPER 6;AT 2,3;"\:'\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\':";AT 3,3;"\:  SUPER-CIPHER 2068 V2.2 \ :";AT 4,3;"\:                         \ :";AT 5,3;"\:  \* 1985  I. AUERSBACHER \ :";AT 6,3;"\:.\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\.:"
PRINT PAPER 7;AT 9,12;" MENU "; PAPER 3;AT 10,12;"\''\''\''\''\''\''"; PAPER 7;AT 12,4;"1-Code a message on screen";AT 13,4;"2-Decode message on screen";AT 14,4;"3-Decode message from tape";AT 15,4;"4-Terminate the program   "; PAPER 6;AT 21,3;"Please Choose Option (1-4)"
LET q$=INKEY$: IF q$="" THEN GO TO 230
LET l=CODE q$-48: IF (l<1)+(l>4) THEN BEEP 0.5,-15: BEEP 0.5,-20: GO TO 230
BEEP 0.05,25
PRINT INK 0;AT 11+l,1;CHR$ 144; INK 6;CHR$ 145: PAUSE 60
BEEP 0.04,20: BEEP 0.04,20
PAPER 7: GO TO 1000*l
CLS : PRINT PAPER 6;"   1. Code Message on Screen    "
GO SUB 110: PRINT PAPER 6;"Enter Message-->": GO SUB 2
GO SUB 20: PRINT
PRINT : PRINT FLASH 1;" Coding Complete ": PRINT : PRINT
PRINT PAPER 6;AT 21,3;"Press any key to continue"
IF INKEY$="" THEN GO TO 1050
BEEP 0.1,25: PAPER 3: CLS : PRINT PAPER 1; INK 7;AT 2,4;" Super-Cipher Sub-MENU "
PRINT PAPER 7;AT 6,10;" Options "; PAPER 3;AT 7,10;"\''\''\''\''\''\''\''\''\''"; PAPER 7;AT 9,4;"1-Copy Message to Printer";AT 10,4;"2-Save Message to Tape   ";AT 11,4;"3-Code to Higher Level   ";AT 12,4;"4-Decode to Lower Level  ";AT 13,4;"5-Return to Main Menu    "; PAPER 6;AT 21,3;"Please Enter Option (1-5)"
LET q$=INKEY$: IF q$="" THEN GO TO 1065
LET x=CODE q$-48: IF (x<1)+(x>5) THEN BEEP 0.5,-15: BEEP 0.6,-20: GO TO 1065
BEEP 0.05,25: PRINT INK 0;AT 8+x,1;CHR$ 144; INK 6;CHR$ 145
PAUSE 60: PAPER 7: BEEP 0.05,22: IF x=5 THEN GO TO 200
GO SUB 1000+100*INT x
GO TO 1055
LPRINT : LPRINT m$( TO l): LPRINT : LPRINT : RETURN
CLS : PRINT PAPER 6;AT 2,2;"Name of this message file? "
POKE 23658,0
INPUT x$: IF LEN x$>10 OR x$="" THEN BEEP 1,-20: GO TO 1210
PRINT "  ";x$: POKE 23658,8
SAVE x$ DATA m$()
BEEP 0.1,22: PRINT AT 5,2;"File ";x$;" Saved."; FLASH 1;AT 8,8;" Stop Recorder "
PAUSE 500: RETURN
CLS : GO SUB 110: GO SUB 20
PRINT : PRINT : PRINT FLASH 1;" Coding Complete ": PRINT : PRINT : PAUSE 2000: RETURN
CLS : GO SUB 110: GO SUB 60
PRINT : PRINT : PRINT FLASH 1;" Decoding Complete ": PRINT : PRINT : PAUSE 2000: RETURN
CLS : PRINT PAPER 6;"  2. Decode Message on Screen   "
GO SUB 110: PRINT PAPER 6;"Enter Message-->": GO SUB 2
GO SUB 60: PRINT
PRINT : PRINT FLASH 1;" Decoding Complete ": PRINT : PRINT
GO TO 1040
CLS : PRINT PAPER 6;"  3. Decode Message from Tape   "
GO SUB 110: PRINT "What is file name? ";: POKE 23658,0
INPUT x$: IF LEN x$>10 OR x$="" THEN BEEP 1,-20: GO TO 3020
PRINT x$: POKE 23658,8
INPUT "Press ENTER & Start Recorder "; LINE q$
PRINT : PRINT FLASH 1;AT 6,2;" Loading ";x$;" "
LOAD x$ DATA m$()
BEEP 0.1,22: PRINT : PRINT FLASH 1;" Please Stop Recorder "
PAUSE 300: CLS : PRINT m$( TO 672): PAUSE 120: GO TO 2020
CLEAR : SOUND 7,62;8,15
FOR l=40 TO 120: SOUND 0,l
LET x=l-6*INT (l/6)+1
PAPER x: BORDER 7-x: CLS
PAUSE 1: NEXT l
SOUND 6,6;7,7;8,16;9,16;10,16;12,56;13,8
BORDER 0: PAPER 0: CLS
PAUSE 30: BORDER 7: PAPER 7: CLS : PAUSE 30: BORDER 0
PAPER 0: CLS : PAUSE 30
BORDER 7: PAPER 7: CLS
SOUND 8,0;9,0;10,0
PRINT FLASH 1;AT 10,5;" Program Terminated "
PRINT PAPER 6;AT 14,6;" Security Risk = 0 ": DELETE 0,4000
PAUSE 300: NEW
BEEP 0.05,22: BEEP 0.06,20: POKE 23609,10: POKE 23658,8
RESTORE 9900: FOR l=0 TO 7: READ x,y: POKE USR "a"+l,x: POKE USR "b"+l,y: NEXT l: GO TO 200
DATA 0,24,0,48,127,96,127,255,127,255,115,248,115,248,127,240
SAVE "cipher" LINE 9500

Note: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
