L & K

This program implements a multi-screen slideshow loader and display system, storing up to 27 screens in memory between addresses 29952 and 63744 at 1024-byte intervals. It uses embedded Z80 machine code, self-installed at address 65000 via a POKE loop in line 330, to perform fast block memory copies between the loaded screen buffers and the display file at 16384 (0x4000). The machine code routine is stored as a decimal-encoded string, with each opcode represented as a three-digit value parsed using VAL and a sliding-window string technique. A user-selectable speed parameter controls the PAUSE duration between frame transitions during playback, creating a simple animation or slideshow effect.

---

Program Analysis

Program Structure

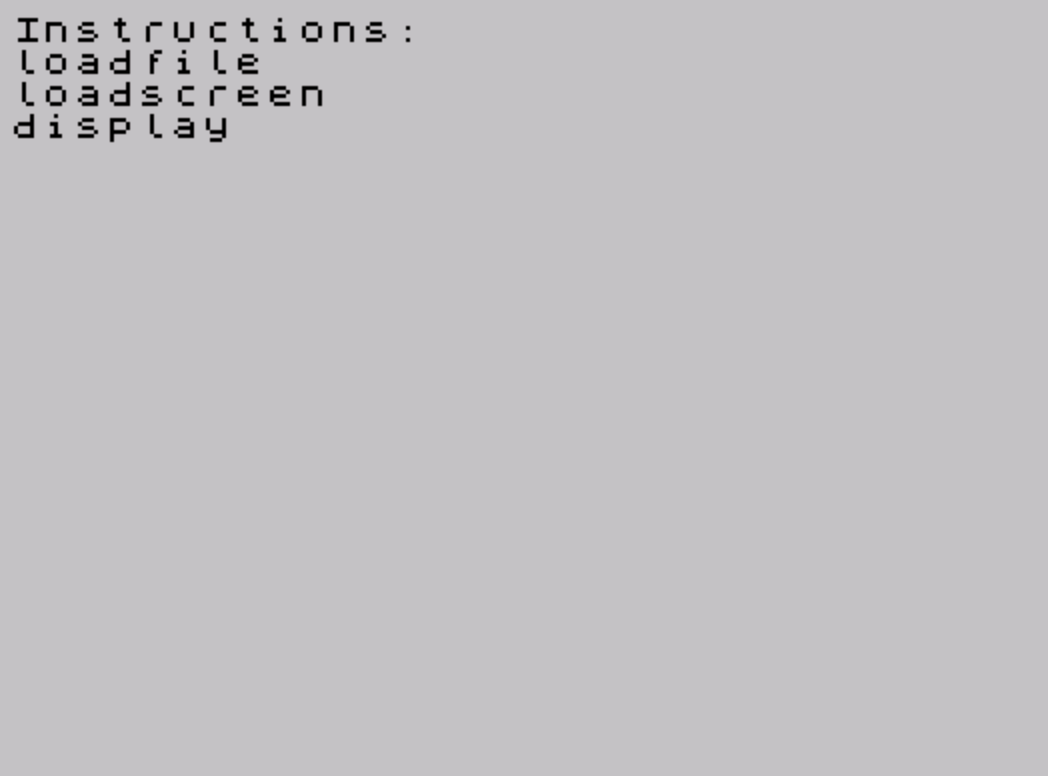

The program is organized as a menu-driven loader with four named entry points, whose line numbers are stored in variables for direct GO TO a dispatch after an INPUT a at line 70. The four functional sections are:

1. loadfile (line 90) — loads an arbitrary CODE block and returns to menu.
2. loadscreen / loadscr (line 130) — loads a SCREEN$ into successive 1024-byte-stepped buffer slots starting at 29952.
3. display (line 220) — plays back all stored screens as a slideshow at a user-defined speed.
4. Machine code installer (line 330) — installs the Z80 routine and chains to RUN.

The program must be bootstrapped by running line 330 first (which ends with RUN, restarting from line 10) so the machine code is in place before any display or load operations are attempted.

Memory Layout

Address	Purpose
16384 (0x4000)	Display file (6144 bytes)
22528 (0x5800)	Attribute file (768 bytes)
29952 (0x7500)	First screen buffer slot
29952 + n×1024	Successive screen buffer slots
63744 (0xF900)	Last valid buffer slot
65000 (0xFDE8)	Machine code routine

Each slot is 1024 bytes, which is notably not a full Spectrum screen (6912 bytes). This means only the first 1024 bytes of each SCREEN$ load are stored per slot — likely just the beginning of the pixel area. The CLEAR 29952 at line 10 sets RAMTOP to protect high memory but leaves the screen buffer region accessible. The guard IF pp>63744 at line 150 prevents overwriting the machine code at 65000.

Machine Code Installer

Line 330 is the bootstrap routine. It performs CLEAR 65000 to protect the target area, then decodes a 75-character decimal string (25 three-digit groups) into 25 bytes POKEd from address 65000 onward. The sliding-window idiom VAL a$(TO PI) extracts the first three characters as a number, and LET a$=a$(4 TO) advances the string. PI truncates to 3 in this context (since TO PI means TO 3 after integer truncation by VAL‘s argument slicing — actually the slice a$(TO PI) takes characters 1 to INT(PI)=3).

Z80 Machine Code Analysis

The encoded decimal string is: 033000064017000121062032001032000237176006023035005194247253061200195240253

Decoded bytes (hex): 21 00 40 11 00 79 3E 20 01 20 00 ED B0 06 17 23 05 C2 F7 FD 3D C8 C3 F0 FD

This disassembles as two interleaved routines whose entry points are patched by the BASIC via POKEs before each RANDOMIZE USR 65000 call:

• Load mode (line 170–200): POKEs set up a LDIR-based copy from a buffer slot to display memory at 0x4000.
• Display mode (line 240–300): POKEs reverse the source/destination to copy from display memory to a buffer slot, or vice versa for playback.
• The routine at offset +15 (06 17 23 05 C2 F7 FD) is a counted loop with DJNZ-style logic using DEC B / JP NZ targeting back into the routine.
• The tail 3D C8 C3 F0 FD — DEC A / RET Z / JP 0xFDF0 — provides a loop-exit with return, jumping back to offset +16 (0xFDF0 = 65008) until the counter reaches zero.

The high-byte of the source/destination addresses is the only value changed between calls (via POKE 65005,pp/256 or POKE 65005,f/256), making this a compact parameterized block-copy trampoline.

Key BASIC Idioms

• Named dispatch: Variables loadfile, loadscr, loadscreen, and display hold line numbers; GO TO a after INPUT a routes execution without a lookup table.
• VAL with PI truncation: VAL a$(TO PI) exploits the fact that PI≈3.14… truncates to index 3 in a string slice, extracting exactly three characters per iteration.
• Self-modifying machine code via POKE: Rather than multiple routines, a single code block is reconfigured for copy direction and address before each call.
• RUN at end of bootstrap: Line 330 ends with RUN, cleanly restarting the program with machine code now installed and CLEAR protecting it.

Bugs and Anomalies

• 1024-byte screen slots vs. 6912-byte screens: A full Spectrum SCREEN$ is 6912 bytes (6144 pixel + 768 attribute). Storing screens at 1024-byte intervals means screens overlap heavily or only partial screen data is preserved. This appears to be an intentional design choice for a partial-screen animation or the buffer stores only luminance/pixel rows, discarding attributes.
• pp initialization: pp is initialized to 29952 at line 20 but is incremented before the first load at line 140, meaning the first screen is stored at 30976 (29952+1024), not 29952. This may be intentional if the first slot is reserved.
• display loop starts at 29952: The FOR loop at line 270 starts at 29952, before the first actually loaded slot (30976 if the above is correct), so the first frame displayed may be uninitialized memory.
