Space Docking

This is a space docking arcade game in which the player manoeuvres a ship (displayed using inverse-video characters) upward toward a randomly positioned fuel satellite, using Z/M keys to move left and right and A to ascend. The program opens with a RAND USR 16514 call to execute a machine-code routine before entering the main game loop. Scoring increments by 210 points per successful docking, and the game tracks how many ships the player has saved across rounds. A subroutine at line 650 draws star-field dots using PRINT AT with RND coordinates and resets a system variable via POKE 16418. Line 702 provides a brief flashing “SAVED” animation implemented with nested delay loops rather than PAUSE.

---

Program Analysis

Program Structure

The program is organised into a main game loop with several supporting subroutines and an instructions page branched to by a non-existent GOTO 9000 hint on screen. The overall flow is:

1. Lines 1–4: Machine-code initialisation (RAND USR 16514) with FAST/SLOW framing.
2. Lines 5–82: Variable setup, initial screen draw, star-field and HUD setup via GOSUB 650.
3. Lines 90–230: Core game loop — place satellite, move ship, handle keys, detect collision.
4. Lines 300–310: Successful docking — advance satellite row, redraw.
5. Lines 350–361: Ship lost — increment round counter, award points, flash “SAVED” message, continue.
6. Lines 500–645: Game-over screen, pause loop, restart.
7. Lines 650–701: Star-field / HUD draw subroutine.
8. Lines 702–730: “SAVED” flash animation subroutine with software delay.
9. Lines 9000–9020: In-game instructions page (reached only by the player typing GOTO 9000).
10. Lines 9998–9999: SAVE / RUN loader stub.

Machine Code Usage

Line 3 executes RAND USR 16514. Address 16514 (0x4082) sits in the ZX81 system variable / display file area. This is a common technique to invoke a short machine-code patch that has been pre-loaded elsewhere in RAM — here presumably to patch display behaviour or set up the character set, since the game makes heavy use of inverse-video text.

Key Variables

Variable	Role
A	Constant 1 (PI/PI), used everywhere in place of the literal 1 to save memory
B	Constant 0 (PI-PI), used as a zero sentinel throughout
V	Fuel / move counter (counts down from 600)
S	Ship row position
T	Ship column position
X	Satellite column (random)
Y	Satellite row (starts at 15, advances up by 5 on each dock)
R	Ships saved counter
G	Score (total points)
P	Loop counter used in both the game-over pause and the flash animation

Notable BASIC Idioms

• PI arithmetic for constants: LET A=PI/PI (=1) and LET B=PI-PI (=0) are classic ZX81 memory-saving idioms. Using these named variables avoids storing floating-point literals in every subsequent expression.
• Boundary clamping: Lines 170–180 clamp T between B (0) and 25, preventing the ship from leaving the screen horizontally.
• Collision detection: Line 210 checks T=X AND S=Y-A (ship column matches satellite column and ship row is one above the satellite row) for a successful dock. Line 220 handles the “wrong column, same row” case by resetting the ship downward.
• POKE 16418,0: In the star-field subroutine (line 654) this zeroes the ZX81 system variable FRAMES (low byte), commonly done to reset the frame counter or suppress cursor flicker side-effects.

Graphics and Display

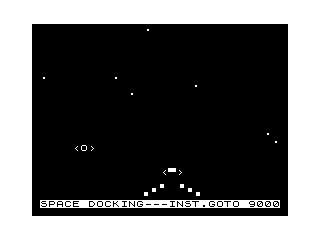

All sprites are rendered using PRINT AT with inverse-video characters encoded as %X escapes. The player’s ship at line 110 shows as % %<\..%>% — a stylised craft. The satellite at line 100 is % %<%O%>% . The docking bay frame (lines 21–22) uses block-graphic characters (▘, ▖, ▌, ▟, etc.) to draw a bay outline at the bottom of the play area. Stars are scattered randomly by printing inverse full-stop characters (%.) at random positions in the subroutine at lines 650–654.

Animation and Timing

The “SAVED” flash at lines 702–720 alternates between printing %S%A%V%E%D and blank spaces three times, with a short software delay loop (lines 724–730, counting to 3) between each frame. This is a purely software-timed approach with no PAUSE statement. The game-over pause (lines 550–575) similarly uses a FOR loop counting to 100 as a delay before restarting.

Scoring

On a successful docking (line 355), the score G is incremented by 210 (110+100). The initial value of G at line 6 is set to a random number in the range 0–349 (INT(RND*350)), effectively randomising the starting score — this appears intentional as a quirky design choice rather than a bug, though it makes score comparison between games inconsistent.

Bugs and Anomalies

• Line 6 sets G=INT(RND*350) immediately before the game loop, giving a random initial score. This is likely unintentional and means the displayed final score is not purely merit-based.
• The IF INKEY$="A" THEN LET S=S-A at line 160 only moves the ship upward; there is no downward key defined. The ship can only ascend or hold position, which makes boundary clamping on S (visible at line 200 checking S=B) the only lower-bound check.
• Line 190 checks V=B (fuel=0) but V is decremented by 1 each iteration (line 130). Since V starts at 600 and decrements by the constant A (which is exactly 1.0), this will reach exactly 0 and the check will fire correctly.
• The instructions at lines 9000–9020 are only accessible if the player manually types GOTO 9000; the status bar at line 655 advertises “INST.GOTO 9000” for this purpose. STOP at line 9020 halts the program after displaying instructions rather than returning to the game.
