Subtraction

This program performs subtraction of two multi-digit integers entered as strings, displaying the operation in a vertical arithmetic layout (minuend, subtrahend, and result). It implements subtraction via the nine’s complement (nines’ complement) method: the subroutine at line 500 replaces each digit of the subtrahend with its nine’s complement (9 minus the digit), and then adds one via the carry initialisation at line 80, effectively computing A − B as A + (9s complement of B) + 1. The subroutine at line 1000 zero-pads both input strings to equal length before processing. Leading zeros in each number are stripped and replaced with spaces for a clean printed display before the result is shown.

---

Program Analysis

Program Structure

The program is organised into a main flow and two subroutines:

1. Lines 1–36: Initialisation, user input of two number strings, and a PAUSE before switching to fast mode.
2. Lines 38–140: Core computation — pad strings, compute nine’s complement, perform digit-by-digit addition with carry to produce the result string C$.
3. Lines 150–260: Leading-zero suppression for display, replacing leading "0" characters with spaces in A$, B$, and C$.
4. Lines 270–370: Output the vertical subtraction layout, wait for a keypress, clear screen, and restart.
5. Lines 500–540: Subroutine — compute nine’s complement of each digit in B$, stored in E$.
6. Lines 1000–1060: Subroutine — zero-pad A$ and B$ to equal length A.

Nine’s Complement Subtraction

Rather than implementing borrow logic directly, the program uses the classical nine’s complement technique. The subroutine at line 500 replaces each digit d of B$ with 9 - d, storing the result in E$. The main loop then computes A$ + E$ + 1 digit by digit (the +1 is injected via the carry initialisation R=1 forced at line 80 on the first iteration where N=A, i.e. the units column). This is equivalent to computing A - B when A ≥ B, as A + (9s complement of B) + 1 = A - B + 10^n, and the leading carry digit is simply discarded.

Carry Logic

The carry variable R is computed in lines 100–120. D$ is assigned the string form of the column sum (including carry). If LEN D$ <> 1 (i.e. the sum is ≥ 10), then R is set to 1 (carry out). If LEN D$ = 1, carry is cleared to 0. The result digit appended to C$ is always the last character of D$, which correctly gives the units digit of the column sum in both cases.

String Padding — Subroutine 1000

Before computation, both strings are zero-padded to the same length A (set to the maximum of the two input lengths at line 40). The padding loops prepend "0" characters as needed. This ensures all digit indexing from 1 to A is valid for both operand strings.

Leading Zero Suppression

The loops at lines 150–260 scan each padded string from left to right. Any leading "0" is replaced with a space, and the loop exits on the first non-zero, non-space character. This is handled identically for A$, B$, and C$. Line 270 adds a leading space to C$ if it is shorter than A (which can happen when the result has fewer digits than the inputs).

Display and Restart

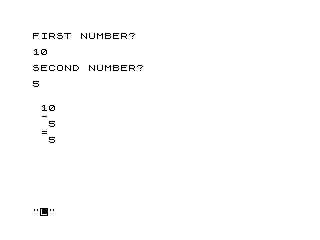

The result is displayed as a vertical subtraction sum using tab-indented PRINT statements (lines 300–340). The program waits for an INPUT at line 350 (effectively a keypress), clears the screen, and loops back to RUN at line 370. The SLOW/FAST pair (lines 1 and 38) ensures the display is rendered in slow mode but calculation proceeds at full speed.

Bugs and Anomalies

• No negative result handling: If B > A, the nine’s complement method produces an incorrect result (the ten’s complement of the true answer) with no error or warning to the user.
• Carry initialisation via loop condition: The check IF N=A THEN LET R=R+1 at line 80 fires on every pass when N=A (i.e. only once, on the first iteration), incrementing the pre-cleared carry R=0 to 1. This is a slightly fragile way to inject the initial +1, since R is not explicitly zeroed before this point in the loop — it retains whatever value it had from initialisation at line 6 (R=0) or a prior run.
• Line 998 SAVE: The program saves itself at line 998 and immediately falls through to RUN at line 999, so the save is triggered only if execution somehow reaches that point (it does not during normal operation).
• INPUT at line 350 used as pause: Waiting for INPUT A$ after display reuses the input variable and overwrites the previous operand; this is harmless since RUN reinitialises everything, but it is unconventional.

Key Variables

Variable	Purpose
A$	First number (minuend) as a string
B$	Second number (subtrahend) as a string
C$	Result string, built right-to-left
E$	Nine’s complement of B$
A	Working length (max of both inputs)
R	Carry digit between columns
D$	Temporary string for current column sum
N, I	Loop counters
