3D Fractals

A new graphics technique called FRACTALS is being used in modelling applications to simulate crystal growth, clouds, and three-dimensional landscapes. We will work on landscapes.

A FRACTAL is an object that is put together by beginning with some basic shape, and then adding or removing fractions of it. First large pieces are removed or added, then smaller pieces, all in random fashion. This is repeated until the desired effect and resolution is achieved.

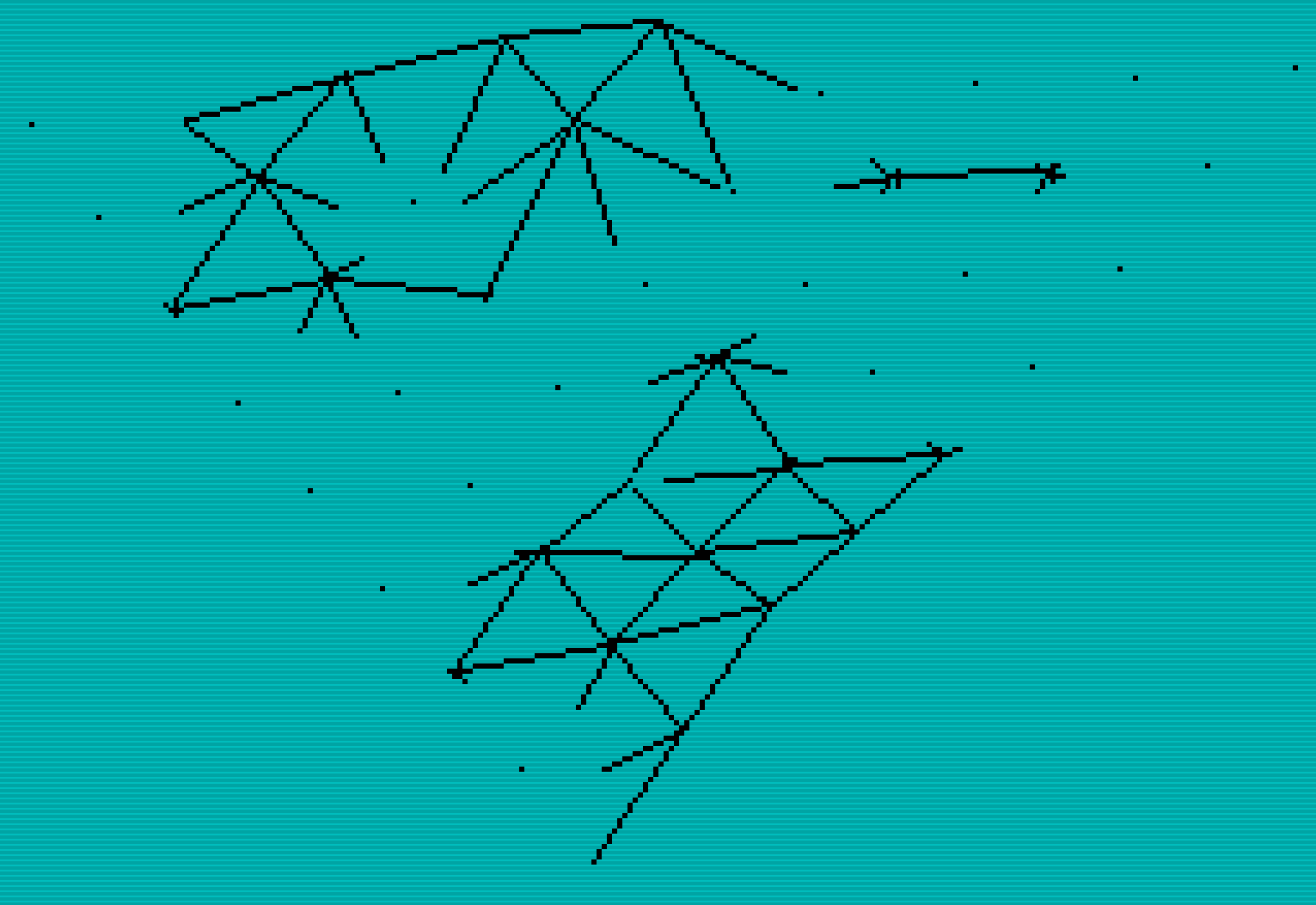

We will use the triangle as our base figure. At the beginning of the program you are asked at what level you wish to work on. Level-1 will give you 4 triangles, level-2 will give you 16 triangles. Each time you increase the level you quadruple the number of triangles, to a level 6, which gives you 4096 triangles. This is close to pixel size.

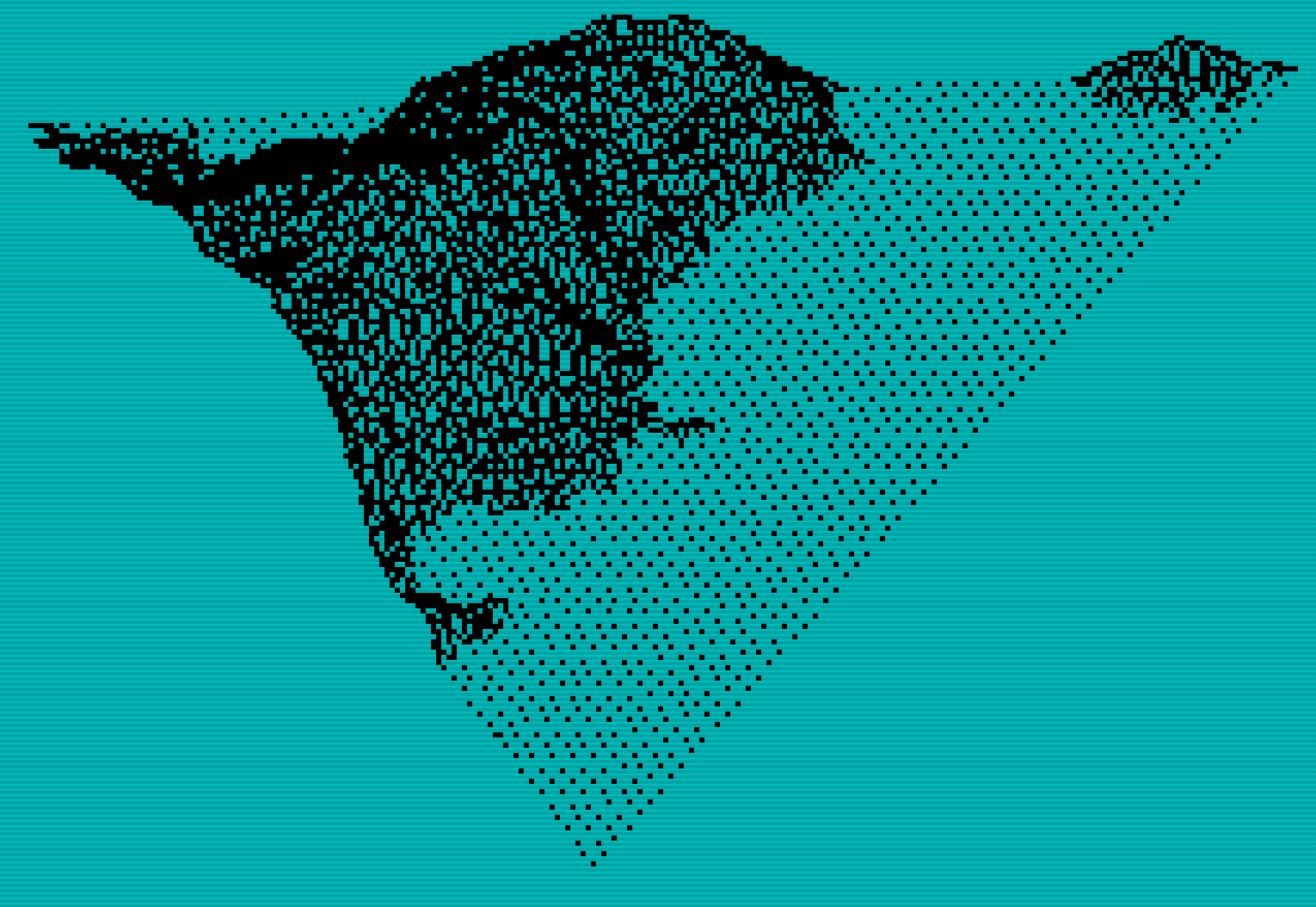

To make it more realistic, a sea level is added in line 470. You can use different INK colors for land and sea (lines 1070 and 1090) or use the variable (F1) as a flag to draw lines for fractals above sea level and dots for those below sea level or a combination of both.

ACKNOWLEDGEMENTS: Michielvan de Pamme (Creative Computing Jul 85). Scientific American-Sept. 84. And to Benoit Mandlebrot the father of FRACTAL GEOMETRY.

   5 REM ***** FRACTALS *****
  10 REM Converted from APPLE II to TS-2068 by Ted Knyszek
  15 BORDER 1: PAPER 5: INK 0: PRINT : CLS
  20 DIM D(65,33)
  30 INPUT "NUMBER OF LEVELS (1-6)";LE
  40 LET DS=2↑LE+1
  50 LET MX=DS-1: LET MY=MX/2: LET RH=PI/6: LET VT=-PI/5
  51 LET RC=COS (RH): LET RS=SIN (RH)
  52 LET VC=COS (VT): LET VS=SIN (VT)
  60 FOR N=1 TO LE: LET L=10000/1.8↑N
  70 PRINT #1;AT 0,0;"WORKING ON LEVEL ";N
  80 LET IB=MX/2↑N: LET SK=IB*2
  90 GO SUB 150: REM *ASSIGN HEIGHTS ALONG X IN ARRAY*
 100 GO SUB 220: REM *ASSIGN HEIGHTS ALONG Y IN ARRAY*
 110 GO SUB 290: REM *ASSIGN HEIGHTS ALONG DIAG. IN ARRAY*
 120 NEXT N
 130 GO TO 640: REM *DRAW*
 140 REM *** HEIGHTS ALONG X ***
 150 FOR T=0 TO MX-1 STEP SK
 160 FOR K=IB+T TO MX STEP SK
 170 LET I=K-IB: LET J=T: GO SUB 370: LET D1=D: LET I=K+IB: GO SUB 370: LET D2=D
 180 LET D=(D1+D2)/2+(RND-.5)*L/2: LET I=K: LET J=T: GO SUB 420
 190 NEXT K
 200 NEXT T: RETURN
 210 REM *** HEIGHTS ALONG Y ***
 220 FOR K=MX TO 1 STEP -SK
 230 FOR T=IB TO K STEP SK
 240 LET I=K: LET J=T+IB: GO SUB 370: LET D1=D: LET J=T-IB: GO SUB 370: LET D2=D
 250 LET D=(D1+D2)/2+(RND-.5)*L/2: LET I=K: LET J=T: GO SUB 420
 260 NEXT T
 270 NEXT K: RETURN
 280 REM *** HEIGHTS ALONG DIAG. ***
 290 FOR K=0 TO MX-1 STEP SK
 300 FOR T=IB TO MX-K STEP SK
 310 LET I=K+T-IB: LET J=T-IB: GO SUB 370: LET D1=D
 320 LET I=K+T+IB: LET J=T+IB: GO SUB 370: LET D2=D
 330 LET I=K+T: LET J=T: LET D=(D1+D2)/2+(RND-.5)*L/2: GO SUB 420
 340 NEXT T
 350 NEXT K: RETURN
 360 REM *** RETURN DATA FROM ARRAY ***
 370 IF J>MY THEN GO TO 390
 380 LET BY=J: LET BX=I: GO TO 400
 390 LET BY=MX+1-J: LET BX=MX-I
 400 LET D=D(BX+1,BY+1): RETURN
 410 REM *** PUT DATA INTO ARRAY ***
 420 IF J>MY THEN GO TO 440
 430 LET BY=J: LET BX=I: GO TO 450
 440 LET BY=MX+1-J: LET BX=MX-I
 450 LET D(BX+1,BY+1)=D: RETURN
 460 REM *** PUT IN SEA LEVEL HERE ***
 470 IF XO<>-999 THEN GO TO 500
 480 IF ZZ<0 THEN GO SUB 1070: LET Z2=ZZ: LET ZZ=0: GO TO 620
 490 GO SUB 1090: GO TO 610
 500 IF Z2>0 AND ZZ>0 THEN GO TO 610
 510 IF Z2<0 AND ZZ<0 THEN LET Z2=ZZ: LET ZZ=0: GO TO 620
 520 LET W3=ZZ/(ZZ-Z2): LET X3=(X2-XX)*W3+XX: LET Y3=(Y2-YY)*W3+YY: LET Z3=0
 530 LET ZT=ZZ: LET YT=YY: LET XT=XX
 540 IF ZZ>0 THEN GO TO 590
 550 REM *** GOING INTO WATER ***
 560 LET ZZ=Z3: LET YY=Y3: LET XX=X3: GO SUB 950
 570 GO SUB 1070: LET ZZ=0: LET YY=YT: LET XX=XT: LET Z2=ZT: GO TO 620
 580 REM *** COMING OUT OF WATER ***
 590 LET ZZ=Z3: LET YY=Y3: LET XX=X3: GO SUB 950
 600 GO SUB 1090: LET ZZ=ZT: LET YY=YT: LET XX=XT
 610 LET Z2=ZZ
 620 LET X2=XX: LET Y2=YY: RETURN
 630 REM *** DISPLAY HERE ***
 640 GO SUB 1110: REM *** SET UP PLOTTING DEVICE ON SCREEN ***
 650 LET XS=.04: LET YS=.04: LET ZS=.04: REM *** SCALING FACTORS ***
 660 FOR I=0 TO MX: LET XO=-999: FOR J=0 TO I
 670 GO SUB 370: LET ZZ=D: LET YY=J/MX*10000: LET XX=I/MX*10000-YY/2
 680 GO SUB 940: NEXT J: NEXT I
 690 FOR J=0 TO MX: LET XO=-999: FOR I=J TO MX
 700 GO SUB 370: LET ZZ=D: LET YY=J/MX*10000: LET XX=I/MX*10000-YY/2
 710 GO SUB 940: NEXT I: NEXT J
 720 FOR G=0 TO MX: LET XO=-999: FOR H=0 TO MX-G
 730 LET I=G+H: LET J=H: GO SUB 370: LET ZZ=D: LET YY=J/MX*10000
 740 LET XX=I/MX*10000-YY/2: GO SUB 940: NEXT H: NEXT G
 750 GO TO 1130: REM *** DONE PLOTTING, GOTO END LOOP ***
 760 REM *** ROTATE ***
 770 LET OX=XX
 780 LET XX=XX*RC-YY*RS
 790 LET YY=OX*RS+YY*RC
 800 RETURN
 850 REM *** TILT DOWN ***
 860 LET OX=XX
 870 LET XX=VC*XX-VS*ZZ
 880 LET ZZ=VS*OX+VC*ZZ
 890 RETURN
 930 REM *** MOVE OR PLOT TO (XP,YP) ***
 940 GO SUB 470
 950 LET XX=XX*XS: LET YY=YY*YS: LET ZZ=ZZ*ZS
 960 GO SUB 770: REM *** ROTATE ***
 970 GO SUB 860: REM *** TILT UP ***
 990 LET XP=INT (YY)+1: LET YP=INT (ZZ)
1000 GO SUB 1030
1010 RETURN
1020 REM *** PLOT LINE HERE ***
1030 LET XP=XP*0.55+5: LET YP=175-(24-0.7*YP)
1040 IF XO=-999 OR F1=1 THEN LET X8=XP: LET Y8=YP: LET XO=XP
1045 IF Y8>174 OR Y8<0 OR YP>174 OR YP<0 THEN RETURN
1050 PLOT X8,Y8: DRAW (XP-X8),(YP-Y8): LET X8=XP: LET Y8=YP: RETURN
1060 REM ***SWITCH TO SEA COLOR ***
1070 LET F1=1: RETURN : REM Add INK-Optional
1080 REM *** SWITCH TO LAND COLOR ***
1090 LET F1=0: RETURN : REM ADD INK-Optional
1110 RETURN
1150 STOP
2000 SAVE "FRACTALS" LINE 15
