Extended BASIC Screen Draw Demos

Products: Extended Basic
Developer(s): Frits Beniest
Date: 198x
Type: Program
Platform(s): TS 1000

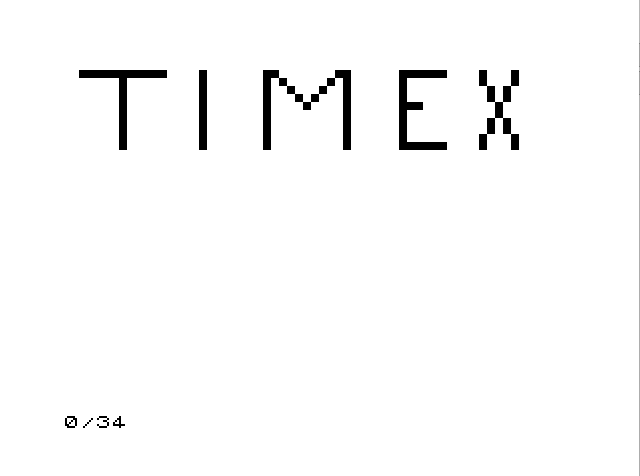

Three short drawing demos for Frits Beniest’s Extended BASIC, each on the 64 × 44 PLOT grid. T spells out TIMEX in straight lines. 8 BALL fills most of the screen with black, then uses UNCIRCLE to draw a large white circle with a figure 8 made from two smaller circles inside it. FACE draws a round face with circular eyes, a nose and mouth, and fills a rectangle across the middle with a gray stipple. Each picture is made from only a few commands, such as DRAW;x1,y1,x2,y2, and CIRCLE;r,x,y,, written in REM lines.

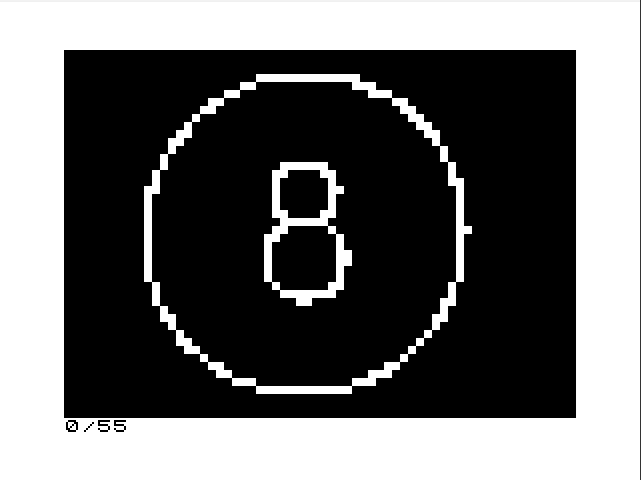

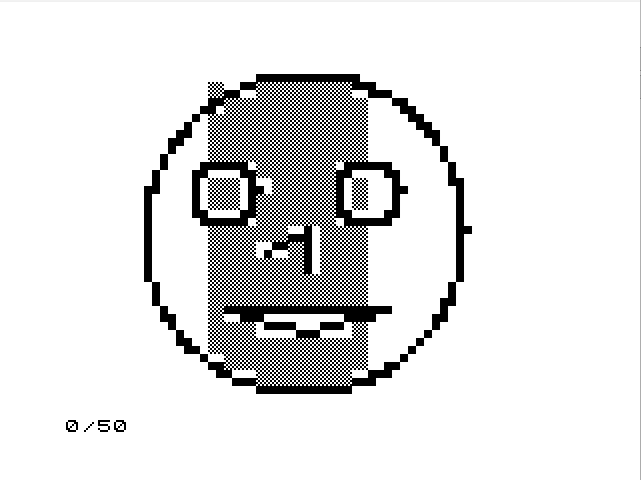

Every program begins with a line 0 that carries the Extended BASIC machine code, headed “EX. BASIC AUT: FRITS BENIEST (C)” and “VERSIE 2.1” (Dutch for “version”). That code makes up most of each 4.7–4.9 KB file. The tape has no label. The Extended BASIC package and a separate Extended BASIC demo are also in the archive.

Program Analysis

Program Structure

Each program has the same pattern. Line 0 starts with IF USR . THEN RETURN and holds the extension code in the rest of the line, and line 1 is SLOW. After that, the program alternates GOSUB 0 with a REM holding the drawing commands. Commands are separated by colons, and each parameter is followed by a comma. Multiple shapes can share one command, so CIRCLE;20,30,25,4,20,30,4,38,30, draws the face outline and both eyes.

  • T: five REM lines of DRAW commands for the letters T, I, M, E and X along the top of the screen.
  • 8 BALL: PAPER;1,24,1,33,█, fills the area with solid blocks, then UNCIRCLE draws the ball outline (radius 20) and the two circles of the 8 in white.
  • FACE: CIRCLE for the head and eyes, DRAW for the nose and mouth, and PAPER;3,22,10,20,▒, to fill a block with the stipple character.

Notable Techniques

  • The extension lives in line 0, which can’t be entered or edited from the keyboard, so it is protected from accidental changes.
  • The drawing commands sit in ordinary REM lines that BASIC itself ignores, and GOSUB 0 hands control to the extension through USR before returning.
  • PAPER takes a fill character as its last parameter, which allows both solid (█) and stippled (▒) fills.
