Solar/Lunar Eclipses

This file is part of and TS-2068 Computer Programs. Download the collection to get this file.
Developer(s): Imre Auersbacher
Date: 1985
Type: Program
Platform(s): TS 2068
Tags: Astronomy

This program calculates and displays solar and lunar eclipses for any year between 1000 and 4000, using Jean Meeus’s astronomical algorithms. It computes Julian Day Numbers and applies trigonometric correction terms to determine the eclipse magnitude, type (total, annular, annular/total, or partial for solar; umbral, penumbral, or partial for lunar), and geographic visibility zone. For lunar eclipses, subroutine 600 further calculates the precise GMT times of partial and total phase start and end. Output can be directed to either the screen (stream 4 opened to “s”) or a printer (stream 4 opened to “p”), and two UDG characters are defined via POKEs and DATA at line 2000 for the title screen decoration.

Program Analysis

Program Structure

The program is divided into a title/setup section, a main eclipse-scanning loop, and a set of reusable subroutines. Execution begins at line 1000 via GO TO 1000 at line 8, which handles initialization, title display, year input, and output device selection before jumping to line 50 to start processing.

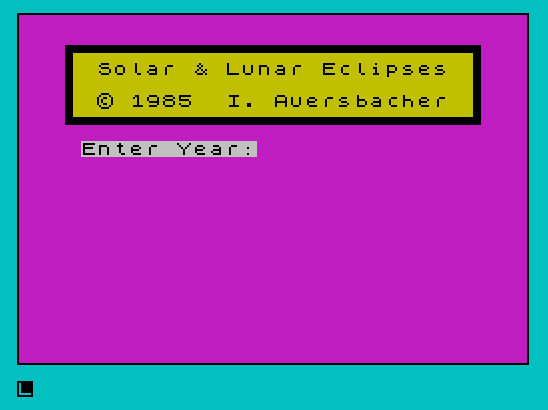

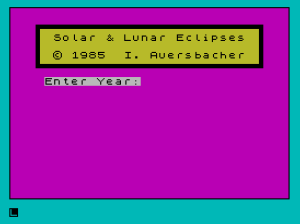

  1. Lines 1000–1300: Initialization — builds lookup strings, defines UDGs, draws the title screen, accepts year input and output device choice, opens stream #4.
  2. Lines 50–94: Main loop — iterates over lunation numbers j for the chosen year, checking first for solar eclipses (new moon, k=j) then lunar eclipses (full moon, k=j+0.5).
  3. Lines 100–145: Subroutine — computes the Julian Day Number and orbital elements (m, n, f) for lunation k.
  4. Lines 150–160: Subroutine — applies time corrections to jd.
  5. Lines 200–240: Subroutine — computes eclipse magnitude parameters g (gamma), u, and s.
  6. Lines 300–370: Subroutine — converts Julian Day to calendar date (year yr, month m, day dy), handling the Gregorian calendar reform at JD 2299161.
  7. Lines 500–540: Subroutine — prints the geographic visibility zone based on the sign of g.

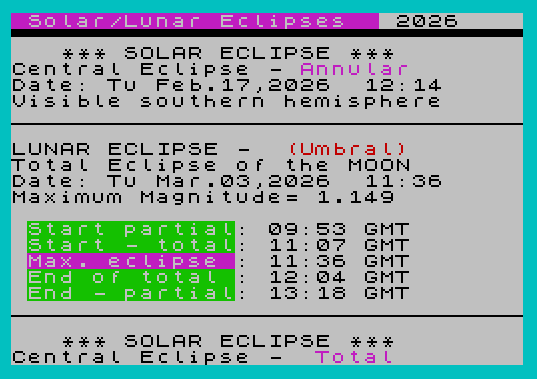

  8. Lines 600–670: Subroutine — computes and prints GMT contact times for lunar eclipses (partial start/end, total start/end, and maximum).
  9. Lines 15–48: Utility subroutines — format fractional day fractions into HH:MM time strings using the pre-built digit lookup string n$.
  10. Line 9000: Year-end cleanup — issues blank lines and closes stream #4.

Astronomical Algorithm

The core mathematics follows Jean Meeus’s eclipse prediction method. Lunation number k is derived at line 50 from the expression (y-1900)*12.3685, and both new moon (k=j) and full moon (k=j+0.5) are tested each iteration. Line 100 computes t=k/1236.85 as the centuries-scaled argument. The Julian Day formula at line 120 includes a periodic perturbation term using SIN. Lines 130–140 compute the Sun’s mean anomaly m, the Moon’s argument of latitude f, and the Moon’s mean anomaly n. Subroutine 200 calculates gamma g (the minimum distance of the Moon’s shadow axis from Earth’s center) and the penumbra/umbra size parameter u.

Eclipse Classification Logic

Solar eclipse types are determined by a cascade of IF tests at lines 58–66, based on the values of g, u, and a computed threshold w:

  • ABS g >= 0.9972 → Partial eclipse of the Sun (line 68)
  • u < 0 → Total (line 60)
  • u > 0.0047 → Annular (line 62)
  • u < w (where w = 0.00464*COS(ASN g)) → Annular/Total (hybrid, line 65)
  • Otherwise → Annular (line 66)

Lunar eclipses (lines 72–93) compute two magnitude values: m1 (umbral) and m2 (penumbral). If m1 < 0 the eclipse is penumbral only; if m1 <= 1.00 it is partial umbral; otherwise it is total.

Calendar Conversion

Subroutine 300 implements the standard Julian Day to Gregorian/Julian calendar algorithm. The branch at lines 310–320 handles the Gregorian reform: dates before JD 2299161 (October 15, 1582) use the Julian calendar path, while later dates apply the Gregorian correction via the intermediate variable a. This makes the program astronomically correct for the full year range 1000–4000.

Time Formatting with Lookup Strings

Rather than using STR$ and padding, the program pre-builds the string n$ at line 1020 containing the two-digit representations “00” through “60” concatenated. Hours and minutes are then extracted by slicing: n$(2*h+1 TO 2*h+2). This avoids formatting conditionals and is a compact BASIC idiom well-suited to memory-limited environments. Similarly, d$ holds two-character day abbreviations and m$ holds four-character month abbreviations for date display.

Output Stream Abstraction

All output is directed to stream #4, which is opened to either "s" (screen) or "p" (printer) at lines 1230 and 1300 respectively. This clean abstraction means all PRINT statements in the subroutines are identical regardless of output device. The user selects the device by pressing 1 or 2, with input validated at line 1210.

UDG Definition

Lines 1030–1040 read 8 pairs of bytes from the DATA statement at line 2000 and POKE them into the UDG area for characters "a" and "b" (using USR "a" and USR "b"). The defined UDGs are used in the title screen display at line 1220 via CHR$ 144 and CHR$ 145, providing decorative graphical markers.

Notable Techniques and Idioms

  • DEF FN d(x)=INT (1000*x+0.5)/1000 at line 5 provides a rounding-to-3-decimal-places function used for clean magnitude display.
  • The expression 12*(e>=13.5) at line 350 exploits the fact that Boolean results are 1 or 0 to perform a conditional subtraction inline.
  • PAUSE 0 is not used; instead the program uses PAUSE 30 (line 1195) for brief display delays.
  • The year boundary check at line 10 (IF yr>y THEN GO TO 9000) and line 57 (IF yr<y THEN GO TO 72) guard against printing eclipses outside the requested year — necessary because the Julian Day to calendar conversion can yield dates in adjacent years near year boundaries.
  • VAL is not used for GO TO targets here; all branches use literal line numbers.

Variable Reuse and Potential Confusion

Several variable names are reused across contexts, which is a common source of subtle bugs in long BASIC programs. Notably, t is used as the centuries argument in subroutine 100 (line 100), as a temporary Julian Day save register in subroutine 600 (line 630), and as the device-choice integer at line 1210. Similarly, n is used as the minute value in the time-formatting subroutines (lines 20, 42) and also as the Moon’s mean anomaly in the astronomical subroutines. The programmer manages this by carefully sequencing subroutine calls, but readers should be aware that variables are global throughout.

Data Table

Line(s)Purpose
5Define rounding function FN d
15–35Format and print date+time header line
40–48Format and print time only (GMT)
50–94Main year-scanning loop
100–145Compute JD and orbital elements
150–160Apply JD correction
200–240Compute eclipse parameters g, u
300–370Julian Day → calendar date
500–540Print visibility zone
600–670Print lunar eclipse contact times
1000–1300Initialization and UI
2000UDG bitmap data
9000End-of-year output and close stream

Content

Appears On

Predict eclipses across four millennia, track planetary positions through five centuries, calculate loan amortization schedules, or encode secret messages with modular arithmetic — Imre Auersbacher's collection brings scientific precision and practical utility to the TS 2068.

Related Products

Related Articles

Related Content

Image Gallery

Source Code

    2 REM  Solar/ Lunar Eclipses
    4 REM  \* 1985 I. Auersbacher
    5 DEF FN d(x)=INT (1000*x+0.5)/1000
    8 BORDER 5: GO TO 1000
   10 IF yr>y THEN GO TO 9000
   11 RETURN
   12 PRINT #4;"________________________________": PRINT #4: RETURN
   15 LET f=24*f: LET h=INT f
   20 LET n=INT (60*(f-h))
   25 LET t$=n$(2*h+1 TO 2*h+2)+":"+n$(2*n+1 TO 2*n+2): LET d=z+1.0: LET d=d-(7*INT (d/7))+1
   30 PRINT #4;"Date: ";d$(2*d-1 TO 2*d);" ";m$(4*m-3 TO 4*m);n$(2*dy+1 TO 2*dy+2);",";yr;"  ";t$
   35 RETURN
   40 LET f=24*f: LET h=INT f
   42 LET n=INT (60*(f-h))
   44 LET t$=n$(2*h+1 TO 2*h+2)+":"+n$(2*n+1 TO 2*n+2)
   46 PRINT #4;t$;" GMT"
   48 RETURN
   50 BEEP 0.05,22: LET j=(y-1900)*12.3685: LET j=INT j: LET mn=1
   52 PRINT #4;" Solar/Lunar Eclipses   ";y: PRINT #4;"\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''":
   54 LET k=j: GO SUB 100
   55 IF ABS (SIN f)>0.359 THEN GO TO 72
   56 GO SUB 200: IF ABS g>(1.5432+u) THEN GO TO 72
   57 GO SUB 150: GO SUB 300: GO SUB 10: IF yr<y THEN GO TO 72
   58 PRINT #4;"   *** SOLAR ECLIPSE ***": IF ABS g>=0.9972 THEN GO TO 68
   59 PRINT #4;"Central Eclipse - ";
   60 IF u<0 THEN PRINT #4;" Total ":: GO SUB 15:: GO SUB 500: GO SUB 12: GO TO 72
   62 IF u>0.0047 THEN PRINT #4;"Annular":: GO SUB 15: GO SUB 500: GO SUB 12: GO TO 72
   64 LET w=0.00464*COS (ASN g)
   65 IF u<w THEN PRINT #4;"Annular/Total":: GO SUB 15: GO SUB 500: GO SUB 12: GO TO 72
   66 PRINT #4;" Annular ":: GO SUB 15: GO SUB 500: GO SUB 12: GO TO 72
   68 PRINT #4;"Partial Eclipse of the SUN":: GO SUB 15
   70 LET m1=(1.5432+u-ABS g)/(0.5460+2*u): LET m1=INT (1000*m1+0.5)/1000
   71 PRINT #4;"Maximum Magnitude= ";m1: GO SUB 500: GO SUB 12
   72 LET k=j+0.5: GO SUB 100
   73 IF ABS (SIN f)>0.359 THEN GO TO 94
   74 GO SUB 200: LET m1=(1.0129-u-ABS g)/0.5450: LET m2=(1.5572+u-ABS g)/0.5450: IF (m1<0)*(m2<0) THEN GO TO 94
   75 LET m1=FN d(m1): LET m2=FN d(m2): GO SUB 150: GO SUB 300: GO SUB 10: IF yr<y THEN GO TO 94
   76 PRINT #4;"LUNAR ECLIPSE - ";: IF m1<0 THEN GO TO 88
   78 PRINT #4;" (Umbral) "
   79 IF m1<=1.00 THEN LET m2=m1: GO TO 90
   80 PRINT #4;"Total Eclipse of the MOON": LET w=n: GO SUB 15
   82 PRINT #4;"Maximum Magnitude= ";m1: GO SUB 600
   86 GO SUB 12: GO TO 94
   88 PRINT #4;"(Penumbral)"
   90 PRINT #4;"Partial Eclipse of the Moon": GO SUB 15
   92 PRINT #4;"Maximum Magnitude= ";m2
   93 GO SUB 12
   94 LET j=j+1: GO TO 54
  100 LET t=k/1236.85
  110 LET t2=t*t: LET t3=t*t*t
  120 LET jd=2415020.75933+29.53058868*k+(0.0001178*t*t-1.55e-7*t*t*t+0.00033*SIN (2.90702+2.31902*t-1.601e-4*t*t))
  130 LET m=6.269645+5.079842936e-1*k-5.81195e-7*t2-6.05629e-8*t3
  135 LET n=5.341149+6.733775529*k+1.872843e-4*t2+2.157227e-7*t3
  140 LET f=0.3716923+6.818486627*k-2.88468e-5*t2-4.1713e-8*t3
  145 RETURN
  150 LET c=(.1734-.000393*t)*SIN m+0.0021*SIN (2*m)-0.4068*SIN n+0.0161*SIN (2*n)-0.0104*SIN (2*f)-0.0051*SIN (m+n)-0.0074*SIN (m-n)
  160 LET jd=jd+c+0.5: RETURN
  200 LET s=5.19595-0.0048*COS m+0.0020*COS (2*m)-0.3283*COS n-0.0060*COS (m+n)+0.0041*COS (m-n)
  210 LET c=0.2070*SIN m+0.0024*SIN (2*m)-0.0390*SIN n+0.0115*SIN (2*n)-0.0073*SIN (m+n)-0.0067*SIN (m-n)+0.0117*SIN (2*f)
  220 LET g=s*SIN f+c*COS f
  230 LET u=0.0059+0.0046*COS m-0.0182*COS n+0.0004*COS (2*n)-0.0005*COS (m+n)
  240 RETURN
  300 LET z=INT jd: LET f=jd-z
  310 IF z<2299161 THEN LET a=z
  320 IF z>=2299161 THEN LET a=INT ((z-1867216.25)/36524.25): LET a=z+1+a-INT (a/4)
  330 LET b=a+1524: LET c=INT ((b-122.1)/365.25): LET d=INT (365.25*c): LET e=INT ((b-d)/30.6001)
  340 LET dy=b-d-INT (30.6001*e)
  350 LET m=e-1-12*(e>=13.5)
  360 LET yr=c-4716+1*(m<2.5)
  370 RETURN
  500 PRINT #4;"Visible ";
  510 IF g>0.25 THEN PRINT #4;"northern hemisphere": RETURN
  520 IF g<-0.25 THEN PRINT #4;"southern hemisphere": RETURN
  530 PRINT #4;"equatorial regions"
  540 RETURN
  600 LET p=1.0129-u: LET t=0.4679-u: LET n=0.5458+0.04*COS w
  605 IF t*t-g*g<=0 THEN RETURN
  608 IF p*p-g*g<=0 THEN RETURN
  610 LET pp=SQR (p*p-g*g)/24/n
  620 LET tp=SQR (t*t-g*g)/24/n
  630 PRINT #4: LET t=jd: LET jd=t-pp: GO SUB 300: PRINT #4;" Start partial: ";: GO SUB 40
  640 LET jd=t-tp: GO SUB 300: PRINT #4;" Start - total: ";: GO SUB 40: LET jd=t: GO SUB 300
  650 PRINT #4;" Max. eclipse : ";: GO SUB 40: LET jd=t+tp: GO SUB 300: PRINT #4;" End of total : ";: GO SUB 40: LET jd=t+pp
  660 GO SUB 300: PRINT #4;" End - partial: ";: GO SUB 40
  670 RETURN
 1000 LET d$="SuMoTuWeThFrSa"
 1010 LET m$="Jan.Feb.Mar.Apr.May Jun.Jul.Aug.Sep.Oct.Nov.Dec."
 1020 LET n$="00010203040506070809101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960"
 1030 BEEP 0.05,22: BEEP 0.06,20: POKE 23609,10: RESTORE 2000
 1040 FOR m=0 TO 7: READ n,f: POKE USR "a"+m,n: POKE USR "b"+m,f: NEXT m
 1100 BORDER 5: PAPER 3: CLS
 1150 PRINT PAPER 6;AT 2,3;"\:'\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\':";AT 3,3;"\:  Solar & Lunar Eclipses \ :";AT 4,3;"\:                         \ :";AT 5,3;"\:  \* 1985  I. Auersbacher \ :";AT 6,3;"\:.\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\.:"
 1155 PLOT 0,0: DRAW 0,175: DRAW 255,0: DRAW 0,-175: DRAW -255,0
 1160 PRINT PAPER 7;AT 8,4;"Enter Year:";
 1165 INPUT y: IF y<1000 OR y>4000 THEN BEEP 1.5,-22: GO TO 1165
 1170 PRINT PAPER 6;" ";y;" "
 1180 PAUSE 30: PRINT PAPER 6;AT 10,4;"Output to which device? "
 1190 PRINT PAPER 7;AT 12,9;"1-TV Screen ";AT 13,9;"2-TS Printer"
 1195 PAUSE 30: PRINT PAPER 6;AT 15,4;"Please pick option (1-2)"
 1200 LET q$=INKEY$: IF q$="" THEN GO TO 1200
 1210 LET t=CODE q$-48: IF (t<1)+(t>2) THEN BEEP 0.5,-15: BEEP 0.6,-20: GO TO 1200
 1220 BEEP .05,22: PRINT INK 0;AT 11+t,6;CHR$ 144; INK 6;CHR$ 145
 1230 PAUSE 75: IF t=1 THEN OPEN #4,"s": PAPER 7: CLS : GO TO 50
 1300 OPEN #4,"p": PRINT FLASH 1; PAPER 7;AT 18,4;" See printer for output ": GO TO 50
 2000 DATA 0,24,0,48,127,96,127,255,127,255,115,248,115,248,127,240
 3000 SAVE "eclipse" LINE 8:
 3100 STOP : STOP
 9000 LPRINT : LPRINT : LPRINT : CLOSE #4: BEEP .2,22: BEEP .2,20

Note: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
