Turns a TS1000 or ZX81 into a data logger by reading an analog voltage through a voltage-to-frequency (V-F) converter wired to the EAR jack. Machine code counts the pulses in a timed window, and the count is proportional to the input voltage. A 4096-byte string holds 32 “screens” of 64 two-byte samples, with sample rates from about 3 ms to 1 second. Faster rates give 8-bit resolution and the slowest give about 14-bit. The menu acquires one screen or a run of several screens, plots a screen, prints the values in two columns, resets the plot limits, recalibrates, and draws a long “side-winder” strip chart on the TS2040 printer. Acquisition can start on a keypress, or when the input frequency becomes non-zero or drops to zero.
The program is Fred Nachbaur’s “V-F Data Acquisition 1”. His article “VDAQ – A Data Acquisition Development Program” covers the theory, an LM331 V-F circuit, use with the VOTEM analog interface and the program itself. The REMs and title screen give program 1, version 1.3, ©1984. The archive’s file name gives 1986. The zip also has a hi-res version, VDAQ1-HR, version 1.40, dated 1985.
Program Analysis
Program Structure
- Line 0: a 407-byte
REMholding the machine code. Lines 4–7 reset the automatic-listing pointers so line 0 can’t jam the listing. - Lines 500–620: the menu.
GOTO N2*H5*VAL Z$jumps to 1000 × the option number. - Lines 1000–1290: acquire a screen. The time base is converted into a 16-bit loop count and the acquisition routine runs at
USR 16594. Key start, non-zero start and zero start are handled at 1220 and 1260. - Lines 2000–2160: plot a screen. Machine code at 16636 draws the axes and the routine at 16776 plots the points, scaled between the plot limits.
- Lines 3000–3190: print the 64 values of a screen as time in ms and voltage, in two columns.
- Lines 4000–4090: set the minimum and maximum plot voltages.

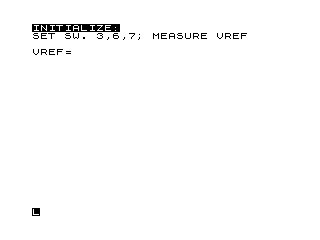

- Lines 5000–5450: initialize. Sets the constants and
DIM D$(4096), then calibrates the voltage against a measured reference and the time base against a stopwatch. - Lines 6000–6070: multi-screen acquisition. Lines 7000–7380: the side-winder plot, which
SCROLLs andPLOTs two samples per row andCOPYs every 22 rows, with a dry-run option that shows it on screen only. - Lines 7900–8460: subroutines: choose a screen, choose a count, a two-digit input routine that needs no ENTER, store and fetch the per-screen timing values, and a COPY/continue prompt.
- Lines 9970–9999: save and stop.
Hi-Res Version

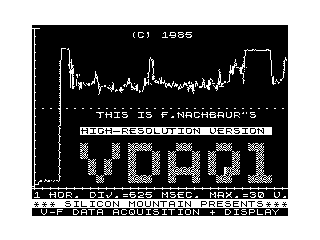

VDAQ1-HR (version 1.40, ©1985) moves the machine code up to around 25000 and adds hi-res routines (HRM and LRM) that switch between a hi-res graph and the normal display. It plots 1, 2 or 4 files across the full screen, prints labels into the hi-res screen one character at a time through the routine at lines 4–9, has a reverse-video option, and uses its own COPY routine. Data is organized into 16 files instead of 32, and the side-winder plot is gone. Its initialization doesn’t set the constants, which are kept in the saved variables. A REM warns “DONT USE RUN” and says to restart with GOTO 500.
Notable Techniques
- The voltage comes in through the EAR jack as a pulse train, so the only hardware needed besides the V-F converter is a single input bit.
- Small constants (
N0,N1,N2,O0,TFS,H5) and subroutine addresses (FI,FS,CO,AQ) are kept in variables to save memory. - To split a number into two bytes for POKEing into the machine code,
RANDstores it in SEED and the two bytes are read back from 16434/16435. This doesn’t work for zero, so the low plot limit is split arithmetically at lines 2120–2130. - Line 1150 picks the start mode with one computed jump:
GOTO 1140+(80 AND Z$="K")+(120 AND (Z$="N" OR Z$="Z")). - Line 9999 POKEs 16384 so that the program ends without a report code. The article credits this trick to SYNAPSE.
- The routine at 8000 takes a two-digit screen number without ENTER, or one digit followed by ENTER.
Potential Issues
- Menu option 0 passes the range check at line 600 and runs
GOTO 0, which drops into the initialization at line 5000 and re-dimensionsD$, losing any acquired data. - In the hi-res version, line 4090 reads
GOTO VAL "400£", which can’t be evaluated. It was probably meant to be 4000.
Image Gallery
Source Code
