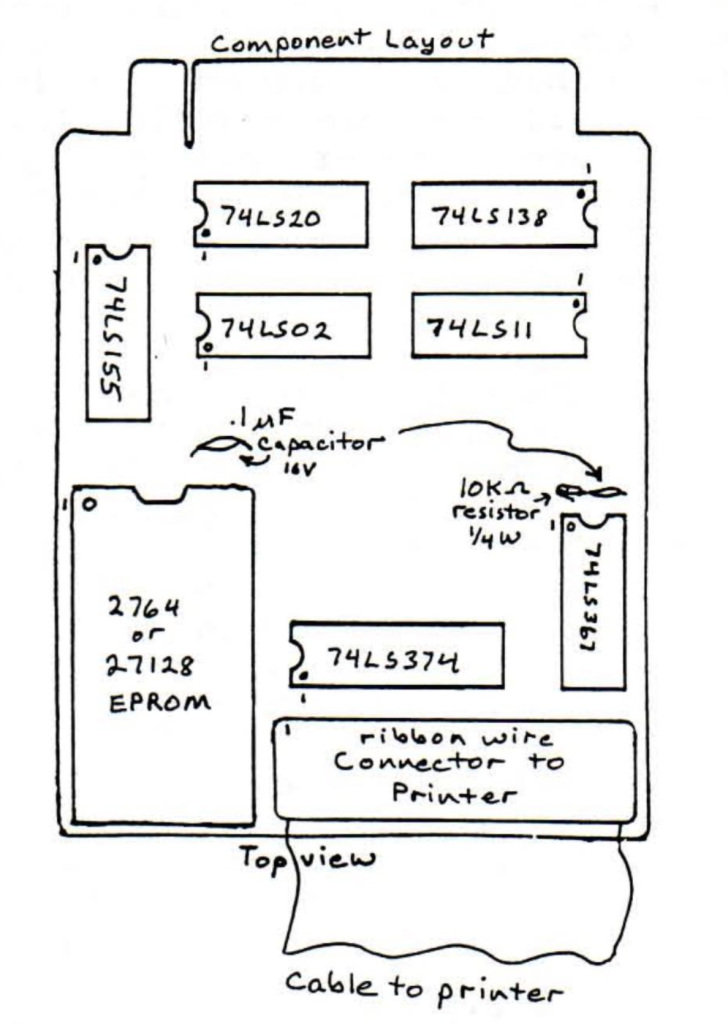

This month I finish up my series on the printer interface with the circuit board layout and simple print driver software.

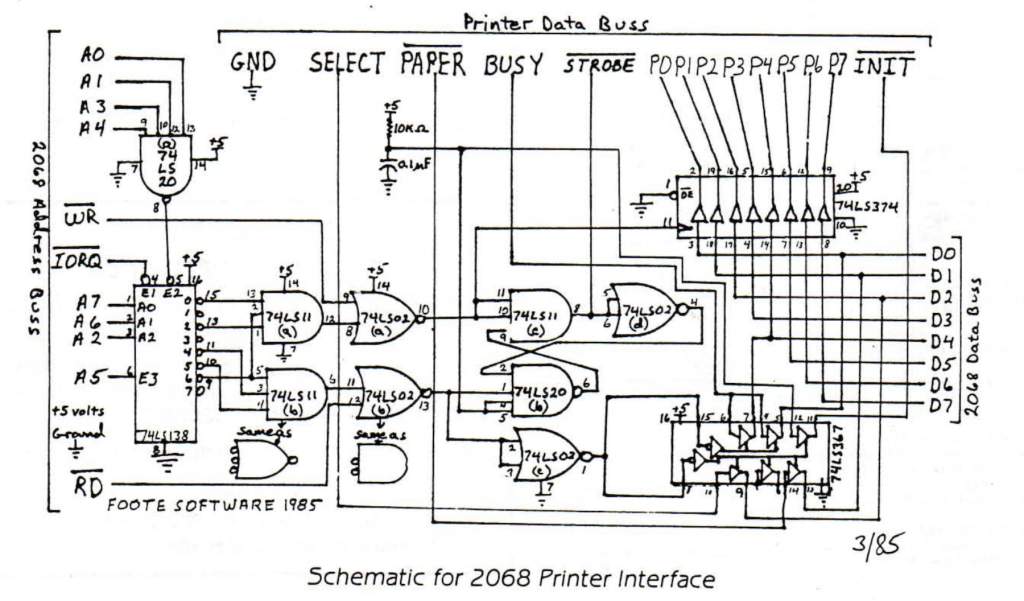

In reconfiguring the layout to include the ROM interface, I had to rearrange things a bit, so here is the final version of the schematic showing the new pin configuration. The schematic to the ROM interface is identical to what is shown in the 2068 technical manual.
