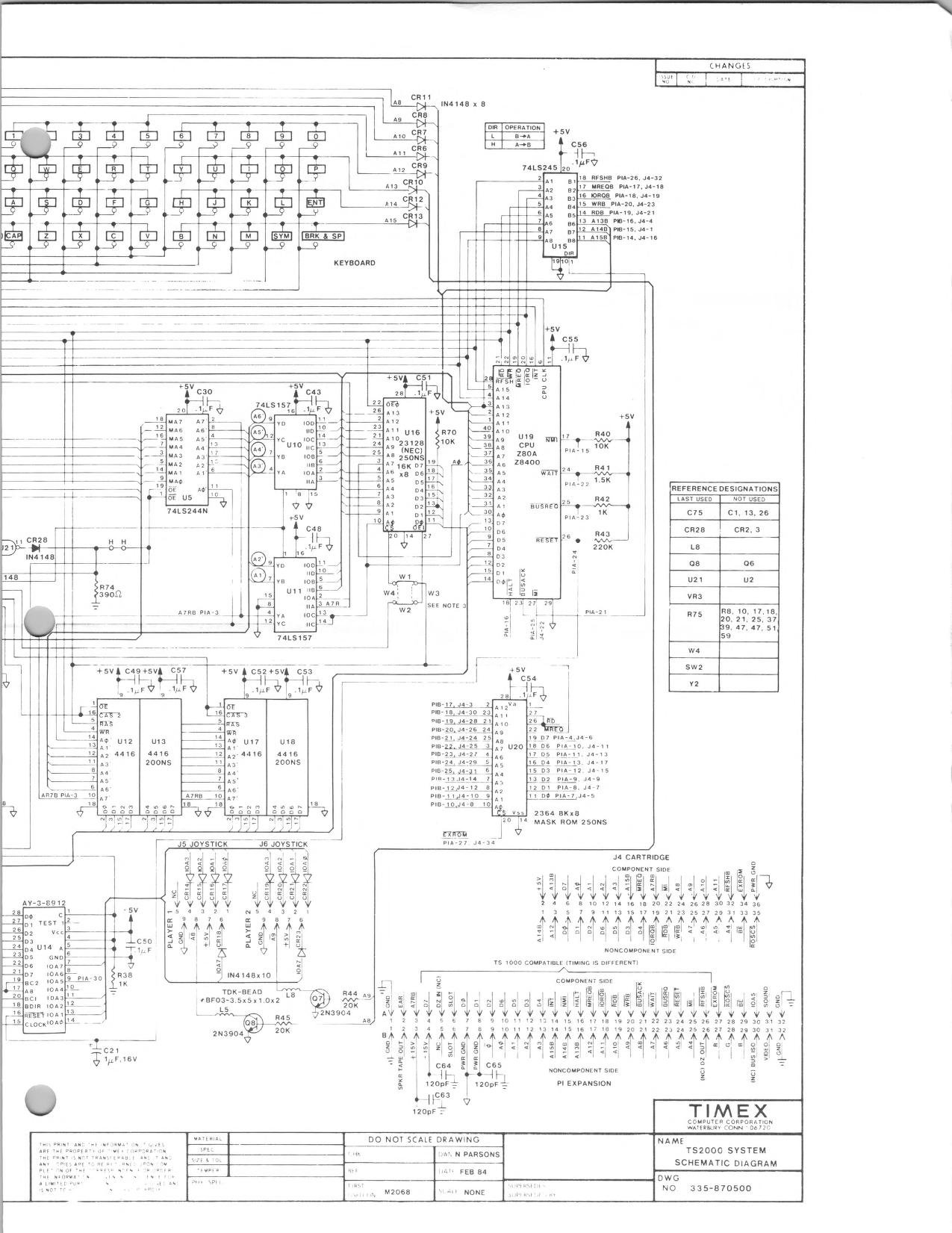

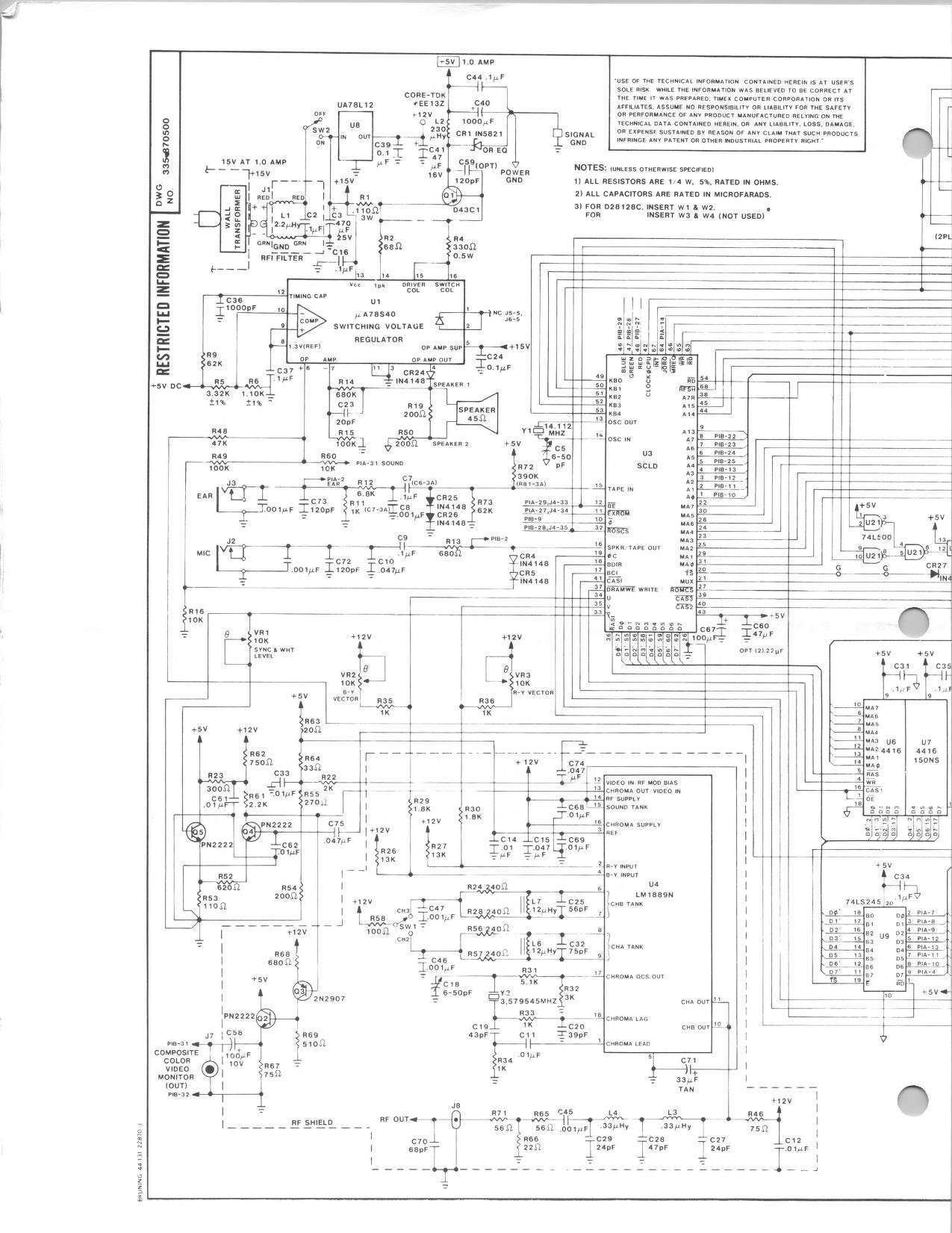

TS2000 System Schematic

Publication

SUM

Pub Details

SUM v2 n9Volume: 2 Issue: 9

Date

September 1984

Pages

7-8
See all articles from SUM v2 n9

Image Gallery

Tags

SUM 1984 Reference TS 2068
