Brick-Yard Bill

This file is part of CATS Library Tape 1, and SINCUS Exchange Tape 101 - Entertainment. Download the collection to get this file.
Type: Program
Platform(s): TS 2068
Tags: Arcade

Brick-Yard Bill is a maze-navigation game in which the player steers a character (UDG “b”, a stick figure) around a yard filled with randomly placed bricks (UDG “a”) using the cursor keys 5–8, trying to avoid becoming completely surrounded. The playing field is a 20×32 bordered arena drawn with repeated UDG “a” brick characters; obstacle placement uses ATTR reads to detect occupied cells before randomly positioning each brick, ensuring the field is navigable at start. Scoring is calculated as a percentage of the yard covered with bricks, derived from the formula INT ((score*100)/(599-h)), where h controls difficulty and increases by 10 each round if the player scores 80% or above. The title screen features a scrolling marquee implemented by rotating a long string one character at a time with a$(2 TO )+a$(1), with BEEP pitch derived from CODE a$(28)/4 to produce a musical accompaniment. A cumulative score variable fr accumulates percentage scores across rounds, and the hi-score persists for the session.

Program Analysis

Program Structure

The program is organized into clearly separated functional blocks, each introduced with a REM comment:

  1. Lines 11–17: UDG definition, subroutine call for instructions, variable initialization
  2. Lines 18–55: Game setup — draws border, places bricks randomly, plays intro tune
  3. Lines 60–500: Main game loop — draws player, waits for keypress, dispatches to movement routines
  4. Lines 1000–1090: LEFT movement (key 5)
  5. Lines 2000–2090: DOWN movement (key 6)
  6. Lines 3000–3090: UP movement (key 7)
  7. Lines 4000–4090: RIGHT movement (key 8)
  8. Lines 5000–5095: End-of-game scoring and round transition
  9. Lines 6000–7000: Instructions subroutine
  10. Lines 9998–9999: SAVE/VERIFY

UDG Definitions

Two UDGs are defined at the start via READ/POKE loops:

UDGCharacterData bytesRole
\aBrick0,119,119,119,0,238,238,238Wall/obstacle tile
\bBill (stick figure)24,24,60,90,153,36,36,102Player character

The brick UDG uses alternating byte patterns (119 = 01110111, 238 = 11101110) to create a half-brick offset pattern. The stick figure bytes sketch a recognizable humanoid: head (24=00011000), arms (60=00111100), body (90=01011010), legs (36=00100100), feet (102=01100110).

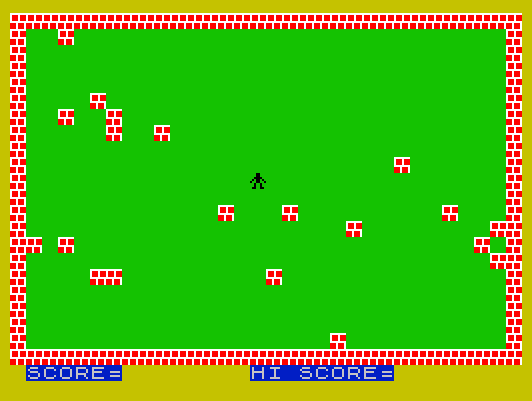

Arena Construction

The border is drawn by printing a full row of 32 \a bricks at rows 0 and 21, and single bricks at columns 0 and 31 for rows 1–20. Bricks are placed randomly in the interior with the following constraints enforced in the placement loop (lines 45–50):

  • Row must not be 10 (reserved for possible player start area)
  • The cell must have ATTR value ≤ 100 (unoccupied) — the ATTR of a placed brick with PAPER 7, INK 2, BRIGHT 1 is above 100
  • h bricks are placed per round, starting at 20 and increasing by 10 each time the player scores ≥ 80%

Movement and Collision Detection

Each directional routine checks the target cell using ATTR before moving. If the attribute exceeds 32 (indicating any non-default coloring, i.e., a brick or border), movement is blocked and control returns to line 100. After each move, the old position is overprinted with \a (a brick), effectively leaving a trail and permanently reducing the navigable space.

The entrapment check at line 455 uses a compound AND condition testing all four neighbors:

  • ATTR (x+1,y)>32 — below
  • ATTR (x-1,y)>32 — above
  • ATTR (x,y+1)>32 — right
  • ATTR (x,y-1)>32 — left

If all four are blocked, the game ends via GO TO 5000.

Scoring Formula

The percentage score is calculated as INT ((score*100)/(599-h)). The denominator 599-h approximates the total number of moves available in the interior. With h=20 (round 1), this gives a divisor of 579. The cumulative score fr accumulates these percentages across rounds and is used as the displayed running total. A hi-score hi tracks the maximum fr achieved in the session.

Scrolling Marquee Technique

The instructions screen at line 6095–6130 implements a character-by-character horizontal scroll by rotating the string a$ with a$(2 TO )+a$(1), then printing a 28-character window at AT 10,2. The BEEP pitch is generated from CODE a$(28)/4, producing a melody derived from the ASCII values of the scrolling text — a common technique for “typing” sound effects. The loop runs 136 iterations (0 TO 135), cycling the 136-character message string exactly once.

Notable Bugs and Anomalies

  • Line ordering anomaly: Line 1024 appears after line 1030 in the listing. In BASIC, lines are executed in numerical order, so 1024 executes between 1020 and 1025 — the listing is misleadingly formatted but functionally correct as entered.
  • Boundary clamping: Lines 1035, 2035, 3035, 4035 clamp coordinates but allow the player to overlap with the border row/column, which may cause the player to appear inside the border.
  • Unreachable lines: Lines 5160 and 5170 (the in-game description text) are never called from the main program flow and appear to be dead code from an earlier version.
  • Typo in string: Line 5160 contains the misspelling “PRECENTAGE” (should be “PERCENTAGE”), which is unreachable anyway.
  • BEEP duration at line 2050: BEEP .00,21-x uses a duration of zero, producing no audible sound during downward movement, unlike the other directions which use .01.
  • Screen 1 score display: The score is printed to #1 (the lower screen) but position AT 0,1 addresses a row/column within the two-line lower screen area — row 0 of stream #1 maps to the first line of the lower display.

Key BASIC Idioms

  • ATTR-based collision detection throughout — avoids maintaining a separate map array
  • PAUSE 0 at lines 80, 5069, 6135, 6180 for clean keypress gating
  • Directional routines as separate line-number blocks (1000/2000/3000/4000), cross-jumping between them to allow diagonal-feel movement when a key is held
  • PRINT #1 for the status bar, keeping it separate from the main play area

Content

Appears On

From Blackjack to Star Trek, Moon Lander to a first-person dungeon crawler — this tape packs 21 games and puzzles into one of CATS' earliest library volumes. Card sharks, arcade fans, and puzzle solvers alike will find something here.
Pure fun — land on the moon, herd sheep, hunt submarines, race cricketers, eat dots as Pac-Man, and dodge alien swarms across a nighttime skyline. SINCUS Tape 101 is a deep bench of TS 2068 arcade action, card games, and sports simulations.

Related Products

Related Articles

Related Content

Image Gallery

Source Code

   11 FOR n=0 TO 7: READ z: POKE USR "a"+n,z: NEXT n
   12 DATA 0,119,119,119,0,238,238,238
   13 FOR n=0 TO 7: READ z: POKE USR "b"+n,z: NEXT n
   14 DATA 24,24,60,90,153,36,36,102
   15 GO SUB 6000
   16 LET hi=0: LET fr=0
   17 LET h=20
   18 LET score=0
   20 LET x=10: LET y=15
   30 LET a$="\a"
   32 PRINT BRIGHT 1; PAPER 7; INK 2;AT 0,0;"\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a"
   33 FOR n=1 TO 20
   34 PRINT BRIGHT 1; PAPER 7; INK 2;AT n,0;"\a";AT n,31;"\a"
   35 NEXT n
   36 PRINT BRIGHT 1; PAPER 7; INK 2;AT 21,0;"\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a"
   38 PRINT #1; PAPER 1; INK 7;AT 0,1;"SCORE=";AT 0,15;"HI SCORE="
   40 FOR b=1 TO h
   45 LET c=INT (RND*20)+1
   46 IF c=10 THEN GO TO 45
   47 LET d=INT (RND*30)+1
   48 IF ATTR (c,d)>100 THEN GO TO 45
   49 BEEP .01,d
   50 PRINT PAPER 7; INK 2; BRIGHT 1;AT c,d;a$: NEXT b
   55 FOR n=-20 TO 20: BEEP .01,ABS n+15: NEXT n
   60 PRINT AT x,y;"\b"
   80 PAUSE 0
  100 IF INKEY$="5" THEN GO TO 1000
  200 IF INKEY$="6" THEN GO TO 2000
  300 IF INKEY$="7" THEN GO TO 3000
  400 IF INKEY$="8" THEN GO TO 4000
  450 PRINT AT x,y;"\b"
  455 IF ATTR (x+1,y)>32 AND ATTR (x-1,y)>32 AND ATTR (x,y+1)>32 AND ATTR (x,y-1)>32 THEN GO TO 5000
  500 GO TO 100
 1000 REM ++++++++LEFT++++++++
 1010 IF ATTR (x,y-1)>32 THEN GO TO 100
 1020 PRINT PAPER 7; INK 2; BRIGHT 1;AT x,y;"\a"
 1025 PRINT #1; PAPER 1; INK 7;AT 0,7;INT ((score*100)/(599-h))+fr
 1030 LET y=y-1
 1035 IF y<=0 THEN LET y=0
 1024 PRINT AT x,y;"\b"
 1050 BEEP .01,21-x
 1055 LET score=score+1
 1060 IF INKEY$="6" THEN GO TO 2000
 1070 IF INKEY$="7" THEN GO TO 3000
 1090 GO TO 1000
 2000 REM ++++++++DOWN++++++++
 2010 IF ATTR (x+1,y)>32 THEN GO TO 100
 2020 PRINT PAPER 7; INK 2; BRIGHT 1;AT x,y;"\a"
 2025 PRINT #1; PAPER 1; INK 7;AT 0,7;INT ((score*100)/(599-h))+fr
 2030 LET x=x+1
 2035 IF x>=21 THEN LET x=21
 2040 PRINT AT x,y;"\b"
 2050 BEEP .00,21-x
 2055 LET score=score+1
 2060 IF INKEY$="5" THEN GO TO 1000
 2080 IF INKEY$="8" THEN GO TO 4000
 2090 GO TO 2000
 3000 REM +++++++++UP+++++++++
 3010 IF ATTR (x-1,y)>32 THEN GO TO 100
 3020 PRINT PAPER 7; INK 2; BRIGHT 1;AT x,y;"\a"
 3025 PRINT #1; PAPER 1; INK 7;AT 0,7;INT ((score*100)/(599-h))+fr
 3030 LET x=x-1
 3035 IF x<=0 THEN LET x=0
 3040 PRINT AT x,y;"\b"
 3050 BEEP .01,21-x
 3055 LET score=score+1
 3060 IF INKEY$="5" THEN GO TO 1000
 3080 IF INKEY$="8" THEN GO TO 4000
 3090 GO TO 3000
 4000 REM +++++++RIGHT++++++++
 4010 IF ATTR (x,y+1)>32 THEN GO TO 100
 4020 PRINT PAPER 7; INK 2; BRIGHT 1;AT x,y;"\a"
 4025 PRINT #1; PAPER 1; INK 7;AT 0,7;INT ((score*100)/(599-h))+fr
 4030 LET y=y+1
 4035 IF y>=31 THEN LET y=31
 4040 PRINT AT x,y;"\b"
 4050 BEEP .01,21-x
 4055 LET score=score+1
 4070 IF INKEY$="6" THEN GO TO 2000
 4080 IF INKEY$="7" THEN GO TO 3000
 4090 GO TO 4000
 5000 REM +++++++SCORE++++++++
 5025 LET pc=INT ((score*100)/(599-h))
 5030 LET fr=fr+pc
 5035 IF fr>hi THEN LET hi=fr
 5050 PRINT #1; PAPER 1; INK 7;AT 0,1;"SCORE=";INT pc;" ";AT 0,15;"HI SCORE=";hi;" "
 5053 IF pc>=80 THEN GO TO 5060
 5054 LET fr=0: LET pc=0: LET h=20
 5055 PRINT PAPER 6; INK 0; FLASH 1;AT 2,1;" PRESS ANY KEY TO PLAY AGAIN. "
 5059 GO TO 5069
 5060 LET pc=0: LET h=h+10
 5063 PRINT FLASH 1; PAPER 6; INK 0;AT 2,3;" Press key for next round "
 5069 PAUSE 0
 5070 FOR n=1 TO 20
 5080 PRINT PAPER 4;AT n,1;"                              ": BEEP .01,n
 5090 NEXT n
 5093 PRINT #1; PAPER 1; INK 7;AT 0,7;fr;"  "
 5095 GO TO 18

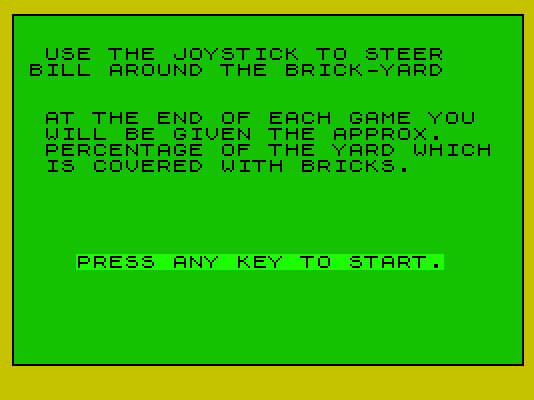

 5160 PRINT PAPER 4; INK 0;AT 6,2;"AT THE END OF EACH GAME YOU     WILL BE GIVEN THE APPROX.       PRECENTAGE OF THE YARD WHICH    IS COVERED WITH BRICKS."
 5170 PRINT PAPER 4; INK 0; BRIGHT 1;AT 15,4;"PRESS ANY KEY TO START."
 6000 REM +++++++INSTR++++++++
 6010 BORDER 6: PAPER 4: CLS
 6015 DRAW 255,0: DRAW 0,175: DRAW -255,0: DRAW 0,-175
 6020 FOR n=1 TO 9
 6030 PRINT PAPER 7; INK 2; BRIGHT 1;AT n,1;"\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a"
 6040 NEXT n
 6050 PRINT PAPER 7; INK 2; BRIGHT 1;AT 10,1;"\a                            \a "
 6060 FOR n=11 TO 20
 6070 PRINT PAPER 7; INK 2; BRIGHT 1;AT n,1;"\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a"
 6080 NEXT n
 6090 LET a$="                        BRICK-YARD BILL            HELP BILL STACK THE BRICKS BUT BE CAREFUL NOT TO GET TRAPPED                        \b\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a\a"
 6095 FOR n=0 TO 135
 6100 LET a$=a$(2 TO )+a$(1)
 6110 BEEP .05,CODE a$(28)/4
 6120 PRINT PAPER 7; INK 2; BRIGHT 1;AT 10,2;A$(1 TO 28)
 6130 NEXT n
 6134 PRINT BRIGHT 1; PAPER 1; INK 7;AT 10,5;"press key to continue"
 6135 PAUSE 0
 6140 PAPER 4: CLS
 6150 PRINT PAPER 4; INK 0;AT 2,2;"USE THE CURSOR KEYS TO STEER    BILL AROUND THE BRICK-YARD."
 6175 DRAW 255,0: DRAW 0,175: DRAW -255,0: DRAW 0,-175
 6180 PAUSE 0
 6190 FOR n=0 TO 40 STEP 5
 6200 BEEP .03,n
 6210 NEXT n
 6220 CLS
 7000 RETURN
 9998 SAVE "Bricks" LINE 0: BEEP .4,15
 9999 VERIFY ""

Note: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
