Demolition

Demolition is a single-player arcade game in which the player launches a ball from the top of the screen to demolish a scrolling brick wall advancing from the bottom. The game supports five selectable difficulty levels, controlled by the variable `d`, which affects how many button presses are required before the wall advances. A high-score table stores the top ten entries across five difficulty levels using parallel string and numeric arrays (`s$` and `s`), with names entered via LINE input. User-defined graphics (UDGs A, B, and C) are used for the brick, ball-trail, and ball characters respectively, and a machine code routine is POKEd into low memory at startup (addresses 0–41) to perform collision detection, with its result read via `USR USR “d”`. The program uses `ATTR` reads at lines 380–390 to detect when the ball contacts the wall, awarding points by calculating the blast radius left and right of the impact column.

---

Program Analysis

Program Structure

The program is organized into clearly separated functional blocks:

1. Lines 10–80: Initialization — sound, system setup, subroutine calls, and jump to title/difficulty screen.
2. Lines 90–130: Game setup — screen colors, wall drawing, score display, and random ball start direction.
3. Lines 140–200: Ball movement loop — bouncing the ball across the top row, waiting for a keypress to launch.
4. Lines 210–270: Wall advance logic — incrementing the wall counter c and updating the wall display, then checking for collision via machine code.
5. Lines 280–470: Ball drop and demolition — the ball falls from the top, hits the wall, and the blast radius is calculated left and right to award points.
6. Lines 480–530: Game-over sequence — the wall reaches the player; an animated sweep plays across row 0.
7. Lines 540–600: High-score table insertion — comparison and sorting into the parallel arrays.
8. Lines 610–690: High-score display — scores shown interleaved by difficulty level.
9. Lines 700–730: Wall-draw subroutine — prints five rows of UDG-A bricks in random ink colors on a black paper background.

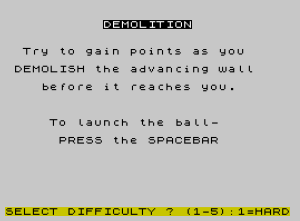

10. Lines 740–840: Title and difficulty selection screen.
11. Lines 850–880: One-time initialization subroutine — POKEs machine code, dimensions score arrays, and sets default name strings.
12. Lines 890–920: Machine code DATA.
13. Line 930: CLEAR and SAVE with auto-run.

Machine Code Usage

Lines 850 and 890–920 load 42 bytes of machine code into addresses 0–41 via a READ/POKE loop. The routine is invoked at line 270 with the idiom USR USR "d". The inner USR "d" returns the address of UDG “D” in the UDG table, and the outer USR calls the machine code at that address. The return value is compared to 65535 (t<>65535) to detect a collision condition — when the wall has reached the ball’s row. The DATA at line 920 includes a Z80 loop: LD HL,nn, LD BC,nn, AND A, SBC HL,BC, JR NZ, LD BC,0FFFFh, RET — a countdown-style scan returning a sentinel value.

Note: the DATA lines use x as a variable in the DATA statements (lines 890–920), which at runtime holds the last value assigned to x in the ball-movement loop. This is an unusual technique — the machine code bytes that happen to coincide with x‘s current value are inserted dynamically rather than being fixed constants. This could cause subtle bugs if x has an unexpected value during initialization, since GO SUB 850 is called before the game loop sets x.

Difficulty and Wall Mechanics

The difficulty value d (1–5, where 1 is hardest) is selected at line 820. The counter b is incremented each time the player fires (line 190), and the wall only advances when b >= d (line 210). A lower d means the wall advances more frequently. The wall position counter c runs from 0 to 9, wrapping back to 0 at 10 (line 220). When c=5, the wall string w$ is set to a full row of UDG-A bricks; when c=0, it is reset to a color-control-character sequence (line 240), producing a new randomly colored wall row.

Ball Movement and ATTR-Based Collision

The ball bounces horizontally across row 0 using dx (+1 or -1) and reflects at the screen edges (line 170). On a keypress, the ball drops vertically in a loop (lines 300–350), checking ATTR(y,x) at each row. The attribute value a=48 (PAPER 6, INK 0 — the wall’s attribute) is used as the wall-detection sentinel. When the ball lands on the wall, the blast radius is expanded left (lx) and right (rx) simultaneously (lines 380–470), awarding 5 points per brick destroyed and playing a tone pitched by distance from center.

High Score Table

The score table uses two parallel arrays: s$(10,10) for names (10 entries of up to 10 characters) and s(10) for numeric scores. Odd indices (1,3,5,7,9) store the top score for each of the five difficulty levels; even indices store the second score per level. Insertion at lines 590–600 performs a simple two-slot comparison. The display at lines 630–680 uses two interleaved FOR loops with OVER 1 printing to overlay the level labels printed earlier.

Key BASIC Idioms

• LET dx=(r>5)-(r<=5) — Boolean arithmetic to set direction: evaluates to +1 or -1 depending on the random value of r.
• POKE 23692,255 — Disables the scroll prompt by setting the system variable SCRCT to 255, preventing “scroll?” interruptions during wall updates.
• POKE 23658,8 / POKE 23658,0 — Enables and disables CAPS LOCK for name entry.
• LET lx=lx-(lx>0) and LET rx=rx+(rx<31) — Boundary-clamped left/right expansion using Boolean expressions as increments.
• PRINT AT PI,0 at line 650 — PI truncates to 3, so this positions the cursor at row 3. An unconventional but valid use of a floating-point constant as a row index.
• LINE w$ in the INPUT at line 560 — accepts the entire line including spaces without requiring quotes.

UDG Usage

UDG	Role
[UDG-A]	Brick tile, used to fill the wall rows
[UDG-B]	Ball-trail or sweep graphic used in the game-over animation
[UDG-C]	Ball character, displayed moving along row 0 and dropping
[UDG-D]	Not displayed; its USR address is used to call the machine code routine

Bugs and Anomalies

• The DATA statements at lines 890–920 use the variable x for several byte values. Since GO SUB 850 is called at line 30 before x is ever assigned in the game loop, x will be 0 at that point, so those bytes are written as 0. This is likely intentional — 0 is a valid Z80 NOP or padding byte in those positions — but it is fragile and not self-documenting.
• At line 220, when c>=10, it is set to b, which was just reset to 0. This is equivalent to LET c=0 but is an indirect and potentially confusing assignment.
• Line 570 checks LEN w$ > 10 and displays an error at row 7, column 4. However, the INPUT at line 560 uses LINE input which can accept any length; the error message instructs the user to re-enter, but the GO TO 560 loops back to the full INPUT prompt correctly.
