DigiClock 2

Developer(s): Frank Bouldin (W5GAA)
Date: 1985
Type: Program
Platform(s): TS 2068
Tags: Ham Radio

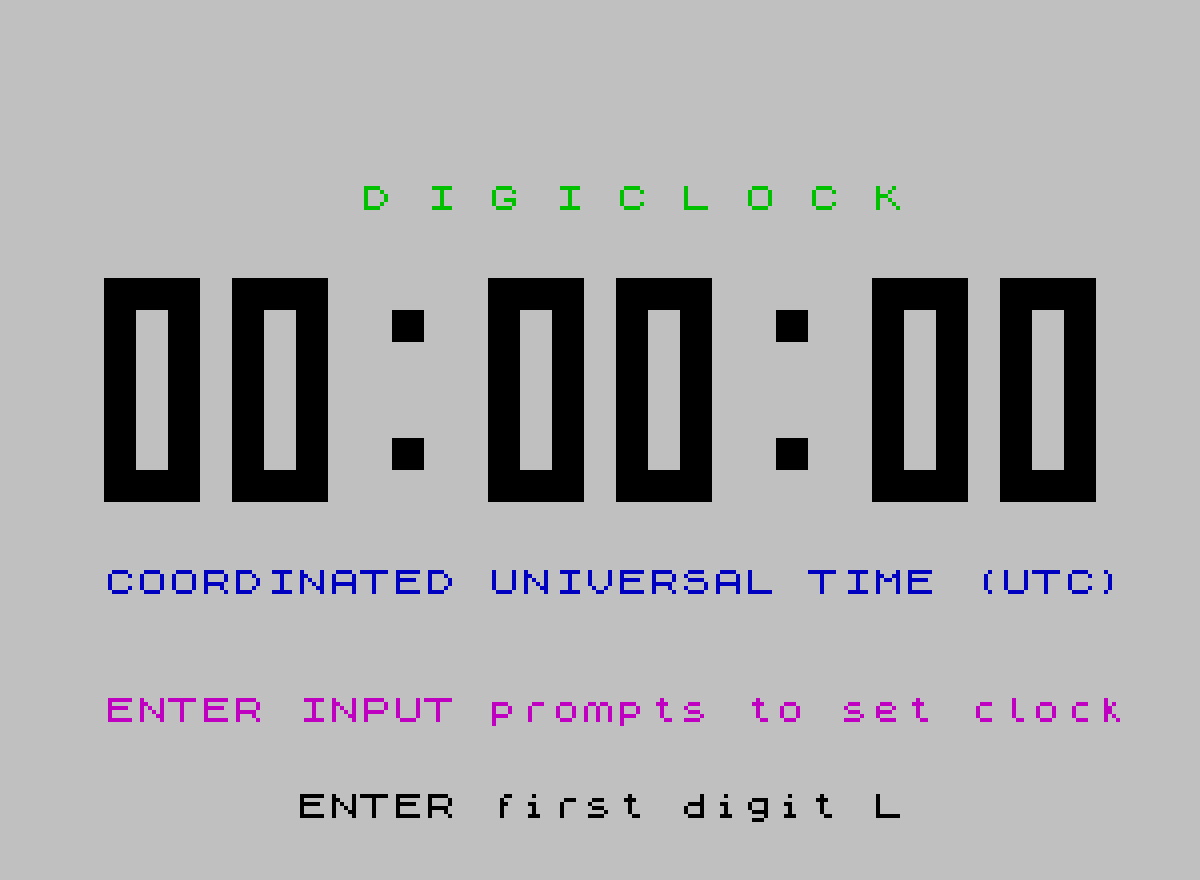

DIGICLOK 2 is a precision digital clock program that displays the time in large, seven-segment-style block-graphic digits across the screen, representing six digits (HH:MM:SS) in UTC. The clock is driven entirely by nested FOR/NEXT loops (variables A through F) where each loop level corresponds to one time digit, and timing is calibrated via a BEEP instruction at line 2010 with a carefully chosen duration of 0.05105 seconds. Fine-grained PAUSE corrections at line 2000 onward compensate for accumulated drift at rollover points (every second, 10 seconds, minute, 10 minutes, hour, and at 00:00:00, 10:00:00, and 20:00:00). Digit subroutines (lines 1010–1190) are addressed by storing line numbers in variables (G through S), allowing GO SUB to jump indirectly to the correct block-graphic digit renderer. The user sets the starting time via INPUT prompts validated for each digit position’s legal range.

Program Structure

The program is divided into clearly separated functional regions:

  1. Lines 10–90: REMs and initialisation entry via GO SUB 4000.
  2. Lines 100–240: The main timing engine — six nested FOR loops (A–F) that each represent one clock digit.
  3. Lines 1000–1190: Ten digit-rendering subroutines (one per digit 0–9), each printing a 7-row block-graphic character using AT X,Y.
  4. Lines 2000–2080: Clock-speed correction subroutine called once per innermost loop iteration, applying graduated PAUSE values at rollover boundaries.
  5. Lines 3000–3310: Time-setting routine accepting INPUT for each of the four significant digits (the seconds tens and units default to 0).
  6. Lines 4000–4080: Initialisation: screen setup, colon separators, initial digit display, variable assignment, and call to the time-setter.
  7. Line 9999: CLEAR : SAVE "DIGICLOK 2" LINE 1 — standard auto-run save.

Timing Engine

The clock is driven by six nested FOR/NEXT loops. Each loop variable (A through F) ranges over subroutine line numbers with a STEP 20, stepping through exactly the line numbers that correspond to the digit renderers for 0–9 (or 0–5 for the tens-of-minutes and tens-of-seconds digits). This is a highly compact encoding: the loop itself selects which digit subroutine to call.

Loop varDigit positionRange (line nos.)Count
AHours tensL to H (1010–1050)0–2
BHours unitsM to W (1010–1190)0–9 (capped at 3 when tens=2)
CMinutes tensN to J (1010–1110)0–5
DMinutes unitsT to K (1010–1190)0–9
ESeconds tensG to J (1010–1110)0–5
FSeconds unitsG to K (1010–1190)0–9

At the end of each loop body, IF x=limit THEN LET startvar=G resets the loop’s lower bound to G (1010, i.e. “0”) for the next full cycle, enabling carry propagation.

Indirect GO SUB via Line-Number Variables

All digit subroutine calls use the pattern GO SUB A, GO SUB B, etc., where the loop variable holds an actual BASIC line number. This is the indirect subroutine dispatch technique: variables G through S map to line numbers 1010–1190 in steps of 20, each corresponding to the PRINT block for one digit (0–9). This avoids a large IF/THEN chain for digit selection and is among the most space-efficient approaches available in Sinclair BASIC.

BEEP-Based Calibration and PAUSE Drift Correction

The fundamental timebase is the BEEP .05105,34 at line 2010, chosen so that 10 beeps ≈ 1 second given the overhead of the loop iteration. The subroutine at lines 2020–2080 then applies supplementary PAUSE values that compensate for the varying per-iteration overhead at rollover points — the more digits that roll over simultaneously, the more screen redraws happen and the larger the correction needed:

  • PAUSE 26 at 00:00:00 (all six digits roll, once per 24 hours)
  • PAUSE 28 at HH:00:00 where H tens changes (10:00, 20:00)
  • PAUSE 30 at XX:00:00 (top of each hour)
  • PAUSE 32 every 10 minutes
  • PAUSE 34 every minute
  • PAUSE 39 every 10 seconds
  • PAUSE 44 every second (baseline correction)

Block-Graphic Digit Rendering

Each digit subroutine prints a 7-row × 3-column block-graphic image using Spectrum block characters (█, ▀, ▄, ▐, etc.) at absolute screen positions via AT X,Y. The variable X is set to 7 (the starting row) and Y is updated before each GO SUB call to position the digit horizontally. Six digit positions occupy columns 0, 4, 12, 16, 24, and 28, with colon separators pre-printed at columns 9 and 21.

Time-Setting Routine

Lines 3000–3310 walk the user through entering the hours tens, hours units, minutes tens, and minutes units digits via INPUT. Each entered value is range-checked and mapped to the corresponding subroutine line number stored in one of the loop-start variables (L, M, N, T). Seconds always start at 00. The hours-tens digit is restricted to 0–2 (line 3040), and if the tens digit is 2, the units digit is capped at 0–3 (line 3108). Minutes tens is restricted to 0–5 (line 3180).
