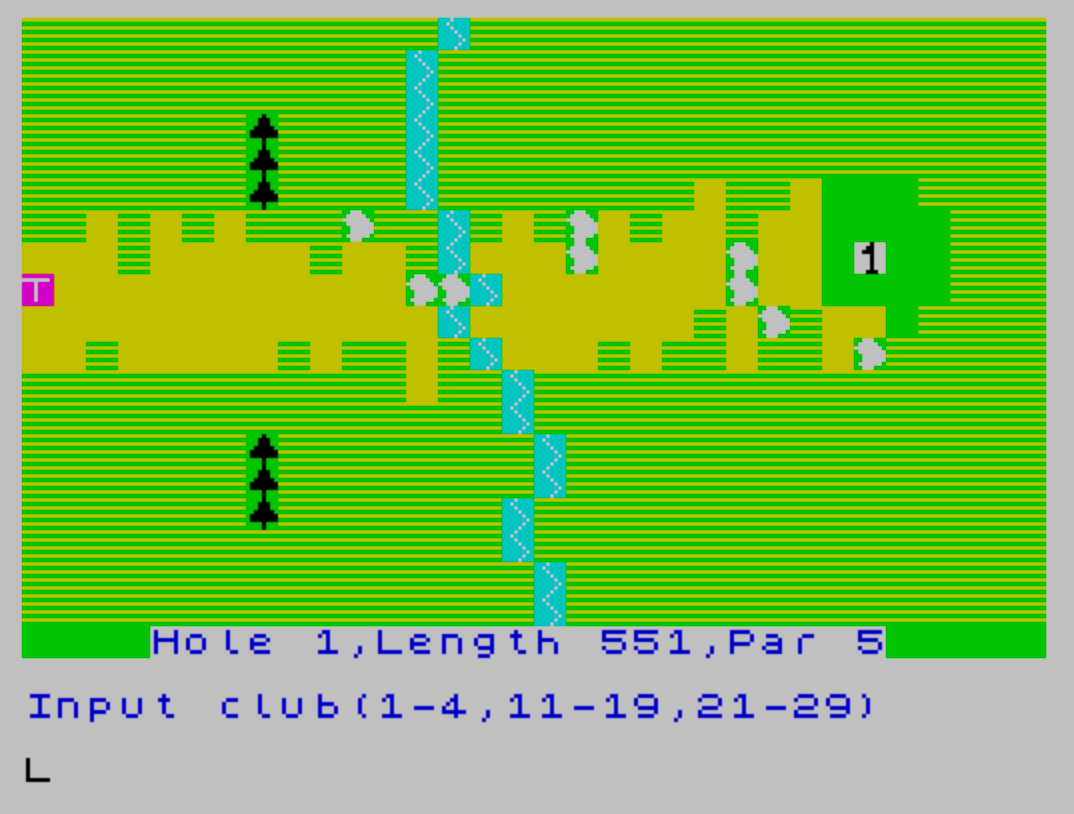

Graphical Golf is a full 18-hole golf simulation that renders a bird’s-eye view of each hole using color attributes and user-defined graphics to represent terrain features including rough, fairway, bunkers, water hazards, trees, the green, the pin, and the tee. Players select from a set of clubs (driver through 9-iron, with iron alternatives that allow percentage-swing input for accuracy), input a shot angle in degrees, and the program applies randomized dispersion scaled by handicap. Terrain landing detection is performed via the ATTR function, which reads the color attributes of screen cells to determine whether the ball has landed on fairway, rough, water, a bunker, or trees, each carrying different club restrictions and distance coefficients. A separate putting phase uses a scrolling graphical display with a simulated green speed variable and distance-from-pin tracking, rolling the ball incrementally across the screen. The program supports either a fixed 18-hole standard course (stored in DATA at line 4620) or a seeded random course generator producing up to 65,535 distinct layouts, with a handicap adjustment system that lowers the player’s handicap based on net score at the end of the round.
Program Structure
The program is organized as a main loop (lines 10–130) iterating over 18 holes, with all major logic delegated to subroutines. The top-level flow is:
- Initialization:
GO SUB 150— sets up UDGs, course data, and handicap. - Per-hole display:
GO SUB 630— draws rough, fairway, water, green, trees, bunkers, and tee. - Shot play:
GO SUB 1490— club/angle input loop until ball reaches the green. - Putting:
GO SUB 2430— separate graphical putting phase. - Scoring:
GO SUB 3060— stores score, comments, and optionally displays a scorecard. - End of round:
GO SUB 3520— final summary, handicap adjustment, play-again prompt.
User-Defined Graphics
Seven UDGs (A through G) are defined at startup by reading 56 bytes from DATA at line 4510 and POKEing them into USR "[UDG-A]" onwards. The comment at line 4580 maps each UDG to its terrain role:
| UDG | Terrain |
|---|---|
| A | Rough |
| B | Bunker |
| C | Pin flag |
| D | Water |
| E | Tree |
| F | Divot marker (ball flash) |
| G | Golf ball (putting display) |
The rough string r$ is prebuilt at line 530–550 as 32 repetitions of UDG-A, used to fill screen rows efficiently with a single PRINT per row.
Terrain Detection via ATTR
The central technique for determining what the ball lands on is reading the screen attribute at the ball’s row/column with ATTR (vp,hp) (lines 1880–2260). Each terrain type is assigned a distinct PAPER/INK combination when drawn, so the attribute byte uniquely identifies the surface. The constants defined at lines 570–590 map terrain names to their attribute values:
| Variable | Value | Terrain |
|---|---|---|
rough | 38 | Rough (PAPER 4, INK 6) |
water | 47 | Water (PAPER 5, INK 7) |
fairway | 6 | Fairway (PAPER 0, INK 6) |
green | 4 | Green (PAPER 0, INK 4) |
Bunker (attribute 39, PAPER 4 INK 7) and trees (attribute 32, PAPER 4 INK 0) are detected by their literal values at lines 2080 and 2180.
Shot Calculation
Club selection uses a coded numbering system: woods are 1–4, irons are 11–19 (standard) or 21–29 (percentage-swing variants). Lines 1780–1800 normalize all club codes to an effective integer 1–16 by subtracting offsets. The displacement formulas at lines 1810–1820 compute horizontal and vertical components:
hs = INT((ci*(12+INT(RND*3))+38)*ps*COS(as)*rc/20+.5)vs = INT((ci*(12+INT(RND*3))+38)*ps*SIN(as)*rc/20+.5)
Here ci is the normalized club power (1–16), ps is the percentage swing (1.0 or a user fraction), as is the angle in radians, and rc is a terrain distance coefficient reduced by rough, bunkers, or trees. The random term INT(RND*3) adds natural variation. Angle dispersion based on handicap is applied at line 1700: a random offset up to ±(22+ha) degrees is added before converting to radians.
Course Generation
The standard course uses DATA at line 4620 providing length and par for all 18 holes. The random course generator (lines 320–380) produces hole lengths in the range 140–550 yards using INT(RND+411)+140 — note this expression is equivalent to INT(RND*1)+551 only approximately; RND+411 gives a value in [411,412), so INT always yields 411, meaning l(h) is always fixed at 551. This is almost certainly a bug: the intended expression was likely INT(RND*411)+140, which would give the described range of 140–550. Par is then derived from length thresholds: par 3 for ≤240 yards, par 4 for 241–449, par 5 for ≥450. A re-roll condition at line 360 discards non-par-4 holes with 60% probability, biasing the course toward par 4s.
Putting Phase
On reaching the green, a separate full-screen putting display is drawn (lines 2530–2720), showing a stylized hole graphic with a flagstick. Distance from pin dp is computed as a Euclidean pixel distance (line 2440) scaled to feet. A green speed variable tg (2=slow, 3=medium, 4=fast) is randomly selected. The player inputs a putt strength 1–30; each unit advances the ball by 1+INT(RND*tg) feet per iteration (line 2870), accumulating until the sign of dp reverses or the ball falls within 1 unit of the hole. The ball rolls graphically across the screen using hbp (horizontal ball position) mapped from dp at line 2900, with per-step PAUSE scaled by green speed and distance.
Scorecard Display
The scorecard (lines 3390–3500) uses color-coded TAB printing: scores below par are shown with PAPER 2 (red), on par with PAPER 7, and over par with PAPER 1 (blue). The instruction text at line 4450 incorrectly states “below par in red, over par in blue” — the actual colors are red for under par and blue for over par, which matches the code but is the reverse of traditional scorecard convention.
Input Validation
A shared string legality checker at lines 3830–3860 (GO SUB 3830) validates that the string d$ contains only digits, a decimal point, or a minus sign, setting flag OK accordingly. This is called before every VAL d$ operation throughout the program to prevent errors from non-numeric input. An additional allowance at line 1670 replaces a leading “j” or “J” with “-” as a keyboard convenience for entering negative angles.
Notable Bugs and Anomalies
- Line 320:
INT(RND+411)+140always produces 551 (as noted above); the intended expression was almost certainlyINT(RND*411)+140. - Line 2130: In the bunker lie calculation for
bker=1, the code writesLET cm=26+(RND>.5)instead ofLET mc=..., leavingmcunchanged — the maximum club restriction is silently skipped for an “O.K.” bunker lie. - Line 3590:
ts-hssubtractshs(horizontal shot displacement from the last shot) rather than the handicap variableha, producing a meaningless “NET” shot count. - Lines 3770/3780: The play-again prompt uses
LET A$= INKEY$(uppercase A$) for the PAUSE loop but then comparesa$(lowercase) at line 3780, which on this platform are the same variable — no bug in practice, but inconsistent casing throughout the scoring section. - Line 4520 and others in the DATA block use the variable
h(which holds the current hole number) as a data value, meaning the UDG patterns change depending on which hole was last played when the DATA is READ at initialization. This is almost certainly unintentional — the DATA values were likely meant to be specific byte constants.
Key BASIC Idioms
PAUSE NOT PIis used throughout as a zero-duration pause (sinceNOT PI= 0) immediately followed byINKEY$to wait for a keypress without blocking — the standard efficient keypress idiom.VAL d$withGO SUB 3830guard is the consistent pattern for all numeric input.- Boolean arithmetic appears at line 2220:
("VERY BAD" AND TRS=0)+("BAD" AND TRS=1)+("LUCKY" AND TRS=2)selects a string by condition, a common Spectrum BASIC technique for conditional string output without IF branches. - Line 1180:
VAL "i- INT ((4+ RND*3)*(tre>.5))+ INT ((4+ RND*3)*(tre <=.5))"uses string-form VAL to evaluate an expression containing a live variable, a technique that allows dynamic expression construction.
Image Gallery
Source Code
10 REM "GOLF" Main Loop
20 GO SUB 150
30 FOR h=1 TO 18
40 RANDOMIZE :LET sh=0:LET a$="T":LET pap=3:LET ink=7
50 GO SUB 630:REM DISPLAY
60 GO SUB 1490:REM THE SHOT
70 PAUSE 75
80 GO SUB 2430:REM ON GREEN
90 GO SUB 3060:REM KEEP SCORE
100 NEXT h
110 GO SUB 3520:REM END DISP.
120 IF playagain THEN GO TO 20
130 STOP
140 REM INITIALIZE SUBROUTINE
150 GO SUB 490:REM INIT.VARS.
160 GO SUB 3880:REM INSTRUCTS.
170 PRINT "Random or normal course?(r/n)"
180 PAUSE NOT PI:LET a$= INKEY$
190 IF a$ <>"n" AND a$ <>"r" THEN GO TO 180
200 REM Par,length,score
210 DIM p(18):DIM l(18):DIM s(18)
220 IF a$="r" THEN GO TO 270
230 RESTORE 4620
240 FOR h=1 TO 18
250 READ l(h):READ p(h):NEXT h
260 GO TO 440:REM HANDICAP
270 PRINT "Course no? ENTER if not bothered"
280 INPUT LINE d$
290 IF d$="" THEN RANDOMIZE :GO TO 320
300 GO SUB 3830:IF NOT OK THEN GO SUB 610:GO TO 280
310 RANDOMIZE (VAL d$)
320 LET par=0
330 FOR h=1 TO 18
340 LET l(h)= INT (RND+411)+140
350 LET p(h)=3+(l(h)>240)+(l(h)>449)
360 IF p(h) <>4 AND RND<.6 THEN GO TO 340
370 LET par=par+p(h)
380 NEXT h:PRINT "par=";par
390 PRINT "O.K?"
400 PAUSE NOT PI:LET a$= INKEY$
410 IF a$ <>"y" AND a$ <>"n" THEN GO TO 400
420 IF a$="n" THEN GO TO 270
430 REM GET HANDICAP
440 PRINT '"**INPUT**your handicap,(0-25)"
450 INPUT LINE d$:GO SUB 3830:IF NOT OK THEN GO SUB 610:GO TO 450
460 LET ha= VAL d$:IF ha<0 OR ha>28 THEN GO TO 460
470 RETURN
480 REM REST OF VAR.DEC.
490 RESTORE 4510
500 FOR i=0 TO 55
510 READ h:POKE USR "[UDG-A]"+i,h:NEXT i
520 REM ROUGH,SPACES
530 LET r$=""
540 FOR i=1 TO 32
550 LET r$=r$+"[UDG-A]":NEXT i
560 REM VAL$ FOR ATTRIBUTES
570 LET rough=38:LET water=47
580 LET fairway=6:LET green=4
590 LET rc=1:LET mc=0
600 LET ts=mc:LET pr=ts:RETURN
610 BEEP .4,20:BEEP .2,20:RETURN
620 REM DRAW DISPLAY
630 GO SUB 750 :REM ROUGH
640 GO SUB 810:REM FAIRWAYS
650 GO SUB 920:REM WATER
660 GO SUB 1010:REM GREEN+PIN
670 GO SUB 1120:REM TREES
680 GO SUB 1240:REM BUNKERS
690 GO SUB 1450:REM TEE
700 RETURN
710 REM CLEAR BOT. 2 LINES
720 PAPER 7
730 PRINT AT 20,0,,,,:RETURN
740 REM ROUGH
750 PAPER 4:INK 6:CLS
760 FOR i=1 TO 19
770 PRINT r$:NEXT i
780 PRINT TAB 4; PAPER 7; INK 1;"Hole ";h;",Length ";l(h);",Par ";p(h)
790 GO SUB 720:RETURN
800 REM DRAW FAIRWAY
810 PAPER NOT PI:INK 6:LET vp=3+ INT (RND*13)
820 LET vp1=vp:LET hp= INT (l(h)/20)
830 FOR a=1 TO hp
840 FOR b=-1-(RND>.5) TO 1+(RND>.5)
850 PRINT AT vp+b,a-1;"█"
860 NEXT b
870 LET vp=vp+(RND>.5)-(RND>.5)
880 LET vp=vp-(vp>16)+(vp<2)
890 NEXT a
900 LET vp2=vp:RETURN
910 REM WATER
920 IF RND>.25 THEN RETURN
930 PAPER 5:INK 7
940 LET hp= INT (l(h)/40)
950 FOR a=0 TO 18
960 PRINT AT a,hp;"[UDG-D]"
970 LET hp=hp+(RND>.5)-(RND>.5)
980 LET hp=hp-(hp >= INT (l(h)/20-2))+(hp<2)
990 NEXT a:RETURN
1000 REM GREEN & PIN
1010 PAPER NOT PI:INK 4:LET vp=vp2
1020 LET hp= INT (l(h)/20)-1
1030 FOR a=-1-(RND>.5) TO 1+ INT (RND>.5)
1040 FOR b=-1-(RND>.5) TO 1+ INT (RND>.5)
1050 PRINT AT vp+b,hp+a;"█"
1060 NEXT b:NEXT a
1070 REM PIN
1080 PRINT PAPER 7; INK NOT PI; AT vp,hp;"[UDG-C]"
1090 LET hpf=hp:LET vpf=vp
1100 RETURN
1110 REM TREES
1120 IF RND>.9 THEN RETURN
1130 RESTORE 4600:FOR k=1 TO 3+(RND>.7)+(RND>.7): READ not:LET i=0
1140 IF ATTR (i,vp)=fairway OR ATTR (i,vp)=green THEN GO TO 1170:REM PLACE TREES
1150 LET i=i+1:IF i=19 THEN GO TO 1220:REM NO TREES
1160 GO TO 1140
1170 LET i=i+2
1180 FOR j=1 TO not:LET tre= RND
1190 LET i1= VAL "i- INT ((4+ RND*3)*(tre>.5))+ INT ((4+ RND*3)*(tre <=.5))"
1200 IF ATTR (i1,vp)=rough THEN PRINT AT i1,vp; PAPER 4; INK NOT PI;"[UDG-E]"
1210 NEXT j
1220 NEXT k:RETURN
1230 REM BUNKERS
1240 PAPER 4:INK 7:LET vp=vpf
1250 LET zz=-4+ INT (RND*9):LET yy= ATTR (vp+zz,hp)
1260 IF yy <>rough AND yy <>fairway THEN GO TO 1250
1270 PRINT AT vp+zz,hp;"[UDG-B]"
1280 FOR a=1 TO 2+(RND*3):LET xx=-3+ INT (RND*7)
1290 LET zz=-3- INT (RND*3):LET xx=-3+ INT (RND*7)
1300 LET yy= ATTR (vp+xx,hp+zz)
1310 IF yy <>rough AND yy <>fairway THEN GO TO 1290
1320 PRINT AT vp+xx,hp+zz;"[UDG-B]":NEXT a
1330 IF p(h)<4 THEN RETURN
1340 LET hp=10:GO SUB 1380
1350 IF p(h)<5 THEN RETURN
1360 LET hp=17:GO SUB 1380
1370 RETURN
1380 FOR a=1 TO 2+(RND>.4)
1390 LET zz=hp+ INT (RND*4):FOR b=0 TO 18
1400 IF ATTR (b,zz) <>fairway THEN GO TO 1420
1410 PRINT AT b,zz;"[UDG-B]":GO TO 1430
1420 NEXT b
1430 NEXT a:RETURN
1440 REM TEE
1450 LET vp=vp1:LET hp=0
1460 PAPER PI:INK 7
1470 PRINT AT vp,hp;"[UDG-T]":RETURN
1480 REM PLAY ONTO THE GREEN
1490 GO SUB 1580:REM CLUB,ANGLE
1500 LET ps=1:IF ci >=21 THEN GO SUB 1730:REM % swing
1510 IF sh >=1 THEN GO SUB 2400:REM RESTORE DIVOT
1520 GO SUB 1780:REM CALC.DISPL
1530 LET sh=sh+1:PRINT PAPER 7; INK NOT PI; AT 0,0; CHR$ (48+sh)
1540 LET rc=1:LET mc=0
1550 GO TO 1850:REM LAND.POS+
1560 RETURN
1570 REM GET CLUB & ANGLE
1580 PAPER 7:INK 1
1590 PRINT AT 21,0;"Input club(";
1600 IF mc=0 THEN PRINT "1-4,11-19,21-29)"
1610 IF mc=11 THEN PRINT "11-19,21-29) "
1620 IF mc=29 THEN PRINT "29)"
1630 IF mc>20 AND mc <>29 THEN PRINT mc;"-29)"
1640 INPUT LINE d$:GO SUB 3830:IF NOT OK THEN GO SUB 610:GO TO 1640
1650 LET ci= VAL d$:IF (ci<1 OR ci>29) OR (ci>4 AND ci<11) OR ci=20 OR ci<mc OR ci <> INT ci THEN GO TO 1650
1660 PRINT AT 21,0;"Angle of shot(-180 TO 180)"
1670 INPUT LINE d$:IF d$ <>"" THEN IF d$(1)="j" OR d$(1)="J" THEN LET d$(1)="-"
1680 GO SUB 3830:IF NOT OK THEN GO SUB 610:GO TO 1670
1690 LET as= VAL d$:IF as<-180 OR as>180 THEN GO TO 1690
1700 LET as=as+ INT (RND*(22+ha))- INT (RND*(22+ha))
1710 LET as=as* PI/180
1720 PRINT #0;as:RETURN
1730 PRINT AT 21,0;"Input percentage swing(10-100)"
1740 INPUT LINE d$:GO SUB 3830:IF NOT OK THEN GO SUB 610:GO TO 1740
1750 LET ps= VAL d$:IF ps<10 OR ps>100 THEN GO TO 1750
1760 LET ps=ps/100:RETURN
1770 REM CALC.DISPL'MT
1780 IF ci>20 THEN LET ci=ci-10
1790 IF ci>10 THEN LET ci=ci-6
1800 LET ci=16-ci
1810 LET hs= INT ((ci*(12+ INT (RND*3))+38)*ps* COS (as)*rc/20+.5)
1820 LET vs= INT ((ci*(12+ INT (RND*3))+38)*ps* SIN (as)*rc/20+.5)
1830 RETURN
1840 REM LANDING POS.ONWARDS
1850 GO SUB 720:PAPER 7:INK 2
1860 IF hp+hs>31 OR hp+hs<0 OR vp+vs>18 OR vp+vs<0 THEN GO TO 1950:REM 0.0.B.
1870 LET hp=hp+hs:LET vp=vp+vs
1880 LET yy= ATTR (vp,hp)
1890 IF yy <>water THEN GO TO 1970
1900 REM IN WATER
1910 PRINT AT 20,0;"SPLASH-IN WATER,PENALTY 1 STROKE"
1920 LET b$=a$:LET pap1=pap:LET ink1=ink:LET a$="[UDG-D]":LET pap=5:LET ink=7:GO SUB 2330:GO SUB 2400
1930 LET sh=sh+1:LET hp=hp-hs:LET vp=vp-vs:LET a$=b$:LET pap=pap1:LET ink=ink1:GO SUB 2330:GO TO 1490
1940 REM OUT OF BOUNDS
1950 PRINT AT 20,0;"OUT OF BOUNDS,PENALTY 1 STROKE"
1960 LET sh=sh+1:GO SUB 2330:GO TO 1490
1970 IF yy <>green THEN GO TO 2010
1980 REM ON THE GREEN
1990 PRINT AT 20,0;"ON THE GREEN IN ";sh;" SHOT(S)"
2000 LET a$="█":LET pap=0:LET ink=4:GO SUB 2330:RETURN
2010 IF yy <>rough THEN GO TO 2080
2020 REM IN THE ROUGH
2030 LET rgh= RND
2040 LET mc=11:PRINT AT 20,0;"YOU'RE IN ";
2050 IF rgh>.5 THEN PRINT "HEAVY ROUGH":LET rc=.5+ RND/4
2060 IF rgh <=.5 THEN PRINT "LIGHT ROUGH":LET rc=.75+ RND/4
2070 LET a$="[UDG-A]":LET pap=4:LET ink=6:GO SUB 2330:GO TO 1490
2080 IF yy <>39 THEN GO TO 2180
2090 REM BUNKERED
2100 PRINT AT 20,0;"BUNKERED-LIE IS ";
2110 LET bker= INT (RND*3)
2120 IF bker=0 THEN LET mc=24+(RND>.5):PRINT "GOOD";
2130 IF bker=1 THEN LET cm=26+(RND>.5):PRINT "O.K.";
2140 IF bker=2 THEN LET mc=28+(RND>.5):PRINT "BAD";
2150 PRINT "-MAX CLUB ";mc
2160 LET rc=.7-bker*.1+ RND/5
2170 LET a$="[UDG-B]":LET pap=4:LET ink=7:GO SUB 2330:GO TO 1490
2180 IF yy <>32 THEN GO TO 2260
2190 REM IN TREES
2200 PRINT AT 20,0;"IN TREES-";
2210 LET trs= INT (RND*3):LET rc=.5+ RND/4
2220 PRINT ("VERY BAD" AND TRS=0)+("BAD" AND TRS=1)+("LUCKY" AND TRS=2);
2230 LET mc=29-trs -(RND>.8):PRINT " LIE MAX. CLUB ";mc
2240 LET a$="[UDG-E]":LET pap=4:LET ink=0:GO SUB 2330:GO TO 1490
2250 REM ON FAIRWAY
2260 IF yy <>fairway THEN GO TO 2300
2270 PRINT AT 20,0;"YOU ARE ON THE FAIRWAY"
2280 LET a$="█":LET pap=0:LET ink=6:GO SUB 2330:GO TO 1490
2290 REM ON FLAG
2300 PRINT AT 20,0;"ON THE GREEN IN ";sh;"-AND CLOSE."
2310 LET a$="[UDG-C]":LET pap=7:LET ink=0:GO SUB 2330:RETURN
2320 REM FLASH BALL ON & OFF
2330 FOR i=1 TO 6
2340 PAPER pap:INK ink
2350 PRINT AT vp,hp;a$:PAUSE 15
2360 PAPER 7:INK 2
2370 PRINT AT vp,hp;"[UDG-F]":PAUSE 15
2380 NEXT i:RETURN
2390 REM RESTORE DIVOT
2400 PAPER pap:INK ink
2410 PRINT AT vp,hp;a$:RETURN
2420 REM PUTTING
2430 GO SUB 2530:REM DISPLAY
2440 LET dp= INT (SQR ((hpf-hp)*(hpf-hp)+(vpf-vp)*(vpf-vp))*15+1+ RND*15)
2450 LET hbp=19:GO SUB 2900
2460 IF ABS dp <=1 THEN GO TO 2730:REM IN HOLE
2470 PRINT AT 9,19-hbp; PAPER 5; INK 7;"[UDG-G]"
2480 GO SUB 2780:REM PUTT IN PUTT
2490 GO SUB 2850:REM NEW DIST.
2500 GO SUB 2900:REM BALL ROLL
2510 GO TO 2460
2520 REM DRAW PUTTING DISPLAY
2530 PAPER 5:CLS
2540 PAPER 7:FOR i=12 TO 21:PRINT AT i,0,,:NEXT i:PAPER 5
2550 IF h <=9 THEN LET ink=1
2560 IF h >=10 THEN LET ink=2
2570 PRINT AT 0,17; PAPER 5; INK ink;"▄▄▄▄"
2580 PRINT TAB 17; PAPER 5; INK ink;" ███▐"
2590 PRINT TAB 17; PAPER 5; INK ink;"▀▀▀▐"
2600 INK ink:LET msig= INT (h/10)
2610 LET lsig=h-msig*10
2620 IF msig <>0 THEN PRINT AT 1,18; PAPER 7;"";msig
2630 PRINT AT 1,19; PAPER 7;"";lsig
2640 INK NOT PI:PAPER 5
2650 FOR i=0 TO 6:PRINT AT 3+i,20;"▐":NEXT i
2660 FOR i=1 TO 2:PRINT INK 4;"███████████████████"; INK NOT PI;"██"; INK 4;"███████████"
2670 NEXT i
2680 PAPER 7:INK NOT PI:PRINT '" -FEET-FROM THE PIN "
2690 LET tg=2+ INT (RND*3)
2700 PAPER 5:INK NOT PI:PRINT AT 0,0;
2710 PRINT ("slow" AND tg=2)+("medium" AND tg=3)+("fast" AND tg=4);
2720 REM BALL DROPS IN HOLE
2730 PRINT AT 9,19; PAPER 5;" ":PRINT AT 10,19; PAPER NOT PI; INK 7;"[UDG-G]":PAUSE 10
2740 PRINT AT 10,19; PAPER NOT PI;" "
2750 PRINT AT 11,19; PAPER NOT PI; INK 7;"[UDG-G]":PAUSE 100
2760 RETURN
2770 REM GET PUTT STRENGTH
2780 PAPER 7:INK NOT PI:PRINT AT 13,0; ABS dp
2790 PRINT AT 15,0;"input your putt strength (1-30)"
2800 INPUT LINE d$:GO SUB 3830:IF NOT OK THEN GO SUB 610:GO TO 2800
2810 LET ps= VAL d$:IF ps<1 OR ps>30 THEN GO TO 2810
2820 PRINT AT 15,0,,:PRINT AT 13,0;" "
2830 LET sh=sh+1:RETURN
2840 REM GETNEW POS. FROM PIN
2850 IF dp<0 THEN LET dir=1
2860 IF dp>0 THEN LET dir=-1
2870 FOR i=1 TO ps:LET dp=dp+dir*(1+ INT (RND*tg)):NEXT i
2880 RETURN
2890 REM ROLL THE BALL
2900 LET nhbp= INT ((dp+1)/3)
2910 LET nhbp=nhbp-(nhbp=-1)
2920 IF nhbp<-12 THEN LET nhbp=-12
2930 IF nhbp>19 THEN LET nhbp=19
2940 IF nhbp >=hbp THEN LET step=1
2950 IF nhbp<hbp THEN LET step=-1
2960 LET pause=10+5*(tg=4)-5*(tg=2)- ABS (nhbp-hbp):IF pause-1< ABS hbp-30 THEN LET pause= ABS hbp-29
2970 FOR i=hbp TO nhbp STEP step
2980 PRINT AT 9,19-i; PAPER 5; INK 7;"[UDG-G]"
2990 PAUSE pause+30- ABS i
3000 IF i=-1 THEN PRINT AT 9,20; PAPER 5; INK NOT PI;"▐"
3010 IF i <>-1 THEN PRINT AT 9,19-i; PAPER 5;" "
3020 NEXT i
3030 LET hbp=nhbp:RETURN
3040 REM KEEP SCORE
3050 :
3060 GO SUB 3110:REM KEEP SCORE
3070 GO SUB 3140:REM COMMENT
3080 GO SUB 3340:REM SCORECARD
3090 RETURN
3100 REM STORE CARD
3110 LET s(h)=sh:LET ts=ts+sh
3120 LET pr=pr+p(h):RETURN
3130 REM COMMENT ON SCORE
3140 PAPER 7:INK PI:CLS
3150 PRINT "YOU HOLED OUT IN ";sh;" SHOTS"
3160 LET zz=sh-p(h)
3170 PRINT
3180 IF zz=-3 AND p(h) <>4 THEN PRINT ;"EXCELLENT,AN ALBATROSS"
3190 IF (zz=-3 AND p(h)=4) OR (zz=-2 AND p(h)=3) THEN PRINT "UNBELIEVABLE YOU MADE A HOLE IN ONE"
3200 IF zz=-2 AND p(h) <>3 THEN PRINT "GREAT YOU MADE AN EAGLE!!"
3210 IF zz=-1 THEN PRINT "WUNDERBAR,YOU MADE A BIRDIE"
3220 IF zz=0 THEN PRINT "WELL DONE, A PAR"
3230 IF zz=1 THEN PRINT "HMMMMM, A BOGEY"
3240 IF zz=2 THEN PRINT "OOOOPS, LORRAINE, A DOUBLE BOGEY"
3250 IF zz>2 THEN PRINT "KEEP YOUR HEAD DOWN"
3260 PRINT :PRINT
3270 LET zz=ts-pr
3280 PRINT "YOU ARE NOW ";
3290 IF zz<0 THEN PRINT ABS zz;" UNDER ";
3300 IF zz=0 THEN PRINT " LEVEL ";
3310 IF zz>0 THEN PRINT zz;"OVER ";
3320 PRINT "PAR(GROSS)":RETURN
3330 REM SCORECARD
3340 PRINT "DO YOU WISH TO SEE A SCORECARD?"
3350 PAUSE NOT PI:LET A$= INKEY$
3360 IF a$ <>"y" AND a$ <>"n" THEN GO TO 3350
3370 CLS :IF a$="n" THEN RETURN
3380 REM PRINT SCORECARD
3390 PRINT TAB 12; PAPER 5; INK 1;"SCORECARD"
3400 PRINT PAPER 7; INK 2;" HOLE DIST. PAR SHOTS "
3410 FOR i=1 TO 18
3420 PRINT PAPER 7; INK 4; TAB 4;i; TAB 12; TAB 20;p(i);
3430 IF s(i)=0 THEN GO TO 3470
3440 IF s(i)-p(i)<0 THEN PRINT TAB 28; PAPER 2; INK 7;s(i)
3450 IF s(i)-p(i)=0 THEN PRINT TAB 28; PAPER 7; INK NOT PI;s(i)
3460 IF s(i)-p(i)>0 THEN PRINT TAB 28; PAPER 1; INK 7;s(i)
3470 NEXT i
3480 PRINT TAB 19; PAPER 7; INK 3;pr; TAB 27;ts
3490 PRINT PAPER 5; INK 1;"ANY KEY TO CONTINUE"
3500 PAUSE NOT PI:CLS :RETURN
3510 REM END OF ROUND
3520 GO SUB 3570:REM FINAL SCORE
3530 IF ha>0 THEN GO SUB 3680:REM HANDICAP
3540 GO SUB 3760:REM PLAY AGAIN?
3550 RETURN
3560 REM FINAL SCORE & COMMENT
3570 GO SUB 3390:PAPER 7:INK NOT PI
3580 PRINT "YOU TOOK ";ts;" SHOTS"
3590 PRINT "(NET ";ts-hs;" SHOTS)"
3600 LET zz=ts-pr-ha
3610 PRINT
3620 PRINT "THAT WAS "
3630 IF zz<0 THEN PRINT ABS zz;" UNDER";
3640 IF zz=0 THEN PRINT "LEVAL ";
3650 IF zz>0 THEN PRINT zz;"OVER ";
3660 PRINT "PAR(NET)":PRINT :RETURN
3670 REM HANDICAP CHANGE
3680 IF zz<0 THEN LET pd= INT (ABS (zz/2)+.5)*(zz<0):IF pd>ha THEN LET pd=ha
3690 IF zz >=0 THEN LET pd=0
3700 PRINT "AS A RESULT:"
3710 PRINT "YOUR HANDICAP "
3720 IF pd=0 THEN PRINT "REMAINS AT ";ha
3730 IF pd>0 THEN PRINT "IS DOWN ";pd;" SHOT(S)","(TO ";ha-pd;"SHOT(S))"
3740 PRINT :RETURN
3750 REM ANOTHER GAME??
3760 PRINT "LORRAINE, ARE READY FOR ANOTHER ROUND???"
3770 PAUSE NOT PI:LET A$= INKEY$
3780 IF A$ <>"y" AND a$ <>"n" THEN GO TO 3770
3790 IF a$="y" THEN LET playagain=1
3800 IF a$="n" THEN LET playagain=0
3810 RETURN
3820 REM string legality check
3830 LET OK=1:IF d$="" THEN LET OK=0:RETURN
3840 FOR i=1 TO LEN d$
3850 IF NOT (d$(i) >="0" AND d$(i) <="9" OR d$(i)="." OR d$(i)="-") THEN LET OK=0
3860 NEXT i:RETURN
3870 REM INSTRUCTION SUBROUTINE
3880 LET DP=0:LET H=7:GO SUB 2530:LET HBP=19:GO SUB 2900:GO SUB 2730:REM init.displ.
3890 PAPER 2:INK 7:PRINT AT 14,0,,
3900 PRINT AT 15,0;" GRAPHICAL GOLF "
3910 PRINT ,,
3920 PRINT "DO YOU NEED INSTRUCTION?",
3930 PAUSE NOT PI:LET a$= INKEY$
3940 IF a$ <>"y" AND a$ <>"n" THEN GO TO 3930
3950 IF a$="n" THEN CLS :RETURN
3960 PAPER 7:INK NOT PI:CLS :PRINT "THIS IS A FULL 18 HOLE (NO 19th)GOLF SIMULATION, AT THE START, YOU WILL BE ASKED WHETHER YOU PREFER A STANDARD OR RANDOM COURSE"
3970 PRINT "THE STANDARD IS CONSIDERED"'"YOUR 'HOME' COURSE (BASIS FOR YOUR HANDICAP"
3980 PRINT "RANDOM OPTION OFFERS YOU A"'"CHOICE OF 65535 COURSES, INPUT ANUMBER -1 TO 65535. REPLAY IS POSSIBLE, INPUT SAME NUMBER"
3990 GO SUB 4490
4000 PRINT "THE RANDOM COURSE MAY NOT HAVE PAR 72"''"YOU WILL INPUT YOUR HANDICAP.. BEGINNERS START AT 28, IF YOU PLAY WELL COMPUTER WILL LOWER YOUR HANDICAP AT END OF ROUND"
4010 GO SUB 4490:LET d$=" "
4020 PRINT "PLAY ONTO THE GREEN"''"COMPUTER WILL ALLOW A BIRDSEYE VIEW OF THE HOLE...THE VARIOUS SYMBOLS REPRESENT:"
4030 PRINT 'd$; PAPER 4; INK 6;"[UDG-A]";:PRINT " -ROUGH"
4040 PRINT 'd$; PAPER 6;" ";:PRINT " -FAIRWAY"
4050 PRINT 'd$; PAPER 4;" ";:PRINT " -GREEN"
4060 PRINT 'd$; PAPER 4; INK 7;"[UDG-B]";:PRINT " -BUNKER"
4070 PRINT 'd$; PAPER 4; INK NOT PI;"[UDG-E]";:PRINT " -A TREE "
4080 PRINT 'd$; PAPER 5; INK 7;"[UDG-D]";:PRINT " -WATER "
4090 PRINT 'd$; PAPER 7; INK NOT PI;"[UDG-C]";:PRINT " -THE Pin"
4100 PRINT 'd$; PAPER PI; INK 7;"[UDG-T]";:PRINT " -THE TEE"
4110 GO SUB 4490
4120 PRINT "PLAY CONSISTS OF SELECTING A CLUB, AN ANGLE,AN OPTIONAL SWING"''"THE FOLLOWING ARE YOUR CLUBS AND APPROXIMATE YARDAGES"
4130 PRINT '"CLUB NAME YARDAGES"
4140 PRINT "DRIVER","1 0 233"
4150 PRINT "2-WOOD","2 220"
4160 PRINT "3-WOOD","3 207"
4170 PRINT "4-WOOD","4 197"
4180 PRINT "1-IRON 11/21 181"
4190 PRINT "2-IRON 12/22 168"
4200 PRINT "3-IRON 13/23 155"
4210 PRINT "4-IRON 14/24 142"
4220 PRINT "5-IRON 15/25 129"
4230 PRINT "6-IRON 16/26 116"
4240 PRINT "7-IRON 17/27 103"
4250 PRINT "8-IRON 18/28 90"
4260 PRINT "9-IRON 19/29 77"
4270 GO SUB 4490
4280 PRINT "THERE ARE TWO CHOICES FOR IRONS,UNDER 'NAME'--OPTION 2 ALLOWS YOU TO INPUT A PERCENTAGE SWING FOR GREATER ACCURACY"
4290 PRINT "YOU ARE ASKED TO INPUT AN ANGLE OF SHOT BASED ON FOLLOWING CHART"
4300 PRINT ' TAB 12;"-90"; TAB 8;"-135 ! -45 - FOR UP"
4310 PRINT TAB 12;"\!/"; TAB 8;"180--G-- 0"
4320 PRINT TAB 12;"/!\"; TAB 9;"135 ! 45 +FOR DOWN"
4330 PRINT TAB 13;"90"
4340 PRINT '"(ANY INTERMEDIATE ANGLE IS ALLOWED ,eg -22.5.)":GO SUB 4490
4350 PRINT "PLAY ON THE GREEN"
4360 PRINT '"PUTTING CONSISTS OF TYPING A"'"PUTT STRENGTH DEPENDANT UPON"'"THE GREEN SPEED + DISTANCE FROM CUP. USE FOLLOWING APPROX."'"DISTANCES LISTED BELOW"
4370 PRINT '" SLOW GREEN...=1.5 FT/NO."
4380 PRINT " MEDIUM GREEN...=2 FT/NO."
4390 PRINT " FAST GREEN...=2.5 FT/NO."
4400 PRINT '"eg, A 10' PUTT ON A MED.GREEN WOULD REQUIRE A STRENGTH OF 5 ."
4410 PRINT "eg, 20' ON A FAST GREEN WOULD NEED 8"
4420 GO SUB 4490
4430 PRINT "MORE DETAILS BELOW"
4440 PRINT "1)SCALE ON THE BIRDS EYE VIEW IS 20 YDS TO 1 SQUARE"
4450 PRINT "2)OPTION TO SEE SCORECARD AFTER EACH HOLE, BELOW PAR IN RED,"'"OVER PAR IN BLUE"
4460 PRINT "3)LEGAL CLUB CHOICE IS MADE ON CLUB PROMPT"
4470 PRINT #0;"PRESS ANY KEY TO BEGIN"
4480 PAUSE NOT PI:CLS :RETURN
4490 PRINT #0;"PRESS ANY KEY TO CONTINUE ":PAUSE NOT PI:CLS :RETURN
4500 REM DATA FOR UD GRAF.
4510 DATA 255,0,255,0,255,0,255,0
4520 DATA 56,124,254,127,63,h,126,56
4530 DATA 8,24,56,8,h,h,h,28
4540 DATA 16,32,16,8,4,2,4,8
4550 DATA 8,28,h,62,127,h,8,h
4560 DATA 0,h,h,24,h,0,h,h
4570 DATA 0,h,60,126,h,h,h,60
4580 REM a=[UDG-A] b=[UDG-B] c=[UDG-C] d=[UDG-D] e=[UDG-E] f=[UDG-F] g=[UDG-G]
4590 REM DATA for tree placment
4600 DATA 10,4,11,8,12,12,13,8,24,4
4610 REM lengths of holes,etc
4620 DATA 361,4,389,4,206,3,500,5,408,4,359,4,424,4,388,4,196,3,408,4,560,5,132,3,357,4,294,4,475,5,375,4,180,3,550,5
4630 SAVE "Golf" LINE 10Note: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
