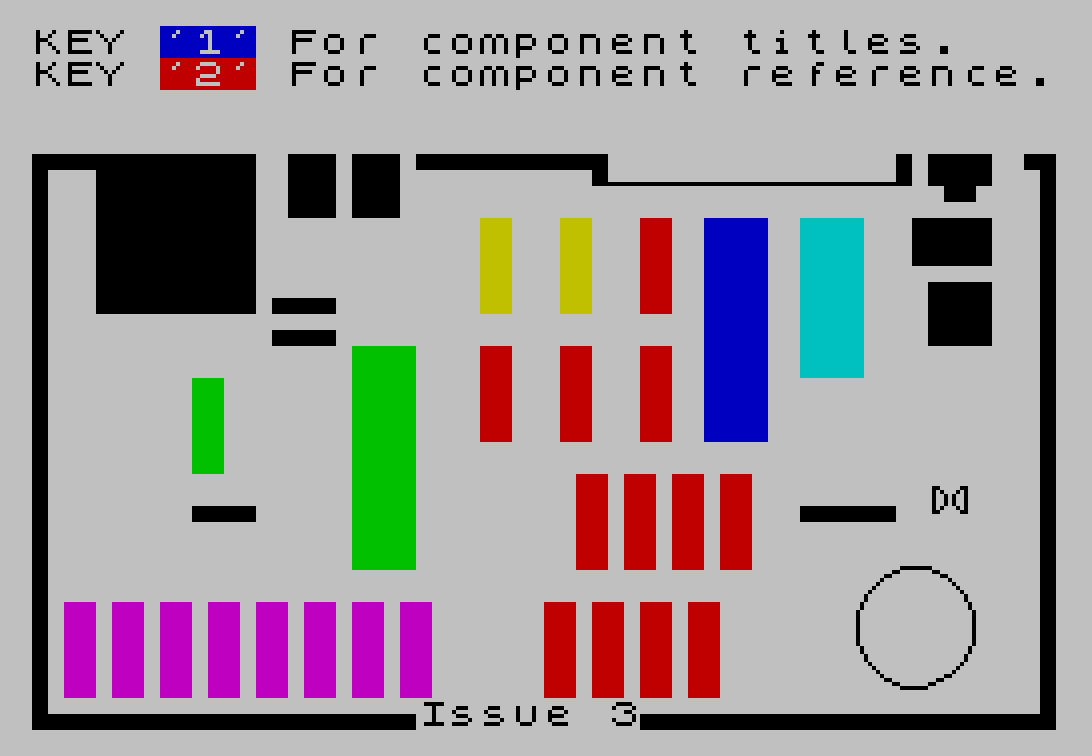

A graphic “guided tour” of the insides of a ZX Spectrum.
Content
Image Gallery
Source Code
1 BORDER 7: PAPER 7: INK 0: CLS
3 PRINT AT 6,8;" "
4 REM 16k ram
10 LET q=18
20 LET a=1
30 FOR q=18 TO 20
60 PRINT AT q,a; INK 3;"█▐▌█▐▌█▐▌█▐▌"
72 NEXT q
75 REM 32k ram
80 LET z=16: LET x=18
95 FOR x=18 TO 20
100 PRINT AT x,z; INK 2;"█▐▌█▐▌"
105 NEXT x
110 REM ula
120 LET c=10: LET v=10
125 FOR c=10 TO 16
130 PRINT AT c,v; INK 4;"██"
140 NEXT c
195 REM 32k ram
200 LET p=14: LET o=17
210 FOR p=14 TO 16
230 PRINT AT p,o; INK 2;"█▐▌█▐▌"
250 NEXT p
255 REM cpu
260 LET i=6: LET u=21
270 FOR i=6 TO 12
280 PRINT AT i,u; INK 1;"██"
290 NEXT i
295 REM rom
300 LET y=6: LET t=24
310 FOR y=6 TO 10
320 PRINT AT y,t; INK 5;"██"
330 NEXT y
335 REM logic chips
340 LET r=6: LET e=14
350 FOR r=6 TO 8
370 PRINT AT r,e; INK 6;"█ ▐▌"
390 NEXT r
395 REM logic chips
400 LET m=10: LET n=14
410 FOR m=10 TO 12
430 PRINT AT m,n; INK 2;"█ ▐▌ █ "
450 NEXT m
451 LET f=6: LET g=19
452 FOR f=6 TO 8
453 PRINT AT f,g; INK 2;"█"
454 NEXT f
455 REM video
460 LET b=11: LET v=5
470 FOR b=11 TO 13
480 PRINT AT b,v; INK 4;"█"
490 NEXT b
592 REM sockets
595 PRINT AT 4,8;"█▌█▌"
600 PRINT AT 5,8;"█▌█▌"
605 REM mod.
610 LET f=4: LET g=2
620 FOR f=4 TO 8
630 PRINT AT f,g;"█████"
640 NEXT f
645 REM keyboard sockets
650 PRINT AT 15,5;"▀▀"
660 PRINT AT 15,24;"▀▀▀"
665 REM border
670 LET h=4: LET j=0
685 PRINT AT h,j;"▀▀"
688 LET h=4: LET j=0
690 FOR h=4 TO 21
710 PRINT AT h,j;"▌"
720 NEXT h
740 PRINT AT 4,0;"▛"
750 LET h=21: LET j=0
760 FOR j=0 TO 31
770 PRINT AT h,j;"▄"
780 NEXT j
790 LET h=4: LET j=31
800 FOR h=4 TO 21
810 PRINT AT h,j;"▐"
820 NEXT h
830 PRINT AT 4,31;"▜";AT 21,0;"▙";AT 21,31;"▟"
840 PRINT AT 8,7;"▗▄▖"
850 PRINT AT 9,7;"▗▄▖"
855 REM speaker & transistors
860 CIRCLE 220,25,15
980 PLOT 225,60
990 DRAW 0,-6,-PI
1000 DRAW 0,6
1010 PLOT 233,60
1020 DRAW 0,-6,PI
1030 DRAW 0,6
1035 REM IP,REG,C&EXPANSION
1040 PRINT AT 4,28;"██";AT 5,28;"▝▘"
1050 PRINT AT 6,27;"▐██";AT 7,27;"▝▀▀"
1060 PRINT AT 8,28;"██";AT 9,28;"██"
1070 PRINT AT 4,12;"▀▀▀▀▀"
1080 PRINT AT 4,17;"▜_________▌"
1082 PRINT AT 21,12;"Issue 3"
1085 PRINT AT 0,0;"KEY";AT 0,7;" For component titles.";AT 1,0;"KEY";AT 1,7;" For component reference.";AT 0,4; PAPER 1; INK 7;"'1'";AT 1,4; PAPER 2;"'2'"
1087 BEEP 1,0
1090 IF INKEY$="1" THEN GO TO 1110
1095 IF INKEY$="2" THEN GO TO 1165
1097 GO TO 1090
1100 IF INKEY$="5" THEN GO TO 8000
1102 IF INKEY$="6" THEN GO TO 2010
1103 IF INKEY$="3" THEN GO TO 7000
1104 IF INKEY$="4" THEN GO TO 4000
1105 IF INKEY$="2" THEN GO TO 1165
1106 IF INKEY$="1" THEN GO TO 1110
1107 GO TO 1100
1110 PRINT AT 19,2; PAPER 3; INK 7;" 16K RAM "
1112 PRINT AT 11,4;" ";AT 12,4;" "
1115 PRINT AT 12,11; PAPER 4;"U";AT 13,11;"L";AT 14,11;"A";AT 12,5;"V"
1116 PRINT AT 11,5; INK 4;"█"
1120 PRINT AT 7,22; PAPER 1; INK 7;"C";AT 8,22;"P";AT 9,22;"U"
1125 PRINT AT 8,9;"X1";AT 10,7;"X2"
1130 PRINT AT 7,25; PAPER 5;"R";AT 8,25;"O";AT 9,25;"M"
1135 PRINT AT 7,13; PAPER 6;" AM-P"
1138 PRINT AT 6,3; PAPER 0; INK 7;"MOD"
1140 PRINT AT 4,8; PAPER 0; INK 7;"E";AT 5,8;"A";AT 6,8;"R";AT 4,10;"M";AT 5,10;"I";AT 6,10;"C"
1145 PRINT AT 6,28; PAPER 0; INK 7;"5v"
1150 PRINT AT 4,28; PAPER 0; INK 7;"IP";AT 8,28;"C"
1155 PRINT AT 4,18;"EXPANSION"
1156 PRINT AT 11,16; PAPER 2; INK 7;"32K";AT 15,17;"EXTRA";AT 19,17;"RAM"
1157 PRINT AT 16,5;"KB1";AT 14,24;"KB2";AT 18,27;"S";AT 13,26;" Tr "
1160 PRINT AT 1,0;"KEY";AT 1,8;"For an explanation of the component titles. ";AT 3,0;"KEY";AT 3,8;"For exp.port details.";AT 1,4; PAPER 4;"'4'";AT 3,4; PAPER 5;"'5'"
1162 PRINT AT 0,0; PAPER 7;"KEY";AT 0,7;" For component reference.";AT 0,4; PAPER 2; INK 7;"'2'"
1163 GO TO 1190
1165 PRINT AT 6,3; PAPER 0; INK 7;"MOD";AT 4,8;"E";AT 5,8;"A";AT 6,8;"R";AT 4,10;"M";AT 5,10;"I";AT 6,10;"C";AT 6,28;"5v";AT 4,28;"IP";AT 8,28;"C"
1167 PRINT AT 4,18;"EXPANSION";AT 16,5;"KB1";AT 14,24;"KB2";AT 18,27;"S";AT 13,26;"Tr4,5";AT 8,9;"X1";AT 10,7;"X2"
1169 PRINT AT 19,2; PAPER 3; INK 7;"IC6 TO 13 "
1171 PRINT AT 12,11; PAPER 4;"I";AT 13,11;"C";AT 14,11;"1";AT 11,4;"IC";AT 12,4;"14"
1173 PRINT AT 7,22; PAPER 1; INK 7;"I";AT 8,22;"C";AT 9,22;"2"
1175 PRINT AT 7,25; PAPER 5;"I";AT 8,25;"C";AT 9,25;"5"
1177 PRINT AT 7,13; PAPER 6;"IC3,4"
1179 PRINT AT 11,15; PAPER 2; INK 7;" IC ";AT 15,17;"15 TO";AT 19,17;" 26 "
1181 PRINT AT 2,0;"KEY ";AT 2,7;" For Spectrum+ layout.";AT 0,0;"KEY ";AT 0,7;" For component titles. ";AT 1,0;"KEY ";AT 1,7;" For block diagram. ";AT 3,0;"KEY ";AT 3,7;" For exp.port details.";AT 0,4; PAPER 1; INK 7;"'1'";AT 1,4; PAPER 3; INK 7;"'3'";AT 2,4; PAPER 6; INK 0;"'6'";AT 3,4; PAPER 5;"'5'"
1190 BEEP 1,0
2005 GO TO 1104
2010 LET a=6: LET s=16
2015 FOR a=6 TO 12
2025 PRINT AT a,s; INK 6;" ██ "
2030 NEXT a
2035 PRINT AT 6,14;" ";AT 7,14;" ";AT 8,14;" "
2040 PRINT AT 10,14; PAPER 6;"I";AT 11,14;"C";AT 12,14;"2";AT 13,14;"8";AT 11,15; PAPER 7;" "
2050 PRINT PAPER 6;AT 7,18;"I";AT 8,18;"C";AT 9,18;"2";AT 10,18;"7"
2053 PRINT AT 7,13;" "
2055 PRINT AT 15,17; PAPER 2; INK 7;"IC15-"
2060 PRINT AT 0,0; PAPER 6;"IC27(ZX8401) AND IC28(74LS04) REPLACE IC3,4,23,24,25 AND 26. "
2062 PRINT AT 21,11;"Spectrum+"
2065 PRINT AT 19,17; PAPER 2; INK 7;" 22 "
2070 PRINT AT 2,0;"KEY ";AT 2,7;" To return. ";AT 2,4; PAPER 6;"'6'"
2072 BEEP 1,0
2075 IF INKEY$="6" THEN GO TO 1
2078 IF INKEY$="5" THEN GO TO 8000
2080 GO TO 2075
3002 BEEP 1,0
3005 IF INKEY$<>"" THEN GO TO 1
3010 GO TO 3005
4000 BORDER 1: PAPER 1: INK 7: CLS : PRINT "CPU=CENTAL PROCESSOR UNIT, IC2, Z80. THIS IS THE AREA OF THE COMPUTER WHICH PERFORMS ALL THE OPERATIONS NEEDED TO CARRY OUT A PARTICULAR TASK.IT IS MADE UP OF THREE PARTS. A SET OF REGISTERS, AN ARITHMETIC AND LOGIC UNIT,(ALU), AND A CONTROL UNIT."
4002 PRINT "IT IS CLOCKED FROM AN EXTERNAL SOURCE CONTROLLED BY THE ULA CHIP, IC1."
4005 PRINT "THERE ARE THREE MAIN BUS LINES ACCESSING THE CPU. THESE ARE, THE ADDRESS BUS,THE DATA BUS AND THE CONTROL BUS."
4007 PRINT
4008 PRINT "ADDRESS BUS.=CONSISTS OF 16 BITS OF INFORMATION AND PROVIDES THE ADDRESSES FOR DATA EXCHANGES."
4009 GO SUB 4012
4010 GO TO 4017
4012 PRINT AT 21,10; PAPER 0; INK 7;"PRESS ANY KEY"
4013 IF INKEY$<>"" THEN RETURN
4014 GO TO 4013
4017 CLS : PRINT "DATA BUS.=CONSISTS OF 8 BITS OF INFORMATION AND CARRIES DATA BETWEEN THE MEMORY, THE CPU, THE ULA,(IC1), AND ANY EXTERNAL EQUIPMENT."
4020 PRINT "CONTROL BUS.= THE CONTROL BUS IS A COLLECTION OF INDIVIDUAL SIGNALS,WHICH ORGANISE THE FLOW OF DATA ON THE ADDRESS AND DATA BUSES."
4023 PRINT "CLOCK SIGNAL.= IS THE TIMING SOURCE USED TO SYNCHRONISE OPERATIONS WITHIN THE COMPUTER."
4025 GO SUB 4012
4030 BORDER 4: PAPER 4: CLS
4035 PRINT PAPER 0; INK 7;"ULA.=UNCOMMITTED LOGIC ARRAY, IC1, 6C001."
4040 PRINT INK 0;" THE INPUT/OUTPUT SECTION IS CENTRED AROUND THIS CHIP. IT ALSO PERFORMS KEYBOARD SCANNING,TAPE INPUT/OUTPUT AND TV VIDEO COMPILATION.IT ALSO DERIVES AND CONTROLS THE CPU CLOCK USING AN EXTERNAL 14 MHz CRYSTAL X1,AND DRIVES THE LOUDSPEAKER WHEN A 'BEEP' INSTUCTION IS EXECUTED."
4045 PRINT INK 0;" THE VIDEO SECTION OF THE ULA OPERATES IN CONJUNCTION WITH THE MEMORY MAPPED PICTURE DISPLAY AREA IN THE STANDARD 16K RAM,THE COLOUR MODULATOR V,IC14 AND THE UHF MODULATOR MOD. THIS COMBINATION PRODUCES A HIGH RESOLUTION,24 LINE*32 CHARACTER,EIGHT COLOUR TV DISPLAY."
4050 GO SUB 4012
4055 BORDER 5: PAPER 5: CLS
4060 PRINT PAPER 0; INK 7;"ROM.=READ ONLY MEMORY,IC5,EITHER HITACHI OR NEC."
4065 PRINT INK 0;" THIS IS THE TYPE OF MEMORY WHICH IS PROGRAMMED DURING MANUFACTURE.IT CAN ONLY BE USED TO READ THE STORED DATA. ROM'S ARE USED TO STORE DATA OR PROGRAMS WHICH HAVE TO BE HELD IN TACT WHEN THE COMPUTER IS SWITCHED OFF. THE ROM PROVIDES INITIALISATION ON SWITCH ON AND THE PARTICULAR BASIC LANGUAGE USED.etc."
4070 GO SUB 4012
4075 BORDER 3: PAPER 3: CLS
4080 PRINT PAPER 0;"RAM.=RANDOM ACCESS MEMORY. 16K SECTION=IC6-13, 4116. 32K SECTION=IC15-26.TI4532(IC15-22).74LS32N(IC23).74LS00(IC24).74LS157(IC25,26)."
4085 PRINT INK 7;"IC6 TO 13 AND IC15 TO 22 ARE THE ACTUAL RAM CHIPS. IC23,24 ARE THE LOGIC CHIPS, AND IC25, 26 ARE THE ADDRESS MULTIPLEXER CHIPS.THESE CHIPS PROVIDE THE SELECTION AND ADDRESS FOR THE ROW AND COLUMN MEMORY LOCATIONS."
4087 PRINT
4090 PRINT INK 7;" THIS TYPE OF MEMORY IS USED TOTEMPORARILY STORE DATA.DATA CAN BE WRITTEN TO IT AND ALSO READ FROM IT. PROGRAMS, VARIABLES, POINTERS etc. ARE STORED HERE READY FOR EXECUTION."
4095 GO SUB 4012
4100 BORDER 6: PAPER 6: CLS
4105 PRINT PAPER 0;"AM-P.=ADDRESS MULTIPLEXER CHIPS,IC3,4,74LS157N."
4107 PRINT
4110 PRINT INK 0;" THESE CHIPS ARE USED TO PROVIDE INFORMATION FOR ROW AND COLUMN MEMORY LOCATIONS, WHICH ARE RECEIVED FROM THE ADDRESS BUS."
4112 PRINT
4116 PRINT INK 0;"IC25-26 WHICH ARE LOCATED IN THE 32K SECTION, ARE ALSO ADDRESS MULTIPLEXER CHIPS."
4120 GO SUB 4012
4122 BORDER 7: PAPER 7: INK 0: CLS
4125 PRINT "IP.=POWER INPUT SOCKET."
4130 PRINT " THE EXTERNAL POWER SUPPLY PROVIDES AN UNREGULATED 9 VOLTS TO THIS SOCKET. INSIDE THE COMPUTER A 5 VOLT,-5 VOLT AND 12VOLT SUPPLY RAILS ARE DERIVED FROM THE 9 VOLTS INPUT."
4140 PRINT "5V.= 5 VOLT REGULATOR IC.7805."
4145 PRINT " THIS IC. PROVIDES A REGULATED 5 VOLT POWER SUPPLY."
4150 PRINT "C.= COIL": PRINT "Tr.= TRANSISTORS Tr4-Tr5.ZTX650.ZTX213."
4155 PRINT "THE PURPOSE OF THE COIL AND THE TRANSISTORS Tr4, Tr5, ARE TO PROVIDE THE 12 VOLT AND -5 VOLT SUPPLIES."
4160 PRINT "EXPANSION."
4165 PRINT "THE EXPANSION PORT PROVIDES USE OF EXTERNAL EQUIPMENT eg.PRINTERJOYSTICK etc."
4170 GO SUB 4012
4172 BORDER 7: PAPER 7: INK 0: CLS
4175 PRINT "X1.= 14MHZ CRYSTAL."
4180 PRINT "THIS CRYSTAL CONTROLS THE CLOCK SIGNAL WHICH IS DERIVED FROM THE ULA IC1, AND FED TO THE CPU IC5."
4185 PRINT " THE CLOCK SIGNAL IS THE TIMING SOURCE USED TO SYNCHRONISE OPERATIONS WITHIN THE COMPUTER."
4190 PRINT "X2.= 4.43MHZ CRYSTAL."
4195 PRINT "THIS CRYSTAL HELPS TO ENCODE THE COLOUR(CHROMA) SIGNALS."
4200 PRINT "KB1.KB2.= KEYBOARD SOCKETS."
4203 PRINT
4205 PRINT "S.= LOUDSPEAKER."
4210 PRINT
4215 PRINT "USEFUL CIRCUIT CHECKS."
4218 PRINT "CHECK FOR 5 VOLTS AT PIN 9,IC6."
4220 PRINT "CHECK FOR -5 VOLTS AT PIN 1,IC6."
4225 PRINT "CHECK FOR 12 VOLTS AT PIN 8,IC6."
4230 PRINT "CHECK FOR A CLOCK PULSE WAVEFORMAT PIN 32,IC1 AND PIN 6,IC2."
