This program implements a fruit-machine (slot machine) simulation with three reels, joker symbols, a hold feature, a gamble sub-game, and a double-up bonus. Reel symbols are encoded as single characters in the string W$="AKQJ7*$0/=+#%", with winning combinations and payouts stored in a two-dimensional array R(3,13). The main loop uses computed GO TO expressions (e.g., GO TO (4030 AND CA=0)+(4100 AND CA=1)+(4200 AND CA=2)+(4700 AND CA=3)) as a dispatch mechanism, a common Sinclair BASIC technique for multi-way branching. Reel animation is produced by printing symbols column by column with a short delay subroutine at line 2880. A UDG character (\a) shaped like a diamond or star is defined via POKE USR with the data 8,8,20,32,32,20,8,8 and used in the screen layout.
Program Structure
The code is organised into functional blocks identified by REM labels, each occupying a distinct line-number range:
| Line range | Purpose |
|---|---|
| 600 | Entry point — jumps to main program at 4000 |
| 1000–1030 | Flashing prompt + INKEY$ input subroutine |
| 1100–1130 | Insert / eject money (update MO counter) |
| 1200–1220 | Remove double-up state, redraw joker positions |
| 1300–1310 | Clear status line 21 |
| 1400–1430 | Jackpot animation |
| 1500–1580 | Flash possible hold positions and collect hold input |
| 2000–2160 | Spin reels (animation + final reel-stop logic) |
| 2300–2410 | Reset per-spin variables |
| 2500–2560 | “Not enough money” handler |
| 2600–2720 | Can-hold / cannot-hold prompt dispatchers |
| 2800–2880 | Winnings prompt + generic “???” flash + delay loop |
| 3100–3160 | Joker resolution (wild-card handling) |
| 3200–3360 | Compute winnings into WI |
| 3400–3500 | Gamble sub-game (spinning multiplier wheel) |
| 4000–4600 | Main game loop |
| 5600–5900 | End-of-game statistics display |
| 6000–6500 | Initialisation, data, screen draw, and SAVE |
Initialisation and Data
Line 6000 reads the four named constants N0=0, N1=1, N2=2, N3=3 from DATA along with the symbol string W$. Using short numeric variables as aliases for small constants reduces token overhead throughout the listing. All major arrays (R, H, P, C, D, K, V, O, F, G, E) are dimensioned in the 6000-block, and their initial values are loaded from DATA statements nearby.
The payout table is a DIM R(3,13) matrix; only rows 2 and 3 are populated (two-of-a-kind and three-of-a-kind payouts respectively for symbol indices 5–12). DIM J(13) flags which symbols award a jackpot on three-of-a-kind; indices 5, 6, and 7 are set to 1 (symbols A, K, Q).
Computed GO TO Dispatch
The program makes heavy use of the idiom:
GO TO (addr1 AND cond1)+(addr2 AND cond2)+...
Because exactly one condition is true and the others evaluate to 0, the sum equals the desired destination address. This replaces IF…THEN GO TO chains and is a classic Sinclair BASIC space-saving technique. Examples appear at lines 3210, 4030, 4050, 4260, and 4330.
Reel Simulation (lines 2000–2160)
The spin animation runs in two phases: a downward scroll (lines 2050–2060) followed by an upward scroll (2070–2080), each calling the short delay subroutine at 2880 (an empty FOR/NEXT loop to 15). The final symbol selection uses a probability-shaped mapping at line 2030:
LET V(I)=5+(FI>7)+(FI>10)+(FI>13)+(FI>36)+(FI>49)+(FI>68)+(FI>87)
where FI is a random integer 1–100. Boolean expressions add 0 or 1 to build an index from 5 to 12, biasing higher-value symbols to appear less frequently. Values 1–4 are reserved for joker symbols (lines 3100–3150).
The inner loop at 2100–2160 iterates I from 0 to 70, cycling each non-held reel’s display symbol (O(J)) and stopping it once I > 10+13*J and O(J)=V(J) — so reel 1 stops earliest and reel 3 last, with an audible beep per stop.
Joker and Wild-Card Logic (lines 3100–3160)
Symbols with V(I) ≤ 4 are jokers. The subroutine counts the number of jokers (JO) and their position (JW). The winnings computation at 3210 then dispatches on JO:
JO=0orJO=2: use the face-value of the non-joker symbol (FV)JO=1: the single joker takes the value of whichever neighbour gives the higher-paying combinationJO=3: branch to3270directly (all jokers — treated as the worst non-wild)
When all four joker slots have been consumed (NJ=0), the “DOUBLE!” bonus activates with DC=15 spins of doubling.
Gamble Sub-Game (lines 3400–3500)
The gamble routine cycles through four outcomes stored in G(1..4): double, zero, 1.5×, and half. These are displayed in screen positions defined by array E(4,2). The player presses S/s to stop; the program then continues to spin for a random additional count DT = INT(1+RND*250) before landing, preventing the player from timing the stop precisely. Net gambling profit/loss is accumulated in GW.
Statistics Display (lines 5600–5900)
On game end, the program prints money amounts formatted as dollars with two decimal places. The formatting subroutine at 5800 uses LEN STR$ X - LEN STR$ INT X to detect whether X already has a decimal part (L=2 means one decimal digit present, L=0 means integer). It appends "0" or ".00" accordingly. The number-right-justification subroutine at 5900 pads with spaces based on digit count.
UDG Definition
A single UDG \a (character 144) is defined at lines 6245–6260 with data 8,8,20,32,32,20,8,8, producing a diamond/arrow shape used in the score display at line 6310 ("25\a").
Content
Image Gallery
Source Code
600 GO TO 4000
1000 REM FLASH AND INKEY$
1010 PRINT AT R,C; OVER N1; FLASH N1;S$
1020 LET I$=INKEY$: IF I$="" THEN GO TO 1020
1030 PRINT AT R,C; PAPER CL;T$: RETURN
1110 IF NOT IN THEN RETURN
1115 FOR I=SGN IN TO IN STEP SGN IN
1120 PRINT AT N0,7;MO+I;" ": BEEP .1,40: NEXT I
1130 LET MO=MO+IN: RETURN
1200 REM remove doubles
1210 LET DO=N0: PRINT AT 6,11; PAPER N2;" "
1220 DIM C(4): FOR I=N1 TO 4: PRINT AT 7,D(I);W$(I): NEXT I: RETURN
1300 REM CLEAR LINE
1310 PRINT AT 21,N0;TAB 31;: RETURN
1400 REM jackpot
1410 FOR T=N1 TO 4: FOR C=N1 TO JC: PRINT AT N0,11+C;" ": NEXT C
1420 FOR C=N1 TO JC: BEEP .1,10+N2*C: PRINT AT N0,11+C;"J": NEXT C
1430 NEXT T: RETURN
1500 REM FLASH POSS HOLDS AND GET INKEY$
1510 FOR I=N1 TO PI: IF NOT H(I) THEN PRINT AT 11,P(I); FLASH N1; PAPER N2; INK 7; OVER N1;"H"
1520 NEXT I: LET HO=N0
1530 LET I$=INKEY$: IF I$="" THEN GO TO 1530
1540 IF I$<>"1" AND I$<>"2" AND I$<>"3" THEN GO TO 1570
1550 LET I=VAL I$: PRINT AT 11,P(I); PAPER N2; INK 7;"H"
1560 LET HO=N1: LET H(I)=N1: GO TO 1530
1570 FOR I=N1 TO PI: IF NOT H(I) THEN PRINT AT 11,P(I); PAPER N2;" "
1580 NEXT I: LET NH=NH+HO: RETURN
2000 REM play
2010 FOR I=N1 TO PI: IF H(I) THEN GO TO 2040
2020 LET O(I)=V(I): LET FI=INT (RND*100)+N1: LET V(I)=FI: IF FI<5 THEN GO TO 2040
2030 LET V(I)=5+(FI>7)+(FI>10)+(FI>13)+(FI>36)+(FI>49)+(FI>68)+(FI>87)
2040 NEXT I
2050 FOR C=6 TO 9: PRINT AT C,20;" ";AT C+N1,20; PAPER N2;" "
2060 GO SUB 2880: NEXT C
2070 FOR C=10 TO 7 STEP -N1: PRINT AT C,20; PAPER N3;" ";AT C-N1,20; PAPER N2;" "
2080 GO SUB 2880: NEXT C
2090 DIM F(N3)
2100 FOR I=N0 TO 70: FOR J=N1 TO PI
2110 IF H(J)=N1 THEN GO TO 2160
2120 IF F(J)=N1 THEN GO TO 2150
2130 LET O(J)=O(J)+N1: IF O(J)>13 THEN LET O(J)=N1
2140 IF I>10+13*J AND O(J)=V(J) THEN LET F(J)=N1: BEEP .02,8*J
2150 PRINT AT 9,P(J); PAPER 6;W$(O(J))
2160 NEXT J: NEXT I: RETURN
2300 REM reset variables
2310 LET NT=NT+N1: IF WI>N0 THEN LET HB=N1: LET WI=N0
2320 DIM H(N3): FOR I=N1 TO PI: PRINT AT 11,P(I); PAPER N2;" ": NEXT I
2330 IF DO THEN GO TO 2380
2340 FOR I=N1 TO I: IF NOT C(I) THEN GO TO 2370
2350 LET C(I)=C(I)-N1: IF C(I)>N0 THEN GO TO 2370
2360 LET NJ=NJ+N1: PRINT AT 7,D(I);W$(I)
2370 NEXT I: GO TO 2390
2380 LET DC=DC-N1: IF NOT DC THEN GO SUB 1200
2390 IF JA THEN PRINT AT N0,11+JC;" ": LET JC=JC-N1: IF NOT JC THEN LET JA=N0
2400 IF MO>MM THEN LET MM=MO
2410 RETURN
2500 REM NOT enough $
2510 LET HB=N1 : GO SUB 1200
2520 LET JA=N0: PRINT AT N0,10;TAB 31;
2530 GO SUB 1300: PRINT AT 21,8; PAPER 5;"INSERT OR END"
2540 LET S$="INSERT (I)": LET T$=B$: LET CL=7: LET R=N2: LET C=N0: GO SUB 1000
2550 IF I$="P" OR I$="p" THEN GO TO 2540
2560 RETURN
2600 REM can hold
2610 GO SUB 1300: PRINT AT 21,PI; PAPER 5;"INSERT, HOLD, PLAY OR END"
2620 GO SUB 1500: RETURN
2700 REM CANNOT HOLD
2710 GO SUB 1300: PRINT AT 21,5; PAPER 5;"INSERT, PLAY OR END"
2720 GO SUB 2870: RETURN
2800 REM handle winnings
2820 GO SUB 1300: IF NOT HB THEN PRINT AT 21,4; PAPER 5;"HOLD, "
2840 PRINT AT 21,7; PAPER 5;"GAMBLE OR COLLECT"
2850 GO SUB 2870: RETURN
2870 LET S$="???": LET T$=" ": LET CL=N1: LET R=18: LET C=13: GO SUB 1000: RETURN
2880 FOR I=N1 TO 15: NEXT I: RETURN
3100 REM handle jokers
3110 LET JO=N0: FOR I=N1 TO PI: LET V=V(I)
3120 IF V>4 THEN LET FV=V: GO TO 3150
3130 LET JW=I: LET JO=JO+N1: IF C(V)>N0 THEN GO TO 3150
3140 PRINT AT 7,D(V); PAPER N3;" ": LET C(V)=20: LET NJ=NJ-N1
3150 NEXT I: LET DO=(NJ=N0): IF DO THEN LET DC=15: PRINT AT 6,11;"DOUBLE!";
3160 REM RETURN
3200 REM compute winnings
3210 LET HV=5: GO TO (3220 AND JO=N0)+(3250 AND JO=N1)+(3220 AND JO=N2)+(3270 AND JO=N3)
3220 LET HV=FV
3230 GO TO 3270
3250 LET V(4)=15: LET JR=JW+N1: LET JL=JW-N1: IF NOT JL THEN LET JL=4
3260 LET HV=V(JR): IF V(JR)>V(JL) THEN LET HV=V(JL)
3270 FOR I=N1 TO N3: LET K(I)=V(I): IF V(I)<5 THEN LET K(I)=HV
3280 NEXT I: IF K(N1)<>K(N2) OR K(N2)<>K(N3) THEN GO TO 3300
3290 IF J(K(N1)) THEN LET JA=N1: LET JC=15: GO SUB 1400
3300 LET W1=N0: LET W2=N0
3310 FOR I=N1 TO N3: IF K(I)=13 THEN LET W1=W1+N1
3320 NEXT I: LET NS=N1+(K(N1)=K(N2))+(K(N2)=K(N3)): LET W2=R(NS,K(N2))
3330 LET W1=W2: IF W1>WI THEN LET WI=W1
3340 IF JA AND WI>N0 AND WI<10 THEN LET WI=10
3350 IF DO THEN LET WI=WI*N2
3360 RETURN
3400 REM bet here
3410 LET DT=N1: LET G(N1)=WI*N2: LET G(N2)=N0: LET G(N3)=INT (N3*WI/N2): LET G(4)=INT (WI/N2)
3420 LET NG=NG+N1: GO SUB 1300: PRINT AT 21,12; PAPER 5;"STOP"
3430 FOR I=N1 TO PI: PRINT AT I,8; PAPER 6;" ": NEXT I
3440 LET R=R+N1: IF R>4 THEN LET R=N1
3450 PRINT AT E(R,N1),E(R,N2); PAPER 6;G(R): BEEP .003,10+3*R
3460 IF I$<>"S" AND I$<>"s" THEN LET I$=INKEY$: GO TO 3480
3470 LET DT=(N1+RND*250)
3475 FOR I=N1 TO DT: NEXT I: IF DT>200 THEN GO TO 3490
3480 PRINT AT E(R,N1),E(R,N2); PAPER 6;" ": GO TO 3440
3490 FOR I=N1 TO PI: PRINT AT I,8;TAB 31;: NEXT I
3500 LET GW=GW+G(R)-WI: LET WI=G(R): RETURN
4000 REM MAIN PROGRAM
4010 GO SUB 6000: REM SET UP
4020 GO SUB 2300: REM ADAPT
4030 LET CA=N2*HB+(MO>N1)+N1: GO SUB (2500 AND CA=N1)+(2600 AND CA=N2)+(2500 AND CA=N3)+(2700 AND CA=4)
4040 PRINT AT PI,8;TAB 31;: LET CA=(I$="I" OR I$="i")+N2*(I$="P" OR I$="p")+N3*(I$="E" OR I$="e")
4050 GO TO (4030 AND CA=N0)+(4100 AND CA=N1)+(4200 AND CA=N2)+(4700 AND CA=N3)
4100 LET NI=NI+N1: LET IN=4: GO SUB 1100: IF MO>MM THEN LET MM=MO
4110 GO TO 4030
4200 LET IN=-N2: GO SUB 1100
4210 GO SUB 2000: REM play
4230 GO SUB 3100: REM joker
4240 REM GO SUB 3200: REM winnings
4250 IF H(N1)+H(N2)+H(N3)>N0 THEN GO TO 4270
4260 LET HB=N0: LET LW=WI: GO TO (4290 AND WI>N0)+(4020 AND WI<=N0)
4270 LET HB=N1: IF WI>LW THEN GO TO 4290
4275 IF NOT LW THEN GO TO 4020
4290 PRINT AT N3,10; PAPER 6;"YOU WON ";WI: FOR I=N1 TO WI: BEEP .1,20: NEXT I
4300 IF MO<N2 THEN LET HB=N1
4310 GO SUB 2800: REM get instructions
4320 LET CA=((I$="H" OR I$="h") AND NOT HB)+N2*(i$="G" OR I$="g")+N3*(i$="C" OR i$="c")
4330 GO TO (4310 AND CA=N0)+(4600 AND CA=N1)+(4500 AND CA=N2)+(4400 AND CA=N3)
4400 LET IN=WI: GO SUB 1100: GO TO 4020
4500 LET HB=N1: GO SUB 3400: REM gamble
4510 IF WI>N0 THEN GO TO 4290
4520 GO TO 4280
4600 LET WI=N0: GO TO 4020
5600 REM STOP GAME
5610 CLS : PRINT '"AMOUNT OF MONEY"''
5620 PRINT " PUT IN :";: LET X=NI: GO SUB 5800
5630 PRINT " GOT BACK:";: LET X=MO/4: GO SUB 5800
5640 PRINT " MAX AT ONE TIME:";: LET X=MM/4: GO SUB 5800
5650 IF GW>=n0 THEN PRINT " WON BY GAMBLING:";: LET X=GW/4: GO SUB 5800
5660 IF GW<n0 THEN PRINT " LOST BY GAMBLING:";: LET X=-GW/4: GO SUB 5800
5670 PRINT ''"NUMBER OF HOLDS:";: LET X=NH: GO SUB 5900
5680 PRINT "NUMBER OF GAMBLES:";: LET X=NG: GO SUB 5900
5700 STOP
5800 LET L=LEN STR$ X-LEN STR$ INT X
5805 PRINT TAB 18;"$";
5810 LET X$=STR$ X+("0" AND L=N2)+(".00" AND L=N0)
5820 FOR I=LEN X$ TO 5: PRINT " ";: NEXT I: PRINT X$: RETURN
5900 PRINT TAB 19;: FOR I=LEN STR$ X TO N2: PRINT " ";: NEXT I: PRINT X: RETURN
6000 READ N0,N1,N2,N3,W$
6100 DIM R(N3,13): DIM J(13): LET J(5)=N1: LET J(6)=N1: LET J(7)=N1
6110 DATA 0,1,2,3,"AKQJ7*$0/=+#%"
6120 FOR I=5 TO 12: READ R(N2,I),R(N3,I): NEXT I
6130 DATA 8,40,8,40,7,30,5,25,N3,20,N3,20,N2,10,N2,10
6140 DIM H(N3): DIM P(N3): DIM C(4): DIM D(4)
6150 DIM K(N3): DIM V(4): DIM O(N3): DIM A(N3)
6160 DIM F(N3): DIM G(4): DIM E(4,N2)
6170 FOR I=N1 TO PI: READ P(I): LET V(I)=INT (RND*14): NEXT I
6180 FOR i=N1 TO 4: READ d(i),e(i,N1),e(i,N2): NEXT i
6190 DATA 12,14,16,12,N1,14,13,N2,20,15,N3,14,16,N2,9
6200 LET b$=" "
6209 READ NT,NJ,NI,WI,HB,DO,DC,JA,JC,MO,MM,R,GW,NH,NG
6211 DATA -N1,4,N0,N0,N0,N0,N0,N0,N0,N0,N0,N0,N0,N0,N0
6245 FOR I=N0 TO 7: READ A
6250 POKE USR "\a"+I,A: NEXT I
6260 DATA 8,8,20,32,32,20,8,8

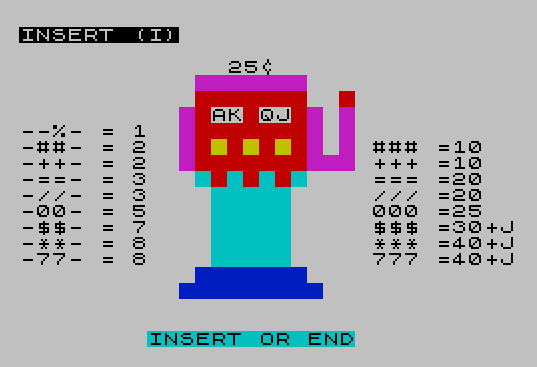

6300 REM DRAW SCREEN$
6310 CLS : PRINT AT 4,13;"25\a";TAB 11; PAPER N3;" "
6315 PRINT TAB 20; PAPER N2;" "
6320 FOR I=N1 TO 4: PRINT TAB 10; PAPER N3;" "; PAPER N2;" "; PAPER N3;" ";
6325 PRINT TAB 20; PAPER N3;" ": NEXT I
6330 PRINT AT 10,19; PAPER N3;" "
6335 PRINT TAB 11; PAPER 5;" "
6340 FOR I=N0 TO N2: PRINT AT 9,12+N2*I; PAPER 6;" "
6360 PRINT AT 11,12+N2*I; PAPER N2;" ": NEXT I
6370 FOR I=N0 TO 4: PRINT TAB 12; PAPER 5;" ": NEXT I
6371 PRINT TAB 11; PAPER N1;" ": PRINT TAB 10; PAPER N1;" "
6400 PRINT AT 8,N0;"--%- = 1";
6410 FOR I=12 TO 5 STEP -N1
6420 LET I$=W$(I)
6430 PRINT AT 21-I,N0;"-";I$;I$;"- = ";R(N2,I);AT 21-I,22;I$;I$;I$;" =";R(N3,I);
6440 IF J(I) THEN PRINT "+J"
6450 NEXT I: RETURN
6500 SAVE "SLOT" LINE PINote: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
