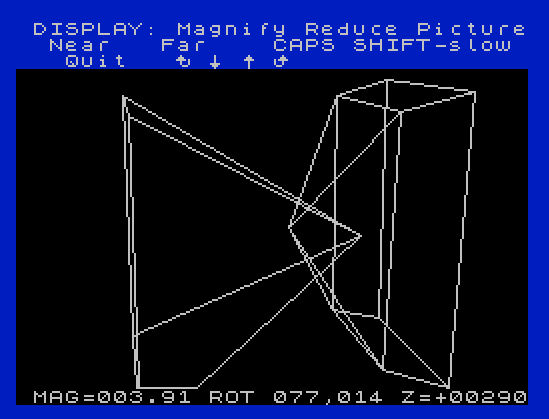

VU-3D is a design and modelling program: you build an object on the screen and then modify, expand, reduce, shade, colour, zoom in and out, or rotate it to view it from other perspectives. Figures are drawn in Create and Open modes by moving a cursor in X, Y and Z (Caps Shift slows the cursor) and adding start points, lines and deletions. Display mode magnifies, reduces and moves the viewpoint nearer or farther, and Picture mode adds shading with a choice of light source (above, centre or below; left, centre or right), hidden-line removal, colour and printing. The main menu also modifies, abandons, loads and saves figures and sets the border, banner and screen colours.
Timex Computer Corporation published VU-3D for the TS2068 in 1983. The tape carries the program twice: the second copy, example, loads with a figure already in memory.
Program Analysis
Structure

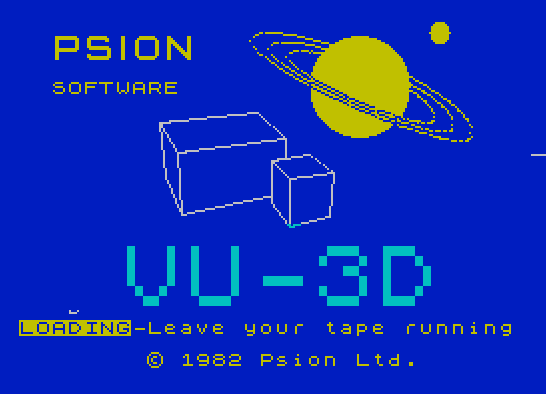

vu3d: one-line loader,LOAD "VU-3D".VU-3D: BASIC (lines 1–14), auto-running at line 9. It setsCLEAR 30719, loads the screen and code, and calls the machine code.s: loading screen, 6,912 bytes at 16384.vu-3d: 34,815 bytes of machine code and figure data at 30720.example,VU-3D,s,vu-3d: the second copy. Its code block differs from the first in 3,147 bytes, and its line 9 skips the first machine code call, so the stored figure is kept.
Notable Techniques
- The machine code uses BASIC for its tape and printer work. Line 10 is
GO SUB VAL "10+USR 30725": the code returns a number that selects one of the service lines 11–14 (save a screen, save the data, load the data, copy the screen to the printer), andGO TO PI*PIloops back to line 10. - The BASIC uses
SGN PI,PIandVAL "…"in place of numbers to save memory.
Potential Issues
- Saving a figure saves the whole 34,815-byte block from 30720, program included, so every data file is the size of the program.
Cartridge conversion
A cartridge (DCK) version of VU-3D, finished on August 7, 2026 after discussion on the TS2068 group and including the wineglass example and a fix to the Shade keys, is published by Jon Becker with a 32 KB EPROM image and a browser player: VU-3D cartridge conversion. Josef Jelinek’s WU-3D is a modern recreation of the program for the browser.
Note: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
