The WIDJUP Mandelbrot Plotter turns an Epson-class dot-matrix printer into a plotter for the Mandelbrot set. You choose 64 × 44-cell frames (GO TO 3000) or 144 × 144-cell frames (GO TO 5000), then enter the left edge, the bottom and top limits of the region and the number of frames per strip, while the program marks the area on a small map of the set. It then computes each frame cell by cell, shows it on screen in shades built from user-defined characters, and prints it through its own printer module, so the strips can be pasted together into a large poster.
It comes from a Larken disk of William J. Pedersen’s WIDJUP Company software. The August MHTSUG meeting report describes Pedersen’s WIDJUP package, which “will turn your printer into a high resolution plotter”, with sample Mandelbrot printouts. This is a different program from Pedersen’s 1985 character-cell Mandelbrot Set.
Program Analysis
Setup and loading

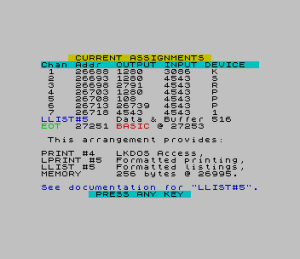

SETUP.Bw runs first. It lists the current channel assignments, then builds new ones: a LLIST #5 / LPRINT #5 channel for formatted printing, assembled from DATA lines with mnemonic variables (JR, CALL, RET and so on, set to opcode values), and a 512-byte buffer that moves the start of BASIC to 27253. That leaves a 256-byte area at 26995 for the printer module. Mandel.Bw then loads the 137-byte Mandelbrot routine at 64512 and the 242-byte printer module from the string array PmodE.A$.
Tables and the module
At line 6007 the program builds a table of 17 grey-level patterns as UDG-style bytes at 60672, and a 120-entry string K$ mapping iteration counts to those characters through the thresholds in G(). Line 7770 copies the module from U$ to 26995, initialises the printer interface and patches the printer channel to point at it.
Plotting
For each cell the program sets the starting point in A and B, pokes the low byte of the UDG pointer (23675) to select the pattern set for that half-cell and calls USR 64512, which returns the iteration count. Two cells share each character position, so the screen frame is built in half-character steps; when a frame is complete, GO SUB 451 to 453 pass the dump parameters in DATA lines to the module.
Notable Techniques
- Machine code for the print channel is written as DATA with named opcodes, read through BASIC variables, so the listing stays readable.
- Moving PROG by creating a channel with a 512-byte buffer makes room for a resident module below BASIC.
- The inner Mandelbrot loop is a 137-byte routine; BASIC only steps through the cells and draws.
Potential Issues
- Everything is printed: without a printer on the chosen interface the program waits at the first
LPRINT. - The printer module on the tape is the one saved on the original disk; for another interface, build a new one with the Printer Interface Setup tape.
This copy came from a Larken disk and was converted to load from tape. The LKDOS disk prefixes and the loads of the disk’s menu shell were removed, the program loads its code and printer module from tape, and the printer-module array, which had a stray disk header at the start, was repaired. The download also holds a second tape, the Printer Interface Setup (INTFC.BE), which builds a printer module for Tasman A or B, AERCO/Oliger, A&J or a general Z80 PIO interface. Both were tested in ZEsarUX as far as the channel screen, the menu and the parameter screen.
Image Gallery
Source Code

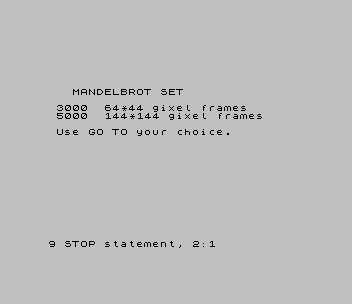

1 CLS : PRINT ''''" MANDELBROT SET"''" 3000 64*44 gixel frames"'" 5000 144*144 gixel frames"''" Use GO TO your choice."
2 STOP
449 FOR n=1 TO 11: READ i$: POKE (Ld0+CODE o$(n)),VAL i$: NEXT n
450 RANDOMIZE USR (Ld0+CODE o$(12)): RETURN
451 RESTORE 501: GO TO 449: REM Dump
452 RESTORE 502: GO TO 449: REM Zoom Dump
453 RESTORE 503: GO SUB 449: GO SUB 449: GO TO 449: REM Wide Strip @ 0,0
500 STOP
501 DATA "0","0","8","22","80","32","2","24","5","80","1"
502 DATA "0","0","68","44","40","32","2","24","5","40","2"
503 DATA "0","0","8","1","0","72","2","1","5","64","2"
504 DATA "0","0","8","1","0","72","2","1","5","64","2"
505 DATA "0","0","8","1","0","72","2","22","5","64","2"
551 RESTORE 501: GO TO 448
552 RESTORE 502: GO TO 448
553 RESTORE 503: GO TO 448
3000 CLS : PRINT '" 1.25";AT 8,0;" 0.00";AT 15,0;"-1.25 MANDELBROT SET";AT 17,4;"-2 -1 0 0.5"
3001 PLOT 47,45: DRAW 127,0: DRAW 0,127: DRAW -127,0: DRAW 0,-127
3002 OVER 0: PRINT '" This program prints frames of the Mandelbrot set which can be assembled into a larger montage."
3003 PAUSE 240: PRINT AT 19,0;" Each frame of the array is 64 cells wide by 44 cells high.",,,
3004 PAUSE 240: PRINT AT 19,0;" As each column is completed, a new column will start until the entire [K x K] is completed.",

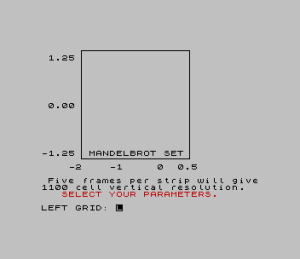

3005 PAUSE 240: PRINT AT 19,0;" Five frames per strip will give1100 cell vertical resolution. SELECT YOUR PARAMETERS.",
