Draws data charts.
Content
Image Gallery
ZX Chart
1 REM %Z%X% %C%H%A%R%T-(C) 1985 JAMES L. HILL
20 CLEAR
30 LET MENU=2500
50 LET E$=" "
52 LET O$="\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\.."
54 LET U$="\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''"
110 CLS
130 PRINT "DATA ENTRY",,U$;"DATA ID? (8 CHARACTERS MAX)"
140 INPUT H$
160 PRINT AT 2,7;"- ";H$;E$;AT 4,0;"NO. OF PARAMETERS? (18 MAX)"
170 INPUT NP
200 LET G=INT (900/NP)
205 IF G>99 THEN LET G=99
210 PRINT AT 4,17;"- ";NP;E$;AT 6,0;;"NO. OF CASES? (";G;" MAX)"
220 INPUT NC
240 PRINT AT 6,12;"- ";NC;E$;AT 21,0;"ABOVE INFORMATION CORRECT? (Y/N)"
260 INPUT D$
270 IF D$="N" THEN GOTO 110
290 DIM P(NP,NC)
300 DIM D(NP,4)
310 DIM N$(NP,5)
510 CLS
520 PRINT "ENTER PARAMETER NAMES-5 CHRS MAX";U$;AT 18,0;O$;"TOUCH <ENTER> TO LEAVE UNCHANGED""M"" = RETURN TO MENU","""A"" = ADVANCE TO DATA ENTRY"
525 LET G=2
530 FOR N=1 TO NP
540 PRINT AT G,0;"PARAMETER ";N;".",N$(N)
550 INPUT D$
555 IF D$="M" THEN GOTO 2500
560 IF D$="A" THEN GOTO 1000
565 IF D$="" THEN GOTO 580
570 LET N$(N)=D$
580 PRINT AT G,16;N$(N)
582 LET G=G+1
584 IF G<>12 AND N<>NP THEN GOTO 700
600 PRINT AT 17,0;"ABOVE INFORMATION CORRECT? (Y/N)"
610 INPUT D$
620 IF D$="N" THEN LET N=N-10
622 IF N<0 THEN LET N=0
625 FOR G=2 TO 17
630 PRINT AT G,0;E$
636 NEXT G
640 LET G=2
700 NEXT N
1010 FOR P=1 TO NP
1020 LET G=4
1030 CLS
1040 PRINT "PARAMETER ";P;". ";N$(P),"ENTER VALUES FOR EACH CASE",U$
1045 PRINT AT 18,0;O$;"TOUCH <ENTER> TO LEAVE UNCHANGED""M"" = RETURN TO MENU","""A"" = ADVANCE TO NEXT PARAMETER"
1050 FOR N=1 TO NC
1060 PRINT AT G,0;"CASE NUMBER ";N;"?",P(P,N)
1070 INPUT D$
1072 IF D$="M" THEN GOTO 2000
1074 IF D$="A" THEN GOTO 1230
1080 IF D$<>"" THEN LET P(P,N)=VAL D$
1090 PRINT AT G,16;P(P,N);E$
1100 LET G=G+1
1110 IF G<>14 AND N<>NC THEN GOTO 1220
1120 PRINT AT 17,0;"ABOVE INFORMATION CORRECT? (Y/N)"
1130 INPUT D$
1140 IF D$="Y" THEN GOTO 1180
1150 IF D$<>"N" THEN GOTO 1130
1160 LET N=N-10
1170 IF N<0 THEN LET N=0
1190 FOR G=4 TO 17
1200 PRINT AT G,0;E$
1210 NEXT G
1215 LET G=4
1220 NEXT N
1230 NEXT P
1240 GOTO 2000
1510 CLS
1520 PRINT "MODIFY SPECIFIC ENTRY",U$;"PARAMETER ID NUMBER?"
1530 INPUT Y$
1540 PRINT AT 2,21;"- ";Y$;AT 6,0;"CASE NUMBER?"
1550 INPUT X$
1560 PRINT AT 6,11;"- ";X$;AT 10,0;"CURRENT VALUE= ";P(VAL Y$,VAL X$);AT 14,0;"ENTER NEW VALUE -OR TOUCH <ENTER> TO LEAVE UNCHANGED"
1570 INPUT D$
1580 IF D$="" THEN GOTO 1600
1590 LET P(VAL Y$,VAL X$)=VAL D$
1600 IF D$<>"" THEN PRINT AT 18,0;"NEW VALUE= ";VAL D$
1605 PRINT AT 21,0;"ADDITIONAL MODIFICATIONS? (Y/N)"
1610 INPUT D$
1620 IF D$="N" THEN GOTO 2000
1630 GOTO 1500
2010 FOR N=1 TO NP
2015 FOR M=1 TO NC
2016 IF P(N,M)<>-999 THEN GOTO 2020
2017 NEXT M
2018 LET HM=0
2019 GOTO 2030
2020 LET HM=P(N,M)
2030 LET LM=HM
2040 LET TM=0
2050 LET S2=0
2055 LET G=0
2060 FOR M=1 TO NC
2070 IF P(N,M)=-999 THEN GOTO 2120
2075 LET G=G+1
2080 IF P(N,M)>HM THEN LET HM=P(N,M)
2090 IF P(N,M)<LM THEN LET LM=P(N,M)
2100 LET TM=TM+P(N,M)
2110 LET S2=S2+P(N,M)*P(N,M)
2120 NEXT M
2130 LET D(N,1)=HM
2140 LET D(N,2)=LM
2150 LET D(N,3)=TM/G
2160 LET D(N,4)=SQR ((G*S2-TM*TM)/(G*G))
2170 NEXT N
2510 CLS
2520 PRINT " MENU- ENTER CHOICE (1 - 7) ";U$;"1. SCATTERGRAPH- PARAMETER VS CASE NUMBER";AT 5,0;"2. SCATTERGRAPH- PARAMETER VS PARAMETER";AT 8,0;"3. FREQUENCY DISTRIBUTION"
2530 PRINT AT 10,0;"4. BAR GRAPH- SELECTED CASE- PARAMETERS RELATIVE TO THEIR RESPECTIVE AVERAGES";AT 14,0;"5. ENTER/VIEW/MODIFY DATA";AT 16,0;"6. MODIFY SPECIFIC ENTRY";AT 18,0;"7. SAVE PROGRAM WITH DATA";AT 20,0;"8. CLEAR AND REFORMAT",O$
2560 INPUT D$
2570 LET D$=D$(1)
2590 CLS
2600 GOTO 2610*(D$="8")+9000*(D$="7")+3000*(D$="1")+4000*(D$="2")+5000*(D$="4")+6000*(D$="3")+500*(D$="5")+1500*(D$="6")
2610 PRINT "CONFIRM",," ""CLEAR AND REFORMAT"" (Y/N)"
2620 INPUT D$
2630 GOTO (D$="Y")+2500*(D$<>"Y")
2700 PRINT AT 12,0;"AUTO-COPY/SCREEN PREVIEW? (C/S)"
2710 INPUT C$
2720 IF C$="C" THEN PRINT AT 12,0;"AUTO-COPY";E$
2730 IF C$="S" THEN PRINT AT 12,0;"SCREEN PREVIEW";E$
2740 PRINT AT 21,0;"ABOVE INFORMATION CORRECT? (Y/N)"
2750 INPUT G$
2760 IF G$="N" THEN GOTO 2590
2770 CLS
2780 RETURN
3010 PRINT "ID NUMBERS OF PARAMETERS TO BE GRAPHED?",,"(ENTER AS "".NN.NN.ETC"" OR ""ALL"")"
3020 INPUT Y$
3022 PRINT AT 1,7;"-";E$;AT 2,0;Y$;E$
3028 GOSUB 2700
3030 FOR Y=1 TO NP*(Y$="ALL")+LEN Y$/3*(Y$<>"ALL")
3050 IF Y$="ALL" THEN LET N=Y
3060 IF Y$<>"ALL" THEN LET N=VAL Y$(Y*3-1 TO Y*3)
3070 CLS
3080 PRINT "%P%A%R%A%M% %V%S% %C%A%S%E DATA ID """;H$;"""";AT 1,0;"MEAN= ";D(N,3);AT 1,16;"S.D.= ";D(N,4);AT 2,0;"RANGE= ";D(N,2);" TO ";D(N,1)
3085 PRINT AT 21,5;"NUMBER OF CASES= ";NC
3090 GOSUB 3500
3140 LET YI=31/((D(N,1)-D(N,2))+(D(N,1)=D(N,2)))
3150 LET XI=57/(NC-1)
3160 FOR M=1 TO NC
3170 IF P(N,M)=-999 THEN GOTO 3190
3180 PLOT (M-1)*XI+4,(P(N,M)-D(N,2))*YI+4
3190 NEXT M
3200 IF C$="C" THEN GOTO 3250
3210 INPUT D$
3220 IF D$="C" THEN GOTO 3250
3230 IF D$="M" THEN GOTO 2500
3240 GOTO 3260
3250 COPY
3260 CLS
3270 NEXT Y
3280 GOTO 2500
3500 PRINT AT 4,0;"P";AT 5,0;"A";AT 6,0;"R";AT 7,0;"A";AT 8,0;"M";AT 10,0;INT (N/10);AT 11,0;N-(INT (N/10)*10);AT 13,0;N$(N,1);AT 14,0;N$(N,2);AT 15,0;N$(N,3);AT 16,0;N$(N,4);AT 17,0;N$(N,5)
3510 PRINT AT 20,1;"\ '\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\' "
3520 FOR G=4 TO 19
3530 PRINT AT G,1;"\ :"
3540 NEXT G
3550 RETURN
4010 PRINT "ID NUMBERS OF PARAMETERS TO BE PLACED ON Y AXIS?","(ENTER AS "".NN.NN.ETC"" OR ""ALL"")"
4020 INPUT Y$
4030 PRINT AT 1,16;"- ";E$;AT 2,0;Y$;E$;AT 4,0;"ID NUMBERS OF PARAMETERS TO BE PLACED ON X AXIS?"
4040 INPUT X$
4045 PRINT AT 5,16;"- ";E$;AT 6,0;X$;E$
4046 GOSUB 2700
4050 FOR Y=1 TO NP*(Y$="ALL")+LEN Y$/3*(Y$<>"ALL")
4060 IF Y$="ALL" THEN LET N=Y
4080 IF Y$<>"ALL" THEN LET N=VAL Y$(Y*3-1 TO Y*3)
4090 LET YI=31/((D(N,1)-D(N,2))+(D(N,1)=D(N,2)))
4100 FOR X=1 TO NP*(X$="ALL")+LEN X$/3*(X$<>"ALL")
4120 IF X$="ALL" THEN LET M=X
4130 IF X$<>"ALL" THEN LET M=VAL X$(X*3-1 TO X*3)
4140 LET XI=57/((D(M,1)-D(M,2))+(D(M,1)=D(M,2)))
4150 PRINT "%P%A%R%A%M% %V%S% %P%A%R%A%M DATA ID ";H$;AT 1,0;"RANGE PARAM ";N;"= ";D(N,2);" TO ";D(N,1);AT 2,0;"RANGE PARAM ";M;"= ";D(M,2);" TO ";D(M,1);AT 21,4;"PARAM ";M;" ";N$(M)
4160 GOSUB 3500
4190 FOR Q=1 TO NC
4200 IF P(N,Q)=-999 OR P(M,Q)=-999 THEN GOTO 4220
4210 PLOT (P(M,Q)-D(M,2))*XI+4,(P(N,Q)-D(N,2))*YI+4
4220 NEXT Q
4230 IF C$="C" THEN GOTO 4280
4240 INPUT D$
4250 IF D$="C" THEN GOTO 4280
4260 IF D$="M" THEN GOTO 2500
4270 GOTO 4290
4280 COPY
4290 CLS
4300 NEXT X
4310 NEXT Y
4320 GOTO 2500
5002 PRINT "ID NUMBERS OF PARAMETERS TO BE GRAPHED?",,"(ENTER AS "".NN.NM.ETC"" OR ""ALL"")"
5003 INPUT Y$
5005 PRINT AT 1,7;"- ";E$;AT 2,0;Y$;E$;AT 4,0;"CASES TO BE GRAPHED?"
5006 INPUT X$
5007 PRINT AT 4,19;"- ";E$;AT 5,0;X$;E$
5008 GOSUB 2700
5018 LET G$="\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\..\.."
5020 IF X$="ALL" THEN FOR Q=1 TO NC
5025 IF X$<>"ALL" THEN FOR Q=1 TO LEN X$/3
5030 IF X$="ALL" THEN LET M=Q
5035 IF X$<>"ALL" THEN LET M=VAL X$(Q*3-1 TO Q*3)
5080 CLS
5090 PRINT "%P%A%R%A%M% %V%S% %A%V%E DATA ID """;H$;"""";AT 1,0;"CASE NO. ";M
5100 FOR N=3 TO 21
5110 PRINT AT N,5;"\ :";AT N,18;"."
5120 NEXT N
5122 PRINT AT 21,6;"%M%I%N\..\..\..\..\..\..\..\..%A%V%E\..\..\..\..\..\..\..\..%M%A%X"
5125 IF Y$="ALL" THEN FOR N=1 TO NP
5130 IF Y$<>"ALL" THEN FOR N=1 TO LEN Y$/3
5133 IF Y$="ALL" THEN LET P=N
5136 IF Y$<>"ALL" THEN LET P=VAL Y$(N*3-1 TO N*3)
5140 IF P(P,M)=-999 THEN GOTO 5190
5150 LET A=ABS (D(P,1)-D(P,3))
5160 LET B=ABS (D(P,2)-D(P,3))
5170 LET GR=A*(A>=B)+B*(B>A)
5175 IF GR=0 THEN LET GR=1
5180 PRINT AT P+2,0;N$(P);"\ :";G$( TO 1+((P(P,M)-(D(P,3)-GR))*24/(GR*2)))
5190 NEXT N
5210 IF C$="C" THEN GOTO 5217
5212 INPUT D$
5214 IF D$="C" THEN GOTO 5217
5215 IF D$="M" THEN GOTO 2500
5216 GOTO 5218
5217 COPY
5218 CLS
5220 NEXT Q
5230 GOTO 2500
6010 PRINT "ID NUMBERS OF PARAMETERS TO BE GRAPHED?",,"(ENTER AS "".NN.NN.ETC"" OR ""ALL"")"
6020 INPUT Y$
6030 PRINT AT 1,7;"- ";E$;AT 2,0;Y$;E$;AT 4,0;"NUMBER OF DIVISIONS? (2 - 12)"
6040 INPUT ND
6050 PRINT AT 4,19;"- ";ND;E$
6060 GOSUB 2700
6065 LET G$="\ :% % % % % % % % % % % "
6070 FOR Y=1 TO NP*(Y$="ALL")+LEN Y$/3*(Y$<>"ALL")
6080 IF Y$="ALL" THEN LET N=Y
6090 IF Y$<>"ALL" THEN LET N=VAL Y$(Y*3-1 TO Y*3)
6100 LET T=0
6110 LET GI=(D(N,1)-D(N,2))/ND
6120 DIM G(ND,2)
6130 FOR M=1 TO NC
6135 IF P(N,M)=-999 THEN GOTO 6180
6140 FOR D=1 TO ND
6150 IF P(N,M)>=D(N,2)+(D-1)*GI AND P(N,M)<D(N,2)+D*GI THEN LET G(D,1)=G(D,1)+1
6155 IF D=ND AND P(N,M)=D(N,2)+D*GI THEN LET G(D,1)=G(D,1)+1
6160 IF G(D,1)>T THEN LET T=G(D,1)
6170 NEXT D
6180 NEXT M
6190 FOR D=1 TO ND
6200 LET G(D,2)=G(D,1)*15/T
6210 NEXT D
6212 PRINT "%F%R%E%Q% %D%I%S%T DATA ID """;H$;"""";AT 1,0;"PARAMETER NO. ";N;"- ";N$(N);AT 2,0;"%F%R%E%Q";AT 21,0;"%R%A%N%G%E";AT 18,3;"\ '\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''\''"
6214 FOR D=3 TO 17
6215 PRINT AT D,3;"\ :........................"
6216 NEXT D
6220 LET X=19
6230 FOR D=1 TO ND
6240 LET L=17
6250 FOR M=1 TO G(D,2)
6260 PRINT AT L,(D-1)*INT (24/ND)+4;G$( TO INT (24/ND))
6270 LET L=L-1
6280 NEXT M
6290 PRINT AT L+1,0;G(D,1)
6295 LET X$=STR$ VAL "(D(N,2)+(D-1)*GI)"
6296 IF LEN X$>5 THEN LET X$=X$( TO 5)
6300 PRINT AT X,(D-1)*INT (24/ND)+4;X$
6310 LET X=X+(X<21)-2*(X=21)
6320 NEXT D
6330 IF C$="C" THEN GOTO 6380
6340 INPUT D$
6350 IF D$="M" THEN GOTO 2500
6360 IF D$="C" THEN GOTO 6380
6370 GOTO 6390
6380 COPY
6390 CLS
6400 NEXT Y
6410 GOTO 2500
9000 REM %S%A%V%E
9010 CLS
9020 PRINT "PROGRAM AND DATA WILL BE SAVED UNDER THE NAME """;H$;"""";AT 4,0;"START RECORDER- THEN TOUCH ENTER"
9030 INPUT D$
9040 SAVE H$
9045 LET H$(LEN H$)=CHR$ (CODE H$(LEN H$)-128)
9090 CLS

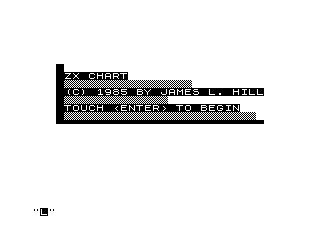

9100 PRINT AT 5,3;"% ";AT 6,3;"% %Z%X% %C%H%A%R%T";AT 7,3;"% \##\##\##\##\##\##\##\##\##\##\##\##\##\##\##\##";AT 8,3;"% %(%C%)% %1%9%8%5% %B%Y% %J%A%M%E%S% %L%.% %H%I%L%L";AT 9,3;"% \##\##\##\##\##\##\##\##\##\##\##\##\##";AT 10,3;"% %T%O%U%C%H% %<%E%N%T%E%R%>% %T%O% %B%E%G%I%N";AT 11,3;"% \##\##\##\##\##\##\##\##\##\##\##\##\##\##\##\##\##\##\##\##\##\##\##\##";AT 12,3;U$( TO 26)
9105 IF H$<>"ZX CHART" THEN PRINT AT 20,0;"PROGRAM CURRENTLY CONTAINS DATA IDENTIFIED AS """;H$;""""
9110 INPUT D$
9120 IF H$="ZX CHART" THEN GOTO 1
9130 GOTO MENU
