Editor’s comment:
The text for this tutorial is included in the program itself, and is displayed on the screen as the program is run. The various printouts are reproduced here. The program gives an interesting insight into the way the TS2068 handles the various “attributes” (color, flash, etc.) of the screen display.
Unfortunately, the black-and-white printout of the LISTing does not begin to do it justice. The LISTing is so crammed with embedded instructions, themselves dealing with the attributes of the display, that one is inevitably reminded of the elegant and baffling complexity of the last act of Der Rosenkavalier.
Also unfortunately, Mr. Ellis tells us that he is no longer working with the 2068, so he can not provide tape copies of the program. Therefore, I’ll make the following offer:
In reply to the first two requests I receive, I’ll send you a tape, subject to the following conditions (the honor system applies):
1. You agree to reimburse me for my expenses for the copy. I’ll send you a bill with the tape–there’ll be no charge for anything except my own out-of-pocket costs, such as tape, packing materials, and postage.
2. I’ll send any subsequent requests to you, with a notification to the requestor that I have done so.
3. You will, on the same basis, fill the first two of the requests you receive, and will forward subsequent requests in the same manner. (If you want to fill more than two of them yourself, that’s fine, but you promise to take care of at least two.)
INTRODUCTION
Window is a screen utility written in machine code and stored above ramtop. It enables the user to change the attributes behind a section of screen, with the original attributes being saved for future recall.
The user pokes the row, column, length, and attribute information to certain addresses and then “turns on” the routine with a USR 65036. The Basic command USR 65028 will return the screen area to its original condition, assuming that none of the parameters have been changed.
PROGRAM DETAILS
Machine code USR calls:
USR 65036(display)-Loads a user-defined section of the display with new attributes. The attributes previously stored there are stored elsewhere for safekeeping. Row, column, length, & attribute information must already be stored in the appropriate registers.
The routine returns with the present row # if o.k. or with the length if the requested area would run off the screen.
USR 65028(normalize)-Returns the displayed area to its original attributes. If any of the registers (except attributes) has been changed, then the routine will load back to the new area.
As with the display routine the normalize routine will return with the current row # or length depending on whether or not the area fits on the screen.

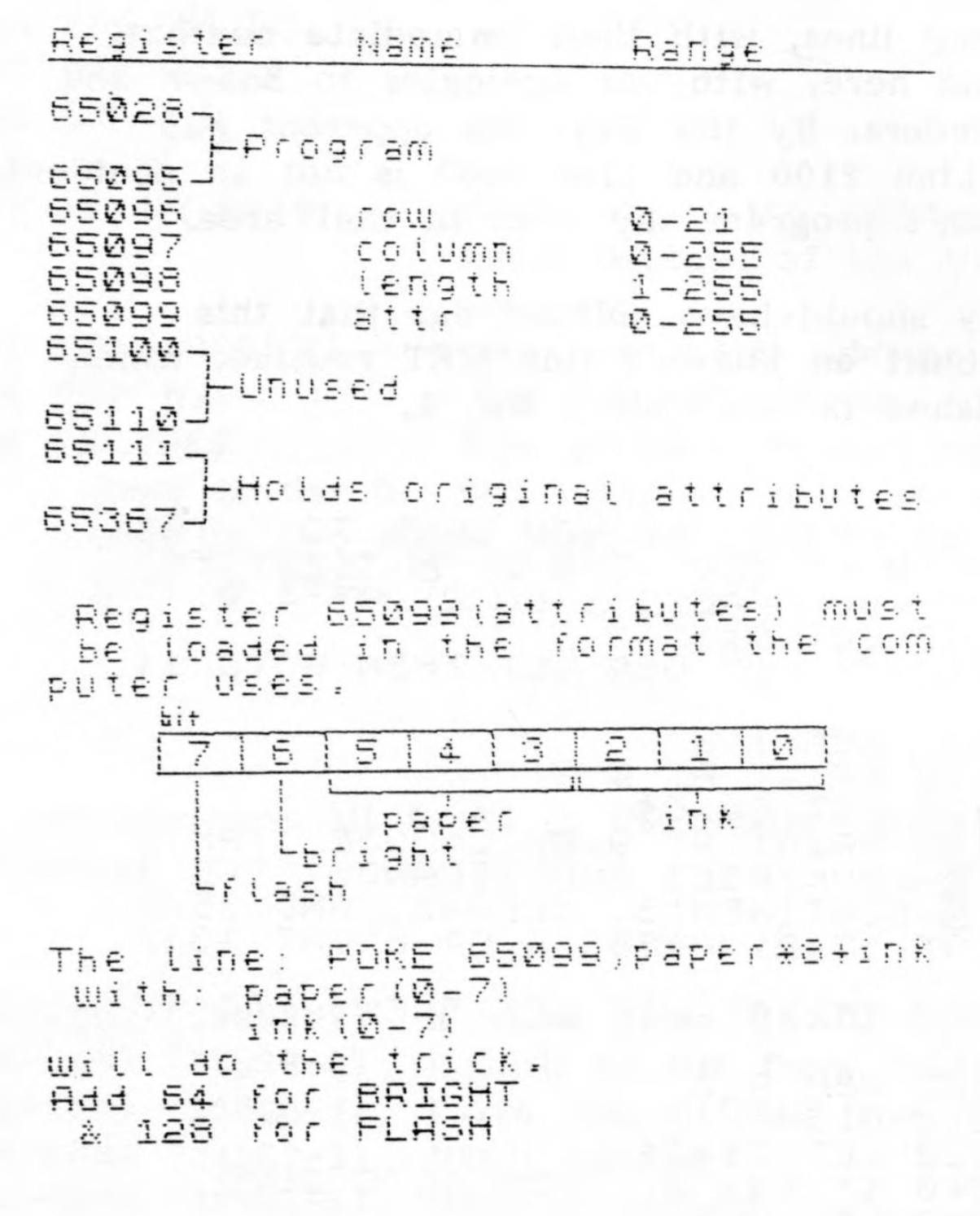

Register Name Range
65028-+
+-Program
65095-+
65096 row 0-21
65097 column 0-255
65098 length 1-255
65099 attr 0-255
65100-+
+-Unused
65110-+
65111-+
+-Holds original attributes
65367-+
Register 65099(attributes) must be loaded in the format the computer uses.
bit 7 6 5 4 3 2 1 0 | | _________/ _________/ | | paper ink | bright flash
The line: POKE 65099,paper*8+ink with: paper(0-7) ink(0-7) will do the trick. Add 64 for BRIGHT & 128 for FLASH
LOC HEX CODE LABEL MNEMONICS
FE04 CD20FE NORM CALL FIND
FE07 EB EX HL,DE
FE08 EDB0 LDIR
FE0A 4F LD C,A
FE0B C9 RET
FE0C CD20FE DISP CALL FIND
FE0F C5 PUCH BC
FE10 EDB0 LDIR
FE12 C1 POP BC
FE13 A7 AND A
FE14 ED42 SBC HL,BC
FE16 41 LD B,C
FE17 4F LD C,A
FE18 3A4BFE LD A,(ATTR)
FE1B 77 LD (HL),A
FE1C 23 INC HL
FE1D 10FC DJNZ, FE1B
FE1F C9 RET
FE20 ED5B48FE FIND LD DE,(ROW)
FE24 7B LD A,E
FE25 2616 LD H,16h
FE27 87 ADD A,A
FE28 87 ADD A,A
FE29 87 ADD A,A
FE2A 6F LD L,A
FE2B 29 ADD HL,HL
FE2C 29 ADD HL,HL
FE2D 4A LD C,D
FE2E 0600 LD B,00h
FE30 09 ADD HL,BC
FE31 E5 PUSH HL
FE32 3A4AFE LD A,(LEN)
FE35 4F LD C,A
FE36 09 ADD HL,BC
FE37 01C15A LD BC,5AC1h
FE3A A7 AND A
FE3B ED42 SBC HL,BC
FE3D E1 POP HL
FE3E 0600 LD B,00h
FE40 4F LD C,A
FE41 7B LD A,E
FE42 1157FE LD DE,FE57h
FE45 D8 RET C
FE46 E1 POP HL
FE47 C9 RET 1 REM ***********************
2 REM
3 REM TS-2068 Utility
4 REM
5 REM WINDOW
6 REM
7 REM © 1985 by David Ellis
8 REM
9 REM ***********************
10 REM Initialization
11 BORDER 1: PAPER 0: INK 7: CLEAR 65000: PRINT AT 8,9;"Initializing"''TAB 9;"Please wait"
12 FOR i=144 TO 149: FOR j=0 TO 7: READ n: POKE USR CHR$ i+j,n: NEXT j: NEXT i
13 DATA 0,0,4,2,255,2,4,0: DATA 0,0,32,64,255,64,32,0
14 DATA 8,28,42,8,8,8,8,8: DATA 8,8,8,8,8,42,28,8
16 DATA 255,129,129,129,129,129,129,255: DATA 0,0,24,60,60,36,0,0
17 LET n=65028: LET d=65036: LET r=65096: LET c=65097: LET l=65098: LET a=65099
18 POKE r,0: POKE c,0: POKE l,32: POKE a,48
19 GO SUB 9000
20 REM [illegible]
21 CLS
25 PRINT AT 1,5;"TS-2068 Screen Utility"'TAB 12;"▒▒▒▒▒▒▒▒"'TAB 12;"▒WINDOW▒"'TAB 12;"▒▒▒▒▒▒▒▒"'TAB 5;"© 1985 by David Ellis"''" →Introduction"'" →Program details"'" →Demonstrations"'" →Modifications";AT 19,0;"▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒ Use ↑ & ↓ to change selection, and ENTER to engage it. "
30 POKE r,8: POKE c,3: POKE l,16: POKE a,40
31 LET x=USR d
35 FOR i=1 TO 25: NEXT i
40 IF INKEY$="" THEN GO TO 40
45 LET o=CODE INKEY$
50 IF o=10 AND x<11 THEN RANDOMIZE USR n: POKE r,x+1: LET x=USR d: GO TO 35
55 IF o=11 AND x>8 THEN RANDOMIZE USR n: POKE r,x-1: LET x=USR d: GO TO 35
60 IF o=13 THEN GO TO (x-7)*1000
65 GO TO 40
1000 REM Introduction
1010 CLS : PRINT TAB 11;"INTRODUCTION"''
1020 PRINT " Window is a screen utility written in machine code and stored above ramtop. It enables the user to change the attributes behind a section of screen, with the original attributes being saved for future recall."
1030 PRINT " The user pokes the row, column, length, and attribute information to certain addresses and then ";"""turns on""";" the routine with a USR 65036. The Basic command USR 65028 will return the screen area to its original condition, assuming that none of the parameters have been changed."
1035 PRINT AT 20,0;"Press ENTER to return to menu."
1040 IF INKEY$="" THEN GO TO 1040
1050 GO TO 20
1999 STOP
2000 REM [illegible]
2010 CLS : PRINT 'TAB 8; PAPER 1;"Program details": PAUSE 120
2020 CLS : PRINT AT 1,1;"Machine code USR calls:"''" USR 65036(display)-Loads a user-defined section of the display with new attributes. The attributes previously stored there are stored elsewhere for safekeeping. Row, column, length, & attribute information must already be stored in the appropriate registers."
2025 PRINT " The routine returns with the present row # if o.k. or with the length if the requested area would run off the screen."
2027 PRINT AT 20,0;"Press ENTER to continue."
2030 IF INKEY$="" THEN GO TO 2030
2032 LET o=CODE INKEY$
2034 IF o=13 THEN GO TO 2040
2036 GO TO 2030
2040 CLS : PRINT AT 2,1;"USR 65028(normalize)-Returns the displayed area to its original attributes. If any of the registers (except attributes) has been changed, then the routine will load back to the new area."
2045 PRINT " As with the display routine the normalize routine will return with the current row # or length depending on whether or not the area fits on the screen."
2047 PRINT AT 20,0;"Press Enter to continue or ↑ to back up a screen"
2050 IF INKEY$="" THEN GO TO 2050
2052 LET o=CODE INKEY$
2054 IF o=11 THEN GO TO 2020
2056 IF o=13 THEN GO TO 2060
2058 GO TO 2050
2060 CLS : PRINT AT 1,0;"Register Name Range": PLOT 0,159: DRAW 255,0:
2069 PRINT AT 3,0;"65028-"'TAB 7;"Program"'"65095-"
2070 PRINT "65096 row 0-21"
2071 PRINT "65097 column 0-255"
2072 PRINT "65098 length 1-255"
2073 PRINT "65099 attr 0-255"
2074 PRINT "65100-"'TAB 7;"Unused"'"65110-"
2075 PRINT "65111-"'TAB 7;"Holds original attributes65367-"
2076 PRINT AT 20,0;"Press ENTER to continue or ↑ to back up a screen"
2080 PLOT 47,131: DRAW 0,16: PLOT 47,75: DRAW 0,16: PLOT 47,51: DRAW 0,16: PLOT 48,59: DRAW 6,0: PLOT 48,83: DRAW 6,0: PLOT 48,139: DRAW 6,0
2085 IF INKEY$="" THEN GO TO 2085
2090 IF o=13 THEN GO TO 2110
2095 IF o=11 THEN GO TO 2040
2100 GO TO 2085
2110 CLS : PRINT AT 1,1;"Register 65099(attributes) must be loaded in the format the computer uses."''TAB 4;" 7 6 5 4 3 2 1 0 "''TAB 12;"paper";TAB 22;"ink"
2111 PRINT TAB 9;"bright"'TAB 6;"flash"
2115 PLOT 32,136: DRAW 192,0: PLOT 32,127: DRAW 192,0
2116 FOR i=32 TO 224 STEP 24: PLOT i,135: DRAW 0,-7: NEXT i
2117 PLOT 153,125: DRAW 0,-3: DRAW 70,0: DRAW 0,3
2118 PLOT 151,125: DRAW 0,-3: DRAW -70,0: DRAW 0,3
2119 PLOT 115,121: DRAW 0,-2: PLOT 187,121: DRAW 0,-2: PLOT 67,125: DRAW 0,-17: DRAW 4,0: PLOT 43,125: DRAW 0,-25: DRAW 4,0
2120 PLOT 33,142: DRAW 0,-4: DRAW 2,0: DRAW 0,2: DRAW -2,0: PLOT 38,142: PLOT 38,140: DRAW 0,-2: PLOT 42,141: DRAW 0,-3: PLOT 41,140: DRAW 2,0
2125 PRINT '"The line: POKE 65099,paper*8+ink with: paper(0-7)"'" ink(0-7)"
2126 PRINT "will do the trick."'"Add 64 for BRIGHT "'" & 128 for FLASH "
2130 PRINT AT 20,0;"Press ENTER to continue or ↑ to back up"
2135 IF INKEY$="" THEN GO TO 2135
2140 LET o=CODE INKEY$
2145 IF o=13 THEN GO TO 2160
2150 IF o=11 THEN GO TO 2060
2155 GO TO 2135
2160 CLS : PRINT TAB 5;"MACHINE CODE LISTING ↑↓"''"LOC HEX CODE LABEL MNEMONICS"'': PLOT 0,151: DRAW 255,0
2170 PRINT "FE04 CD20FE NORM CALL FIND"
2171 PRINT "FE07 EB EX HL,DE"
2172 PRINT "FE08 EDB0 LDIR"
2173 PRINT "FE0A 4F LD C,A"
2174 PRINT "FE0B C9 RET"
2175 PRINT "FE0C CD20FE DISP CALL FIND"
2176 PRINT "FE0F C5 PUCH BC"
2177 PRINT "FE10 EDB0 LDIR"
2178 PRINT "FE12 C1 POP BC"
2179 PRINT "FE13 A7 AND A"
2180 PRINT "FE14 ED42 SBC HL,BC"
2181 PRINT "FE16 41 LD B,C"
2182 PRINT "FE17 4F LD C,A"
2183 PRINT "FE18 3A4BFE LD A,(ATTR)"
2184 PRINT "FE1B 77 LD (HL),A"
2185 PRINT "FE1C 23 INC HL"
2186 PRINT "FE1D 10FC DJNZ, FE1B"
2187 PRINT "FE1F C9 RET"
2190 IF INKEY$="" THEN GO TO 2190
2200 LET O=CODE INKEY$
2210 IF O=11 THEN GO TO 2110
2215 IF O=10 THEN GO TO 2230
2220 GO TO 2190
2230 CLS : PRINT TAB 5;"MACHINE CODE LISTING cont↑↓"''"LOC HEX CODE LABEL MNEMONICS"'': PLOT 0,151: DRAW 255,0
2240 PRINT "FE20 ED5B48FE FIND LD DE,(ROW)"
2241 PRINT "FE24 7B LD A,E"
2242 PRINT "FE25 2616 LD H,16h"
2243 PRINT "FE27 87 ADD A,A"
2244 PRINT "FE28 87 ADD A,A"
2245 PRINT "FE29 87 ADD A,A"
2246 PRINT "FE2A 6F LD L,A"
2247 PRINT "FE2B 29 ADD HL,HL"
2248 PRINT "FE2C 29 ADD HL,HL"
2249 PRINT "FE2D 4A LD C,D"
2250 PRINT "FE2E 0600 LD B,00h"
2251 PRINT "FE30 09 ADD HL,BC"
2252 PRINT "FE31 E5 PUSH HL"
2253 PRINT "FE32 3A4AFE LD A,(LEN)"
2254 PRINT "FE35 4F LD C,A"
2255 PRINT "FE36 09 ADD HL,BC"
2256 PRINT "FE37 01C15A LD BC,5AC1h"
2257 PRINT "FE3A A7 AND A"
2260 IF INKEY$="" THEN GO TO 2260
2265 LET O=CODE INKEY$
2270 IF O=11 THEN GO TO 2160
2275 IF O=10 THEN GO TO 2290
2280 GO TO 2260
2290 CLS : PRINT TAB 5;"MACHINE CODE LISTING cont↑↓"''"LOC HEX CODE LABEL MNEMONICS"'': PLOT 0,151: DRAW 255,0
2300 PRINT "FE3B ED42 SBC HL,BC"
2301 PRINT "FE3D E1 POP HL"
2302 PRINT "FE3E 0600 LD B,00h"
2303 PRINT "FE40 4F LD C,A"
2304 PRINT "FE41 7B LD A,E"
2305 PRINT "FE42 1157FE LD DE,FE57h"
2306 PRINT "FE45 D8 RET C"
2307 PRINT "FE46 E1 POP HL"
2308 PRINT "FE47 C9 RET"
2309 PRINT AT 20,0;"Press ENTER to return to main menu or ↑ to back up"
2310 IF INKEY$="" THEN GO TO 2310
2315 LET O=CODE INKEY$
2320 IF O=11 THEN GO TO 2230
2325 IF o=13 THEN GO TO 20
2330 GO TO 2310
2999 STOP
3000 REM Demonstrations
3001 CLS : ON ERR GO TO 3041: POKE 23659,0
3005 PRINT AT 11,11;"TIMEX 2068"
3010 FOR j=0 TO 10: POKE a,8*(j+(-8 AND j>7))
3015 POKE c,j: POKE l,32-2*j
3020 FOR i=j TO 22-j: POKE r,i
3025 RANDOMIZE USR d: NEXT i: NEXT j
3030 PRINT AT 11,16;"▒": POKE r,11: POKE c,11: POKE l,6: POKE a,135: RANDOMIZE USR d
3035 POKE c,17: POKE l,4: POKE a,184: RANDOMIZE USR d
3040 FOR I=1 TO 400: NEXT I: POKE 23659,2
3041 POKE 23659,2: ON ERR RESET
3045 CLS : FOR I=32 TO 164: PRINT CHR$ I;" ";: NEXT I
3050 PRINT AT 14,11;"EXAMPLES";'"Press ENTER for next example or ↓ to continue with the program ";AT 19,0;" ROW:"," INK:","COLUMN:","PAPER:","LENGTH:","ATTRIBUTES:"
3051 LET c$="Black Blue Red MagentaGreen Cyan Yellow White "
3055 RANDOMIZE 0
3060 POKE r,INT (RND*9)
3061 POKE c,INT (RND*32)
3062 POKE l,INT (RND*255+1)
3063 LET ink=INT (RND*8): LET i$="-"+c$(ink*7+1 TO ink*7+7)
3064 LET paper=INT (RND*8): IF paper=ink THEN GO TO 3064
3065 LET p$="-"+c$(paper*7+1 TO paper*7+7)
3066 POKE a,paper*8+ink
3070 LET x=USR d
3075 PRINT AT 19,8;PEEK r;AT 19,23;ink;i$;AT 20,8;PEEK c;" ";AT 20,23;paper;p$;AT 21,8;PEEK l;" ";AT 21,28;PEEK a;" "
3090 IF INKEY$="" THEN GO TO 3090
3095 LET o=CODE INKEY$
3100 IF o=13 THEN LET x=USR n: GO TO 3060
3105 IF o=10 THEN LET x=USR n: GO TO 3145
3110 GO TO 3090
3145 CLS : LET i$="↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓": INK 0: FOR i=1 TO 21: PRINT i$;: NEXT i: PRINT "********************************": INK 7: PRINT AT 10,11;"BOMBS AWAY"
3150 POKE a,7: POKE l,1: POKE c,0: POKE r,0: RANDOMIZE USR d
3153 FOR j=0 TO 31: POKE c,j
3155 FOR i=0 TO 21: RANDOMIZE USR n: POKE r,i: RANDOMIZE USR d: NEXT i: NEXT j: PAUSE 120
3160 CLS : RANDOMIZE : INK 0: FOR i=1 TO 20: PRINT "▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒";: NEXT i: PRINT AT INT (RND*20),INT (RND*32); OVER 1;"*";AT 20,0; INK 7;"Seek out the goblin-Use →←↑↓ to move window, ENTER to stop": INK 7
3165 POKE a,7: POKE r,0: POKE c,0: POKE l,1: LET x=USR d
3170 IF INKEY$="" THEN GO TO 3170
3175 LET o=CODE INKEY$
3180 IF o=8 AND PEEK c>0 THEN RANDOMIZE USR n: POKE c,PEEK c-1: RANDOMIZE USR d: GO TO 3170
3182 IF o=9 AND PEEK c<31 THEN RANDOMIZE USR n: POKE c,PEEK c+1: RANDOMIZE USR d: GO TO 3170
3184 IF o=10 AND PEEK r<19 THEN RANDOMIZE USR n: POKE r,PEEK r+1: RANDOMIZE USR d: GO TO 3170
3186 IF o=11 AND PEEK r>0 THEN RANDOMIZE USR n: POKE r,PEEK r-1: RANDOMIZE USR d: GO TO 3170
3188 IF o=13 THEN GO TO 20
3190 GO TO 3170
3999 STOP
4000 REM Modifications
4010 CLS : PRINT TAB 10;"MODIFICATIONS"''" Short machine code routines to speed up scrolling can be written in just ahead of the main program. Such routines could replace the BASIC sequence: RANDOMIZE USR 65028: POKE 65096,PEEK 65096+/-1: RANDOMIZE USR 65036."
4015 PRINT " If you have any questions I can be reached at:"''" David Ellis"''" [address omitted]"''"Ph:[phone number omitted]"
4020 PRINT AT 20,0;"Press ENTER to return to menu."
4030 IF INKEY$="" THEN GO TO 4030
4040 GO TO 20
4999 STOP
8999 STOP
9000 REM Window loader
9001 LET j=65028: READ a$: FOR i=1 TO LEN a$ STEP 3: POKE j,(CODE a$(i)-48-7*(a$(i)>"@"))*16+CODE a$(i+1)-48-7*(a$(i+1)>"@"): LET j=j+1: NEXT i: LET a$="": RETURN
9002 DATA "CD-20-FE EB ED-B0 4F C9 CD-20-FE C5 ED-B0 C1 A7 ED-42 41 4F 3A-4B-FE 77 23 10-FC C9 ED-5B-48-FE 7B 26-16 87 87 87 6F 29 29 4A 06-00 09 E5 3A-4A-FE 4F 09 01-01-5B A7 ED-42 E1 06-00 4F 7B 11-57-FE D8 E1 C9 "
9100 REM SAVE(added by the editor)
9110 SAVE "window" LINE 1: BEEP .3,12: BEEP 1,12
9120 VERIFY "window": BEEP .3,16: BEEP 1,16
