JazzoFire

Paul Bingham

Products: Jazzofire

Date: 1988

Type: Program

Platform(s): TS 2068

This collection contains three related TS2068 BASIC programs: “UDG+ version 2.0,” a user-defined graphics designer; “cfe/mc,” a Classy Front End machine code demo; and “w&p,” a window and porthole graphics demo.

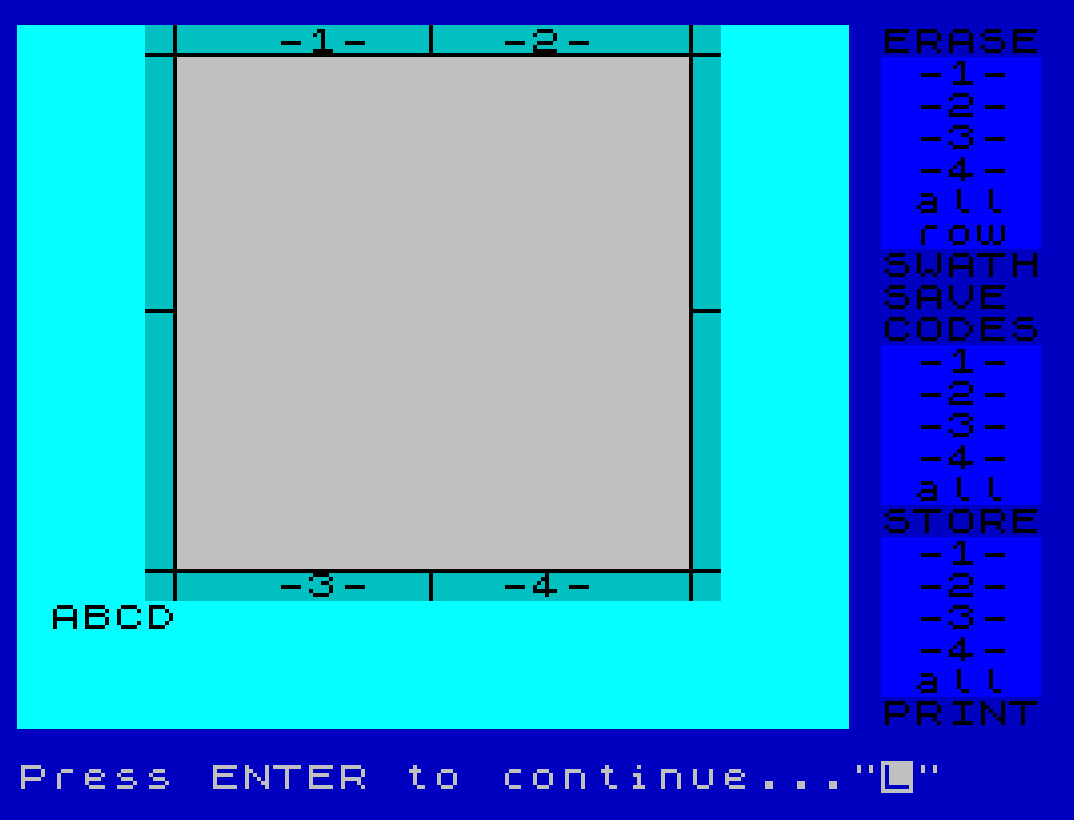

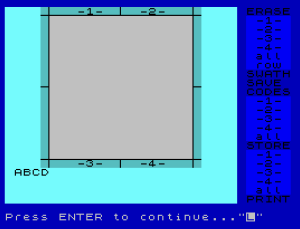

The Ultra-Easy Designer Graphics+ (UDG+) program lets users draw 8×8 pixel characters interactively using a pixel cursor, store them into UDG slots or ASCII character positions, save and load UDG sets to tape, and display the full character table. It manipulates the system variables at addresses 23606–23607 to switch between two character sets (POKEing 251/86 and 60/0), and copies ROM data from 15616–16384 to address 64598 for a custom font base.

The Classy Front End (cfe/mc) program loads 1,502 bytes of Z80 machine code at address 45000, then uses RANDOMIZE USR to invoke a print routine that renders a proportionally-spaced “Classy” font with kerning, driven by a large font-metrics table in DATA lines.

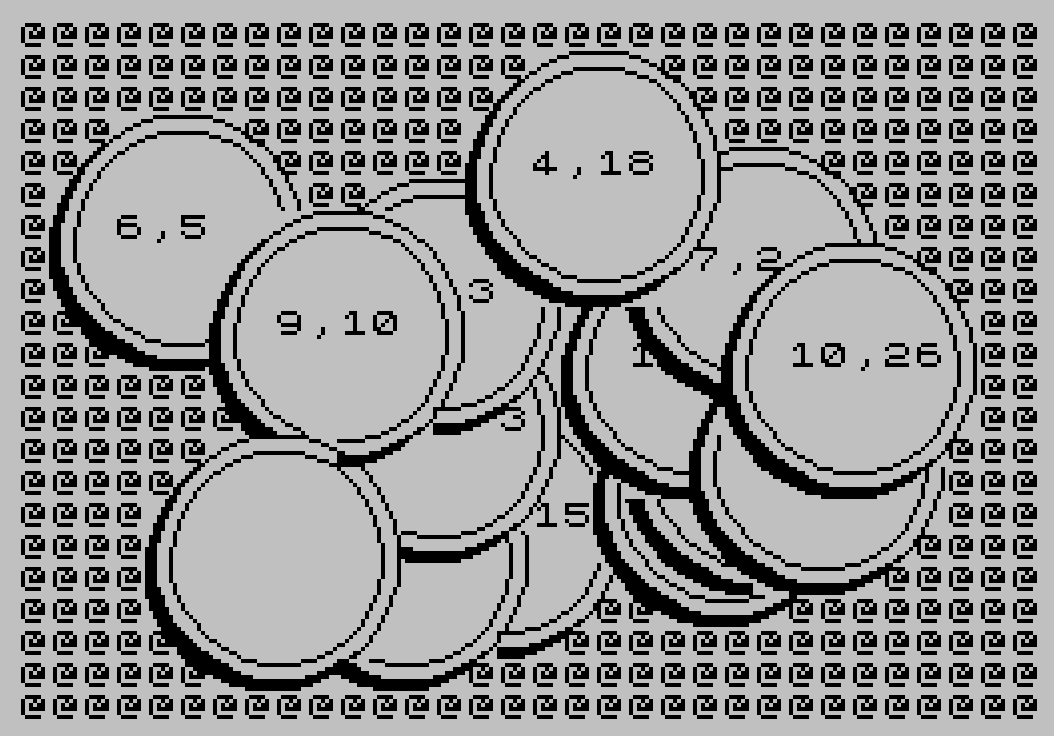

The w&p (Windows & Portholes) demo loads further machine code at 55000 that draws circular porthole graphics at random screen positions, then demonstrates a series of nested rectangular window frames using block-graphic characters.

Program Analysis

Program Structure Overview

The listing contains three independent BASIC programs saved consecutively. Each ends with a SAVE statement at line 9999:

UDG+ (lines 1–9999, first block) — an interactive user-defined graphics designer
cfe/mc (lines 1–9999, second block) — a “Classy Front End” machine code font demo
w&p (lines 1–9999, third block) — a window and porthole graphics demo

UDG+ — Program Structure

UDG+ initializes with CLEAR 64597 to protect high memory, copies 768 bytes of ROM character data from addresses 15616–16384 up to 64598, and installs 8 bytes of machine code at 65528–65535 via READ/POKE. Two operating modes are tracked by the variable ci: ci=9600 for the pixel-drawing canvas and ci=9000 for the character-table overview screen.

The main control loop at lines 100–210 polls INKEY$ using CODE INKEY$ to detect keystrokes: code 51 (“3”) moves the menu cursor down, 52 (“4”) moves it up, 49 (“1”) triggers an action via computed GO SUB cs+750, and 97 (“a”) invokes the current mode via GO SUB ci. The menu cursor position cs skips rows 9–10 and 15 (lines 125, 130), giving three distinct menu groups.

UDG+ — Key Techniques

Computed GO SUB: Lines 190 and 200 use GO SUB cs+750 and GO SUB ci to dispatch to action routines and mode-switch routines without a lookup table.
Character-set switching: Lines 600 and 610 POKE system variables 23606/23607 to toggle between the custom font at address 64342 (86+251×256) and the standard ROM font at address 15360 (0+60×256), allowing the program to display custom characters mid-screen.
Pixel editor: Lines 8000–8110 implement a freehand pixel cursor. Keys 5/6/7/8 move the cursor; key 0 sets a pixel white (CHR$ 128), key 9 sets it black (CHR$ 143). The cursor blink is achieved by printing CHR$ 134 then CHR$ 137 then the background character in quick succession.
Bit-scanning for UDG data: Lines 300–340 read the ATTR of each cell in an 8×8 grid, extract the paper color, compare against white (7), and accumulate a bitmask into array d() for storage.
UDG storage addressing: Lines 420–430 compute the target memory address: for printable ASCII (vn 32–127) it uses base 64590+8*(vn-31); for UDG characters (144–164) it uses 65360+8*(vn-143).
Save/Load: Line 28 saves 941 bytes from address 64598 as a CODE block named “UDG”; line 29 loads it back and refreshes the display.
Four-quadrant grid: Lines 21–24 and 30–33 operate on four 8×8 quadrants of the drawing area. Lines 36–39 and 40 similarly handle storing all four quadrants in sequence. Line 34 loops over subroutines 30–33 with FOR m=30 TO 33: GO SUB m: NEXT m, a compact multi-dispatch idiom.
Input validation: Line 42 validates the four character-code inputs, rejecting codes outside the printable ASCII range or UDG range, and specifically excluding codes 124 (|/STICK) and 126 (~/FREE).

UDG+ — Character Table Display (lines 9600–9730)

The character-overview mode draws a full table of all printable characters grouped by ASCII range. Lines 9610–9670 call subroutine 9720 with different xp/yp/wp/xt parameters to print each range in its column. Crucially, subroutine 9720 itself temporarily switches to the custom font (POKE 23606/23607) to print each CHR$ z so that modified characters display correctly alongside their numeric codes.

cfe/mc — Machine Code Font Renderer

Lines 4–7 load 1,502 bytes of Z80 machine code into address 45000. A helper address print=code+13 (45013) points to the print entry point within this block. All rendering is done by placing string data in REM statements on the immediately following line, then calling RANDOMIZE USR print; the machine code reads the REM contents directly from program memory to render each character using the proportional font metrics stored in the DATA tables at lines 1000–1190.

The font table (lines 1000–1190) stores each character as 8 bytes of bitmap data preceded by a width byte. Characters are stored in order from ASCII 32 (space) through the UDG range. Each DATA line ends with a period-separated entry for the next character, which is a zmakebas artifact for the trailing data separator.

cfe/mc — Menu Demo

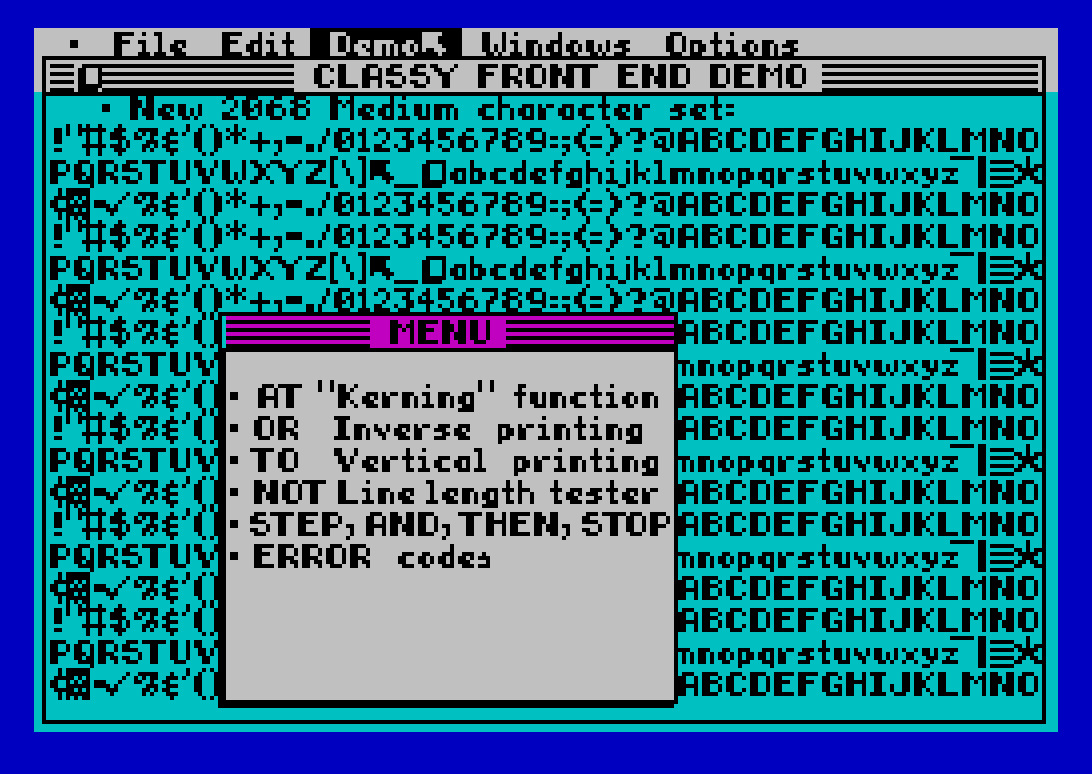

Lines 2000–8240 implement a mock GUI menu. A variable a tracks the highlighted menu row (11–19). Keys “6” and “7” scroll the highlight down and up respectively; ENTER stops the program. Each menu item has two subroutines: one at 7890+row*10 for the normal (unhighlighted) appearance and one at 7980+row*10 for the highlighted appearance, both invoking RANDOMIZE USR print to render the menu text with the custom proportional font. This gives the illusion of a desktop GUI pull-down menu.

w&p — Machine Code and Graphics

Lines 5–10 and 1360–2000 load 1,164 bytes of machine code at address 55000. The porthole demo (lines 3000–3050) picks random screen coordinates, POKEs them into the machine code at offsets 14 and 15 of the block, then calls USR l to draw a circular porthole graphic using the extensive sprite data in lines 1420–1495. The AT y,x-2 print after each porthole labels its coordinates.

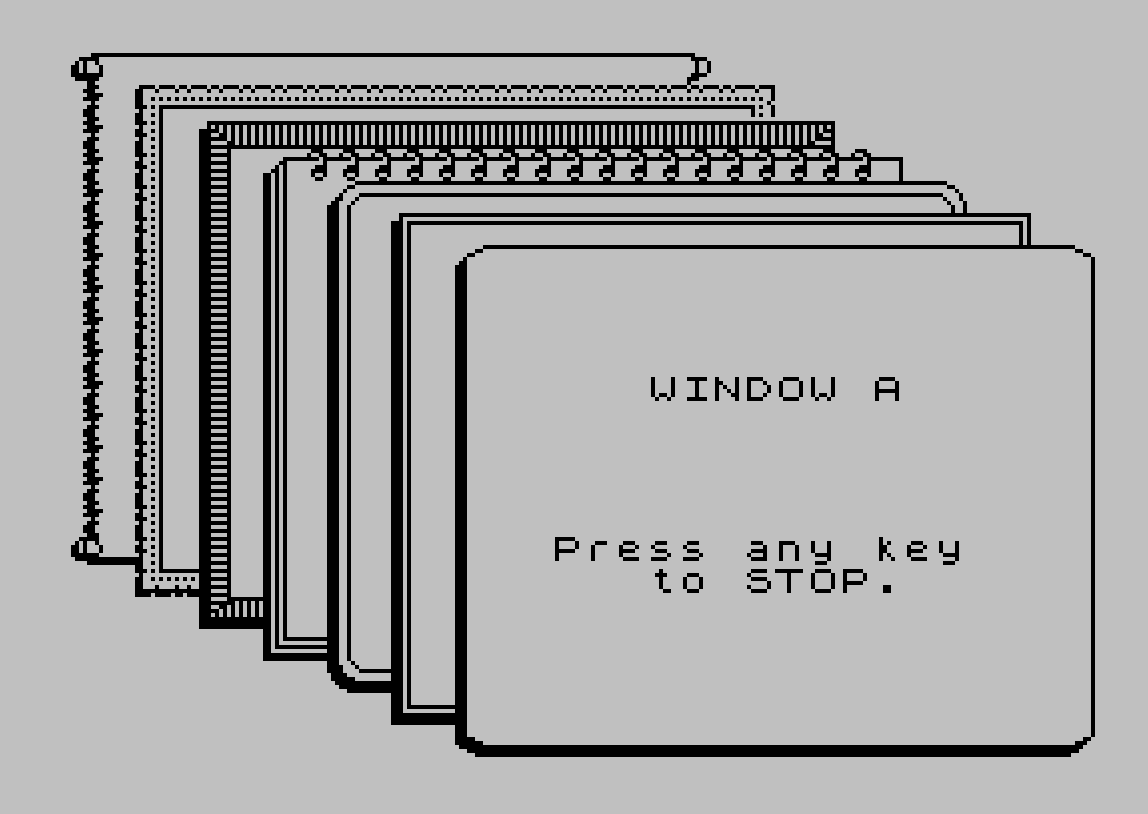

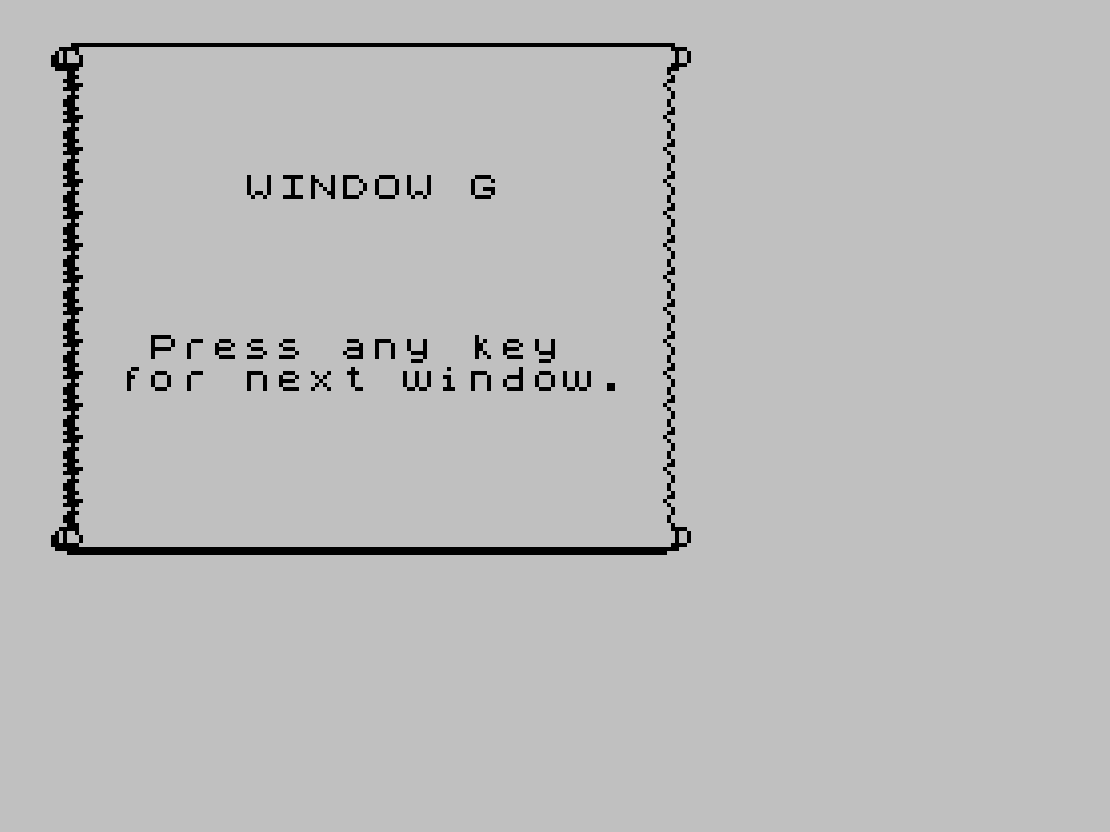

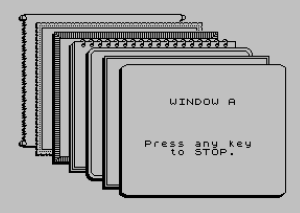

The window demo (lines 4000–4140) draws five nested rectangular window frames using a sequence of block-graphic characters. For each frame g stepping from 108 down to 60 in steps of 8, it prints corner, edge, and fill characters at CHR$ g through CHR$ (g+7). Lines 4150/4160 toggle system variable 23606/23607 between the custom sprite font and the standard font, allowing the window border characters to render from the loaded sprite data.

Notable Anomalies and Observations

Line 2 of UDG+ is a REM noting that it is derived from “Son of UDG” published in TDM (Nov/Dec 1986), with three alterations at lines 42, 350, and 9680.
Line 800 in UDG+ prints FLASH 1: PRINT AT 17,8;"jesemenet!" — this appears to be a Hungarian word (“connection” or a personal name placeholder) and is used as a splash/title flash effect on startup and mode-switch, suggesting the author or a contributor had Hungarian connections.
Line 42 uses a compound condition c(t)<32 OR c(t)>127 AND c(t)<144 OR c(t)>163 OR c(t)=124 OR c(t)=126 which, due to BASIC operator precedence, evaluates the AND before the ORs, giving the intended range-exclusion logic.
In cfe/mc, the REM statements on lines following each RANDOMIZE USR print contain the actual text to be rendered — the machine code walks forward in program memory past the BASIC header to find the REM data. This is a well-known but advanced Z80 trick for passing string arguments to machine code routines.
The GO TO targets in lines like GO TO VAL "number" do not appear in this listing (the VAL idiom is absent), but several computed GO SUB expressions serve a similar role.

Variable Summary (UDG+)

Variable	Purpose
`ci`	Current mode: 9000=char table, 9600=pixel editor
`cs`	Menu cursor row (1–21, skipping 9–10, 15)
`px`, `py`	Pixel cursor column and row in editor
`d(32)`	Bitmask data for the 32 bytes (4 UDGs × 8 rows)
`k(257)`	Canvas pixel state (0=white, 1=black) for 256 cells
`c(4)`	CHR$ codes for the four display characters
`e`, `vn`	Target character code for storage
`s`	Index into `d()` array during bit-scanning

Content

Appears On

Related Products

Jazzofire

Includes Ultra-Easy Designer Graphics+, Classy Front End, and Windows & Portholes.

Classy Front End, Part I

Program demonstrates printing with variable-width fonts using PLOT/DRAW.

Classy Front End, Part II

In designing a machine code utility one faces the inevitable quandry of too many desires and not enough space. I...

Classy Front End, Part III

Classy Front End, Update

Patching a bug from the fourth article in the series.

Classy Front End: Windows

Continues article from prior issue with window and porthole code.

Classy Front End: Windows

Two kinds of windows options are described. The first are rectangular with shadows down two sides and the second are...

CLASSY Part Four

The concluding installment of a series on a custom font-printing machine-code routine for the TS2068, providing code for lines 100-220...

Ultra-Easy Designer Graphics

A colorful little utility which leaves you all the fun of designing user defined graphics and little of the drudgery....

Image Gallery

Source Code
REM   _____UDG+_____                                        "ULTRA-EASY DESIGNER GRAPHICS"    version 2.0 by p. bingham
REM (This program is nearly identical to "son of udg" from TDM N/D '86. It includes three  alterations from TDM listing in lines 42, 350, and 9680.)
CLEAR 64597: GO SUB 800: FOR t=15616 TO 16384: POKE (t+48982),PEEK t: NEXT t: FOR t=65528 TO 65535: READ o: POKE t,o: NEXT t: FLASH 0: CLS : GO SUB 9015: GO SUB 9520: DATA 0,0,63,252,252,248,0,0
DIM k(257): DIM c(4): FOR t=1 TO 4: LET c(t)=32: NEXT t: DIM d(32): DIM u(20): LET cs=7: LET at=7: LET px=5: LET py=1: INPUT "Press ENTER to continue...";n$: GO TO 105
LET x=1: LET y=5: GO TO 400
LET x=1: LET y=13: GO TO 400
LET x=9: LET y=5: GO TO 400
LET x=9: LET y=13: GO TO 400
GO TO 350
PAPER 7: LET k=5+(8*INT (px/13)): FOR h=k TO k+7: PRINT AT py,h;CHR$ 128: NEXT h: RETURN
PAPER 0: LET k=5+(8*INT (px/13)): FOR h=k TO k+7: PRINT AT py,h;CHR$ 143: NEXT h: RETURN
INPUT "1)SAVE UDGs  2)LOAD UDGs  ";t: IF t=1 THEN SAVE "UDG"CODE 64598,941: RETURN
LOAD "UDG"CODE 64598,941: GO SUB 9000: RETURN
LET s=1: LET x=1: LET y=4: LET q=1: GO TO 35
LET s=9: LET x=1: LET y=12: LET q=22: GO TO 35
LET s=17: LET x=9: LET y=4: LET q=1: GO TO 35
LET s=25: LET x=9: LET y=12: LET q=22: GO TO 35
FOR m=30 TO 33: GO SUB m: NEXT m: RETURN
GO SUB 300: RETURN
LET s=1: LET qx=0: GO TO 410
LET s=9: LET qx=1: GO TO 410
LET s=17: LET qx=0: GO TO 410
LET s=25: LET qx=1: GO TO 410
FOR m=36 TO 39: GO SUB m: LET f=1: NEXT m: RETURN
INPUT "1)COPY  2)DISPLAY  ";t: IF t=1 THEN COPY : LPRINT : LPRINT : LPRINT : RETURN
INPUT "1st:";c(1);" 2nd:";c(2);" 3rd:";c(3);" 4th:";c(4): FOR t=1 TO 4: IF c(t)<32 OR c(t)>127 AND c(t)<144 OR c(t)>163 OR c(t)=124 OR c(t)=126 THEN GO TO 42: NEXT t
IF ci=9000 THEN GO SUB 350: GO SUB 600: PRINT AT 0,1;CHR$ c(1);CHR$ c(2);AT 1,1;CHR$ c(3);CHR$ c(4): GO SUB 610: FOR t=6 TO 18 STEP 4: PRINT AT 0,t;c(1+(t-6)/4): NEXT t: PAPER 1: RETURN
FOR t=1 TO 4: IF t<=2 THEN LET y1=1: LET x1=(INT (t*6/12))*8+4: GO TO 46
LET y1=9: LET x1=(INT (t*3/12))*8+4
IF c(t)>143 THEN LET h=(c(t)-144)*8+65368: GO TO 63
LET h=(c(t)-32)*8+64598
FOR m=h TO h+7: LET a1=PEEK m
FOR g=8 TO 1 STEP -1: LET a1=a1/2: IF INT a1<a1 THEN PAPER 0: PRINT AT y1,x1+g;CHR$ 143;: LET a1=INT a1: GO TO 66
PAPER 7: PRINT AT y1,x1+g;CHR$ 128;
NEXT g: LET y1=y1+1: NEXT m: NEXT t: RETURN
GO SUB 9000: GO SUB 9520
PAPER 1: PRINT AT cs,26;" ": PAPER 7: PRINT AT cs,26;CHR$ 164: IF ci=9600 THEN GO SUB 8000: GO TO 110
GO SUB 600: GO SUB 610
PAPER 1: PRINT AT cs,26;" ": IF CODE INKEY$=51 THEN LET cs=cs+1: GO TO 120
GO TO 140
IF cs=9 THEN LET cs=10
IF cs=15 THEN LET cs=16
IF cs>21 THEN LET cs=1
PAPER 7: PRINT AT cs,26;CHR$ 164
IF CODE INKEY$=52 THEN LET cs=cs-1: GO TO 160
GO TO 190
IF cs=9 THEN LET cs=8
IF cs=15 THEN LET cs=14
IF cs<1 THEN LET cs=21
PAPER 7: PRINT AT cs,26;CHR$ 164
IF CODE INKEY$=49 THEN GO SUB cs+750
IF CODE INKEY$=97 THEN GO SUB ci
GO TO 105
FOR h=x TO x+7: DIM a(8): LET b=1: LET c=0
FOR t=8 TO 1 STEP -1: LET a(t)=INT ((ATTR (h,y+t))/8)
IF a(t)<>7 THEN LET c=c+b
LET b=b*2: NEXT t: LET d(s)=c: LET s=s+1
PAPER 5: BRIGHT 1: PRINT AT h,q;"   ": PRINT AT h,q;c: NEXT h: BRIGHT 0: RETURN
PAPER 7: IF ci=9000 THEN PRINT AT 0,1;"  ";AT 0,6;"   ";AT 0,10;"   ";AT 0,14;"   ";AT 0,18;"   ";AT 1,1;"  ";AT 21,16;"     ": RETURN
FOR m=21 TO 24: GO SUB m: NEXT m: RETURN
PAPER 7: FOR h=x TO x+7: FOR t=y TO y+7: PRINT AT h,t;CHR$ 128: NEXT t: NEXT h: RETURN
INPUT "CHR$ Number(C#) as Storage:";vn: IF vn>31 AND vn<128 AND vn<>124 AND vn<>126 OR vn>143 AND vn<165 THEN LET e=vn: GO TO 420
INPUT "Illegal entry!--hit ENTER";v$: GO TO 410
IF e>127 THEN LET j=INT (s/8): LET w=e-143: LET i=65360+8*w: GO TO 430
LET j=INT (s/8): LET w=e-31: LET i=64590+8*w
LET ru=s: FOR t=i TO i+7: POKE t,d(ru): LET ru=ru+1: NEXT t
PAPER 7: IF ci=9000 THEN GO TO 530
LET ki=i: LET f=e: FOR h=18+j TO 21: GO SUB 600: PRINT AT h,11;CHR$ e;AT h,23;CHR$ f: GO SUB 610: PRINT AT h,13;ki;AT h,19;f;: PAPER 5: BRIGHT 1: PRINT " ";: PAPER 7: BRIGHT 0: LET ki=ki+8: LET f=f+1: NEXT h
IF CODE CHR$ e=124 OR CODE CHR$ e=126 THEN RETURN
GO SUB 600: FOR h=19 TO 21: PRINT AT h,j+1;CHR$ e: NEXT h
IF j<2 THEN PRINT AT 19,j+7;CHR$ e: GO SUB 610: RETURN
PRINT AT 20,j+5;CHR$ e: GO SUB 610: RETURN
IF e<50 THEN LET gx=2: LET gy=28: GO TO 560
IF e<70 THEN LET gx=6: LET gy=48: GO TO 560
IF e<90 THEN LET gx=10: LET gy=68: GO TO 560
IF e<110 THEN LET gx=14: LET gy=88: GO TO 560
IF e<128 THEN LET gx=19: LET gy=108: GO TO 560
LET gx=24: LET gy=143
PRINT AT 21,16;i;AT 0,6+INT (s/8)*4;"   ";AT 0,6+INT (s/8)*4;e: GO SUB 600: PRINT AT qx,1+INT (s/17);CHR$ e;AT gy-e,gx;CHR$ e: GO SUB 610: RETURN
POKE 23606,86: POKE 23607,251: RETURN
POKE 23606,0: POKE 23607,60: RETURN
IF ci=9600 THEN GO SUB cs+20: RETURN
IF ci=9000 AND cs=5 OR cs=8 OR cs>15 THEN GO SUB cs+20: RETURN
RETURN
FLASH 1: PRINT AT 17,8;"jesemenet!": RETURN
GO SUB 8100
LET n=CODE INKEY$: IF n=53 THEN GO SUB 8100: LET px=px-1
IF px<5 THEN LET px=20
IF n=54 THEN GO SUB 8100: LET py=py+1
IF py>16 THEN LET py=1
IF n=55 THEN GO SUB 8100: LET py=py-1
IF py<1 THEN LET py=16
IF n=56 THEN GO SUB 8100: LET px=px+1
IF px>20 THEN LET px=5
IF n=48 THEN PAPER 7: PRINT AT py,px;CHR$ 128
IF n=57 THEN PAPER 0: PRINT AT py,px;CHR$ 143: PAPER 7
FOR t=103 TO 105: PLOT 104,t: PLOT t,104: NEXT t
RETURN
LET at=INT ((ATTR (py,px))/8)
IF at=7 THEN PRINT AT py,px;CHR$ 134: PRINT AT py,px;CHR$ 137: PRINT AT py,px;CHR$ 128
IF at=0 THEN PAPER 7: PRINT AT py,px;CHR$ 134: PRINT AT py,px;CHR$ 137: PAPER 0: PRINT AT py,px;CHR$ 143: PAPER 7
RETURN
GO SUB 9015: INPUT "Display previous work? ";n$: IF n$<>"n" THEN LET tx=5: LET ty=1: FOR t=1 TO 256: GO TO 9003
RETURN
IF k(t)=1 THEN PAPER 0: PRINT AT ty,tx;CHR$ 143: PAPER 7: GO TO 9010
PRINT AT ty,tx;CHR$ 128
LET tx=tx+1: IF tx>20 THEN LET tx=5: LET ty=ty+1
NEXT t: GO SUB 34: RETURN
LET ci=9600: BORDER 1: PAPER 5: BRIGHT 1: FOR t=0 TO 21: PRINT AT t,0;"                          ";: NEXT t
BRIGHT 0: FOR t=4 TO 21: PRINT AT 0,t;" ";AT 17,t;" ": NEXT t
FOR t=1 TO 16: PRINT AT t,4;" ";AT t,21;" ": NEXT t
PRINT AT 0,4;"_";AT 0,21;"_";AT 8,4;"_";AT 8,21;"_"
FOR t=32 TO 39: PLOT 39,t: PLOT 103,t: PLOT 168,t: PLOT 39,t+136: PLOT 103,t+136: PLOT 168,t+136: NEXT t
PRINT AT 0,8;"-1-";AT 17,8;"-3-";AT 0,15;"-2-";AT 17,15;"-4-"
PLOT 39,39: DRAW 0,129: DRAW 129,0: DRAW 0,-129: PLOT 32,39: DRAW 143,0
BRIGHT 0: PAPER 7: FOR t=1 TO 16: PRINT AT t,5;"                ": NEXT t
INK 0: PAPER 5: BRIGHT 1
PRINT AT 18,1;"ABCD"
PAPER 7: BRIGHT 0
RETURN
PRINT AT j,a;"-1-";AT j+1,a;"-2-";AT j+2,a;"-3-";AT j+3,a;"-4-";AT j+4,a;"all": RETURN
PAPER 1: BRIGHT 0: FOR t=0 TO 21: PRINT AT t,26;" ": NEXT t
BRIGHT 1: FOR t=0 TO 21: PRINT AT t,27;"     ": NEXT t
BRIGHT 0: PRINT AT 0,27;"ERASE";AT 7,27;"SWATH";AT 8,27;"SAVE ";AT 9,27;"CODES";AT 15,27;"STORE";AT 21,27;"PRINT"
BRIGHT 1: LET a=28: LET j=1: GO SUB 9500
LET j=10: GO SUB 9500: LET j=16: GO SUB 9500
PRINT AT 6,a;"row": PAPER 7: BRIGHT 0: RETURN
INPUT "Returning to current work? ";n$: IF n$<>"n" THEN PAPER 7: GO SUB 800: LET tx=5: LET ty=1: FOR t=1 TO 256: GO TO 9602
GO TO 9608
IF INT (ATTR (ty,tx)/8)<>7 THEN LET k(t)=1: GO TO 9605
LET k(t)=0
LET tx=tx+1: IF tx>20 THEN LET tx=5: LET ty=ty+1
NEXT t
LET ci=9000: FLASH 0: BORDER 5: PAPER 5: BRIGHT 0: FOR t=0 TO 21: PRINT AT t,0;"                          ": NEXT t
LET bb=0: LET xp=32: LET yp=49: LET wp=28: LET xt=0: GO SUB 9720
LET xp=50: LET yp=69: LET wp=48: LET xt=4: GO SUB 9720
LET xp=70: LET yp=89: LET wp=68: LET xt=8: GO SUB 9720
LET xp=90: LET yp=99: LET wp=88: LET xt=12: GO SUB 9720
LET xp=100: LET yp=109: LET xt=11: GO SUB 9720
LET xp=110: LET yp=127: LET wp=108: LET xt=16: GO SUB 9720
LET xp=144: LET yp=164: LET wp=143: LET xt=21: LET bb=1: GO SUB 9720
PAPER 7: PRINT AT 0,6;"               ": PAPER 5: PRINT AT 16,25;" ";AT 16,19;"- ";AT 18,19;"- ";AT 0,0;"1  2";AT 1,0;"3  4"
PRINT AT 0,5;"1";AT 0,9;"2";AT 0,13;"3";AT 0,17;"4": BRIGHT 1: PRINT AT 3,0;"C#:";AT 0,21;"UDG:";AT 20,16;"addr:": PAPER 7: BRIGHT 0: PRINT AT 21,16;"63568";AT 0,1;"  ";AT 1,1;"  "
BRIGHT 0: RETURN
FOR z=xp TO yp: LET aa=z-wp: PAPER 5: BRIGHT bb: PRINT AT aa,xt;z;
POKE 23606,86: POKE 23607,251: PAPER 7: BRIGHT 0: PRINT CHR$ z: POKE 23606,0: POKE 23607,60: NEXT z: RETURN
SAVE "UDG+" LINE 10: SAVE "UDG+" LINE 10
REM     cfe/mc (+demo)

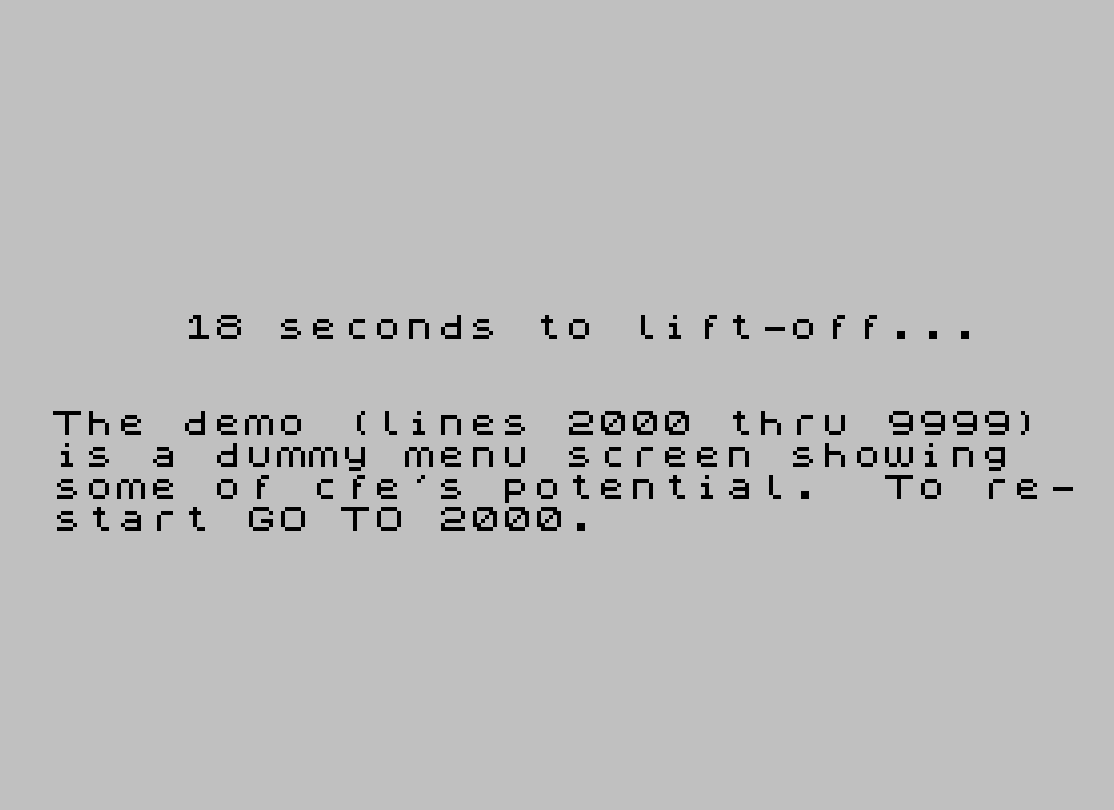

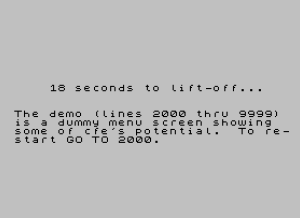

CLS : PRINT AT 9,4;"18 seconds to lift-off..."'''"The demo (lines 2000 thru 9999) is a dummy menu screen showing  some of cfe's potential.  To re-start GO TO 2000."
LET code=45000
LET print=code+13
POKE 23728,(code-256*INT (code/256)): POKE 23729,INT (code/256)
FOR t=code TO code+1501: READ o: POKE t,o: NEXT t
REM         CFE CODE
DATA 0,0,0,0,0,0,0,0,0,0,0,0,0,213,197,229,245,217,8,213,197,229,245,237,91,176,92,24,13,0,0,0,0
DATA 0,0,0,0,0,225,35,24,7,42,85,92,1,5,0,9,126,254,173,32,6,235,54,2,235,24,77,254,172,32,6,235,54,1,235,24,67
DATA 254,34,32,6,229,33,26,1,25,233
DATA 235,22,65,1,116,0,9,114,35,35,35,119,62,0,205,48,18,62,69,215,62,82,215,62,82,215,62,79,215,62,82,215,62,32,215,62,120,215,62,120,215
DATA 205,9,32,56,251,241,225,193,209,8,217,241,225,193,209,201
DATA 35,126,1,97,8,213,229,33,3,0,25,235,225,185,32,3,26,24,50,12,19,16,246,209,1,48,10,185,40,8,12,16,250,235,22,66,24,164
DATA 213,198,208,79,35,26,254,1,40,4,30,59,24,2,30,44,126,187,121,40,11,6,9,129,16,253,79,62,208,134,129,35,209,1,118,92,2
DATA 35,229,26,254,2,40,35,1,8,168,58,118,92,111,62,0,189,40,8,60,245,120,145,71,241,24,245,120,213,235,17,12,0,25,209,119,62,2,18,225,24,140
DATA 58,118,92,1,8,8,103,62,0,203,68,40,1,129,203,33,203,44,16,245,213,235,17,11,0,25,209,119,225
DATA 35,24,2,24,141,126,254,34,32,51,35,126,254,58,32,18,229,33,38,0,229,46,11,124,25,119,35,126,214,8,119,225,25,233,254,59,40,5
DATA 33,126,0,24,233,35,126,254,13,32,5,33,126,0,25,233,43,229,33,38,0,25,233,254,39,32,14,35,126,254,39,32,4,62,34,24,8,43,126,24,4
DATA 203,127,32,20,6,7,229,213,22,0,95,213,225,25,16,253,209,229,24,122,198,185,24,236,254,199,40,248,254,200,40,244,254,201,40,240
DATA 24,5,235,22,67,24,137,254,197,40,77,254,195,40,114,254,172,40,120,254,204,40,18,254,203,40,104,254,198,40,102,254,205,40,100,254,226,40,98
DATA 24,217,229,213,225,35,126,254,1,40,7,54,1,1,138,24,24,5,54,0,1,217,229,33,73,2,25,112,35,113,24,123,229,8,217,197,245,121,193,144
DATA 193,79,120,198,248,71,8,24,101,229,33,45,2,25,126,254,56,40,4,54,56,24,2,54,48,24,88
DATA 193,33,198,1,25,9,8,126,8,126,213,229,33,11,0,25,78,35,70,225,197,24,18
DATA 24,68,24,162,24,160,24,158,24,156,229,33,11,0,25,53,24,47
DATA 217,193,217,71,35,175,126,197,6,8,23,217,48,7,197,245,205,62,38,241,193,4,217,16,241,193,217,12,120,198,248,71,217,16,225
DATA 209,33,11,0,25,229,217,225,113,35,112,217,33,26,1,25,233
DATA 62,0,50,119,92,35,126,254,34,40,37,254,195,32,46,213,225,1,116,0,9,54,61,35,35,35,58,119,92,6,2,79,175,121,23,56,4,16,251,14,32,121,119,33,92,0,25,233
DATA 33,37,0,25,58,119,92,119,33,126,0,25,233,203,127,40,21,1,199,2,185,40,13,12,16,250,254,172,32,183,58,119,92,61,24,174,198,185
DATA 229,213,6,7,22,0,95,213,225,25,16,253,209,229,193,33,198,1,25,9,58,119,92,134,225,24,145
REM CLASSY FONT TABLE DATA
DATA 4,0,0,0,0,0,0,0.,3,0,94,94,0,0,0,0.,5,0,7,0,0,7,0,0.,6,34,255,34,34,255,34,0.,6,0,44,110,255,74,48,0
DATA 7,0,12,10,102,50,94,54.,5,0,40,124,214,84,0,0.,3,0,4,3,0,0,0,0.,4,0,60,126,129,0,0,0.,4,0,129,126,60,0,0,0
DATA 6,0,10,4,31,4,10,0.,6,0,16,16,124,16,16,0.,3,0,144,112,0,0,0,0.,5,0,24,24,24,24,0,0.,3,0,96,96,0,0,0,0
DATA 4,0,96,24,6,0,0,0.,6,0,60,126,82,74,60,0.,4,0,68,126,64,0,0,0.,5,0,100,98,82,76,0,0.,6,0,34,66,74,126,50,0
DATA 5,0,24,20,126,16,0,0.,5,0,46,78,74,50,0,0.,6,0,56,124,74,74,48,0.,5,0,2,114,26,14,0,0.,6,0,52,126,74,74,52,0
DATA 6,0,12,94,82,82,60,0.,3,0,40,40,0,0,0,0.,3,0,168,104,0,0,0,0.,5,0,24,60,102,129,0,0.,3,40,40,40,0,0,0,0
DATA 5,0,129,102,60,24,0,0.,6,0,4,2,82,94,12,0.,7,0,4,50,42,122,66,60.,6,0,124,126,18,18,124,0.,6,0,126,126,74,74,52,0
DATA 6,0,60,126,66,66,36,0.,6,0,126,126,66,66,60,0.,6,0,126,126,74,74,66,0.,6,0,126,126,10,10,2,0.,6,0,60,126,66,82,116,0
DATA 6,0,126,126,8,8,126,0.,5,0,66,126,126,66,0,0.,6,0,48,64,64,126,62,0.,6,0,126,126,24,36,66,0.,6,0,126,126,64,64,64,0
DATA 7,0,126,126,4,8,4,126.,7,0,126,126,12,48,126,126.,6,0,60,126,66,66,60,0.,6,0,126,126,18,18,12,0.,6,0,60,126,82,98,252,0
DATA 6,0,126,126,18,50,108,0.,6,0,44,110,74,74,48,0.,6,2,2,126,126,2,2,0.,6,0,62,126,64,64,62,0.,7,0,6,30,120,96,24,6
DATA 7,0,62,126,64,48,64,62.,7,0,66,102,60,24,36,66.,7,2,6,12,120,120,4,2.,6,0,98,114,90,78,70,0.,3,0,255,129,0,0,0,0
DATA 4,0,6,24,96,0,0,0.,3,0,129,255,0,0,0,0.,7,0,62,30,30,62,114,32.,6,128,128,128,128,128,128,0.,7,0,252,254,194,194,194,126
DATA 5,0,48,120,72,120,0,0.,5,0,126,72,120,48,0,0.,5,0,48,120,72,72,0,0.,5,0,48,120,72,126,0,0.,5,0,48,120,104,88,0,0
DATA 4,0,8,126,10,0,0,0.,5,0,176,248,200,248,0,0.,5,0,126,8,8,112,0,0.,4,0,72,122,64,0,0,0.,3,128,128,122,0,0,0,0
DATA 5,0,126,16,48,72,0,0.,4,0,66,126,64,0,0,0.,7,0,120,120,8,120,8,112.,5,0,120,120,8,112,0,0.,5,0,48,120,72,48,0,0
DATA 5,0,248,72,120,48,0,0.,5,0,48,120,72,248,0,0.,5,0,120,112,8,8,0,0.,5,0,80,88,120,40,0,0.,4,0,8,126,72,0,0,0
DATA 5,0,56,120,64,120,0,0.,5,0,24,48,96,24,0,0.,7,0,56,120,64,48,64,56.,5,0,72,48,48,72,0,0.,5,0,152,184,96,56,0,0
DATA 5,0,72,104,88,72,0,0.,6,1,1,1,1,1,1,0.,4,0,255,255,0,0,0,0.,6,170,170,170,170,170,170,0.,7,68,108,56,31,56,108,68
DATA 5,0,24,60,231,36,0,0
DATA 6,255,119,219,119,219,255,0.,3,0,24,24,0,0,0,0.,7,24,48,96,48,8,4,2
REM     DRAW MAIN SCREEN
PAPER 5: BORDER 1: CLS : PAPER 7: FOR t=0 TO 7: PRINT "        ";: NEXT t: PLOT 2,2: DRAW 250,0: DRAW 0,166: DRAW -250,0: DRAW 0,-166: PLOT 2,159: DRAW 250,0: RANDOMIZE USR print
REM AT 0,1;">=  File  Edit OR  Demo^ OR  Windows  Options";AT 1,0;" }`}}}}}}}} CLASSY FRONT END DEMO }}}}}}}}}"
PAPER 5: RANDOMIZE USR print
REM AT 2,2;">= New 2068 Medium character set:"
FOR t=1 TO 6: RANDOMIZE USR print
REM " !''#$%&'()*+,-./0123456789:;<=>?@ABCDEFGHIJKLMNO"
RANDOMIZE USR print
REM "AT  PQRSTUVWXYZ[\]^_`abcdefghijklmnopqrstuvwxyzAT AT { STICK } FREE "
RANDOMIZE USR print
REM " AT \*<=>=<>%&'()*+,-./0123456789:;<=>?@ABCDEFGHIJKLMNO"
NEXT t
REM      ARROW KEY LOOP
PAPER 7: GO SUB 8200
LET a=11: GO SUB 6020
IF INKEY$="6" THEN GO SUB 6000
IF CODE INKEY$=13 THEN STOP
IF INKEY$="7" THEN GO SUB 6030
GO TO 3000
REM       MENU ICON
PRINT AT a,6;"              ": GO SUB 7890+a*10
LET a=a+1: IF a=20 THEN LET a=11
PRINT AT a,6;"              ": GO SUB 7980+a*10: RETURN
PRINT AT a,6;"              ": GO SUB 7890+a*10
LET a=a-1: IF a=10 THEN LET a=19
PRINT AT a,6;"              ": GO SUB 7980+a*10: RETURN
REM      menu subroutines
RANDOMIZE USR print
REM AT 11,6;">= AT AT ''Kerning'' function "
RETURN
RANDOMIZE USR print
REM AT 12,6;">= AT OR  Inverse AT AT  printing  "
RETURN
RANDOMIZE USR print
REM AT 13,6;">= AT TO  Vertical AT AT  printing "
RETURN
RANDOMIZE USR print
REM AT 14,6;">= AT NOT AT AT Line AT AT length AT tester "
RETURN
RANDOMIZE USR print
REM AT 15,6;">= AT AT STEP, AT AT AND,AT AT  THEN, AT AT STAT OP"
RETURN
RANDOMIZE USR print
REM AT 16,6;">= AT ERROR  AT AT codes  A, B, C "
RETURN
RANDOMIZE USR print
REM AT 17,6;">= AT Using color commands "
RETURN
RANDOMIZE USR print
REM AT 18,6;">= AT Using OVER & ERASE  "
RETURN
RANDOMIZE USR print
REM AT 19,6;">= AT QUIT  AT program  AT demos "
RETURN
RANDOMIZE USR print
REM AT 11,6;" OR >= AT AT ''Kerning'' function OR "
RETURN
RANDOMIZE USR print
REM AT 12,6;" OR >= AT OR  Inverse AT AT  printing  OR "
RETURN
RANDOMIZE USR print
REM AT 13,6;" OR >= AT TO  Vertical AT AT  printing OR "
RETURN
RANDOMIZE USR print
REM AT 14,6;" OR >= AT NOT AT Line AT AT length AT AT tester OR "
RETURN
RANDOMIZE USR print
REM AT 15,6;" OR >= AT STEP, AT AT AND,AT AT  THEN, AT AT STAT OP OR "
RETURN
RANDOMIZE USR print
REM AT 16,6;" OR >= AT ERROR  AT codes  A, B, C OR "
RETURN
RANDOMIZE USR print
REM AT 17,6;" OR >= AT Using color commands AT AT AT  OR "
RETURN
RANDOMIZE USR print
REM AT 18,6;" OR >= AT Using OVER & ERASE AT AT AT   OR "
RETURN
RANDOMIZE USR print
REM AT 19,6;" OR >= AT QUIT  AT program  AT demos AT AT AT  OR "
RETURN
REM       DRAW MENU BOX
PAPER 7: FOR t=9 TO 20: PRINT AT t,6;"              ": NEXT t: PLOT 46,104: DRAW 0,-98: DRAW 113,0: DRAW 0,1: DRAW -112,0: DRAW 0,88: DRAW 112,0: PLOT 46,104: DRAW 114,0: DRAW 0,-97: PAPER 3: RANDOMIZE USR print
REM AT 9,6;"}}}}}} MENU }}}}}}}"
PAPER 7: FOR b=11 TO 19: GO SUB 7890+b*10: NEXT b
RETURN
SAVE "cfe/mc" LINE 3: SAVE "cfe/mc" LINE 3
REM  window & porthole demo
CLS : PRINT AT 10,8;"just a second...";AT 14,0;"(to go to next demo after port-      holes just press ""2"")";AT 0,0;
FOR t=55000 TO 56163: READ o: POKE t,o: NEXT t: DATA 213,197,229,245,217,8,213,197,229,245,17,216,214,33,3,4
DATA 125,1,3,15,185,40,5,12,16,250,24,10,124,1,4,25,185,40,6,12,16,250,33,10,16,34,118,92
DATA 1,8,168,62,0,189,40,8,60,245,120,145,71,241,24,245,120,217,71,217,65,62,0,203,68,40,1,129,203,33,203,44,16,245
DATA 217,79,197,217,235,209,229,1,112,0,9,126,254,128,40,16,131,79,35,126,130,71,35,229,213,205,62,38,209,225,24,235,35,233
DATA 237,24,238,24,239,25,20,24,21,24,19,25,18,26,17,27,16,27,230,16,231,16,231,17,231,18,27,16,26,17,26,18,25,19,24,20,24,21
DATA 231,235,230,236,231,236,229,237,230,237,231,237,229,238,230,238,231,238,228,239,229,239,230,239,231,239,24,236,24,237,25,238,26,239
DATA 239,228,237,229,238,229,239,229,236,230,237,230,238,230,239,230,234,231,235,231,236,231,237,231,238,231,239,231,16,229,16,230,17,230,17,231,18,231,18,231,128
DATA 37,1,36,0,9,229,62,2,205,48,18,42,118,92,62,35,148,103,62,27,149,111,69,76,205,20,9,1,157,3,225,34,54,92,9,233
DATA 0,0,0,0,0,0,0,0.,0,1,6,24,32,192,3,12.,63,192,0,0,31,224,0,0.,255,0,0,0,255,0,0,0.,128,112,12,3,0,224,28,3
DATA 12,24,48,97,194,132,136,8.,16,96,128,0,0,0,0,0.,130,65,32,16,8,4,4,2.,7,6,14,12,28,24,56,56.,16,32,32,64,64,128,128,128
DATA 1,1,0,0,0,0,0,0.,16,8,136,132,68,66,66,34.,49,113,113,97,226,226,226,226.,34,33,33,17,17,17,17,17.,226,226,226,226,226,225,241,241
DATA 17,17,17,17,33,33,34,34.,248,120,120,124,60,62,30,31.,128,128,64,64,32,16,8,4.,0,0,0,0,1,1,2,2.,68,68,132,136,8,16,16,32.,132,194,225,240,248,252,255,127
DATA 0,0,0,192,32,24,6,129.,0,0,0,0,0,1,6,24.,4,8,16,32,193,2,12,24.,224,248,252,255,127,31,7,0.,240,15,0,0,224,255,255,127
DATA 1,254,0,0,0,255,255,254.,224,1,7,31,252,240,192,0
DATA 1,6,24,32,96,224,224,224.,255,0,0,0,0,0,0,0.,224,224,224,224,224,224,224,224.,224,24,6,1,1,1,1,1.,1,1,1,1,1,1,1,1.,1,1,1,6,28,248,240,192.,224,224,224,248,254,127,31,7.,0,0,0,0,0,255,255,255
DATA 63,32,239,232,232,232,232,232.,255,0,255,0,0,0,0,0.,232,232,232,232,232,232,232,232.,255,1,253,5,5,5,5,5.,5,5,5,5,5,5,5,5.,5,5,5,253,1,255,252,252.,232,232,232,239,224,255,255,255.,0,0,0,255,0,255,255,255
DATA 1,6,8,16,49,98,228,228.,255,0,0,255,0,0,0,0.,228,228,228,228,228,228,228,228.,224,24,4,194,34,17,9,9.,9,9,9,9,9,9,9,9.,17,34,194,4,24,240,224,128.,226,241,240,120,126,63,31,7.,0,0,255,0,0,255,255,255
DATA 0,0,7,12,20,52,212,212.,14,19,253,1,7,15,9,6.,212,212,212,212,212,212,212,212.,0,0,255,1,1,1,1,1.,1,1,1,1,1,1,1,1.,1,1,255,2,254,4,252,248.,212,212,215,208,223,192,255,255.,0,0,255,0,255,0,255,255
DATA 0,63,42,250,230,254,225,255.,0,255,170,170,170,170,170,255.,225,255,225,255,225,255,225,255.,0,254,170,174,178,190,194,254.,130,254,130,254,130,254,130,254.,130,254,178,174,170,254,248,248.,225,255,230,250,234,255,255,255.,255,170,170,170,170,255,255,255
DATA 123,196,192,202,192,235,66,202.,219,36,0,170,0,255,0,0.,194,234,66,202,226,74,194,202.,239,17,1,169,2,233,33,41.,33,41,34,41,33,42,33,41.,33,233,2,169,1,17,255,222.,194,235,64,202,192,196,255,247.,0,255,0,170,0,36,255,183
DATA 7,62,82,209,209,255,126,12.,255,0,0,0,0,0,0,0.,14,28,15,30,4,14,28,28.,240,30,9,9,9,30,56,32.,16,48,64,32,16,16,32,32.,16,30,9,9,9,30,248,192.,14,62,82,209,209,254,127,15.,0,0,0,0,0,0,255,255
DATA 62,33,215,62,34,215,62,35,215,62,36,215,42,136,92,37,62,5,133,111,229,193,205,20,9,62,37,215,62,38,215,6,3,62,32,215,16,251
DATA 62,39,215,42,136,92,37,62,7,133,111,229,193,205,20,9,62,40,215,62,41,215,6,4,62,32,215,16,251,62,42,215,62,43,215,42,136,92,37
DATA 62,8,133,111,229,193,205,20,9,62,44,215,6,6,62,32,215,16,251,62,45,215,42,136,92,37,62,8,133,111,229,193,205,20,9,62,46,215
DATA 6,6,62,32,215,16,251,62,47,215,42,136,92,37,62,8,133,111,229,193,205,20,9,62,48,215,62,49,215,6,4,62,32,215,16,251,62,50,215
DATA 62,51,215,42,136,92,37,62,7,133,111,229,193,205,20,9,62,52,215,62,53,215,62,32,215,62,32,215,62,54,215,62,55,215,42,136,92,37
DATA 62,5,133,111,229,193,205,20,9,62,56,215,62,57,215,62,58,215,62,59,215,209,33,0,60,34,54,92
DATA 241,225,193,209,8,217,241,225,193,209,201
CLS : LET l=55000: FOR t=1 TO 44: PRINT "@@@@@@@@@@@@@@@@";: NEXT t
LET x=RND*28: IF x<4 THEN GO TO 3010
LET y=RND*17: IF y<3 THEN RANDOMIZE : GO TO 3010
POKE l+14,y: POKE l+15,x: LET k=USR l
PRINT AT y,x-2;INT (y+.5);",";INT (x+.5): IF INKEY$="2" THEN GO TO 4000
GO TO 3010
CLS
LET x=0: LET y=0: LET chars=23606: GO SUB 4160
FOR g=108 TO 60 STEP -8
PRINT AT y,x;CHR$ g;
FOR h=x+1 TO x+18: PRINT CHR$ (g+1);: NEXT h: PRINT CHR$ (g+3)
FOR h=y+1 TO y+14: PRINT AT h,x;CHR$ (g+2);"                  ";CHR$ (g+4): NEXT h
PRINT AT y+15,x;CHR$ (g+6);: FOR h=x+1 TO x+18: PRINT CHR$ (g+7);: NEXT h
PRINT CHR$ (g+5)
LET d=((g-60)/8+65): GO SUB 4150: PRINT AT y+4,x+6;"WINDOW ";CHR$ d;AT y+9,x+3;"Press any key": IF d<>65 THEN PRINT AT y+10,x+2;"for next window.": GO SUB 4160: GO TO 4110
PRINT AT y+10,x+6;"to STOP.": GO SUB 4160
IF INKEY$="1" THEN GO SUB 4150: GO TO 3000
IF INKEY$="" THEN GO TO 4110
LET x=x+2: LET y=y+1: NEXT g
GO SUB 4150: STOP
POKE chars,0: POKE chars+1,60: RETURN
POKE chars,221: POKE chars+1,214: RETURN
SAVE "w&p" LINE 2: SAVE "w&p" LINE 2

Note: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
